Heavy-Duty
Custom Heavy Duty Industrial Pallet Racking Load Capacity Q235 Steel Beam Rack
Q235 Steel
1,000–4,500kg/Level
50/75mm Pitch
Engineered Storage Portfolio
Factory-Direct Heavy-Duty Industrial Pallet Racking Systems
Configured with structural Q235B/Q355B certified steel, automated robotic welds, and electrostatic powder finishes engineered to withstand heavy cyclic loading, seismic accelerations, and harsh warehouse environments.
Top Selective
Custom Heavy Duty Industrial Steel Selective Pallet Rack Adjustable Storage Shelves
100% SKU Access
CNC Welded Connectors
ISO 9001
Industrial Grade

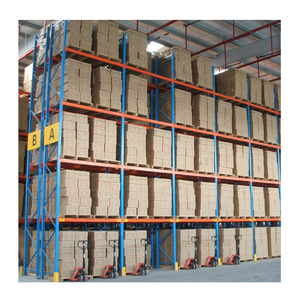

Custom Adjustable Steel Industrial Warehouse Pallet Racking Modular System
Interchangeable Profile
Boltless Locking Pin
Hot-Dip Option
Free Engineering
Palettenregal Warehouse Storage Rack Pallet Rack Heavy Duty Q235B Free Design System
Q235B Steel
2D/3D CAD Layout
FEM 10.2.02
Medium-to-Heavy

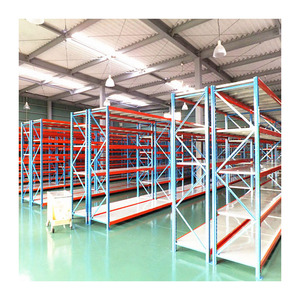

Mracking Medium Duty Warehouse Rack Adjustable Shelves Selective Pallet Steel Rack
500–1,500kg/Level
Step Beam Config
OEM Colors
Safety Component
Customized Heavy Metal Rack & Shelf Dividers with Flanged Wire Mesh Decking
NFPA 13 Fire Rating
Galvanized Finish
Anti-Drop Protection
Boltless Quick-Fit
Industrial Pallet Rack Shelving Boltless Heavy Duty Goods Pallet Storage Rack
Boltless Upright System
Box Beam Profile
Rapid Assembly
Modular Nestainer

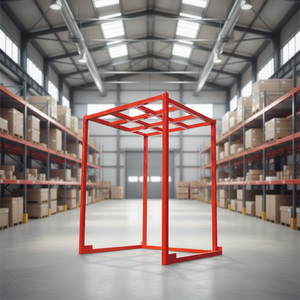

Collapsible Steel 5-Layer Powder Coated Pallet Stacking Rack Industrial Nestainer
Stackable 4-5 High
Collapsible Footprint
Bulk Floor Flex
Engineering Specifications
Structural Rigidity, Load Limits & Material Science
Industrial racking failure is never an option. High-throughput logistics centres demand rigorous adherence to cold-formed steel engineering principles, international deflections, and structural limit state analysis.
Prime Steel Metallurgy (Q235B & Q355B)
Our uprights and beams are fabricated exclusively from certified high-tensile structural coil steel sourced from Tier-1 mills (Baosteel, Shougang). With yield strengths reaching 355 MPa and elongation properties exceeding 21%, the sections withstand immense torsional twisting, horizontal dynamic impacts, and cold-storage embrittlement down to -30°C.
Omega Upright Geometry & FEA Optimization
The patented continuous-roll multi-flange Omega (Ω) column profile incorporates 8 to 12 cold-rolled bends, drastically increasing moment of inertia (Ix, Iy) and buckling resistance. Every section profile undergoes Finite Element Analysis (FEA) to confirm minimum safety factors of 1.5 to 1.65 across full operational payload ranges.
Deflection Limits & Seismic Anchoring
Beam deflection under maximum design loading is strictly engineered to less than L/200 (standard) or L/250 (automated cranes), conforming to EN 15512 and ANSI MH16.1. Heavy-gauge baseplates (8mm–16mm thickness) distribute concentrated point loads to industrial concrete slabs via chemical/mechanical M12–M16 seismic anchors.
| System Architecture | Pallet Accessibility | Volumetric Density | Typical Payloads / Level | Inventory Flow | Best Warehouse Application |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Direct Access | Moderate (35%–40% cube) | 1,000 kg – 4,500 kg | FIFO / LIFO Flexible | High SKU variety, 3PL hubs, retail dispatch |
| Drive-In / Drive-Through | Single Lane Access | Ultra-High (up to 75% cube) | 1,000 kg – 2,000 kg | LIFO (Drive-In) / FIFO | Bulk batch goods, raw ingredients, beverage |
| Semi-Automated Radio Shuttle | Deep-Lane Dynamic | Maximum (80%+ cube) | 500 kg – 2,000 kg | Software Selectable (FIFO/LIFO) | Cold storage, blast freezers, high-turnover FMCG |
| Push-Back (Nested Carts) | Lane Facing (2–6 Deep) | High (55%–65% cube) | 800 kg – 1,500 kg | LIFO via gravity glide | Medium SKU turnover, staging buffers, cool rooms |
| Heavy Cantilever Systems | 100% Unobstructed Front | Linear Optimized | 500 kg – 3,000 kg / Arm | Free Selective Handling | Pipes, extrusions, timber, steel sheet bundles |
Strategic Horizon 2026–2035
Future Procurement & Technological Trends in Racking
Industrial supply chain directors are moving away from treating pallet racks as simple steel commodity shelves. Modern procurement strategies align structural engineering with autonomous robotics, real-time sensing, and life-cycle carbon reduction.
1. AS/RS & AMR Integration
Static storage is increasingly retrofitted with guide rails, rack-integrated busbars, and precise optical positioning targets to accommodate Autonomous Mobile Robots (AMRs), automated pallet cranes, and 4-way deep-lane shuttles without costly full-structure replacement.
2. Total Cost of Ownership (TCO)
Global procurement teams prioritize TCO over initial capital expense. Incorporating modular post-protectors, heavy-gauge reinforced Omega upright bottoms, and anti-impact guide rails drops ongoing rack maintenance budgets by up to 68% over 10-year facility lifecycles.
3. Circular Steel & Zero-VOC Coatings
ESG compliance requires verifiable carbon footprints. Tier-1 buyers demand EAF (Electric Arc Furnace) recycled steel fractions and TGIC-free thermosetting electrostatic powders that emit zero Volatile Organic Compounds (VOCs) during high-temperature curing.
4. Extreme Climate Engineering
Rapid expansion in coastal free zones and desert logistical hubs (e.g., Dubai, Dammam, Singapore, Rotterdam) mandates enhanced anti-corrosion regimes, including multi-stage zinc phosphating, C4-grade powder coatings, and hot-dip galvanizing to withstand salt air and +50°C thermal swings.
Enterprise Strengths
Why Global Logistics Leaders Partner with HEDA Shelves
Established in 2001, Guangzhou Heda Shelves Co., Ltd. operates a vertically integrated industrial manufacturing campus supplying factory-direct pallet racking, cantilever systems, and structural mezzanines to over 120 countries.
30,000 m² Factory Infrastructure
Our Guangzhou manufacturing headquarters features automated continuous roll-forming lines, computerized plasma cutters, and multi-axis robotic welding cells producing over 30,000 metric tons of structural storage systems each month.
Certified Quality Traceability
Every fabrication batch conforms to strict international compliance: CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management (No. 18624Q00169R0M), and verified RoHS environmental safety reports available for tender reviews.
Free 2D CAD & 3D BIM Layouts
Before steel is punched, our 300+ technical and design team delivers comprehensive 2D CAD layout designs and 3D photorealistic visualisations within 24–48 hours, detailing beam clearances, aisle widths, forklift turning radii, and flue spaces.
Turnkey OEM/ODM Export Packing
Specialized export strapping, steel dunnage feet, protective bubble wrapping, and color-coded bundle tags match modular erection blueprints directly. Optimized container packing maximizes TEU/FEU container volume and eliminates maritime transit damage.
Zero-Defect Quality Control
10-Step Precision Manufacturing Process
From raw coil analysis to final export container stuffing, every component is manufactured in-house under traceable ISO 9001 protocols to guarantee dimensional tolerances of ±0.5mm.
01
Raw Materials Inspection
02
Precision Steel Cutting
03
Automated Punching
04
Cold Bending Forming
05
Profile Roll Forming
06
Surface Polishing
07
Robotic Welding
08
Pickling & Phosphating
09
Electrostatic Coating
10
QC & Export Loading
Project References
International High-Load Intralogistics Projects
From heavy industrial chemical facilities to fast-paced automotive picking centers, review how our custom-engineered systems perform across demanding environments worldwide.
Technical Q&A
Industrial Pallet Racking Procurement FAQ
Clear, engineering-backed answers addressing structural calculations, civil defense approvals, fire protection, and custom OEM manufacturing.
What engineering data is required to generate a certified 2D CAD layout and quotation?
To generate structurally certified approval drawings and load ratings, our structural engineering department requires:
1. Architectural Building Drawings: Clear height under roof trusses, column grid spacing, floor slab thickness/compressive rating (e.g., C25/30, 200mm slab), and location of dock doors/fire exits.
2. Pallet & Unit Load Parameters: Overall pallet dimensions (width × depth × height, including cargo overhang), gross pallet weight (average and absolute maximum), and pallet style (Euro, ISO standard, GMA, or perimeter-base runners).
3. Material Handling Equipment (MHE): Forklift make/model, maximum fork lift height, collapsed mast height, and minimum right-angle stacking aisle width requirement (AST).
1. Architectural Building Drawings: Clear height under roof trusses, column grid spacing, floor slab thickness/compressive rating (e.g., C25/30, 200mm slab), and location of dock doors/fire exits.
2. Pallet & Unit Load Parameters: Overall pallet dimensions (width × depth × height, including cargo overhang), gross pallet weight (average and absolute maximum), and pallet style (Euro, ISO standard, GMA, or perimeter-base runners).
3. Material Handling Equipment (MHE): Forklift make/model, maximum fork lift height, collapsed mast height, and minimum right-angle stacking aisle width requirement (AST).
How do HEDA racking systems comply with local Civil Defense, NFPA 13, and insurance regulations?
Our structural layouts are calculated to satisfy international life-safety and fire codes. We engineer longitudinal and transverse flue spaces (minimum 150mm / 6 inches) into all back-to-back rack runs to allow unrestricted penetration of overhead ESFR (Early Suppression Fast Response) fire sprinkler water. In addition, our galvanized open-mesh wire decking features a minimum 70% open area, fulfilling NFPA 13 sprinkler criteria, and every system includes mandatory high-visibility maximum permissible load rating plates stamped for regional building inspector and insurer verification.
What structural calculations prevent progressive collapse during forklift collisions?
In accordance with EN 15512 and FEM 10.2.02, all outer aisle-facing frames are outfitted with heavy-duty structural steel column guards (minimum 5mm–8mm plate) anchored independently into the floor slab to absorb accidental dynamic impacts. Furthermore, our beams feature precision multi-prong locking connectors secured by automatic spring-steel safety locking pins that resist vertical accidental dislodgement forces exceeding 5,000 N per beam end.
How does the factory guarantee corrosion resistance in high-humidity or coastal desert climates?
Standard cold-rolled steel rapidly degrades under humid coastal air containing airborne chlorides. Our 10-step surface preparation line utilizes a continuous immersion pickling and zinc-phosphating pretreatment that chemically strips mill scale and deposits a corrosion-inhibiting micro-crystalline phosphate layer. This is coated with industrial TGIC-free polyester powder baked at 200°C to achieve a minimum dry film thickness (DFT) of 60–80 microns. For outdoor lumber yards or marine docks, we offer continuous Hot-Dip Galvanizing (HDG to ISO 1461) offering 25+ years of zero-maintenance rust protection.
Can HEDA manufacture custom OEM upright sizes and custom powder coat RAL colors?
Yes. As a direct OEM/ODM manufacturer, we develop custom roll-forming tooling for proprietary upright sections, step beams, and customized upright punchings (e.g., teardrop, diamond, or European 50mm/75mm slot profiles). We match any corporate color standard via certified RAL electrostatic powders (standard safety orange RAL 2004, gentian blue RAL 5010, traffic yellow RAL 1023, anthracite grey RAL 7016), complete with customized client brand stencils and laser-cut component markings.
What are the standard international manufacturing and delivery lead times?
Standard production runs for standard selective pallet racking typically take 15 to 25 calendar days from finalized CAD drawing sign-off. High-volume orders (over 10 × 40HQ containers) or custom automated shuttle racking roll-outs are delivered in phased container shipments. We coordinate complete FOB, CIF, or DDP terms shipping directly from Guangzhou/Shenzhen ports to global gateway hubs including Jebel Ali, Dammam, Los Angeles, Rotterdam, Santos, and Sydney.
Upgrade Your Facility with Factory-Direct Storage Engineering
Submit your warehouse floor layout, beam span requirements, or project tender documents. Our senior intralogistics engineers will return a complete 2D CAD spatial plan, 3D structural model, and detailed bill of materials (BOM) within 24 hours.
- Zero-Cost 2D/3D BIM Warehouse Layouts
- CE & ISO 9001 Certified Factory Direct
- Full Seismic & Load Safety Calculations
- Container Optimization & Global Shipping
Request Official Technical Catalog
Access our comprehensive 120-page engineering handbook containing beam capacity tables, upright section moduli, and installation tolerances.
