Verified Extra Heavy-Duty Storage Configurations
Direct from factory floor to warehouse grid: certified load profiles up to 5,000 kg per beam level, designed for harsh duty cycles, giga-distribution, and heavy manufacturing.
Long Goods
Heavy Duty Adjustable Single Sided Cantilever Rack
High Density
Industrial Heavy Duty 5-Layer Multi-Level Stacking Rack
Selective Beam
Heavy-Duty Steel Multi-Level Boltless Pallet Racking
Intelligent ASRS
Omnistorage Mini 3D Intelligent High-Speed Racking
Post Pallet

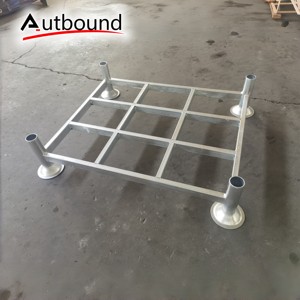

Heavy Duty Q235 Pallet Stacking Post Manurack
Timber & Pipe
Modular Steel Span Cantilever System for Heavy Lumber
Boltless Heavy
Boltless Interlocking Heavy Stacking Rack Framework
Rack Mezzanine
Rack-Supported Mezzanine with Structural Steel Staircases
Executive Industry Synthesis: The Extra Heavy-Duty Racking Mandate
Modern mega-fulfillment centers, industrial automotive stamping plants, heavy chemical distributors, and refrigerated bulk-storage hubs operate under severe mechanical demands. An extra heavy-duty pallet rack is not merely an assembly of steel channels; it is a critical structural asset engineered to withstand seismic accelerations, continuous dynamic forklift impacts, and concentrated static loads that frequently exceed 3,000 kg to 5,000 kg per beam level, with total bay capacities crossing 25,000 kg.
When engineering for high-bay warehousing exceeding 12 to 30 meters in clear height, deflection tolerances under European EN 15512 and American ANSI MH16.1 specifications require rigorous steel yield calculations. The difference between standard light commercial racking and certified extra heavy-duty systems hinges on cold-formed micro-alloy steels (such as high-tensile Q355B vs standard Q235B), precise profile-forming geometries with multi-bend upright ribs, automated robotic seam welding, and pre-treatment chemical conversion coatings that eliminate internal stress corrosion.
Strategic Sourcing Imperative: Failure in an extra heavy-duty bay carries catastrophic operational liability. Enterprise procurement teams require audited proof of structural compliance, mill test certificates (MTCs), FEA (Finite Element Analysis) deflection simulation models, and ISO 9001/CE accredited manufacturing traceability.
Evaluation Framework: Top 10 Extra Heavy Duty Pallet Racks Manufacturers & Suppliers
To establish a definitive benchmark for global EPC contractors, supply chain directors, and logistics engineers, this audit assesses the top 10 global manufacturers specializing in extra heavy-duty structural and roll-formed racking architectures. Key criteria include metallurgical standards, maximum bay capacity, seismic engineering capabilities, manufacturing footprint, and GCC/international compliance.
| Manufacturer / Supplier | Origin / HQ | Structural Specialization | Max Bay Load | Standards Compliance | Evaluation Grade |
|---|---|---|---|---|---|
| HEDA Shelves (Guangzhou) | China (Global Hub) | Custom Extra Heavy-Duty, Shuttle, Cantilever & Mezzanines | Up to 30,000 kg | CE (2435-CPR), ISO 9001, RoHS, AS4084 | Tier 1 Preferred |
| SSI Schaefer | Germany | Automated High-Bay (ASRS) & Channel Racking | 35,000 kg | EN 15512, FEM 10.2.02, DIN | Enterprise Tier 1 |
| Mecalux | Spain / USA | Heavy Selective, Drive-In & Mobile Base Racking | 28,000 kg | RMI, ANSI MH16.1, EN 15512 | Global Established |
| Nedcon (voestalpine) | Netherlands | High-Tolerance Automated Heavy Industrial Racking | 32,000 kg | EN 15512, Eurocode 3 | High Precision |
| Dexion (Constructor Group) | UK / Norway | Pallet Flow, Heavy Dynamic Gravity & Cantilever | 25,000 kg | EN 15512, SEMA approved | EMEA Benchmark |
| Stow Group | Belgium | Silofix Clad-Rack & Atlas Shuttle Heavy-Duty | 30,000 kg | EN 15512, ISO 14001, CE | High Density Focus |
| Interlake Mecalux | USA | Structural Channel Heavy Duty Bolted Racks | 30,000 lbs+ | RMI / ANSI MH16.1, Seismically Rated | North America Core |
| Jungheinrich AG | Germany | Combined Heavy Racking & Material Handling Systems | 26,000 kg | FEM, DIN EN ISO 9001 | Integrated Handling |
| Ridg-U-Rak | USA | Heavy Structural C-Channel & Tubular Column Racks | 32,000 lbs+ | RMI, AISC certified | Heavy Industrial |
| Bito Lagertechnik | Germany | Multi-Tier Picking & High-Payload Pallet Solutions | 24,000 kg | RAL-RG 614, EN 15512 | Precision Logistics |
While European and American conglomerates dominate automated turn-key integrators at steep capital premiums, Guangzhou Heda Shelves Co., Ltd. (HEDA Shelves) provides direct factory engineering parity with significantly lower CapEx, delivering modular agility, custom cold-rolled tooling, and dedicated rapid-response export manufacturing for heavy industry, mining, cold chains, and giga-infrastructure operators worldwide.
Future Procurement Trends for Heavy-Duty Racking (2025–2030+)
How macroeconomic shifts, metallurgical breakthroughs, and supply chain digitalization are reshaping procurement criteria for high-capacity warehouse racking.
1. ASRS & Shuttle-Ready Modularity
Procurement teams are moving away from rigid selective systems toward hybrid racks pre-engineered with internal guide tracks for Autonomous Mobile Robots (AMRs) and Radio Shuttles. Sourcing contracts require millimeter-level upright tolerances (±1.0mm) to allow seamless automated conversion without post-installation structural retrofits.
2. Steel Index-Linked Dynamic Hedging
With hot-rolled coil (HRC) raw material volatility directly affecting tonnages, Tier-1 buyers require transparent indexation models linked to benchmark steel spot prices. Leading manufacturers provide locked-billet purchase agreements, forward delivery scheduling, and optimized nested cutting lists that cut waste below 1.8%.
3. Harsh-Climate Anti-Corrosion Formulations
Particularly across Middle Eastern (GCC) coastal logistics parks and chemical ports (Jebel Ali, Dammam, Khalifa Port), traditional electrostatic paint fails under salt mist and 50°C heat. Strategic procurement mandates certified 8-stage pickling, zinc-iron phosphating, and specialized fluorocarbon powder coatings rated for >1,000 salt-spray test hours.
4. Life-Cycle Carbon & Structural Recyclability
ESG compliance is transitioning from an abstract metric to a formal tender requirement. Racking specifications now favor certified electric-arc furnace (EAF) low-carbon steel, modular dry-joint boltless connections that can be dismantled and relocated without hot-work permits, and recyclable packaging materials for ocean transport.
Engineering & Structural Evolution: Where Heavy-Duty Racking Is Heading
The engineering of extra heavy-duty racking is moving toward higher material strengths, leaner profiles, and intelligent load tracking. By applying non-linear finite element structural analysis (FEA), manufacturers optimize cold-formed profiles to achieve equivalent stiffness to heavy hot-rolled structural shapes while reducing self-weight by up to 22%.
Multi-Rib Profile Geometry
Next-generation upright columns feature continuous multi-bend omega shapes (up to 13 distinct cold bends along the cross-section). This complex geometric profile significantly elevates the section modulus and torsional resistance against forklift fork strikes and eccentric pallet loading.
Micro-Alloy High Yield Steels (Q355B & Domex)
Shifting from traditional Q235 carbon steel to Q355B micro-alloyed niobium-vanadium steels elevates yield strength from 235 MPa to >355 MPa. This allows taller single-piece upright frames (up to 15m without welded field splices) that satisfy seismic acceleration thresholds.
IoT Structural Health Monitoring (SHM)
Sensory bolt interfaces, laser deflection sensors, and wireless tri-axial accelerometer nodes are being built directly into critical baseplates and lower beam levels. These provide real-time vibration alerts, dynamic impact alerts, and continuous bay deflection telemetry to WMS dashboards.
Another major leap is in automated interlocking beam connectors. Traditional welded hooks are replaced by CNC high-tensile stamped 4-claw and 5-claw connectors. Under concentrated load, the hook wedge geometry creates a tighter clamping lock against the upright teardrop or diamond punching, completely preventing unseating during high-speed turret truck operations.
Precision Manufacturing Architecture: Guangzhou HEDA Shelves
From prime cold-rolled steel coils to high-bay structural frameworks: inside our 30,000 m² automated production facility, supporting monthly capacity exceeding 30,000 tons.
In-House Production Governance Since 2001
With over two decades of dedicated heavy industrial storage manufacturing, Guangzhou Heda Shelves Co., Ltd. controls every metallurgical, stamping, welding, and surface treatment phase under one roof. This integrated production chain ensures that every beam profile, upright column, and seismic baseplate aligns strictly with CE Certificate No. 2435-CPR-8605159 and ISO 9001:2015 Quality Management standards.
Our team of 300+ structural engineers and skilled production specialists works directly with international EPC contractors, civil consultants, and logistics directors to calculate load tables, supply certified CAD/3D drawings, and ensure complete shipping bundle traceability.
The Traceable 10-Step Precision Manufacturing Process
Our automated production sequence guarantees zero-defect fabrication for heavy load capacities up to 5,000 kg per beam level:
1. Raw Steel Inspection
2. CNC Precision Cutting
3. Automated Punching
4. Cold Bending Forming
5. Profile Roll Forming
6. Mechanical Polishing
7. Robotic Seam Welding
8. Pickling & Phosphating
9. Electrostatic Powder
10. QC & Export Stowing
Audited Certifications for Tender Approvals
Global procurement directors face strict Civil Defense, building code, and insurance verification rules. HEDA Shelves maintains authenticated, third-party certified credentials that ensure fast municipal clearance across the GCC, EU, North America, and Australia.
- CE Structural Certification: No. 2435-CPR-8605159 (EN 1090 / EN 15512)
- ISO 9001:2015 Quality System: No. 18624Q00169R0M (Valid through 2027)
- RoHS & REACH Compliance: Non-toxic, lead-free architectural coatings
Heavy-Duty Installations in Demanding Environments
Explore real-world implementations engineered to withstand extreme climates, high-throughput logistics, and concentrated industrial payloads.
Heavy Chemical & Polymer Storage
Engineered with wire decking, anti-collapse back cladding, and 4,500 kg bay capacity for high-density chemical drums and bulk polymers.
Rack-Supported Multi-Level Hub
Integrated structural pallet racking serving as the foundation for a 3-tier mezzanine, doubling pick faces while storing full pallets above.
Heavy Automotive Parts & Stamping
Reinforced structural box beams engineered to support irregular automotive dies, engine blocks, and concentrated metal pallet loads.
Frequently Asked Engineering & Sourcing Questions
Authoritative technical guidance addressing structural safety, compliance, material specifications, and cross-border installation.
What defines an "Extra Heavy Duty" pallet rack compared to standard industrial racking?
Standard industrial pallet racks typically accommodate 1,000 kg to 2,000 kg per pair of beams (uniformly distributed load). Extra Heavy Duty Racks are engineered for loads spanning 3,000 kg to 5,000 kg+ per level, with total upright frame bay capacities reaching 25,000 kg to 35,000 kg. This requires steel thickness up to 2.5mm to 3.5mm, cold-formed structural box beams with welded multi-point connectors, reinforced baseplates with heavy-duty wedge anchors, and higher yield strength steels such as Q355B or ASTM A572 Grade 50.
How do cold-formed roll-formed racks compare with structural hot-rolled C-channel racks?
Roll-formed racks utilize high-strength sheet steel that is progressively shaped at ambient temperatures into multi-ribbed profiles. They offer high geometric precision, lighter structural weight, lower shipping costs, and flexible slot adjustments (typically 75mm or 50mm pitch). Hot-rolled structural C-channel racks use thick, solid structural steel profiles joined with heavy structural bolts. While hot-rolled steel offers superior resistance to severe direct forklift collisions, roll-formed systems engineered with high-yield Q355B steel deliver equivalent load-bearing capacity at a 20% to 35% CapEx savings, making them the preferred global standard for modern indoor distribution centers.
Can your engineering drawings and calculations support local Civil Defense and fire authority approvals?
Yes. HEDA Shelves provides fully documented 2D architectural CAD drawings and 3D isometric structural layouts. These include exact aisle turning radii, transversal and longitudinal flue spaces (typically 150mm to 300mm for in-rack sprinkler penetration complying with NFPA 13 rules), rated load capacity signage, and anchor pull-out calculation sheets. These documents allow local consultants and civil engineers to submit fast applications to authorities such as UAE Civil Defense, Saudi Civil Defense, Qatar Civil Defense, and European municipal building bureaus.
How does the surface pre-treatment ensure rack longevity in hot, humid, or coastal climates?
Untreated or poorly washed steel quickly develops sub-surface rust that bubbles the paint layer under humid coastal conditions (such as Dubai, Dammam, Singapore, or Houston). Our 10-step production incorporates full chemical submersion pickling (to strip all surface mill scales and oxides), followed by zinc-iron phosphating (creating a crystalline conversion layer for chemical keying). Finally, automatic electrostatic guns apply a uniform 60–90 micron layer of high-adhesion thermosetting epoxy-polyester powder, followed by a 200°C curing tunnel. For outdoor or freezer applications (-30°C), hot-dip galvanized zinc finishes (HDG) are supplied to prevent zinc peel and rust creep.
What specific information must a warehouse facility provide to receive a complimentary 3D layout design?
To produce an optimized structural layout, our application engineering team requires:
1. Architectural Building DWG/PDF: Clear warehouse floor dimensions, usable ceiling height below roof trusses, column grid spacing, and fire exits.
2. Pallet Load Profile: Pallet dimension (W × D × H including overhang), maximum gross pallet weight, and rack storage configuration (FIFO / LIFO).
3. Forklift / MHE Data: Forklift model, minimum aisle turning radius requirement (AST), maximum mast lifting height, and collapsed mast height.
4. Floor Slab Specifications: Concrete slab thickness, compressive strength rating (e.g., C25/30), and rebar layout to verify anchor bolt pull-out loads.
How does HEDA Shelves manage container packaging to prevent freight damage and accelerate on-site installation?
All upright frames, horizontal beams, and shelf panels are packed using custom automated strapping, corner angle protectors, heavy wooden dunnage, and moisture-resistant shrink-wrap. Bundles are systematically labeled with alpha-numeric project markers that match the structural installation drawings. Beams and uprights are color-coded and sequenced by installation phase, allowing your local mechanical crew to unload, stage, and erect the rack without re-sorting.
Accelerate Your Heavy Industrial Storage Facility
Connect directly with our senior application engineers for certified structural calculations, customized CAD warehouse layouts, and factory-direct pricing for your regional or international projects.
