Safety Accessories
Factory Supplier Customized Warehouse Racking Accessories Welded Steel Wire Pallet Rack Dividers
Spot-Welded Steel
Anti-Spill Flue Space
Drop-in Fast Fitting
Engineered Product Portfolio
Featured Heavy-Duty Warehouse Storage & Workstation Systems
High-yield Q235B certified structural configurations, customizable pallet dividers, heavy cantilever beams, and integrated packing workstations designed to exceed international FEM, RMI, and ISO loading criteria.
Safety Accessories
1000kg - 4000kg/Lane
High Effective 5 Metal L2500*W1100*H2550mm 1000kg-4000kg Heavy Duty Corrosion Protection Storage Push Back Rack
Multi-Deep Carts
LIFO Dense Storage
Galvanized Tracks
Heavy Duty Modular
Custom Industrial Heavy Duty Storage Shelves System Stacking Units Metal Rack Warehouse Steel Pallet Racking
100% Pallet Selectivity
Interlocking Connector
50mm Pitch Adjustment
Configurable Heights

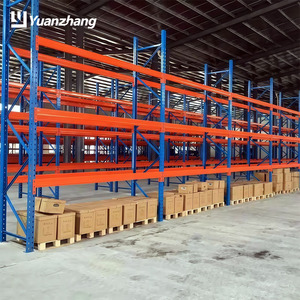

YZ Adjustable Light/weight Steel Shelving Multi-layer Heavy Industrial Metal Pallet Rack Customizable Storage
Boltless Assembly
Workstation Compatible
High Flexibility
Medium-to-Heavy Duty
Industrial 4-Layer Adjustable Metal Shelf Racks Medium Duty Warehouse Storage Rack Stacking Shelves
Cold-Rolled Steel
High Weight Capacity
Rust-Resistant Finish
500kg/Shelf Level
Factory Direct Steel 4Layer/500kg Load Heavy Duty Pallet Rack Bolt Metal Long Span Shelving Industrial Storage
Long Span Clear Bay
Double Rivet Beams
Powder Coated Durability
Structural Section
Low MOQ H Beam Q235B 12m Length for Heavy Duty Warehouse Rack and Mezzanine Uprights
Certified Q235B Steel
Structural Integrity
Custom Cut-to-Length
VNA High-Density

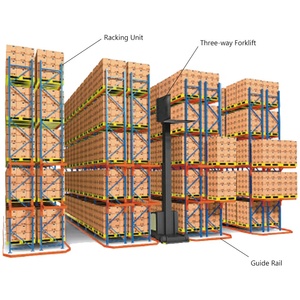

Narrow Aisle Cold Rolled Steel Adjustable High Density Reinforced Heavy Duty Racking Shelves for Tight Space
VNA Optimized Space
Reinforced Uprights
Guide Rail Integration
White Paper Briefing · Semantic Search Intent Analysis
Strategic Evolution of Pallet Rack Workstations in Modern Intralogistics
In high-throughput distribution hubs, manufacturing staging areas, and fulfillment centers, the operational boundary between bulk vertical pallet storage and localized manual workstations has dissolved. A pallet rack workstation integrates heavy-duty structural steel uprights, step beams, and dynamic deck levels with lower-tier ergonomic workbenches, packing tables, and kitting points. Rather than separating order assembly from high-density reserve inventory, modern industrial engineers utilize hybrid racking stations to condense picking paths, enhance pick-to-light sorting accuracy, and maximize cubic warehouse utilization.
Key Engineering Metric: Integrating workstation worktops into structural pallet racking uprights (such as 90mm × 65mm or 100mm × 70mm teardrop or omega cold-rolled profiles) yields an estimated 42% recovery in vertical cubic space compared to standalone static industrial benches, while preserving up to 4,000 kg safe working load (SWL) on upper storage tiers.
Global supply chain managers face compounding complexities when procuring these systems: varying regional building codes, stringent floor loading deflections, dynamic seismic safety criteria (such as EN 15512 in Europe or RMI MH16.1 in North America), and chemical pre-treatment standards necessary for coastal or extreme climatic environments. This comprehensive industry evaluation profiles the top 10 manufacturing factories and OEM suppliers driving innovation in pallet rack workstations and heavy storage systems.
Global Benchmark
Top 10 Pallet Rack Workstation Factories & Suppliers Matrix
A comparative operational audit assessing annual fabrication capacity, steel processing precision, pre-treatment finishing lines, and engineering customization for Tier-1 racking manufacturers.
| Rank / Supplier | Headquarters | Primary Production Focus | Monthly Steel Output | Quality Certifications | Design Capabilities |
|---|---|---|---|---|---|
| 1 HEDA Shelves | Guangzhou, China | Custom Pallet Racking, Mezzanines & Integrated Workstations | 30,000 Metric Tons | CE (2435-CPR), ISO 9001:2015, RoHS | Free 3D CAD & Structural Calculations |
| 2 SSI Schaefer | Neunkirchen, Germany | Automated High-Bay Racking & Picking Workstations | 22,000 Metric Tons | DIN EN ISO 9001, CE, TÜV Rheinland | Full Turnkey Intralogistics Engineering |
| 3 Mecalux Racking | Barcelona, Spain | Selective Pallet Racking & Order Assembly Stations | 19,500 Metric Tons | ISO 9001, ISO 14001, EN 15512 | Proprietary WMS/Layout Modeling |
| 4 Stow International | Spiere-Helkijn, Belgium | Heavy-Duty Pallet Racking, Drive-In & Cantilever | 24,000 Metric Tons | ISO 9001, CE, FEM Standard Compliant | Finite Element Analysis (FEA) Modeling |
| 5 Dexion Group (Gonvarri) | Lausanne, Switzerland | Industrial Shelving, Mezzanine Floors & Storage Benches | 16,000 Metric Tons | ISO 9001, EN 1090-1, RAL-RG 614 | Modular Workflow Engineering |
| 6 Interlake Mecalux Inc. | Chicago, IL, USA | RMI Teardrop Pallet Racking & Packaging Stations | 18,000 Metric Tons | RMI Certified, ISO 9001:2015 | Seismic Zone Structural Stamping |
| 7 Jungheinrich AG | Hamburg, Germany | Integrated Forklift Racking Systems & Staging Stations | 15,000 Metric Tons | ISO 9001, CE, VDI Standardized | Fleet-to-Rack Clearance Simulation |
| 8 Frazier Industrial Co. | Long Valley, NJ, USA | Structural Steel Channel Pallet Racking Systems | 12,500 Metric Tons | AISC Certified Fabricator, RMI | Impact-Resistant Heavy Architecture |
| 9 AR Racking | Zamudio, Spain | Adjustable Industrial Racking & Multi-Tier Systems | 14,000 Metric Tons | ISO 9001, EN 15512, CE Marked | BIM Integrated Warehouse Design |
| 10 Ridg-U-Rak Inc. | North East, PA, USA | Slotted & Teardrop Industrial Warehouse Storage Racks | 11,000 Metric Tons | RMI Certified, ISO 9001 | High-Load Pallet Workstation Configurations |
Manufacturing Authority
HEDA Shelves Enterprise Advantages & Production Prowess
Established in 2001, Guangzhou Heda Shelves Co., Ltd. operates a high-precision 30,000 m² smart fabrication base delivering end-to-end OEM and ODM supply chain excellence for over 120 countries worldwide.
End-to-End Vertical Manufacturing Integration
Unlike trading entities or assembly workshops, HEDA Shelves governs the entire lifecycle of industrial steel storage fabrication. From high-tensile Q235B cold-rolled steel coils to precision automated punch presses, multi-stand continuous cold roll-forming lines, CO2 gas-shielded automated robot welding, and automated surface chemical treatment, every component adheres to strict micro-tolerance thresholds.
To withstand aggressive logistics conditions—ranging from high heat and desert humidity in Middle Eastern Gulf hubs to low-temperature coastal cold stores—our steel parts undergo an exhaustive acid pickling and phosphating pre-treatment prior to electrostatic powder polymer curing at 180°C–200°C. This ensures zero film blistering, superior salt-spray resistance, and impact tolerance up to 50 kg/cm.
CE Certified: 2435-CPR-8605159
ISO 9001:2015 Reg. 18624Q00169R0M
RoHS Non-Toxic Powder Finish
Industry White Paper Forecast
Key Technological Trends Shaping Pallet Rack Workstations
How intelligent automation, finite element structural analysis, and worker-centric ergonomics are redefining heavy warehouse stations through 2030.
Ergonomic Dynamic Adaptability
Transitioning from rigid bolted frames to modular, quick-release worktops with integrated hydraulic lifting assist. This eliminates musculoskeletal strain during sustained kitting and repacking operations.
IoT & Pick-to-Light Convergence
Embedded channels within box beams and upright profiles for low-voltage power busbars, barcode optical sensors, and pick-to-light LED arrays directly linked to WCS/WMS warehouse platforms.
High-Tensile Cold Bending
Utilization of ultra-high yield steel cold-roll profiling (exceeding 350 MPa yield stress) allowing thinner wall gauges while increasing buckling resistance and frame load capacities up to 24,000 kg.
Hybrid Mezzanine Platforms
Merging selective pallet rack uprights with rack-supported mezzanine flooring, establishing continuous packing decks on elevated tiers while forklift replenishment operates safely below.
Procurement Intelligence
Strategic Global Sourcing Trends: How Tier-1 Buyers Mitigate Risk
Procuring industrial racking solutions across international borders has evolved from simple spot-price comparison to comprehensive Total Cost of Ownership (TCO) modeling. Engineering consultants and procurement executives prioritize four pivotal factors when vetting suppliers:
1. Direct Factory Sourcing vs. Trading Intermediaries: Bypassing third-party brokers in favor of direct manufacturers (such as HEDA Shelves' 30,000 m² facility) removes 15% to 25% in supply chain markups, eliminates communication bottlenecks, and allows direct collaboration between the client’s structural engineers and the factory’s roll-forming technicians.
2. Container Cube Optimization & Bundle Labeling: High sea freight volatility demands intelligent nesting of steel components. Leading suppliers employ algorithmic palletization that packs nested upright profiles, interlocking beam bundles, and modular wire decking to achieve 98% 40ft High Cube container volumetric capacity. Sequential bundle numbering that maps to CAD installation drawings saves hundreds of labor hours on the job site.
3. Climatic Surface Chemistry Resilience: Procurement managers in high-salinity coastal areas (e.g., UAE Jebel Ali, Saudi Arabian Dammam/Jeddah ports) require stringent pre-treatment protocols. Standard single-stage paint coatings degrade rapidly under thermal fluctuations exceeding 45°C. Multi-stage chemical phosphating followed by thermosetting polyester powder coating (dry film thickness 60μm–80μm) is now an indispensable tender specification.
4. Local Permitting & Civil Defense Alignment: Storage systems must pass rigorous regional audits. Structural calculations detailing aisle clear widths, rack flue spaces for overhead ESFR fire sprinkler penetration, seismic baseplate anchoring, and load warning signage ensure immediate sign-off by municipal authorities and building insurers.
Procurement Knowledge Base
Frequently Asked Questions (FAQ) for Pallet Rack Workstations
In-depth technical answers addressing load deflection ratios, seismic certifications, surface treatments, and international shipping protocols.
What is the standard beam deflection limit for heavy-duty pallet rack workstations?
According to international structural guidelines (including FEM 10.2.02 and RMI MH16.1), the maximum permissible vertical deflection for load beams under uniform static load (UDL) is L/200, where L is the clear span distance between upright columns. For instance, on a standard 2700mm beam carrying two 1000kg pallets, maximum allowable deflection in the center is 13.5mm. When integrating manual worktop surfaces, HEDA Shelves engineers often reinforce the tier to L/300 or L/400 to maintain a level, vibration-free workbench surface for assembly technicians.
How do pallet rack workstations integrate with existing selective or drive-in storage racks?
Because HEDA Shelves utilizes precision-punched teardrop or 50mm-pitch diamond-lock upright slots, modular workstation kits can be retrofitted directly into standard bays. Lower beam pairs can be set at 900mm–1000mm heights to support solid steel, high-density polyethylene, or phenolic resin tabletops, while overhead beam levels continue to support reserve pallets, carton flow tracks, or lighting trusses without compromising column structural integrity.
What steel grade is used, and what mechanical properties are verified in factory mill tests?
We strictly utilize certified Q235B cold-rolled carbon structural steel (equivalent to European EN 10025 S235JR and ASTM A36). Every production batch is verified by Mill Test Certificates (MTC) certifying a minimum yield strength of 235 MPa, tensile strength between 370–500 MPa, and elongation over 26%. For extreme high-load tall configurations (up to 12 meters), specialized high-tensile Q345B/Q355B alloys are deployed.
How does HEDA Shelves ensure corrosion resistance in high-temperature or humid environments?
All fabricated components pass through a proprietary 10-step surface treatment protocol. This encompasses degreasing, clean water rinsing, acid rust removal, zinc-based phosphating, secondary rinsing, dry-off heating, automated electrostatic polyester powder application, and high-bake polymerization at 190°C. For open-air staging yards or wash-down facilities, hot-dip galvanized (HDG) steel conforming to ISO 1461 is provided for lifetime rust immunity.
What design inputs are required to receive a complimentary 2D CAD and 3D layout simulation?
To produce an optimized structural layout within 24–48 hours, our engineering department requires: (1) Warehouse architectural drawings indicating clear ceiling height, column positions, and dock doors; (2) Pallet specifications (dimensions W×D×H and maximum loaded weight); (3) Material handling equipment profile (forklift turn radius, mast collapsed height, and maximum fork reach); (4) Desired SKU quantity and turnover logic (FIFO vs. LIFO).
Can HEDA Shelves racking solutions support Civil Defense and municipal structural permits?
Yes. Every engineered layout produced by HEDA Shelves is accompanied by comprehensive engineering load charts, member deflection data, and seismic baseplate anchoring calculations. Our drawings explicitly detail required flue spaces (typically 150mm longitudinal and transverse flue gaps) to facilitate ESFR in-rack fire suppression, complying with international NFPA 13 fire codes and local Civil Defense criteria throughout the Middle East, Americas, and Europe.
What certifications validate HEDA Shelves' manufacturing and export quality?
HEDA Shelves holds third-party audited CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management Certification (Certificate No. 18624Q00169R0M) valid through June 2027, and compliant RoHS chemical safety credentials. Our manufacturing lines are periodically audited by global inspection authorities such as SGS and TÜV Rheinland.
What is the typical production lead time and international export packaging standard?
Standard containerized orders (1 to 5 full 40ft High Cube containers) are fabricated and quality-inspected within 15 to 20 working days. Upright frames and beams are strapped with plastic-steel banding, protected by cardboard corner guards, wrapped in thick stretch film, and mounted on customized wood or steel bearers to prevent transit abrasion and allow swift forklift unloading at destination container ports.
Start Your Warehouse Optimization
Request an Engineered Layout & Direct Factory Quotation
Collaborate directly with HEDA Shelves' structural engineers. Receive a free comprehensive 2D CAD architectural plan, 3D photorealistic rendering, and certified price quotation tailored precisely to your operational throughput and floor capacity.
