Direct from factory manufacturing facilities: high-yield cold-rolled steel solutions designed in strict accordance with FEM 10.2.02, EN 15512, and RMI standards for demanding international logistics hubs.
Multi-tier modular framework engineered with reinforced omega uprights and interlocking box beams for high-density bulk storage.
Sub-zero automated stacker crane and bidirectional 4-way radio shuttle integration designed specifically for cold-chain energy containment.
Precision 75mm/50mm pitch adjustable racking with 5-hook connector brackets providing ultimate rigidity against dynamic sway.

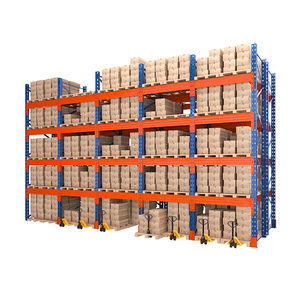

Classic 100% immediate pallet selectivity for fast FMCG picking. Configurable with wire mesh decking and pallet support bars.
Universal boltless teardrop configuration fully compatible with major North American profiles. Fast tool-free installation and locking pins.
Maximizes vertical space utilization up to 15+ meters with aisle widths under 1.8m. Designed for inductive wire guidance or mechanical guide rails.
Heavy duty anti-corrosion zinc protection for external yards, sea container staging, and harsh chemical/fertilizer storage environments.
Engineered for turret truck operations, maximizing storage volume by over 45% compared to standard wide-aisle counterbalance arrangements.
Procuring high-bay, heavy-duty racking requires evaluating raw metallurgy, structural software simulation, international certification adherence, and multi-modal containerization.
The global intralogistics racking market has shifted from basic structural steel frames toward highly calculated, automated system integrations. Tier-1 exporters such as SSI Schaefer, Mecalux, Dexion, Jungheinrich, and HEDA Shelves stand out through their complete in-house continuous roll-forming lines, automated punching matrices, and certified surface treatment regimes.
Leading exporters maintain dedicated structural engineering teams proficient in finite element analysis (FEA). This ensures load bearing profiles are neither under-engineered (risking catastrophic collapse) nor excessively over-engineered (inflating ocean freight and project CapEx).
Exporting across distinct climatic zones—such as the high-heat, high-salinity ports of the Middle East (Jebel Ali, Dammam, Jeddah), humid tropical corridors in Southeast Asia, and sub-zero cold chains across Northern Europe—demands superior chemical pretreatment.
For unconditioned open yards and highly corrosive agrochemical facilities, hot-dip galvanizing per EN ISO 1461 guarantees multi-decade protection without compromising beam connection tolerances.
Industry 4.0 automation, cold chain expansion, and ESG decarbonization mandates are radically reshaping how multinational logistics enterprises commission warehouse storage.
Driven by rising land costs, warehouses are replacing conventional 3.5m aisles with 18m+ tall automated shuttle racking. Autonomous 4-direction pallet shuttles dramatically accelerate cycle rates while minimizing human-operated forklift traffic and rack collisions.
Fluctuating SKU counts demand pallet racks capable of rapid reconfiguration into multi-tier rack-supported mezzanines or carton flow pick modules, enabling seamless omnichannel distribution within the same distribution footprint.
IoT impact-detection telemetry and real-time load displacement monitors embedded directly onto bottom uprights alert facility directors immediately when mechanical deflection crosses threshold limits, eliminating sudden rack collapse hazards.
| Racking System Classification | Storage Density Index | Pallet Selectivity | Recommended Forklift Fleet | Primary Industrial Use-Case |
|---|---|---|---|---|
| Selective Pallet Racking | Moderate (40–50% floor utilization) | 100% Direct Immediate Access | Standard Counterbalance / Reach | General 3PL, FMCG, Multi-SKU Retail |
| Very Narrow Aisle (VNA) | High (65–75% floor utilization) | 100% Direct Immediate Access | Specialized Man-Up / Man-Down VNA Turret | High-Ceiling Logistics Parks, E-Commerce Hubs |
| Drive-In / Drive-Through | Very High (75–85% floor utilization) | Low (LIFO / FIFO strictly per lane) | Standard Counterbalance / Reach | Bulk Seasonal Storage, Cold Storage, Raw Materials |
| Radio Shuttle Automation | Ultra High (85–90% floor utilization) | Controlled High-Speed Selectivity | Standard Forklift for Staging + Auto Shuttle | Frozen Food Chains, Beverage, High-Volume Buffer |
| Push-Back / Pallet Flow | High (70–80% floor utilization) | Medium (Dynamic Gravity Fed) | Standard Reach Truck | Fast-Moving Consumables, Pharmaceuticals |
With over 25 years of structural metal manufacturing experience, our Guangzhou facility combines automated German-engineered roll forming lines with end-to-end EPC project delivery.
Certified under CE (EN 1090-1 / CPR-8605159), ISO 9001:2015 Quality Management Systems (No. 18624Q00169R0M), and full RoHS compliance across all powder formulas.
Our senior structural engineers produce complete CAD floorplans, dynamic aisle clearance calculations, and realistic 3D renderings within 24–48 hours to fast-track municipal Civil Defense approvals.
Custom upright hole-pitch, custom RAL powder finishes, hot-dip galvanized components, structural safety column guards, and customized client branding for large-scale international tenders.
Essential answers regarding structural certifications, project load engineering, shipping logistics, and site installation protocols.
We require: (1) Architectural CAD drawing showing building clear height, slab thickness, and column grid; (2) Pallet dimensions (W × D × H) including overhang and maximum load weight; (3) Forklift model, minimum turning radius, and maximum mast lift elevation; (4) Desired warehouse throughput and inventory SKU rotation strategy.
All structural members undergo an intensive multi-stage automated chemical bath (degreasing, acid pickling, zinc phosphating) before cured electrostatic powder coating. This ensures maximum adhesion and passes stringent 500+ hour salt-spray testing, making our racks highly resilient against coastal humidity in ports like Dubai, Jeddah, Dammam, and Singapore.
Yes. Our engineering drawings provide exact longitudinal and transverse flue space dimensions (typically 75mm–150mm), rack sprinkler clearance elevations, certified floor baseplate anchor calculations, and international load capacity plaques designed to satisfy stringent third-party insurance and municipal fire inspection requirements.
Each shipment includes sequenced packing lists with color-coded bundle tags directly matching detailed isometric installation manuals. We provide complete video engineering supervision for your local contracting teams, and can dispatch seasoned installation supervisors on-site for major multi-tier mezzanine and high-bay racking projects.
