High-Density Pallet Warehousing: The Autonomous Shift
Modern logistics real estate commands premium per-square-meter capital expenditures. Radio shuttle racking systems—characterized by semi-automated pallet runners traversing dedicated rail profiles inside deep storage lanes—represent the single most capital-efficient transition between static selective racking and fully autonomous crane-based ASRS.
In high-velocity warehouse environments, conventional storage configurations such as drive-in or drive-through racks suffer from notorious structural vulnerabilities, elevated forklift transit cycle times, and operational damage. According to warehouse safety telemetry, over 38% of rack upright failures occur during deep-lane forklift mast maneuvers. A radio shuttle pallet racking system eliminates forklift ingress inside rack tunnels entirely. Powered by high-discharge Lithium Iron Phosphate (LiFePO4) power packs and precision laser/encoder positioning, self-propelled shuttle carts glide along heavy-gauge cold-rolled galvanized running rails, delivering pallets between the storage depths and the picking face at speeds exceeding 1.1 m/s loaded.
Selecting a certified radio shuttle system manufacturer requires assessing structural engineering tolerances under FEM 10.2.02 and EN 15512 standards, onboard battery thermal management under sub-zero conditions (-30°C to +45°C), optical vs. RF collision avoidance sensors, and dynamic interface capabilities with Warehouse Management Systems (WMS). Below is the comprehensive benchmark of the world’s leading manufacturers, engineering specifications, and strategic procurement guidelines.
Featured Warehouse Storage & Shuttle Rack Configurations
Explore heavy-duty, certified industrial racking modules manufactured to international CE and ISO 9001 standards.
Cantilever
Heavy Duty Steel Metal Storage Shelf Single Size Adjustable Cantilever Rack for Warehouse & Factory OEM Supplier Pallet Packed
Longspan
Warehouse Storage Racks 4-Layer Factory Long Span Industrial Steel Adjustable Durable Storage Shelves Racking

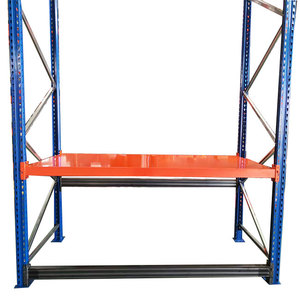

Heavy Pallet
CE ISO Certified Factory Direct Sales Pallet Storage Rack Heavy Duty Shelving for Warehouse Equipment Garage Shelves
Selective
Metal Pallet Racking Warehouse Storage Pallet Racking System Heavy Duty Shelves Rack Unit For Goods Storage
Light Industrial
Tianhaida Adjustable Steel Freestanding Light Duty Corrosion Protection Shelf Rack Utility Tall Garage Warehouse Storage
Gravity Flow
High Quality FIFO Gravity Carton Flow Rack Pallet Rack System Pallet Flow Racking Warehouse Equipment
Commercial
LIJIN Heavy Duty Commercial Industrial Shelving Adjustable Warehouse Shelves Heavy Duty Long Span Shelving
ASRS Automation
Labor Saving ASRS Customized Automatic Storage Retrieval Racking Systems
Global Benchmark: Top 10 Radio Shuttle Racking Manufacturers
An objective technical audit evaluating engineering pedigree, shuttle cart kinematics, cold chain viability, lead times, and structural manufacturing capacity.
| Manufacturer / Brand | HQ / Plant Base | Shuttle Payload | Cold Chain (-30°C) | Shuttle Guidance | Standard Lead Time | Primary Strengths |
|---|---|---|---|---|---|---|
| HEDA Shelves | Guangzhou, China | 500 – 1,800 kg | Standard Certified | Laser / High-Res Encoder | 3 – 4 Weeks | Factory Direct, Custom 3D CAD, Middle East & Global Footprint |
| SSI Schaefer | Neunkirchen, Germany | Up to 1,500 kg | Available (Orbiter) | Multi-Sensor RFID | 12 – 18 Weeks | Mega-Distribution Centers, Premium European Engineering |
| Mecalux | Barcelona, Spain | Up to 1,500 kg | Available | RF Tablet Wireless | 8 – 14 Weeks | Extensive Software Stack (Easy WMS), Standard Logistics |
| Daifuku Co., Ltd. | Osaka, Japan | 500 – 2,000 kg | Available | Laser / Absolute Optical | 16 – 24 Weeks | Complex Turnkey Material Handling & Factory Automation |
| Dematic (KION Group) | Atlanta, USA / Germany | Up to 1,500 kg | Available | WCS Directed Automated | 14 – 20 Weeks | Integrated Multishuttle & Tier-1 High-Velocity Fulfillment |
| Jungheinrich AG | Hamburg, Germany | Up to 1,500 kg | Available (Under Control) | Li-Ion Optical Sensor | 10 – 16 Weeks | Seamless Forklift-to-Shuttle Ecosystem, German Engineering |
| Stow Group (Stow Atlas) | Dottenijs, Belgium | Up to 1,500 kg | Available | Bi-Directional Wireless | 8 – 12 Weeks | High Structural Modularity, Deep Pallet Channel Rigidity |
| BITO Storage Systems | Meisenheim, Germany | Up to 1,200 kg | Custom Build | PRO-Motion Control | 10 – 14 Weeks | Carton & Medium-Heavy Pallet Dynamic Storage |
| Interlake Mecalux / Frazier | Chicago / Long Valley, USA | Up to 1,600 kg | Available | Laser / Wheel Encoders | 10 – 16 Weeks | Heavy Structural Channel Steel, High Seismic Zone Compliance |
| Toyota Material Handling (Vanderlande) | Aichi, Japan / Veghel, NL | Up to 1,500 kg | Available | Automated AGV Sync | 14 – 22 Weeks | Complete Fleet Telematics, Material Handling Integration |
