Hongxin Blue Orange Multi-Level Heavy-Duty Racking
Design: Powder Coated Adjustable Modular
Capacity: 800 - 3,000 kg/Tier
Assembly: Interlocking Pitch Configurable
2001
Established Since
30,000㎡
In-House Production Base
30,000t
Monthly Processing Capacity
120+
Export Nations & Regions
Engineered Industrial Shelving & Racking Solutions
Verified structural steel solutions manufactured to ISO 9001 and CE execution classes. Built for high-throughput fulfillment hubs, industrial parts storage, and cold-chain facilities.

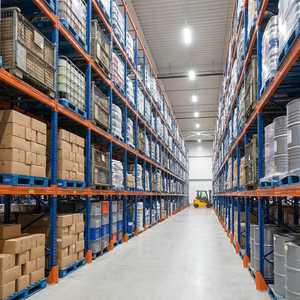

Selective Heavy-Duty Factory Pallet Racking
Access: 100% Direct SKU Selectivity
Material: Certified Q235B Carbon Steel
Finish: Epoxy-Electrostatic Powder
Fast-Assembly Light-Duty Boltless Steel Shelving
System: Keyhole/Rivet Quick-Lock
Application: Garage, E-Commerce & Archives
Load Rating: 100 - 250 kg/Shelf
LIJIN Industrial Heavy-Duty Storage Shelving Rack
Decking: Wire Mesh / Solid Steel Pan
Adjustment: 50mm Pitch Toolless Increments
Integrity: Anti-Dislodgement Safety Pins
Herschel Specialized Fabric & Coil Storage Racking
Profile: Saddle Brackets / Spindle Mounts
Safety: Structural Deflection Limiter
Suitability: Textiles, Cylindrical Bundles
High-Capacity Industrial Logistics Beam System
Uprights: Continuous Roll-Formed Ribbing
Connectors: 3/4-Claw Heavy Flange Clamps
Testing: Finite Element Dynamic Analysis
Customizable Multi-Tier Industrial Stacking Rack
Flexibility: Mobile Post Pallet Compatible
Coating: Salt-Spray Tested Protective Layer
Load Class: Heavy Uniform Distributed Load
Semi-Automated Pallet Radio Shuttle Storage System
Automation: Wireless Autonomous Vehicle Carrier
Density: Ultra-Deep Channel FIFO/LIFO
Execution: Cold Storage & Bulk Warehousing
Engineering Superiority: Industrial Boltless Shelving vs. Bolted Infrastructure
A technical evaluation of mechanical interlocking joint mechanics, load transfer dynamics, and overall cost of facility ownership.
In high-throughput industrial logistics, storage hardware represents not merely static furniture, but structural machinery subject to cyclic impact, dynamic deflection, and concentrated stress vectors. Leading Chinese manufacturers have engineered the transition from archaic nut-and-bolt angle racking to precision-formed boltless industrial shelving (often utilizing teardrop, rivet, or slotted butterfly interlocking profiles). By eliminating threaded fasteners, boltless systems eradicate point-load shearing vulnerabilities, streamline installation by up to 65%, and allow flexible vertical reconfiguration without structural compromise.
| Evaluation Parameter | Engineered Boltless Shelving (HEDA Standard) | Conventional Bolted Angle Racks |
|---|---|---|
| Assembly Velocity | 15–20 minutes per standard 5-tier bay (Mallet only) | 50–75 minutes per bay (Wrench & hardware calibration required) |
| Joint Deflection & Creep | Tapered slot binding locks tighter under higher gravitational weight | Bolts loosen under dynamic micro-vibration, requiring cyclic torquing |
| Structural Upright Steel | High-yield Q235B cold-rolled steel with stiffening rib channels | Single-angle punched strip vulnerable to axial torsional buckling |
| Corrosion Pretreatment | 9-stage automated acid pickling & silane/phosphate conversion | Basic manual degreasing prone to localized edge oxidation |
| Finish Durability | 60–90μm electrostatic epoxy powder coat (salt spray tested >500 hrs) | Standard liquid paint or thin powder coating prone to chipping |
Direct-from-Source Industrial Manufacturing Strength
Delivering factory-direct supply stability from Guangzhou, China, backed by verified credentials and deep supply-chain integration.
⚙️
Full-Chain In-House Production
Unlike trading entities, our 30,000 m² Guangzhou production facility oversees all operations under one roof: uncoiling, automated multi-station cold roll-forming, continuous punch presses, robotized CNC welding, 9-stage phosphate immersion, and powder coating lines.
📐
Full 2D/3D & BIM Structural Modeling
Every industrial project begins with structural calculation sheets. We provide free warehouse CAD layouts and photorealistic 3D engineering renders within 24–48 hours, precisely determining clear heights, flue spaces, forklift turning radii, and seismic baseplates.
🛡️
Stringent Quality Compliance (CE & ISO)
All load-bearing members conform to European FEM 10.2.02, EN 15512, and American RMI standards. Our facilities operate under strict ISO 9001:2015 quality surveillance, holding official CE certificate verification (No. 2435-CPR-8605159) and RoHS certifications.
Future Sourcing & Procurement Trends: Industrial Shelving
Strategic perspectives for global procurement managers navigating supply chain resilience, automation readiness, and climate adaptation.
🤖
1. Convergence of Shelving with AMR & Goods-to-Person (GTP)
Industrial boltless shelving is increasingly deployed alongside Autonomous Mobile Robots (AMRs). Future procurement prioritizes strict dimensional tolerances (±0.5mm) and standardized base clearance heights to ensure seamless drive-under robotic pod lifting.
🌡️
2. Demanding Climate Engineering (GCC & Harsh Environments)
With massive supply chain expansion across the Middle East (Saudi Vision 2030, UAE Free Zones) and Southeast Asia, shelving must resist sustained temperatures exceeding 45°C, high salt-air humidity, and desert particulate penetration through specialized multi-layer electrostatic barriers.
📊
3. Digital Twin Traceability & Load Monitoring
Procurement teams are shifting toward data-backed tracking. Each upright profile is digitally serialized for traceable material composition, batch yield strength verification, and finite element method (FEM) dynamic stress validation under high seismic conditions.
Procurement & Technical Engineering FAQ
Addressing the core technical, logistical, and compliance considerations critical for warehouse project stakeholders.
What steel grades and mill certifications are utilized in boltless industrial uprights?
Our industrial shelving and upright posts are roll-formed from certified prime Q235B (equivalent to ASTM A36 / European S235JR) or high-yield Q355B cold-rolled steel coils. Every batch ships with authentic Mill Test Certificates (EN 10204 3.1) documenting carbon equivalents, yield limits (≥235 MPa), tensile capacity (370–500 MPa), and elongation percentages.
How does boltless interlocking prevent accidental dislodgement from warehouse equipment?
Our boltless systems feature multi-prong connector lugs punched with high precision to seat securely within laser-machined or progressive-die keyholes. Under uniform distributed load (UDL), the gravitational wedge effect increases structural stiffness. Furthermore, spring-steel locking safety pins (capable of withstanding >1,000 N shear upward force) prevent accidental dislodgement caused by forklift mast snags or pallet misplacement.
How are container shipments packed to avoid transport damage and streamline site sorting?
Upright posts and cross-beams are bundle-strapped with protective edge-corner guards, interleaved with bubble cushioning, and bound using heavy-gauge PET bands. All hardware fittings, baseplates, and clips are boxed in heavy multi-wall corrugated cartons and banded to heat-treated fumigated wooden skids. Bundles are labelled with project tags matching CAD erection drawings to minimize on-site sorting times.
What engineering data is needed to generate an exact layout drawing and quote?
To provide an optimized layout, please share: 1) Architectural building layout drawings (CAD/PDF) specifying clear heights beneath structural rafters, column grids, and egress doors; 2) Unit load parameters including dimensions (W×D×H), maximum weight per level, and packaging types; 3) Material handling vehicle models, turn aisle clearances, and mast lift heights.
Can customized powder coating and private-label OEM branding be accommodated?
Yes. With fully in-house electrostatic powder coating booths, we provide RAL color matching (common shades include Signal Blue RAL 5005, Pure Orange RAL 2004, Traffic White RAL 9016, and Anthracite Grey RAL 7016). We also support private labeling, laser brand perforations, and customized packaging for worldwide storage system integrators and distributors.
