Featured Industrial Warehouse Racking Systems
Explore our precision-engineered high-density racking portfolios manufactured with high-tensile Q235B/Q355B steel, certified to international ISO 9001:2015, CE, and FEM 10.2.02 standard tolerances.
High Density Storage Double Deep Rack
Two-pallet-deep configuration maximizing floor area utilization up to 60% with reduced aisles.
AS/RS High Bay Automated Pallet Rack
Fully automated retrieval structures up to 30m high with millimeter-grade upright plumb tolerances.
Carton Flow Logistics Roller Racking
Gravity-driven dynamic roller tracks ensuring strict First-In First-Out (FIFO) split-case picking speed.

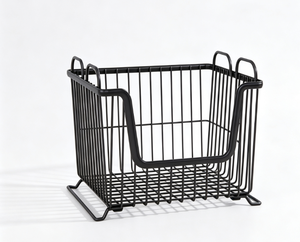

Mobile Narrow Wire Shelving Storage Unit
Versatile modular shelving with smooth-rolling caster mobility, corrosion-resistant chrome/epoxy finish.
Heavy Duty Selective VNA Pallet Racking
100% pallet accessibility engineered for standard counterbalance or narrow aisle turret forklift operation.
Q355B Heavy Duty Drive-In Racking System
Continuous lane storage eliminating operator aisles; ideal for high-volume, low-SKU cold storage environments.
Custom Double Deep Pallet Rack System
Custom-engineered beam spans and column gauges specifically calibrated for deep-reach pantograph trucks.
Industrial Longspan Storage Shelving 500kg
Reinforced steel stepped decking with 500kg-1000kg shelf ratings, adjustable on pitch increments of 50mm.
Double Deep Racking Architecture: Maximizing Volumetric Density
In industrial logistics engineering, balancing cube utilization against pallet selectivity represents the foundational optimization puzzle. Double deep racking addresses this operational friction point by storing unit loads two pallet positions deep in a back-to-back layout, eliminating 50% of the operating access aisles required by traditional selective pallet systems.
Kinematics of 2-Deep Reach
Double deep configurations utilize specialized reach trucks equipped with dual-pantograph scissor mechanisms or hydraulic telescopic forks. The engineering design must account for dynamic horizontal mast deflection, requiring stiffer upright column sections (minimum 90mm to 120mm profile width) and augmented flue space clearances (75mm-100mm between pallets) to prevent accidental corner snagging during secondary depth retrieval operations.
Structural Load Calculation
Each beam pair is engineered to an allowable deflection limit of L/200 (under FEM 10.2.02 codes) or L/180 (under RMI specifications). Because front beams carry equivalent unit mass as rear beams, but forklift approach vectors produce distinct torsional eccentricity, our Q355B cold-rolled box beams feature specialized 3-claw or 4-claw safety end connectors with integrated automatic anti-dislodgement locking pins tested to 5,000 N shear resistance.
Economic CAPEX vs. OPEX
Compared to automated shuttle or drive-in infrastructure, double deep racking reduces structural steel CAPEX per pallet position by 30-40% while accelerating installation timelines by 60%. It delivers an optimal storage density compromise: 50% immediate pallet selectivity combined with up to 60% floor space utilization, significantly reducing land lease overheads and cold room cubic refrigeration power consumption.
Double Deep vs Alternative Racking Topologies
A rigorous quantitative evaluation of modern storage paradigms based on footprint efficiency, mechanical selectivity, equipment capital investment, and throughput velocity.
| Performance Metric | Double Deep Racking | Standard Selective | Drive-In Pallet Rack | Radio Shuttle System | VNA (Very Narrow Aisle) |
|---|---|---|---|---|---|
| Floor Utilization (%) | 55% – 65% | 35% – 42% | 65% – 75% | 70% – 85% | 50% – 60% |
| Pallet Selectivity | 50% (1-out-of-2) | 100% (Direct Access) | 15% – 20% (Lane Deep) | 20% – 30% (Batch Access) | 100% (Direct Access) |
| Stock Rotation Rule | FILO / Batch FIFO | Strict FIFO | Strict LIFO | FIFO / LIFO Agile | Strict FIFO |
| Aisle Width Requirement | 3,000mm – 3,400mm | 3,200mm – 3,800mm | Forklift Entry Lane | 3,000mm – 3,200mm | 1,600mm – 1,900mm |
| Forklift Investment | Moderate (Pantograph Reach) | Low (Standard Counterbalance) | Low (Standard Reach) | High (Shuttle Car + Truck) | Very High (VNA Turret/Wire) |
| Relative System CAPEX | Low - Moderate | Lowest Baseline | Moderate | High | Moderate - High |
| Best Operating Fit | 2-4 Pallets Per SKU, Cold Chain | High SKU, High Dispatch Velocity | Bulk Homogeneous Goods | High Throughput Buffer Hubs | High Ceiling E-commerce |
Why Top Global Distributors Source from HEDA Shelves
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. operates an integrated 30,000 m² smart manufacturing complex in Guangzhou, China. With over 300 experienced technical specialists and a rolling monthly capacity exceeding 30,000 metric tons, we bridge rigorous structural engineering with direct factory economics.
Our 10-Step Precision Manufacturing Protocol
Quality control is executed under ISO 9001:2015 certification (No. 18624Q00169R0M) and CE certification (No. 2435-CPR-8605159). Every beam and upright passes our strict 10-stage fabrication workflow:
Future Procurement Trends & Technological Evolution (2025–2035)
The international supply chain is shifting toward automation integration, structural resilience, and sustainable materials management. Forward-thinking procurement teams must factor in these core industry macro-trends when sourcing storage equipment.
1. Autonomous Deep Reach (AGV / AMR)
Manual reach trucks are rapidly transitioning to Vision-Guided AGVs and autonomous pantograph reach forklifts. This paradigm shift requires manufacturers to achieve stringent dimensional fabrication tolerances (±1.0mm per bay level) and incorporate optical target reflectors onto column uprights to facilitate automated pallet placement algorithms.
2. Green Steel & Scope 3 Decarbonization
Corporate ESG mandates in Europe, the Americas, and the GCC region now evaluate the embedded carbon footprint of warehouse fixtures. Procurement pipelines are prioritizing factories using electric arc furnace (EAF) low-carbon steel, heavy metal-free powder coatings compliant with RoHS regulations, and eco-friendly pallet strapping systems.
3. Dynamic Seismic & Climate Hardening
With giga-warehousing expanding in geologically dynamic regions and high-humidity environments (such as Dubai, Jeddah, or Southeast Asia), double deep racking is increasingly designed with finite element analysis (FEA) nonlinear seismic modeling, heavy baseplate anchors, and hot-dip galvanizing for harsh outdoor or cold room condensation environments.
4. Algorithmic WMS Slotting & Virtual Digital Twins
Modern supply chains avoid double-handling penalties in double deep setups by integrating advanced Warehouse Management System (WMS) batching algorithms. The WMS intelligently slots identical SKUs in pairs (front and back positions) or dynamically positions faster-moving lots in the outer bays, creating a virtual digital twin that drives overall order picking efficiency to match that of standard selective racking systems.
Frequently Asked Questions by Industrial Buyers
Detailed engineering, logistics, and compliance inquiries addressed by our senior structural engineering team.
What specific forklift equipment is required to operate a double deep racking installation?
How does double deep racking affect inventory selectivity and throughput speed?
Can our existing warehouse concrete floor slab support double deep rack point loads?
What surface finish is best suited for coastal, tropical, or cold storage conditions?
Are HEDA double deep rack designs compliant with local civil defense and fire codes?
How does HEDA handle export packaging to prevent transit damage in ocean containers?
Plan Your High-Density Warehouse with Factory-Direct Engineers
Send your warehouse floor plans, ceiling clear heights, and pallet parameters. Our technical engineering division will generate a comprehensive 2D CAD layout, 3D structural rendering, and detailed manufacturing quotation within 24 hours.
