Engineered Industrial Racking & Multi-Tier Storage Solutions
Direct factory supply of structural steel racking configurations engineered for high throughput distribution centers, FMCG fulfillment, and medium-to-heavy industrial parts management.
Engineering Whitepaper: Medium Duty Racking Systems in Modern Logistics
Medium-duty racking systems, commonly known within global logistics engineering as longspan shelving or medium-duty step beam systems, occupy a pivotal segment in warehousing architecture. Positioned precisely between lightweight manual boltless shelving (<200 kg/level) and ultra-heavy structural pallet racking (>1,500 kg/level), medium duty systems are designed to carry loads ranging typically from 300 kg to 800 kg per uniform distributed load (UDL) level. This structural envelope solves the operational bottlenecks of handling high-cube, non-palletized manual case picking, automotive spare parts, apparel cartons, and hardware components.
Our manufacturing plant in Guangzhou utilizes high-grade cold-formed steel profiles (Q235B and European standard equivalent S235JR). High yield strengths are retained via progressive CNC continuous roll forming. Punching tolerances are held strictly under ±0.1 mm, ensuring absolute vertical plumbness and perpendicular locking between our 50 mm/75 mm pitch teardrop or butterfly beam-locking connectors and the upright columns. This precise engagement maximizes the torsional rigidity of the upright frame without inducing residual tensile stress.
| Structural Parameter | Medium Duty Series A (Longspan Type) | Medium Duty Series B (Step-Beam Pallet Type) | Heavy-Duty Crossover (Pallet-Decked) |
|---|---|---|---|
| Nominal Load per Tier (UDL) | 200 kg – 500 kg | 500 kg – 1,000 kg | 1,000 kg – 3,500 kg |
| Upright Section Geometries (mm) | 55×47×1.5 / 60×50×1.8 | 75×60×1.8 / 80×60×2.0 | 90×70×2.0 / 100×70×2.5 |
| Horizontal Beam Profiles | P-Type Step Beams (50×30 to 80×40) | Tube Welded Step Beams (80×50×1.5) | Box Beam / C-Interlocking Sections |
| Decking Surface Alternatives | Cold-rolled steel decks (0.6–1.0mm) | Wire mesh decking / Flush Melamine board | Galvanized channel grating / Steel plate |
| Pre-Treatment / Coating | Phosphating + Epoxy Powder (60-80μm) | Electrostatic Thermoset Hybrid Resin | Hot-Dip Galvanized / Severe Chemical Spec |
| Standard Seismic Load Deflection | 1/200 allowable deflection span | 1/250 beam deflection margin (FEM 10.2.02) | AS 4084 / ANSI MH16.1 Compliance |
The transition from artisanal storage to standardized intralogistics mandates a rigorous understanding of the Load Deflection Ratio (L/d). In our automated fabrication lines, every beam is certified to operate well below the critical elastic threshold of 1/200th of the span distance under maximum static working capacity. This structural safety margin eliminates progressive steel creep over prolonged deployment cycles in harsh conditions, such as the thermal volatility found across Middle Eastern and Southeast Asian logistics zones.
Future Trends in Medium Duty Racking Procurement & Engineering
How automation, ESG sustainability mandates, and predictive supply chain dynamics are revolutionizing warehouse storage specifications worldwide.
1. Total Cost of Acquisition (TCA) Over Raw Price
Global logistics contractors are shifting procurement matrices from initial CAPEX toward Total Lifecycle Performance. Substandard steel with non-certified zinc concentrations or poor powder adhesion triggers corrosion under variable humidity, requiring catastrophic beam replacement. Tier-1 buyers require Mill Test Certificates (MTC) alongside traceable heat batches directly from certified steel mills.
2. Convergence with AMR & Automated Picking
Medium-duty racking is no longer a static steel assembly. The rapid adoption of Autonomous Mobile Robots (AMRs) and automated Guided Vehicles (AGVs) requires ground-level clear spans, integrated QR fiducial code channels, and laser-aligned beam tolerances. Hybrid picking mezzanine systems must interface seamlessly with sortation conveyors and robotic shuttle transfer points.
3. Green Steel, RoHS & Eco-Coating Systems
Enterprise sustainability goals dictate strict chemical thresholds for volatile organic compounds (VOCs) and heavy metal pigments. Modern manufacturing necessitates fully enclosed pre-treatment lines (spray acid pickling, silane nanotechnology, or iron phosphating) paired with lead-free, non-toxic thermoset powder recovery mechanisms, ensuring compliant international export.
Why Global Logistics Engineers Partner with HEDA Shelves
Direct manufacturer capabilities engineered to eliminate intermediate markups, guarantee delivery timelines, and resolve structural constraints.
30,000 m² In-House Production Ecosystem
Unlike sourcing intermediaries, HEDA executes all 10 core metallurgical phases on-site: high-speed steel de-coiling, automated profile roll forming, continuous high-frequency tube welding, precise multi-station mechanical punching, automatic multi-stage chemical pretreatment, and dual-line electrostatic powder spraying.
BIM / Free 2D CAD & 3D Parametric Layouts
We provide full layout simulation without design fees. Our engineering department prepares comprehensive structural load analyses, concrete slab point-load certifications, and high-resolution 3D renders within 24 to 48 hours, fully coordinated with your warehouse column matrices, sprinkler flues, and MHE turning radii.
Containerization & Export Stacking Protection
Exporting tens of thousands of metric tons requires specialized logistics packing engineering. Upright bundles are protected with corrugated protective wraps, heavy-gauge steel strapping, edge corner guards, and customized nested wooden dunnage blocks that fit standard 40-foot High Cube (40HQ) maritime containers without wasted freight volume or sea transit scratching.
Independently Certified Structural Compliance
All HEDA storage systems maintain rigorous traceable certification including European CE Marking (Certificate No. 2435-CPR-8605159), ISO 9001:2015 International Quality Management Accreditation (No. 18624Q00169R0M), and comprehensive material chemical safety compliance (RoHS Directive). Third-party SGS / Bureau Veritas factory audits are welcomed.
Frequently Asked Questions: Global Medium Duty Racking Procurement
Direct technical answers to common engineering questions asked by warehouse managers, supply chain directors, and industrial contractors.

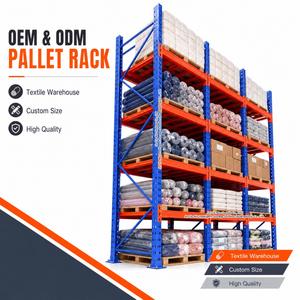

What is the difference between medium duty racking and heavy-duty selective pallet racking?
Medium duty racking is primarily optimized for non-palletized manual case picking, tote box storage, and broken-case split packaging where the distributed load per tier ranges between 200 kg and 800 kg. Beams typically support solid cold-rolled steel decking, wire mesh decks, or particle boards. Selective pallet racking, on the other hand, is built using heavier structural steel profiles (columns up to 120 mm wide) designed specifically for direct forklift loading of full pallets ranging from 1,000 kg to 3,500 kg per beam level with standard aisle clearances exceeding 3.2 meters.
How do you ensure structural corrosion resistance in humid, maritime, or harsh coastal regions?
Our surface finishing process incorporates an 8-stage automated chemical immersion bath sequence: ultrasonic degreasing, hot water rinsing, acid rust removal (pickling), neutralization, surface activation, and zinc-iron phosphating. Following pre-treatment, components are electrostatically coated with high-durability epoxy-polyester hybrid powder resins cured at 180°C–200°C. For extreme open-air or chemical environments, we provide hot-dip galvanizing (HDG) delivering minimum zinc coating thicknesses of 65 to 85 microns, yielding standard salt-spray resistance exceeding 500 hours.
What engineering variables are required to generate an accurate 2D/3D warehouse layout?
To produce an authoritative, construction-ready design, our engineering team requires:
1. Architectural AutoCAD/PDF building floor plans showing column positions, building clear height under roof trusses, and overhead obstruction levels (HVAC ducts, crane rails, fire suppression pipes).
2. Concrete slab specifications: compressive strength (typically 20-30 MPa), slab thickness, and maximum permissible point load.
3. Unit load profile: maximum carton/tote dimensions (W x D x H), gross weight per tier, SKU velocity, and handling method (manual, rolling cart, narrow-aisle stacker, or order picker reach truck).
Can medium duty racking be adapted into a multi-tier rack-supported mezzanine system?
Yes. By utilizing our reinforced structural uprights (thickness increased to 2.0 mm or 2.5 mm), medium-duty frames serve as the primary vertical load-bearing columns supporting multi-level catwalk systems. Walkway levels are installed using cold-formed galvanized perforated steel decking, integrated staircases, handrail assemblies, and safety pallet-loading gates, effectively doubling or tripling storage floor area without requiring civil building extensions.
What standard tolerances and international testing standards do your factory components adhere to?
HEDA racking configurations are designed in accordance with European FEM 10.2.02 (Design of Static Steel Pallet Racking), EN 15512 (Steel Static Storage Systems), and Australian Standard AS 4084-2012. Our internal quality control department conducts continuous tensile pull tests, weld penetration non-destructive testing, and static full-load beam deflection monitoring under accredited ISO 9001 quality management procedures.
