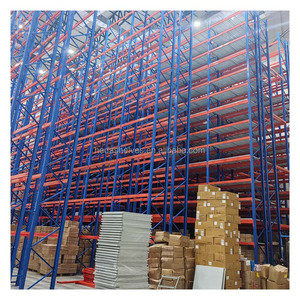

China Factory Price Steel Selective Heavy Duty Storage Racking
- Up to 5,000 kg per beam tier
- 100% immediate pallet selectivity
- Compatible with Reach and Counterbalance
Technical Specification & Industrial Architecture
High-Density Multi-Tier Storage Systems Built for Extreme Volumetric Efficiency
As warehouse land values escalate worldwide, supply chain engineers and logistics facility planners face the imperative to multiply usable cubic storage without expanding foundation footprints. As a tier-one China multi tier pallet racking manufacturer and global exporter, Guangzhou Heda Shelves Co., Ltd. designs, structurally calculates, fabricates, and commissions turnkey industrial racking installations. Our certified multi-tier configurations transform underutilized vertical clear heights into multi-level pick towers, heavy-capacity selective pallet arrays, and hybrid mezzanine platforms that conform strictly to international FEM 10.2.02, EN 15512, and ANSI MH16.1 design protocols.
Factory Direct Catalog
Featured Multi-Tier Pallet Racking & Heavy-Duty Systems
Precision roll-formed Q235B and Q355B structural steel systems engineered for multi-SKU distribution, heavy-load bulk consolidation, and manual picking integration.
Direct Access
5-Tier Adjustable

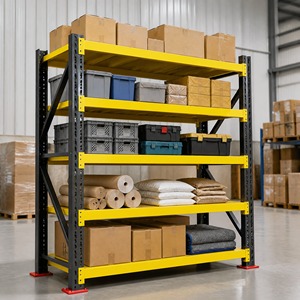

Heavy Duty 5 Tier Warehouse Storage Shelving Yellow Beam Steel Rack
- 75mm beam adjustment pitch
- Electrostatic safety orange & yellow
- Welded upright frame rigidity
Modular Stacking

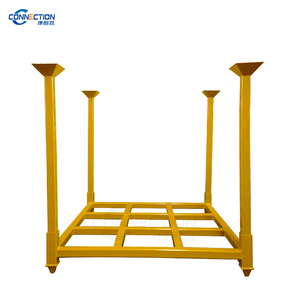

Customized Movable Powder Coated Stacking Post Pallet Rack & Shelve
- Demountable 4-post tubular steel
- 4 to 6 levels block stacking
- Ideal for seasonal bulk inventory
Cold-Rolled Profile

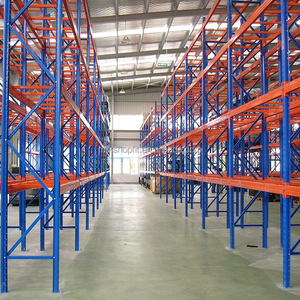

Multi-Level Stacking Rack Cold Rolled Steel Powder Coated Selective Rack
- High-tensile omega upright profile
- Automated continuous punch matrix
- Heavy ribbed footplates with anchor sets
Corrosion Resistant

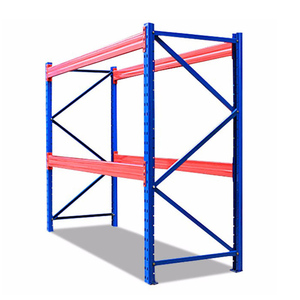

Heavy Duty Steel Multi-Level Warehouse Pallet Metal Rack System CE Certified
- CE Certificate No. 2435-CPR-8605159
- Hot-dip galvanized or epoxy coating
- Salt-spray tested for coastal sites
Loft / Mezzanine

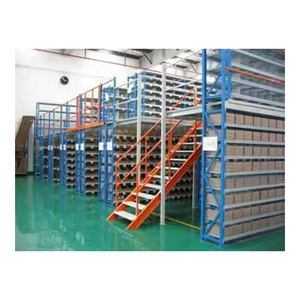

Multi Tier Rack Multifunctional Loft Platforms Steel Mezzanine System
- Multiplies floor space by 200%-300%
- Perforated steel or timber decking
- Integrated staircases & pallet drop gates
Pick-Tower Ready
Space Saving Light & Medium Steel Selective Pallet Rack 5 Tier Adjustable
- 300 to 1,000 kg capacity per level
- Precision drop-in shelf panels
- E-commerce split-case picking efficiency
Heavy-Duty VNA

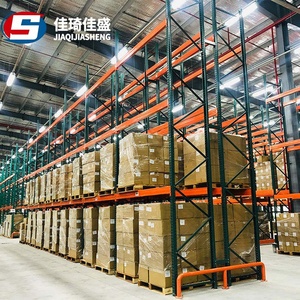

Customizable Multi-Tier Industrial Steel Warehouse Heavy Duty Pallet Racking
- Engineered for heights over 15 meters
- Floor-guided & wire-guided VNA profiles
- Maximized cubic density per square meter
2001
Established Milestone
30,000 m²
Guangzhou Plant Footprint
30,000 T
Monthly Steel Capacity
120+
Countries & GCC Regions
Engineering Whitepaper: Chapter 1
Structural Integrity, Steel Metallurgy & Cold-Formed Dynamics
Industrial multi-tier racking systems cannot be treated as passive static shelving. Because racking structures sustain continuous dynamic loads caused by forklift acceleration, live-floor pedestrian foot traffic, seismic oscillations, and shifting unit loads, HEDA Shelves utilizes cold-rolled structural steel coils (grades Q235B and high-tensile Q355B) with guaranteed minimum yield strengths reaching up to 355 MPa.
Our structural calculation methodologies follow the rigorous finite element analysis (FEA) mandated by EN 15512:2020 (European Steel Racking Code) and RMI ANSI MH16.1. Upright columns feature an advanced multi-flange omega profile with optimized cold-formed return bends. This specific cross-sectional geometry redistributes compressive axial stresses away from perforated connector cutouts, virtually eliminating localized elastic-buckling risks even under 100% full capacity utilization across 4 or 5 vertical tiers.
| Structural Metric | Standard Specification | HEDA Engineered Grade |
|---|---|---|
| Steel Grade | Commercial Grade Q195 / Q215 | Certified High-Yield Q235B & Q355B |
| Yield Strength (Re) | ≥ 215 N/mm² | ≥ 235 to 355 N/mm² (Certified MTR) |
| Beam Deflection Limit | L / 180 to L / 200 | L / 250 to L / 300 (Exceeds FEM Norms) |
| Safety Factor | 1.35 to 1.40 | ≥ 1.50 to 1.65 Working Stress Factor |
| Coating Durability | Single direct powder spray | Pickled, Phosphated + Electrostatic Epoxy |
Industry Intelligence & Sourcing Forecast
Future Procurement Trends in Multi-Tier Racking (2025–2030)
Procurement directors and general contractors are no longer sourcing disconnected steel bays; they are acquiring integrated, adaptive intralogistics structures. Key technological transitions are dictating the next era of warehouse procurement.
1. AMR & Shuttle-Ready Engineering
Traditional forklift aisles are rapidly transitioning to Autonomous Mobile Robot (AMR) runways and automated 4-way radio shuttle channels. Future-proof multi-tier racks are designed with high-flatness tolerances (±1.5mm across aisles) and integrated power rail raceways to support automated tote lifts and robotic goods-to-person (G2P) pick systems.
2. Circular Steel & Demountable Architecture
Corporate ESG mandates require documented carbon footprints and circular lifecycle performance. Leading B2B buyers now mandate non-welded, 100% bolted modular upright frames with standardized 50mm/75mm hole pitches. This allows logistics operators to dismantle, expand, or reconfigure entire rack-supported platforms to leasehold locations with zero structural waste.
3. Harsh Climate Protective Pretreatments
With major logistics hubs expanding across coastal desert zones (such as Dubai, Jebel Ali, Dammam, and Jeddah) and sub-zero cold chain facilities, standard commercial paints fail within 24 months. Modern procurement contracts require mandatory pickling, chemical phosphating pre-wash, and minimum 80-120μm thermosetting electrostatic powder coating.
Full Traceability Manufacturing
Inside Our 30,000 m² Guangzhou Industrial Facility
Consistency across multi-tier steel components is critical; a variance of just 1mm in beam connector punch positioning can propagate structural misalignment over a 15-meter vertical run. Guangzhou Heda Shelves enforces strict in-line quality controls across all 10 core manufacturing stations:
Station 01
Raw Coil Ultrasonic Testing
Station 02
Automated Slitting & Blanking
Station 03
CNC Column Perforation
Station 04
Continuous Roll Forming
Station 05
Robotic Beam Lug Welding
Station 06
Mechanical Surface Shot-Blasting
Station 07
Acid Pickling & Phosphating
Station 08
Automated Powder Coating
Station 09
High-Temp Polymer Curing
Station 10
Containerized Export Packing
Every production batch is accompanied by traceable mill test certificates (MTR), coating thickness inspection logs, and structural shear-weld test reports.
The Manufacturer Advantage
Why Global 3PL & Enterprise EPCs Partner with HEDA Shelves
Direct-from-plant procurement eliminates intermediate trader markups, reduces project communication latency, and guarantees direct structural accountability.
25+ Years Industrial Track Record
Established in 2001, HEDA Shelves brings nearly a quarter-century of focused engineering experience across cold chain, retail consolidation, pharmaceutical distribution, and industrial manufacturing facilities globally.
Certified Regulatory Compliance
All load-bearing structures possess full CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management Accreditation (No. 18624Q00169R0M, valid to 2027), and RoHS environmental safety compliance.
Complimentary 2D & 3D Structural CAD
Before any steel is cut, our dedicated application engineering team produces millimeter-accurate 2D AutoCAD floor layouts and 3D architectural renders detailing slab point loads, operating aisle clearances, and fire sprinkler flue spaces.
Procurement Intelligence
Frequently Asked Technical & Sourcing Questions (FAQ)
Clear, technically rigorous answers addressing engineering validations, regional approvals, seismic calculations, and international shipping logistics.
How does HEDA calculate multi-tier rack structural load limits and slab requirements?
Our structural calculations strictly adhere to FEM 10.2.02 and EN 15512 standards. Frame capacity calculations incorporate second-order P-Delta structural effects, checking both global buckling of the upright frame and localized torsional buckling. Floor slab load assessments detail concentrated point loads (downwards kN/leg), shear force transference, and uplift tensile requirements. We provide formal slab loading verification sheets so client civil engineering teams can approve existing concrete thicknesses or engineer localized pad footings.
Can HEDA multi-tier drawings pass Civil Defense, NFPA 13, and IBC building reviews?
Yes. Our layout blueprints are prepared specifically for regulatory submittals across the GCC (UAE Civil Defense, Saudi Civil Defense) and international building departments. We engineer mandatory vertical and horizontal flue spaces (typically 75mm to 150mm clear openings) according to NFPA 13 fire sprinkler standards. Walkway mezzanine levels are detailed with required egress travel distances, industrial self-closing safety gates, 1100mm high handrails with integrated 100mm kickplates, and emergency staircase exit corridors.
What ocean freight protection and container optimization practices do you employ?
Exporting heavy steel internationally requires strict volumetric and anti-corrosion container logistics. HEDA packages upright frames, beams, and deck panels in tightly strapped, wood-cradled modular bundles with moisture-absorbing desiccant packs and multi-ply polyolefin stretch film wrap. Beam connectors and small hardware are crated in labelled, fumigated wooden cases matching piece marks on CAD assembly drawings. A standard 40ft High Cube container typically holds between 22 to 26 metric tons of our precision-nested profiles.
How does HEDA handle remote installation verification or on-site supervision?
Every project is dispatched with a complete Structural Installation Manual, 3D exploded isometric diagrams, and part-coded component schedules. For international projects, we provide scheduled real-time video engineering supervision to inspect anchor bolt torque, column plumbness tolerances (≤ H/500 as per European standard SEMA), and beam safety pin engagement. On complex multi-tier mezzanine and high-bay AS/RS projects exceeding 1,000 pallet positions, senior HEDA structural field supervisors can deploy on-site to lead local labor teams.
Direct Factory Consultation
Optimize Your Warehouse Floor Space with Certified Engineering
Submit your building architectural CAD or facility dimensional layout. Our senior intralogistics design team will provide an engineered 2D AutoCAD equipment plan, comprehensive structural load breakdown, and container-optimized budget quotation within 24 hours.
