As warehouse land valuation increases exponentially across international supply hubs, choosing an optimized selective pallet racking configuration remains the industry baseline for balancing capital expenditure (CAPEX) with direct, unhindered SKU accessibility. Below are 8 specialized structural systems engineered to FEM, RMI, and EN 15512 safety protocols.

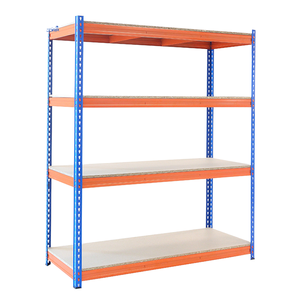

Engineered for 100% selective unit-load pick efficiency. Fabricated from certified Q235B cold-rolled steel with slotted 75mm beam adjustment pitches.
Designed according to EN 15512 norms. Features patented connector locks, electrostatic epoxy-polyester powder coats, and extreme deflection resistance.

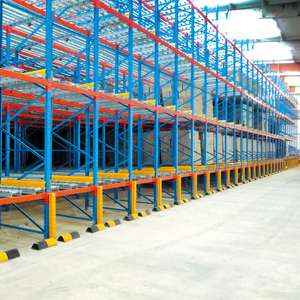

High-density dynamic racking leveraging sloped roller tracks with centrifugal speed-damping rollers. Ideal for perishable FMCG rotation and pharmaceuticals.
Engineered for non-standard footprint warehouses with specific seismic conditions, floor point-load limitations, and custom structural bracing modules.
Turnkey high-bay automated material handling tower. Integrates high-speed stacker cranes, CNC-controlled feed interfaces, and automated WMS telemetry.
Hot-dip galvanized (HDG) or zinc pre-treated frames designed specifically for marine environments, humid distribution ports, and refrigerated sub-zero chillers.
Flexible hybrid racking suited for combined manual order-picking cartons and palletized secondary bulk overhead storage in high-velocity omnichannel hubs.
Direct mill-sourced cold-rolled beam configurations fabricated for container consolidation and rapid site erection. Proven in over 10,000 installations globally.
Operating out of Guangzhou with over two decades of structural cold-forming expertise, HEDA Shelves combines rigorous raw material metallurgy with end-to-end parametric CAD/BIM engineering.
Every structural profile is strictly cold-rolled from Baosteel-grade Q235B or Q355B coils. Rigorously verified under ISO 9001:2015, CE Directive (2435-CPR-8605159), and RoHS specifications.
Eliminate procurement guesswork before capital release. Our in-house structural engineers furnish full 2D AutoCAD equipment layouts, civil clearance checks, and photorealistic 3D structural simulations within 24 hours.
Our 30,000 m² factory runs 10 precision production stages: continuous multi-station column punch presses, robotic seam welders, automated acid pickling & phosphating, and electrostatic powder curing lines.
Racks are pre-sorted, bundled with high-tensile steel straps, and tagged with barcoded manifests that correlate strictly with installation manuals, ensuring accelerated field assembly and zero damage across ocean transits.
Procurement leaders are no longer sourcing pallet racking simply on a "steel price per kilogram" basis. Modern supply chain volatility, automated guided vehicle (AGV) integration, and sustainability disclosures require deeper engineering evaluation.
Standard manual forklift racks allow deflection up to 1/200th of beam length (L/200). However, the massive adoption of Autonomous Mobile Robots (AMRs) and automated reach trucks necessitates tight tolerances of L/300 or L/400. Structural upright punching and floor shimming must eliminate optical sensor reflection blindspots and pitch drift.
In coastal export zones and harsh climatic areas, standard paint fails within 18 months. Leading procurement directives specify thorough surface shot blasting or 4-stage ultrasonic pickling & phosphating, followed by outdoor-grade thermosetting polyester powder baking (70–90 microns) to prevent micro-fissure rust propagation.
Future-proof facilities avoid fixed architecture. Racking frames are increasingly engineered with universal modular tie-ins capable of converting basic selective racking bays into radio shuttle lanes, carton-flow beds, or automated mini-load crane channels without tearing out foundational baseplates.
Direct factory engineering parameters applicable to standard and customized industrial configurations.
| Structural Element | Standard Specification | Heavy-Duty Option | Manufacturing Standard |
|---|---|---|---|
| Upright Column Profile | 80×60mm, 90×70mm (1.8–2.0mm thick) | 100×70mm, 120×95mm (2.3–3.0mm thick) | EN 15512 / Cold-Rolled Q235B & Q355B |
| Beam Profile (Box Beam) | 80×50mm, 100×50mm (1.5mm thick) | 120×50mm, 140×50mm, 160×50mm (2.0mm) | Welded C-Profile Interlocking Box Tube |
| Adjustment Pitch | 75mm or 50mm increments | 50mm precision laser-stamped | ISO 9001 Certified Tolerances |
| Surface Coating | Electrostatic Powder Coated (60–80μm) | Hot-Dip Galvanized (HDG) / Epoxy Hybrid | RoHS Compliant / Salt Spray ASTM B117 |
| Safety Accessories | Beam Safety Spring Pins (2 per beam) | Corner Column Protectors, Upright Frames | FEM 10.2.02 Structural Mandate |
| Load Deflection Limit | L/200 Under Max Static Uniform Load | L/300–L/400 for Robotic Telemetry | RMI MH16.1 Design Guideline |
Critical engineering and commercial answers to simplify cross-border sourcing from China manufacturers.
Load capacity is not estimated; it is derived through finite element analysis (FEA) based on FEM 10.2.02 and RMI standards. We calculate tensile yield points, column buckling boundaries, and connector shear strengths against actual pallet weight, beam length, and clear floor height. Physical load-test certificates are verified before project sign-off.
To generate an optimized CAD plan, provide: (1) Warehouse architectural drawings showing internal column grids, egress doors, and fire hydrants; (2) Clear roof height under lowest structural trusses; (3) Pallet specifications (width × depth × overall loaded height and gross weight); and (4) Forklift model, minimum turning radius, and maximum reach height.
Upright frames and horizontal beams are bundled using high-strength PET strapping over corrugated corner edge protectors. Upright footplates and small hardware components are crated in seaworthy, desiccated export wooden boxes. The 4-step pickling pretreatment guarantees that high ocean humidity does not induce surface blistering.
Yes. Our structural calculations account for local peak ground acceleration (PGA) seismic values and incorporate safety flue spaces required by NFPA 13 and Middle East/European Civil Defense regulations. We provide stamped engineering calculation packs for submittal to third-party structural auditing bodies.
