In an era marked by rapid supply chain volatility, expanding automated distribution hubs, and rising industrial land costs, modern enterprise logistics demands storage systems that combine high structural load factors with extreme durability. This engineering brief examines structural steel racking systems, heavy cold-formed solutions, and the technical standards driving international procurement.
Enterprise logistics managers and engineering contractors frequently weigh Heavy Structural Channel Steel Racking against standard roll-formed racking. Roll-formed uprights and step beams, manufactured by cold-rolling continuous steel strips, provide an economical answer for light-to-medium pallet loading environments. However, structural racking manufactured from hot-rolled structural C-channel or I-beam profiles delivers significant advantages in high-impact, continuous-cycle operations.
Structural racking provides up to 300% higher torsional rigidity and exceptional resistance against forklift collisions at high-traffic intersections. Furthermore, structural steel members feature thick flanges that eliminate internal rust-prone pockets, making them the gold standard for refrigerated cold storage rooms, harsh chemical manufacturing sites, outdoor staging facilities, and high-density seismic distribution zones across the GCC, North America, Southeast Asia, and Europe.
Guangzhou Heda Shelves Co., Ltd. (operating since 2001) designs and delivers heavy-load structural and high-strength roll-formed racking architectures that fully satisfy European EN 15512, American RMI (Rack Manufacturers Institute), and Australian AS 4084 building and seismic safety codes.
Engineered to deliver high cubic space utilization, rigorous dynamic load tolerances, and complete operational safety across distribution centers, automated logistics parks, and industrial parts warehouses.
Designed for batch storage of homogeneous SKUs. Continuous drive-in rails remove standard operating aisles to increase storage volume by 75% compared to selective layouts.

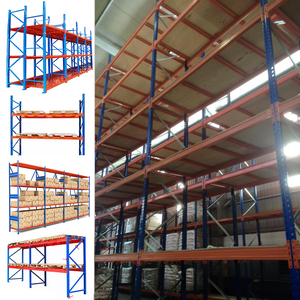

Ultra-tall vertical bay profile engineered for automated reach trucks and large logistics hubs. Engineered beam-to-column locking systems eliminate frame sway.

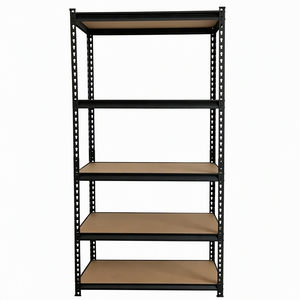

Rapid boltless assembly shelving system engineered for parts distribution, assembly line side-storage, and retail stockrooms requiring tool-free shelf adjustability.

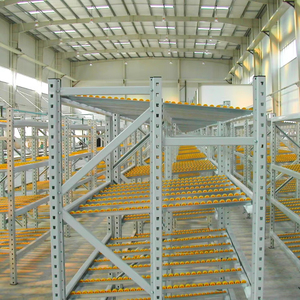

Gravity-assisted roller tracks separate restocking from picking aisles. Ensures strict FIFO inventory control and accelerates e-commerce split-case pick rates by over 40%.
Full-pallet roller bed racking equipped with centrifugal speed brake controllers and self-centering guides for safe gravity-driven movement of heavy pallets in high-throughput hubs.

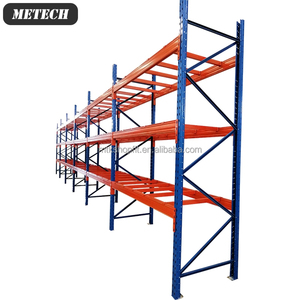

Optimized wall-perimeter run pallet racking featuring heavy footplates and masonry anchors. Maximizes wall-side cubic volume without obstructing central warehouse passageways.

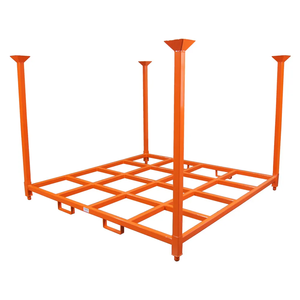

Mobile stackable pallet frames designed for dynamic seasonal warehouses and temporary laydown areas. Interlocking corner posts enable 4 to 6-tier stable block stacking without permanent bolting.

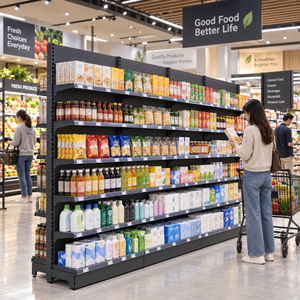

Heavy-duty commercial retail gondola shelving built from cold-rolled steel sheets with reinforced base legs and adjustable brackets for high-density cash-and-carry retail environments.
A detailed metallurgical and operational comparison to guide EPC contractors, logistics directors, and plant procurement engineers in selecting appropriate racking architecture.
| Evaluation Parameter | Hot-Rolled Structural C-Channel Racking | High-Yield Roll-Formed Steel Racking | Engineering Selection Matrix |
|---|---|---|---|
| Primary Steel Grades | ASTM A36, Q235B / Q355B Hot-Rolled Channel | Q235 cold-rolled high-tensile sheet strip | Structural for heavy loads |
| Forklift Impact Resistance | High resistance (solid web & thick flange absorb kinetic collisions) | Moderate (requires external post protectors in high-traffic aisles) | Structural cuts repair downtime |
| Torsional Torsion Strength | Rigid hot-rolled profile prevents lateral deflection | Engineered omega profile with ribbed stiffeners | Critical for 12m+ bays |
| Cold Storage Performance (-30°C) | Superior impact toughness; easy-to-clean smooth profile | Requires low-temperature tested alloys to prevent embrittlement | Structural standard in cold rooms |
| Initial Capital Investment | Higher material weight, lower lifecycle maintenance | Lower initial purchase price, fast installation | Evaluated by 10-year TCO |
| Seismic Performance (P-Delta) | Bolted heavy connection nodes dissipate seismic lateral sheer | Semi-rigid hook-in connector clips with safety pins | Complies with EN 15512 & RMI |
Established in 2001, Guangzhou Heda Shelves Co., Ltd. operates a dedicated 30,000 m² automated production facility equipped with CNC punching, automated roll-forming lines, robotic welding stations, and automated electrostatic powder coating lines.
Certified under CE (Certificate No. 2435-CPR-8605159), ISO 9001:2015 Quality Management (Certificate No. 18624Q00169R0M, valid to 2027), and RoHS environmental standards. Complete structural calculations and load deflection certifications are delivered with every engineering submittal.
Specialized pickling, acid phosphating, and multi-stage alkaline washing remove all rolling mill scale before electrostatic thermoset epoxy-polyester powder application. Cured at 200°C to guarantee adhesion, preventing peeling and rust under humid, high-salinity coastal conditions.
From architectural warehouse CAD layouts and finite element analysis (FEA) 3D simulations to container load optimization and step-by-step structural erection blueprints, our 300+ technical specialists assist procurement teams through civil defense and insurance approvals.
Each structural upright, load beam, and bracing channel passes through strict quality gates to guarantee structural integrity across global containerized export shipments.
Mill certification audit, ultrasonic flaw verification, and thickness testing of certified Q235B/Q355B coils.
Automated high-speed cold coil slitting to tight engineering tolerances (+/- 0.2mm) with edge deburring.
Multi-stage punch presses form uniform 50mm / 75mm teardrop, diamond, or hex pitch patterns for upright adjustability.
Continuous 18-station roll formers create structural channel sections and box-beam cross sections without micro-fracturing.
Heavy hydraulic roll profiling calibrates beam camber and upright straightness within 1/1000 length ratio.
Automatic shot blasting and robotic mechanical grinding remove burrs, slag, and sharp thermal edges before coating.
CO2 shielded automated multi-head robotic welding ensures complete root penetration on beam connectors.
A 6-tank chemical immersion process dissolves mill oils and etches a protective micro-crystalline zinc-iron phosphate layer.
Nordson automatic powder bells apply 60-90 micron TGIC-free polyester powder, cured at 200°C for wear resistance.
Batch load-to-destruction testing, barcoded steel bundling, edge cushioning, and secure container crating.
The global warehousing market is shifting toward automated logistics, dense cubic designs, and sustainable steel procurement. Forward-looking warehouse teams evaluate several key trends:
Traditional manually operated forklift racking is giving way to semi-automated and fully automated intralogistics architectures. Radio Shuttle Racking Systems and automated storage and retrieval systems (AS/RS) require structural steel engineering tolerances within millimeters over 20-meter vertical heights. System integration requires rigid, hot-rolled channel guide rails to eliminate deflection when automated shuttle rovers travel at speeds up to 1.2 m/s carrying 1,500kg payloads.
International logistics operators across seismic zones in North America, Turkey, the Middle East, and the Pacific Rim require validated non-linear pushover analyses and dynamic response-spectrum modeling. Future structural racking specifications increasingly mandate bolted beam-column moment connections over snap-fit clips, thicker baseplates anchored via chemical epoxy studs, and integrated horizontal floor-level seismic truss bracings.
With global temperature-controlled food logistics and pharmaceutical cold chains expanding rapidly, the cost of cooling refrigerated warehouse volume is a major operating expense. Industrial buyers are replacing wide-aisle selective racking with high-density Drive-Through, Gravity Flow, and Shuttle architectures. By condensing storage corridors, facilities reduce refrigerated volume by up to 45% per pallet stored, delivering significant thermal energy savings.
Corporate ESG mandates are reshaping procurement tenders. Buyers now evaluate the environmental footprint of their racking suppliers, requiring electric arc furnace (EAF) recycled scrap steel utilization, lead-free low-VOC thermoset powder finishes, and modular, demountable mezzanine configurations that can be relocated or reconfigured without on-site hot work.
From chemical distribution centers in West Africa to complex parts fulfillment mezzanines across Southeast Asia and the Gulf, Heda Shelves delivers turn-key storage infrastructure.
Engineered for drum storage with specialized spill containment basins, heavy beam ties, and wire decking under demanding ambient tropical temperatures.
Doubled floor capacity using an integrated multi-tier rack mezzanine with galvanized steel grating walkways and stair towers for rapid order dispatch.
A heavy structural beam-and-column platform carrying 800kg/m² uniform distributed load, configured with pallet drop gates and vertical cargo hoists.
Clear answers to structural load requirements, regulatory standards, surface treatments, and containerized logistics.
