In high-throughput warehousing, logistics engineering, and cross-border 3PL facilities, the Teardrop Pallet Rack System remains the undisputed global benchmark for selective storage flexibility. Originally standardized across North America, the teardrop punch pattern has transcended regional boundaries, becoming the primary design specification across modern distribution networks. By offering slide-in, tool-less beam adjustment and backward compatibility with a wide range of legacy warehouse architectures, teardrop systems eliminate interoperability friction while maintaining critical structural integrity under extreme dynamic loads.
However, enterprise procurement officers and supply chain directors navigating China's manufacturing landscape face sophisticated sourcing decisions. The convergence of strict seismic tolerances (such as RMI ANSI MH16.1 compliance), advanced raw material metallurgy, fully automated continuous roll-forming lines, and eco-certified electrostatic powder coating requires deep due diligence. As industrial supply chains migrate toward tighter vertical integrations, sourcing factory-direct teardrop pallet racking from certified Chinese manufacturing leaders delivers tangible ROI—drastically reducing capital expenditures (CapEx) without sacrificing rigorous international load, deflection, or safety certifications.
Manufactured using certified structural carbon steel coils, subjected to 10-stage surface pretreatments, and precision-engineered for heavy distribution operations.

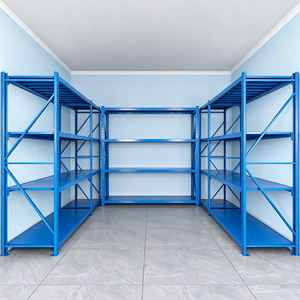

Flexible modular shelving engineered for rapid hand-picking, e-commerce fulfillment hubs, and adaptable light unit loads.
View Specifications
Robust stackable post racking tailored for heavy bulk raw materials, industrial machinery parts, and seasonal logistics buffering.
View Specifications
Cost-efficient structural framework optimized for spare parts storage, secondary SKU sorting, and high-turnover cartons.
View Specifications
Engineered for narrow-aisle forklift operations, maximizing vertical warehouse volume while preserving direct single-pallet access.
View Specifications
Heavy-gauge selective pallet rack featuring cold-rolled punch sections designed to European and North American safety tolerances.
View Specifications
High-load-bearing tier system coated with thermosetting epoxies, resisting rust across demanding regional shipping climates.
View Specifications
Classic teardrop and selective column geometry fitted with auto-locking safety pins to prevent beam dislodgement under forklift impacts.
View Specifications
Continuous roll-formed 1.5mm cold-rolled steel storage shelving, designed for dense packaging lines and commercial warehousing.
View SpecificationsThe structural advantage of the teardrop configuration lies in its tapered slot profile. When beam pins seat within the teardrop hole, the connector is continuously pulled downward and inward by gravity. This natural mechanical wedging effect increases frame rigidity under heavier loads, mitigating joint deflection. Unlike bolted frames that require regular torque inspections or proprietary European hook geometries, standard teardrop uprights offer complete interchangeable universality with major North American manufacturers.
Chinese tier-one manufacturers utilize continuous cold-bending and computerized progressive punch dies to produce upright frames from high-yield structural steel coils (certified standard Q235B or high-tensile Q355B). The integrity of these assemblies is governed by precise mechanical properties: a minimum yield strength of 235–355 MPa, tensile strength up to 510 MPa, and strict elongation thresholds. Beam connectors feature integrated spring-loaded safety locks that engage automatically upon seating, ensuring instant visual verification of positive engagement and preventing accidental dislodgement caused by vertical forklift over-travel.
How global logistics automation, nearshoring, and supply chain volatility are reshaping international racking procurement strategies.
Global warehouse operators are actively moving away from proprietary racking profiles. Standardizing on 2-inch punch increments with universal 3-pin and 4-pin beam connections protects supply chains from vendor lock-in, enabling seamless multi-facility reconfigurations and localized accessory sourcing.
Modern teardrop procurement blends static bulk storage with semi-automated material handling. Procurement leads now demand precision roll-formed uprights capable of mounting low-profile guide rails, radio shuttle pallet runners, and automated conveyor mezzanine supports without requiring secondary field welding.
Exporting to coastal, humid, or refrigerated logistics zones requires superior surface protection. The trend is moving toward integrated 10-stage pickling and phosphating cycles paired with architectural-grade thermosetting powder coatings, yielding over 500 hours of continuous salt-spray resistance.
The historical selective rack was engineered as a passive steel grid meant solely for standard counterbalance forklifts. Today, the technological trajectory of teardrop systems is characterized by high structural sophistication. Modern upright profiles feature multi-rib cross-sectional bends that increase torsional resistance while reducing overall deadweight. This cold-formed geometry maximizes the load-to-steel ratio, driving significant raw-material savings without compromising the safety factor.
Furthermore, digital twin integration and finite element analysis (FEA) software have transformed custom rack engineering. Before raw steel enters precision roll-forming lines, Chinese engineering teams run comprehensive dynamic simulation models accounting for local seismic acceleration parameters, building slab settlement variables, and forklift impact forces. These advancements ensure that exported teardrop racks achieve perfect equilibrium between high storage density, strict deflection thresholds (limiting beam sag to L/180 or L/240 under full rated capacity), and reliable long-term operational safety.
Our vertically integrated Guangzhou manufacturing facility provides an end-to-end bridge between structural engineering, automated mass fabrication, and dependable international delivery.
Crucial engineering, commercial, and operational considerations addressed by factory technical directors.
