Engineered Wide Span & Industrial Storage Solutions
Precision-manufactured utilizing automated continuous roll-forming lines, certified Q235B structural steel, and high-adhesion electrostatic powder coatings compliant with CE (EN 15512) and ISO 9001:2015 safety criteria.
Structural Metallurgy and Load-Bearing Dynamics in Wide Span Shelving
In modern industrial logistics, Wide Span Shelving (often termed longspan shelving) fills the strategic operational void between light-duty slotted angle shelving and heavy-duty selective pallet racking. Engineered specifically for manual carton picking, high-cube e-commerce sorting, automotive components, and archive storage, a certified wide span system must provide wide, unobstructed horizontal spans (1,200mm to 2,700mm) while maintaining exceptional deflection resistance and vertical rigidity under dynamic working loads.
The structural integrity of industrial wide span shelving depends on three fundamental elements: the yield strength of the steel grade, the cold-rolled cross-sectional profile of the upright frames, and the interlocking geometry of the connector claws. Guangzhou Heda Shelves Co., Ltd. uses premium cold-rolled Q235B high-tensile carbon steel (equivalent to European S235JR and American ASTM A36) with a verified yield strength of 235 MPa and ultimate tensile strength up to 510 MPa. This metallurgical base prevents ductile failure under unpredicted point overloading.

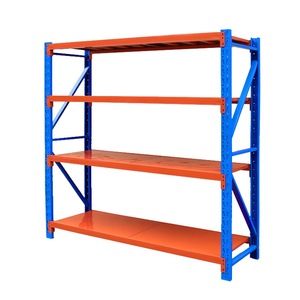

Light-Medium Duty Series
Load Capacity: 150 – 300 kg / level
Engineered for light electronics, textile distribution, pharmaceutical manual picking, and retail stockrooms. Features 50mm pitch teardrop or butterfly perforations, pressed steel shelf panels, and toolless snap-fit assembly.
Heavy-Duty Industrial Series
Load Capacity: 400 – 1,000 kg / level
Features engineered P-beam and step-beam profiles with 3-to-4 tooth interlocking steel claws. Compatible with 18mm high-density melamine board, galvanized wire decking, or ribbed steel panels for heavy hardware.
Multi-Tier Shelving Mezzanines
Platform Loading: 300 – 800 kg / m²
Uses heavy-duty wide span uprights as the structural support for 2-tier and 3-tier catwalk floors. Maximizes vertical building cube height without requiring separate structural columns.
Technical Specification Matrix: Wide Span Shelving Systems
| Engineering Attribute | Standard Commercial Grade | HEDA Shelves Industrial Export Grade | Compliance / Verification Test |
|---|---|---|---|
| Primary Raw Material | Commercial Grade Q195 / Scrap Mix | Certified Prime Q235B / Q345B High-Tensile Steel | Mill Test Certificate (EN 10204 3.1) |
| Upright Column Profile | 50x30mm, 0.9–1.0mm thickness | 55x47mm / 60x50mm, 1.5–2.0mm thickness | Dimensional Tolerance ISO 2768-m |
| Beam Geometry | Single-tube folded profile | Precision Roll-Formed Step Beam / P-Beam | FEM 10.2.02 / ANSI MH28.2 |
| Beam Connection Claws | 2-pin friction-fit clips | 3 or 4-finger stamped claw with safety spring lock pin | Safety Factor 1.65 (Ultimate Yield) |
| Surface Pretreatment | Basic spray rinse or solvent wipe | 7-Stage Acid Pickling, Degreasing & Zinc Phosphating | Corrosion Prep ISO 12944 C2/C3 |
| Powder Coating Adhesion | Standard single-coat 40–50µm | Electrostatic Epoxy-Polyester 60–90µm (Baked 200°C) | Cross-Hatch Adhesion ASTM D3359 |
| Salt Spray Corrosion Test | < 120 Hours ASTM B117 | > 500 Hours ASTM B117 (Zero Blistering) | Third-Party SGS / TUV Laboratory |
| Decking Support Options | Direct placement without retainers | Recessed flush step-fit: Steel, Wire Mesh, Melamine | Uniform Distributed Load Testing |
Why Sourcing Directly from HEDA Shelves Guarantees Reliability
Founded in 2001 with head offices in Guangzhou, Guangzhou Heda Shelves Co., Ltd. is a leading Chinese designer, manufacturer, and exporter of warehouse storage racking, wide span industrial shelving, and heavy mezzanine platforms. Our 30,000 m² smart fabrication base features automated continuous cold-bending roll formers, robotic welding cells, and an advanced automated electrostatic powder-coating line.
Unlike regional trading intermediaries, HEDA Shelves provides complete engineering traceability. Our senior structural engineers review your warehouse architectural drawings, calculate slab load capacities, and supply free 2D CAD layouts and 3D visual renderings within 24 hours of your project brief.
Our monthly production volume exceeds 30,000 tons of structural steel. This scale helps shield our international distributors, rack contractors, and logistics operators from raw material cost spikes while keeping lead times within 12 to 20 working days.
Verified Factory-Direct Advantages
- Zero Intermediary Margins: Direct access to primary factory pricing and customized roll-tooling schedules.
- Export Packaging Standards: Uprights and beams nested with anti-scratch protective wrap, reinforced steel edge guards, and custom palletizing for rapid forklift unloading.
- Global Compliance Documentation: Complete structural calculation packages, load capacity rating plates, and mill test certificates supplied with every shipping container.
- Middle East & Americas Readiness: Extensive export experience shipping to Jebel Ali, Dammam, Jeddah, Rotterdam, Long Beach, and Santos.
- Turnkey Project Support: Detailed assembly step-by-step schematics, labelled component bundles, and live remote video installation support.
Future Global Procurement & Technological Trends (2025–2030)
The global demand for industrial wide span shelving is shifting from basic, static storage units to reconfigurable, technology-integrated logistics systems. Global supply chain disruptions, changing e-commerce fulfillment speeds, and raw material volatility are prompting procurement directors to rethink their racking sourcing strategies.
1. Automation & AMR Integration
Wide span shelving is increasingly paired with Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), and pick-to-light sorting sensors. Modern longspan layouts now require tighter structural tolerances (±1.0mm) and high-rigidity baseplate anchoring to accommodate automated robotic transit and prevent aisle drift.
2. Nearshoring vs. Direct China Sourcing
While some buyers evaluate localized manufacturing, China remains the global center for rolled structural steel shelving due to its integrated supply ecosystem. Experienced international buyers choose tier-1 direct manufacturers like HEDA Shelves to access cost efficiencies of 28% to 42% over Western equivalents, while requiring strict factory-level QA sign-offs.
3. Sustainable Finishing & Green Warehousing
Environmental standards now favor heavy metal-free powder coatings that comply with EU RoHS and REACH directives. Modern electrostatic finishing uses closed-loop powder reclamation systems with 98% material recovery and zero VOC emissions. This supports carbon-neutral corporate sustainability targets for modern logistics facilities.
Total Cost of Ownership (TCO) Procurement Evaluation
Experienced procurement officers evaluate wide span shelving based on lifetime Total Cost of Ownership (TCO) rather than the initial FOB price per bay. Sub-par steel profiles or inadequate chemical pretreatments often cause early structural failure, paint flaking in high-humidity zones (such as coastal GCC distribution hubs), and beam warping that requires premature replacement.
Risks of Low-Cost Spec Shelving
- High risk of brittle micro-cracking during cold roll-forming from non-certified steel coil.
- Single-stage degreasing causes rust under the paint surface within 12–18 months in humid environments.
- Loose connection tolerances create horizontal rack sway, requiring operational load deratings.
- Poor container stowage results in transit bending, scratched coatings, and delayed warehouse handovers.
HEDA Shelves Engineered Value Standard
- 100% Q235B virgin structural coil with certified chemical and tensile property documentation.
- 7-stage automated chemical bath pretreatment ensures 1,000-hour moisture and corrosion resistance.
- CNC-punched uprights and stamped connectors maintain an exact 50mm pitch for secure, plumb alignment.
- Custom container packing layouts maximize CBM utilization, cutting landed freight costs per storage bay.
How to Specify Wide Span Shelving: Step-by-Step Technical Guide
To avoid costly specification errors when ordering factory-direct from China, project managers should calculate their storage requirements using these structural engineering steps:
Calculate Net Unit Loads
Determine maximum SKU unit dimensions (Length x Width x Height) and gross package weights. Always design beam section profiles for maximum load capacity rather than average operational weights to maintain the 1.5x to 1.65x safety factor required by EN 15512.
Select Optimal Shelf Decking
Select your decking material to match fire safety codes, operational hygiene rules, and item formats:
• Steel Shelf Panels: High fire rating, easy to wipe down, handles heavy point loads.
• Wire Mesh Decks: Enhances overhead sprinkler water penetration; prevents dust buildup.
• Engineered Chipboard / MDF: Economical for dry goods and non-flammable carton sorting.
Assess Upright Profile & Frame Height
Evaluate total vertical frame loads by summing all beam levels plus impact allowances. Upright frames exceeding 3,000mm in manual picking zones should feature reinforced diagonal bracing panels and seismic anchor floor plates bolted into the warehouse floor slab.
Optimize Warehouse Aisle Geometry
Align clear aisle dimensions with your handling equipment:
• Manual Hand Picking: 900mm – 1,200mm clear aisle width.
• Picking Carts & Order Pickers: 1,400mm – 1,800mm clear aisle.
• Cross-Aisle Forklift Circulation: 2,800mm – 3,200mm minimum safety clearances.
Industrial Wide Span Shelving Procurement FAQ
Clear, engineering-backed answers to the key questions asked by warehouse managers, rack distributors, and project procurement teams.
What is the maximum span length recommended for industrial wide span shelving?
How does HEDA Shelves ensure quality control during structural steel manufacturing?
Can wide span shelving be adapted into a multi-tier mezzanine structure?
Which shelf decking is best: solid steel, wire mesh, or chipboard?
- Steel Shelf Panels: Provide maximum load durability, are non-flammable, and resist industrial oils. Ideal for automotive spares, hardware, and liquids.
- Galvanized Wire Mesh Decking: Highly recommended by insurers and fire marshals because it allows overhead fire sprinkler water to pass through. It also reduces dust accumulation and improves overhead lighting in multi-tier racks.
- Chipboard / MDF / Melamine: The most economical choice for dry e-commerce picking and carton sorting, but requires checking local commercial fire regulations.
How do you pack wide span shelving to prevent damage during ocean container transit?
What project documentation is required for a customized CAD layout quotation?
What are the primary differences between boltless teardrop, butterfly, and slotted hole shelving?
- Teardrop Pattern: The North American standard. Uses a tapered round pin that wedges securely into a teardrop hole under load, speeding up assembly.
- Butterfly (Keyhole) Pattern: Widely used across Europe, the Middle East, and Asia. Features dual symmetric wedges that deliver high structural rigidity against lateral swaying.
- P-Hole / Slotted Hook Pattern: Designed for heavy industrial loads. Uses multi-toothed steel stamped claws that hook into rectangular perforations, delivering superior shear strength for spans carrying up to 1,000 kg/level.
What is the standard production lead time and minimum order quantity (MOQ)?
