Specialized Automotive Racking & Heavy Stillage Systems
Engineered for just-in-time (JIT) powertrain staging, stamped body panel preservation, lineside kitting, and dense battery pack logistics. Explore our industrial-grade storage portfolio engineered directly from raw steel coils.
Foldable Stillage
CASE CARTER OEM 600*400*400mm Heavy Duty Foldable Stack Wire Mesh Steel Pallet Storage Container Rack 4 High
- High-tensile Q235B wire mesh base
- 4-high interlocked dynamic stack
- Optimized reverse freight collapse
Anti-Corrosion
Industrial Heavy-Duty Steel Multi-Level Adjustable Corrosion Protection Electrostatic Powder Coated Storage Shelves Racking
- Electrostatic epoxy thermoset coat
- 50mm pitch beam height adjust
- Salt-spray tested for coastal plants
Custom Stacking

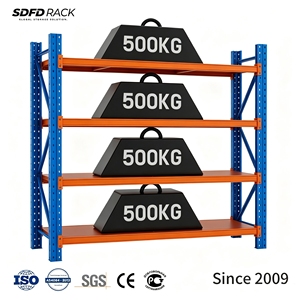

Custom Heavy Duty Industrial Steel 5 Multi-Level Stacking Storage Carpet Roll Display Warehouse Beam Pallet Racking Systems
- Heavy roll cradle profile support
- Up to 5,000 kg tier load rating
- Direct automotive interior storage
Multi-Level Boltless
Industrial Storage Warehouse Pallet Racking Systems Racks Display Stack Rack Heavy Duty Steel Multi-Level Boltless Shelves
- Fast interlocking rivet assembly
- Modular sub-assembly expansion
- Zero-downtime reconfiguration
Selective Beam

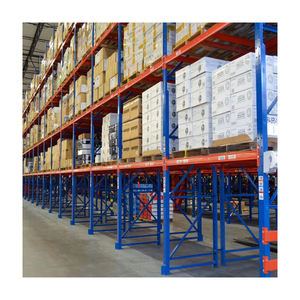

Wholesale Price Heavy Duty Storage Racks Warehouse Stacking Racks Selective Steel Pallet Rack Heavy-Duty Racking for Sale
- 100% SKU lineside selectivity
- Heavy boxing-beam engineering
- Safety lock pins with visual check
Factory Direct
CE ISO Certified Factory Direct Sales Pallet Storage Rack Heavy Duty Shelving for Warehouse Equipment Garage Shelves
- Fully compliant to EN 15512 codes
- Up to 4,500 kg per beam level
- Seamless automated cold-formed steel
High Density VNA
Heavy Duty 5 Steel Warehouse Rack Anti-rust Multi-functional Space-saving Narrow Aisle Racking Ensamblados Sin Tornillos for
- Floor space utilization up to 85%
- Guide-rail & wire induction ready
- Torsion-resistant heavy uprights
Heavy Pallet System
Industrial Shelves System Adjustable Steel Warehouse Racking Pallet Rack Shelving Durable Warehouse Pallet System
- High-load pallet displacement ribs
- Integrated safety barrier flanges
- Engineered for heavy die matrices
Structural Integrity in Automotive Manufacturing Intralogistics
Automotive assembly facilities, Tier-1 powertrain subassembly lines, and stamping facilities operate under severe structural and operational constraints. Selecting an industrial automotive racking manufacturer requires precise evaluation of dynamic loads, cycle fatigue, and material handling interfaces.
Body-in-White (BIW) Stillage Engineering
Stamped metal panels (doors, hoods, quarter panels) require custom welded stillages with polyolefin or ultra-high-molecular-weight polyethylene (UHMW-PE) inserts to prevent micro-scratching before robotic electro-deposition painting.
- Laser-cut precision locating dunnage
- Reinforced corner posts for 4-high loaded dynamic stacking
- Forklift pocket guides and automatic tugger linkages
EV Battery Module Safe Containment
Lithium-ion pack staging introduces unprecedented point loads (500–1,100 kg per pack) alongside strict thermal management and fire barrier segregation mandates within hazardous storage classifications.
- Heavy structural steel framework with fire sprinkler cutouts
- Thermal runaway containment dividers between racking cells
- Non-sparking, dielectric contact surfaces for terminals
High-Throughput Lineside Sequencing (JIS)
Just-in-Sequence (JIS) demands zero-error pick channels directly feeding automotive assembly lines. Flow racks with gravity rollers ensure strict FIFO component feed while reducing line congestion.
- Zero-deflection roller beds with integrated directional brakes
- Integrated pick-to-light bracket channels and sensors
- Ergonomic presentation shelves with 15° to 30° adjustable tilt
Automotive Racking Structural Performance Matrix
Direct comparison of critical structural specifications across automotive storage topologies to ensure seismic and loading compliance.
| Racking Topology | Primary Automotive Application | Max Unit Capacity | Steel Grade & Profiling | Corrosion Protection | AGV / AMR Interoperability |
|---|---|---|---|---|---|
| Selective Pallet Racking | Engine blocks, transmissions, Tier-1 bulk crates | 1,000 – 4,500 kg / beam pair | Q235B / Q355B cold-rolled omega upright | Pickled + phosphated electrostatic powder 70-90µm | High clearance under bottom beams for counterbalanced AGVs |
| Custom Foldable Stillage Racks | BIW stampings, bumpers, instrument panels | 800 – 2,500 kg / unit (Stack 4-High) | Structural square tubing (50x50 to 100x100mm) | Hot-dip galvanized (EN ISO 1461) or dual-coat epoxy | Integrated tow-hitch pins and AMR alignment cups |
| Drive-In / Drive-Through Systems | Tire storage, glass packaging, identical SKUs | 1,500 kg / pallet space | High-yield cantilevered unpunched rolled rails | Electrostatic powder coating (RAL custom matched) | Laser reflective targets on entry uprights |
| Narrow Aisle (VNA) Heavy Racks | Central distribution of automotive spare parts | Up to 4,000 kg / level (Heights to 18m) | High-tensile continuous welded box beam | Impact-resistant polyurethane topcoat finish | Wire-guided and inductive floor rail interface |
| Rack-Supported Mezzanine Floors | Trim subassembly, kitting cells, small components | 300 – 1,200 kg / m² uniform distributed load | C-section cold-formed steel purlins + I-beam frames | Anti-skid galvanized steel grating or BFU plywood | Vertical reciprocating conveyor (VRC) integration |
10-Stage Precision Manufacturing Workflow
From prime hot-rolled steel coils to finished container shipping, every step takes place inside our ISO 9001 certified 30,000 m² factory.
01
Raw Steel QC
Mill test certificates (MTC) verified for tensile and chemical yield.
02
Precision CNC Cutting
Laser and high-speed bandsaw cutting with tolerance ±0.5mm.
03
Automated Punching
Continuous hydraulic stamping for tear-drop and butterfly slot pitch.
04
Cold Bending
Computer-controlled brake press shaping critical load-bearing angles.
05
Continuous Roll Forming
Multi-stand automated cold rolling ensuring straightness and zero residual stress.
06
Deburring & Polishing
Mechanical removal of edge flash preventing abrasion on auto parts.
07
Robotic MIG Welding
Gas-shielded robotic welding cells producing uniform, deep-penetration fillets.
08
Pickling & Phosphating
Multi-tank chemical bath clearing scale and forming zinc-phosphate substrate.
09
Powder Coating & Cure
Electrostatic spray guns with 200°C curing tunnel for durable chemical resistance.
10
Pre-Assembly & Shipping
Bundle labeling matching installation drawings for rapid port clearance.
Automotive Warehouse Racking: Future Procurement Trends
As the global automotive industry navigates electrification, modular platform manufacturing, and localized gigafactory supply chains, racking infrastructure procurement must pivot ahead of these four transformative trends.
1. Circular Steel Logistics & Collapsible Packaging
Automotive OEMs are phasing out single-use wooden pallets and non-standard crates in favor of standard returnable steel stillages with folding ratios exceeding 3:1. This reduces deadweight transport costs in global supply loops between component hubs and assembly plants.
2. Gigafactory Battery Cell Segregation
With electric vehicle (EV) battery packs weighing upwards of 800 kg, gigafactories are adopting automated high-density radio shuttle racking with built-in thermal sensor bays, inert gas extinguishing ports, and rapid-ejection flues to arrest thermal propagation events before they reach structural members.
3. Full Autonomy & Dark Warehouse Integration
Human-operated forklifts are giving way to Autonomous Mobile Robots (AMRs) and Automated Storage and Retrieval Systems (AS/RS). Modern automotive racking now requires structural tolerance margins tighter than ±1.5mm, integrated QR / RFID fiducial brackets, and precision slab deflection engineering.
Direct Factory Engineering Since 2001
With over two decades of dedicated storage systems manufacturing, Guangzhou Heda Shelves Co., Ltd. operates an advanced 30,000 m² facility with 300+ technical personnel. We control every facet of cold-roll profile extrusion, robotic welding, and anti-corrosive powder coating to supply OEM and Tier-1 automotive distribution centres across 120+ countries.
Frequently Asked Questions by Automotive Logistics Directors
Direct technical answers addressing engineering parameters, lead times, international freight, and custom prototyping.
What structural standards govern your automotive racking systems?
Our structures comply with European standard EN 15512:2020 (Steel static storage systems), US RMI (Rack Manufacturers Institute) MH16.1 specifications, and Australian AS 4084 standards. Every structural calculation includes finite element analysis (FEA) simulating both dead loads and dynamic forklift impacts.
Can you fabricate custom dunnage and stillages from 3D CAD step files?
Yes. We regularly receive automotive part CAD files (CATIA, STEP, SolidWorks) directly from Tier-1 suppliers. Our engineering office designs custom internal holding brackets, laser-cut polyurethane nests, and drop-in dunnage to hold body panels or powertrain castings without surface damage during shipment.
How do your coating treatments perform in high-humidity or coastal ports?
All structural steel parts go through an automated 8-stage pre-treatment tunnel featuring chemical degreasing, acid pickling, and zinc phosphating before automated electrostatic powder coating. The resulting 70–90 micron thermoset polyester coating easily passes 500-hour ASTM B117 salt spray tests.
What is the typical production lead time for large warehouse buildouts?
Standard pallet racking orders of 5 to 20 shipping containers typically complete manufacturing within 18 to 25 business days. Highly customized stillage racks requiring dedicated stamping tooling and laser cutting have an initial 7-day physical prototype approval window before rolling into continuous volume fabrication.
Transform Your Automotive Warehousing Layout
Submit your facility floor plan, clear height under roof beams, pallet specifications, and throughput targets. Our engineering department delivers a free 2D CAD architectural plan and photorealistic 3D structural rendering within 48 hours.
