Certified
Medium Duty Warehouse Bolted Steel Racking Shelf Rack
Precision-bolted industrial racking for medium to heavy distribution. Features multi-pitch beam slots with electro-galvanized connectors.
Factory-Engineered Catalog
Industrial-Grade Heavy Duty Warehouse Racking Systems
Direct from our 30,000 m² Guangzhou manufacturing complex. Sized from premium Q235B cold-formed steel to sustain uniform distributed loads (UDL) exceeding 3,000 kg per level.
Certified
Boltless Fast Assembly
Long Span Boltless 5-Layer Powder Coated Shelving Unit
Fast assembly boltless clip-in design for e-commerce picking modules, automotive accessories, and multi-tier picking centers.
High-Bay / VNA
High Rise Storage Vertical Heavy Duty Racking System
Engineered for automated guided vehicles (AGV) and narrow aisle (VNA) reach trucks, scaling up to 18 meters vertical clear height.
Stackable
Heavy Duty 4-Layer Garage Steel Stacking Rack 300kg+
Reinforced base perimeter designed for mobile workshops, automotive tyre distribution centers, and flexible seasonal floor bulk storage.
Heavy Shelving
JDS-5 Layer Industrial Heavy Duty Storage Shelves System
Heavy gauge steel frame shelving unit with rolled upright geometry and double locking clips for secure warehouse parts picking.
Top Spec Selective
Selective Pallet Racking System Steel Storage Rack Q235B
100% immediate pallet accessibility. Standard box beam and step beam configurations engineered to fit standard Euro and ISO pallets.
Specialized Textile

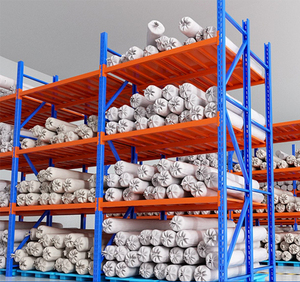

Textile Industry 5-Layer Corrosion Protection Fabric Roll Rack
Custom cradle arms and open span levels preventing fiber compression. Treated against electrostatic charge and surface scratching.
No Welding Required
No Welding Shipping Container Hanging Shelf Storage Rack
Interlocking clamp suspension system leveraging ISO shipping container D-rings for jobsite storage, conversions, and offshore cabins.
Need a Tailored Structural Engineering Drawing & Static Load Calculation?
Our Guangzhou in-house engineering desk generates full 2D AutoCAD and 3D Revit/Navisworks layouts within 24 hours. We evaluate floor slab PSI capacity, seismic zoning, forklift turning radiuses, and local Civil Defense fire aisle compliances.
Inquire Now
Procurement Technical Whitepaper
Industrial Heavy Duty Racking Systems: Engineering Standards, Procurement Economics & Future Trajectory
In high-throughput distribution environments, selecting a heavy-duty racking manufacturer is not merely an equipment purchase—it is a critical civil and logistics structural integration. Every pallet location represents static dead weight and dynamic forklift operational risks. Industrial buyers across North America, the EU, the GCC, and Southeast Asia must evaluate steel metallurgy, cold-roll profile structural stability, beam-connector welding integrity, and long-term fatigue performance against stringent international norms (such as EN 15512, RMI MH16.1, and AS 4084).
25+
Years Manufacturing Authority
30K
Square Meters Factory Footprint
30,000t
Monthly Cold-Forming Capacity
10,000+
Global Projects Successfully Installed
1. Future Procurement Trends: Total Cost of Ownership (TCO) & Supply Chain Resilience
Procurement directors in 2026 and beyond are pivoting from low initial capital expenditure (CapEx) to total operational efficiency (OpEx). Historically, low-cost fabrication often resulted in frame deflection, premature beam failure, and catastrophic weld shearing under asymmetrical forklift impact. Key trends shaping procurement methodologies include:
Decoupled Factory Direct Sourcing: Global enterprise clients are bypassing intermediary trading desks to partner directly with primary manufacturing plants equipped with end-to-end production lines—from continuous coil slitters and automated roll formers to automated robotic welding cells and continuous electrostatic powder coating tunnels. Direct factory sourcing reduces acquisition costs by 22% to 35% while providing complete material mill test certifications (MTC).
Custom Pre-Fabrication & Zero-Weld Modularity: On-site welding has become a major fire compliance obstacle for warehouse permits. Modern industrial contracts prioritize modular, non-welded, pre-punched slotted uprights paired with safety-pinned connector heads. Systems like container hanging frames and adjustable teardrop or diamond-slotted frames eliminate the need for hot-work permits, saving hundreds of contractor hours during commissioning.
2. Structural & Engineering Development Trends in Heavy Duty Racking
The global warehousing landscape is evolving rapidly to match automated logistics. Heavy-duty structural systems are shifting in several fundamental directions:
AGV & Shuttle Synergies
Transitioning from manual counterbalanced forklifts to 4-way Radio Shuttle carriers, automated crane AS/RS towers, and autonomous mobile robots (AMRs). Racking structures now require strict deflection tolerances below 1/1000th of clear span length under dynamic travel loads to prevent robot carriage jams.
High-Bay Vertical Optimization
With land real estate values climbing in primary metropolitan transport corridors, clear heights are moving from standard 7-meter envelopes to 15-meter and 24-meter clad-rack warehouse configurations, requiring high-tensile structural cold-bent columns with enlarged footprint baseplates.
Extreme Environment Metallurgy
Cold-storage logistics (-30°C blast freezers) and aggressive coastal maritime ambient conditions require specialized coatings. Our 10-stage chemical pickling and phosphating lines ensure electrostatic epoxy powder adhesion passes 1,000-hour salt spray testing without micro-fissure flaking.
3. Certified Factory Superiority: Guangzhou Heda Shelves Co., Ltd.
Operating as a distinguished global manufacturing brand since 2001, Guangzhou Heda Shelves Co., Ltd. supplies high-reliability warehouse storage infrastructure to over 120 countries, including large-scale installations across the UAE, Saudi Arabia, Europe, and the Americas.
Verified Global Certifications
Certified to CE Mark No. 2435-CPR-8605159, ISO 9001:2015 Quality Management System No. 18624Q00169R0M, and RoHS hazardous component compliance.
Full In-House Manufacturing
30,000 m² factory with dedicated roll-forming machines, automatic upright hole-punching lines, structural welding stations, and powder coating lines delivering 30,000 tons monthly.
Free CAD & Structural Calculations
Our senior engineers produce compliant 2D floor plans, 3D visual models, and load-bearing data sheets formatted for local civil defense, fire department, and insurance underwriting reviews.
Containerized Export Logistics
Dedicated export packing protocols utilizing protective wrapping, color-coded bundle tags, and itemized component packing lists to accelerate customs clearance and onsite sorting.
Procurement Guidance
Frequently Asked Questions: Heavy Duty Racking Procurement
Essential engineering, compliance, and international shipping answers for warehouse managers and structural contractors.
What parameters are required to calculate warehouse racking load ratings?
Engineers calculate structural ratings based on pallet width, depth, and total vertical height (including cargo overhang), maximum gross pallet weight, the number of pallet locations per beam tier, total building vertical clearance, concrete slab compressive strength (minimum 25–30 MPa recommended), slab thickness, and dynamic seismic acceleration data according to regional codes.
What is the difference between Q235B and standard commercial grade steel?
Q235B is an industrial carbon structural steel widely referenced in international engineering specifications for its balanced tensile strength (370–500 MPa), yield strength (≥235 MPa), and superior elongation under dynamic seismic stress. Unlike inconsistent commercial steels, Q235B provides certified carbon-manganese chemical composition and impact energy absorption, preventing sudden brittle fracture under heavy loads.
How does your factory protect racking from corrosion in coastal or cold environments?
Every structural column and beam undergoes a multi-stage pretreatment process: hot chemical degreasing, industrial pickling to strip surface oxides, water rinsing, and zinc phosphating to provide crystalline micro-roughness. We then apply thermosetting polyester or epoxy powder at 180°C–200°C curing temperatures, creating a scratch-resistant finish suitable for temperatures from -30°C to +50°C and coastal humidity.
Can HEDA Shelves drawings be submitted for Civil Defense and fire authority approvals?
Yes. We configure aisle geometries, longitudinal flue spaces (typically 75–150 mm between back-to-back rows), transverse chimney clearances, and integration points for in-rack ESFR sprinkler lines. Our CAD drawings document aisle widths, egress routes, and load signs to support approval submissions with municipal building authorities and insurance underwriters.
What is the typical manufacturing lead time for full container load (FCL) orders?
Standard selective pallet racking systems ship within 15 to 22 business days from final CAD drawing sign-off and color approval. Large-scale custom configurations involving high-bay roll-forming, specialized mezzanine structural steel, or radio-shuttle guides usually require 25 to 30 production days, supported by rigorous pre-loading factory test assemblies.
Do you offer installation supervision and on-site engineering support?
Yes. Every shipment includes step-by-step structural 3D assembly drawings, bill of materials (BOM), and fastener torque specifications. For complex multi-tier mezzanine platforms or high-density drive-in systems, we offer live remote video engineering support or dispatch experienced site supervisors to manage local installation crews.
Transform Your Warehouse Volumetric Capacity Today
Send our senior engineering team your warehouse CAD floor plan, pallet details, and target throughput. Receive an optimized 2D layout, 3D visualization, and detailed factory-direct quotation within 24 hours.
