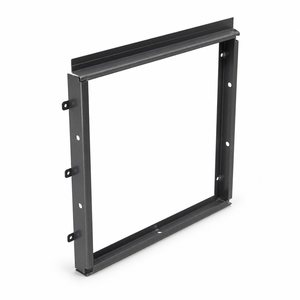

Tubular Carrier
Tubular Subframe Metal Fabrication Pallet Rack
- Material Spec: Q235B / Q355B Steel
- Profile: Seamless Tubular
- Finish: Zinc-Phosphate Powder
Engineered Storage Equipment
High-Density Narrow & VNA Storage Racking Matrix
Engineered for high-bay footprint maximization, high static/dynamic load tolerances, and precision automated handling compatibility.

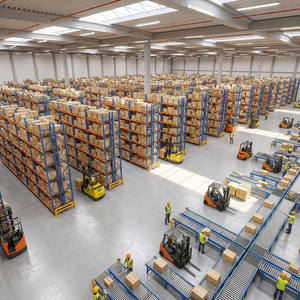

Heavy Duty VNA
Heavy Duty Narrow Aisle (VNA) Storage System
- Aisle Width: 1,500 – 1,800 mm
- Beam Load: Up to 4,500 kg/Level
- Max Height: 16,000 mm Clear

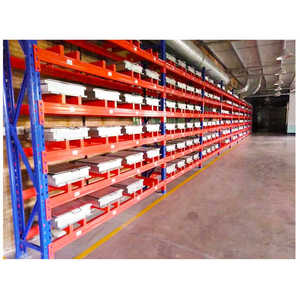

High Density Drive-In
High-Density Drive-In Pallet Lane Storage Rack
- Density Gain: +75% Usable Volume
- LIFO/FIFO: Continuous Rails
- Corrosion Class: C3-I Certified
Adjustable Beam
High Density Adjustable Beam Narrow Aisle System
- Pitch Adjust: 50mm / 75mm Modular
- Safety Factor: 1.65 Structural
- Connector: 5-Claw Rigid Weldment

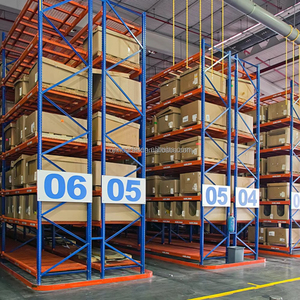

Industrial Shelving
Commercial Very Narrow Aisle Integrated Racking
- Configuration: Single / Multi-tier
- Guidance: Wire or Floor Angle
- Protection: Column Wraps & Rails
Max Volume
Max-Cube Capacity Optimized Narrow Racking
- Space Saving: 45% Less Floor Void
- Direct Pick: 100% SKU Selectivity
- Compliance: FEM 10.2.02 / CE

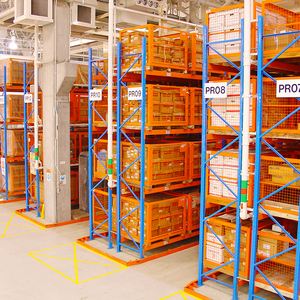

Custom OEM/ODM
Customized OEM/ODM Steel Narrow Aisle Rack Shelves
- Engineering: Bespoke Load Curves
- Tolerance: ±0.5mm Roll Forming
- Coating: Epoxy Polyester 70-90µm

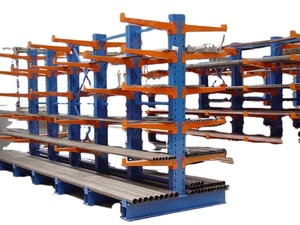

Cantilever Narrow
Heavy-Duty Narrow-Lane Steel Cantilever Rack
- Profile: Hot-Rolled H-Beam
- Arm Capacity: 500 – 1,800 kg/Arm
- Application: Bar Stock, Extrusions

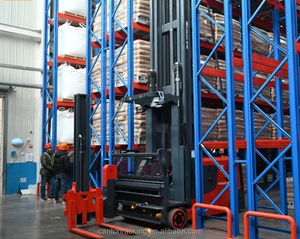

Engineering Paradigms of Very Narrow Aisle (VNA) Racking Systems
In modern industrial logistics, distribution centers, and regional hubs across the GCC, Europe, North America, and Asia, floor real estate valuation has climbed at an unprecedented compound annual growth rate. Logistics operators and corporate procurement officers can no longer justify the 3.2 to 3.8-meter operating corridors typical of conventional wide-aisle counterbalance reach truck systems. As an established narrow racking systems exporter and manufacturer with over two decades of engineering pedigree, HEDA Shelves addresses the core thermodynamic, structural, and mechanical requirements of Very Narrow Aisle (VNA) infrastructure.
The Fundamental Volumetric Formula of VNA Systems:
By compressing working aisle widths from 3,500 mm down to a precise range of 1,500 mm – 1,750 mm and elevating vertical storage nodes from standard 6-meter thresholds up to 16.5 meters, VNA architectures yield an immediate 40% to 55% reduction in wasted warehouse floor void. Crucially, this volumetric multiplication does not sacrifice direct SKU accessibility; every single pallet position retains 100% individual selectivity.
1. Structural Rigidity, Torsional Stability, and Sway Engineering
Operating turret trucks (man-up or man-down) or articulating mast equipment within a 1,600 mm envelope leaves virtually zero tolerance for structural deflection. Under full dynamic working load, an upright sway of merely 15 mm at a 14-meter pick level can trigger mast collision, pallet snagging, or catastrophic guide derailment. For this reason, professional narrow racking systems exporters engineer upright configurations with specialized cold-rolled Omega (Ω) column profiles, utilizing premium structural steel grades (Q235B and Q355B with verified mill test certificates).
The cross-sectional inertia of the uprights must resist complex multi-axial loadings:
- Primary Static Dead Load: Continuous axial compression from stored pallet tonnage stacked up to 8 levels high.
- Secondary Dynamic Eccentric Load: Torsional moments applied during bilateral turret fork rotation and lateral pallet insertion.
- Horizontal Guidance Lateral Impact: Repetitive lateral guidance forces transmitted into the lower floor-mounted structural guide rails (typically 100x50x5 mm structural angle iron or low-profile solid cold-drawn guide bars) or wire inductive tracking loops.
- Seismic and Slab Uplift Forces: Dynamic seismic acceleration coefficients factored in accordance with EN 1998 (Eurocode 8) and regional building authority regulations, requiring finite-element calculated heavy-duty baseplates with multiple dual-expansion mechanical wedge anchors or chemical anchor studs.
| Performance Dimension | Standard Selective Pallet Rack | Drive-In Pallet Storage | Very Narrow Aisle (VNA) Racking | Radio Shuttle Racking |
|---|---|---|---|---|
| Operating Aisle Width | 3,200 – 3,800 mm | Dedicated Drive-in lanes | 1,500 – 1,750 mm | 2,600 – 3,200 mm (Aisle faces) |
| Floor Area Utilization | 35% – 42% | 65% – 75% | 58% – 68% | 70% – 82% |
| Vertical Bay Height Reach | Up to 8,000 mm | Up to 10,000 mm | Up to 16,500 mm | Up to 14,000 mm |
| Pallet Selectivity Index | 100% (Direct Random) | 15% – 20% (Batch LIFO) | 100% (Direct Random) | Channel LIFO / FIFO |
| Floor Flatness Requirement | DIN 18202 Table 3, Line 3 | DIN 18202 Table 3, Line 3 | EN 15620 / VDMA 4398 | Standard Industrial Slab |
| Throughput Pick Rate | 20–25 Pallets/hr/truck | 12–16 Pallets/hr/truck | 28–38 Pallets/hr/truck | 35–45 Pallets/hr/lane |
2. Slab Flatness Classifications and Kinematic Tolerances
A primary oversight encountered by novice warehouse planners sourcing from uncertified narrow racking systems exporters is failing to audit concrete slab flatness. In a wide-aisle operation, minor slab undulations are easily compensated by operator steering. However, in a VNA installation exceeding 10 meters in elevation, a floor deviation of just 2 millimeters across the wheel track translates through the rigid turret truck mast into a 25 mm lateral sway at picking elevation.
Professional engineering contracts require stringent slab certification prior to upright installation:
- EN 15620 Class 300 / VDMA 4398 Floor Tolerances: For vertical elevations between 9 and 13 meters, limiting longitudinal and transverse level variances to sub-millimeter increments.
- Superflat Slab Grinding: Defined wheel track grinding along the optical or mechanical guidance line to eliminate elevated ridge lines and joint curl.
- Baseplate Grouting and Dynamic Shimming: Utilization of non-shrink, high-strength structural grouts (minimum compressive strength 60 MPa at 28 days) beneath precision leveling shims to ensure completely uniform axial load transfer into the concrete pile grid.
Market Intelligence & Technology Roadmaps
Future Procurement Trends in Narrow Racking Systems (2025–2035)
Strategic purchasing criteria are evolving rapidly from pure steel weight calculations toward autonomous robotics convergence, carbon traceability, and lifecycle durability.
1. Hybrid AGV & AMR Autonomous Integration
Traditional human-operated turret trucks are rapidly transitioning to hybrid driverless automatic guided vehicles (AGVs) and autonomous mobile robots (AMRs). Future narrow racking procurement contracts require millimetric laser reflector targets integrated directly onto racking uprights, standardized pick-and-drop (P&D) stations at aisle heads, and calibrated aisle end-stops compliant with ISO 3691-4 industrial robotic safety mandates.
2. Decarbonized & High-Yield Cold-Formed Alloys
ESG compliance and carbon footprint reporting in European and Middle Eastern global supply chains have elevated demand for low-emission green steel. Furthermore, the adoption of high-strength micro-alloyed steels (such as advanced Q355B/S355MC) enables thinner structural walls without sacrificing load capacity—reducing overall shipping deadweight by 12% and significantly mitigating project freight tariffs.
3. Harsh Climate Anti-Corrosion Formulations
In strategic logistics developments across the Persian Gulf (e.g., Dubai South, KSA Integrated Logistics Zones), ambient temperatures exceeding 48°C combined with 90% coastal humidity create severe corrosive microclimates. Modern specifications prioritize pre-treatment 9-stage zinc phosphating paired with thermosetting epoxy-polyester coatings tested to withstand >500 hours of continuous ASTM B117 salt spray exposure without blistering.
Enterprise Manufacturing Ecosystem
Why Tier-1 Importers Partner with HEDA Shelves
Combining factory-direct economies of scale with turnkey design, CNC precision roll-forming, and fully accredited quality inspection frameworks.
In-House Industrial Manufacturing Mastery Since 2001
As a premier narrow racking systems exporter operating from Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. controls 100% of the manufacturing life cycle across our modern 30,000 square meter plant. By eliminating trading intermediaries, we guarantee verifiable raw material metallurgical composition, strict dimensional tolerances, and predictable maritime container stuffing schedules.
Backed by over 300 technical engineers and specialized roll-forming operators, our facility produces up to 30,000 metric tons per month. Our engineering deliverables include complimentary 2D CAD floor planning, 3D structural modeling, and finite element analysis (FEA) structural verification reports stamped to satisfy international safety and Civil Defense review boards.
Quality Controlled Lifecycle
The 10-Stage Precision Fabrication Workflow
Stage 01Raw Coil Testing
Stage 02Precision CNC Slitting
Stage 03Automated Punching
Stage 04Cold Roll Forming
Stage 05Beam Tube Lock-Seaming
Stage 06Robotic Claw Welding
Stage 07Shot Blasting & Degrease
Stage 08Zinc-Phosphate Pre-Dip
Stage 09Dual Electrostatic Powder
Stage 10Export Bundle Strapping
Engineering Due Diligence
Frequently Asked Questions: Global Procurement & Engineering
Authoritative technical guidance compiled by senior structural engineers to resolve critical planning, installation, and compliance uncertainties.
What specific structural parameters define a Very Narrow Aisle (VNA) racking system?
A Very Narrow Aisle (VNA) racking system is structurally classified by operating aisle widths ranging between 1,500 mm and 1,800 mm—specifically engineered to accommodate specialized swing-reach turret trucks, man-up order pickers, or articulated forklifts. Unlike standard selective racking (aisles 3,200–3,800 mm), VNA systems require precision ground mechanical guidance rails (typically 100x50 mm angle steel or low-profile floor rails) or wire inductive tracking circuits embedded into the concrete slab. Furthermore, structural frames feature heightened moment-connection rigidity, tighter manufacturing tolerances (±0.5 mm), and integrated horizontal ties to support vertical bay elevations reaching up to 16.5 meters.
What concrete slab specifications and flatness standards are mandatory for VNA installations?
Because a 1-millimeter angular deviation at the floor transmits into extreme mast drift at heights exceeding 10 meters, floor flatness must comply with international standards such as EN 15620 (Class 300), DIN 18202 (Table 3, Line 4), or VDMA 4398. The floor slab must have a minimum compressive strength of 25–30 MPa (C25/30 or C30/37), reinforced to handle concentrated point loads ranging from 60 kN up to 180 kN per upright column baseplate. If existing slabs do not meet EN 15620 standards, specialized laser grinding along defined truck wheel tracks must be executed prior to anchoring.
How does HEDA Shelves ensure anti-corrosion performance in extreme coastal or high-heat environments?
To prevent premature oxidative degradation in high-salinity coastal regions or humid industrial environments (such as the Persian Gulf, Southeast Asian ports, or specialized chemical storage), HEDA Shelves applies an automated multi-stage pre-treatment regimen. Structural steel profiles undergo mechanical shot-blasting, acid pickling, ultrasonic degreasing, and hot zinc-phosphating. Components then pass through an automated electrostatic powder coating booth utilizing premium lead-free thermosetting epoxy-polyester resin, cured at 180°C–200°C to achieve a uniform dry-film thickness of 70–90 microns. For outdoor or refrigerated cold-chain applications, continuous hot-dip galvanizing (HDG compliant with ISO 1461, yielding 65–85 microns of zinc barrier) is available upon request.
What certifications and quality control documents are provided for international customs and municipal approvals?
Every export shipment is backed by verified regulatory dossiers to facilitate smooth customs clearance, Civil Defense fire authority permits, and insurance approvals. HEDA Shelves holds valid CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management System Certification (No. 18624Q00169R0M), and RoHS Compliance documentation. In addition, projects include mill test certificates (EN 10204 3.1) for all steel batches, finite element analysis (FEA) deflection calculation sheets, beam safety pin pull-out test reports, and fully dimensional factory inspection checklists signed off by senior QC supervisors prior to container sealing.
How are export ocean containers stuffed to prevent transit abrasion and deformation?
Long-haul maritime transport exposes steel racking components to container moisture, dynamic wave slamming, and internal shifting. HEDA Shelves uses a proprietary ocean-packaging protocol: Upright frames and beams are bundled with high-tensile PET strapping, nested face-to-face with protective corrugated card and closed-cell EPE foam spacers, and fully shrouded in heavy-gauge waterproof thermal shrink-film. Small hardware, baseplates, shims, safety locks, and fasteners are crated in seaworthy fumigated wooden boxes or heavy-duty steel wire crates with moisture desiccant bags. Every bundle features bilingual thermal barcode labels cross-referenced to CAD assembly erection drawings, allowing direct uncrating and logical staging at the installation site.
Can VNA systems be retrofitted into existing warehouses without altering primary roof structures?
Yes. Retrofitting conventional wide-aisle storage into a VNA layout is one of the most cost-effective capital investment strategies for growing third-party logistics (3PL) and manufacturing distribution centers. Our engineering department reviews building as-built drawings, clear height beneath roof purlins, overhead lighting arrays, fire sprinkler clearance drops (NFPA / ESFR standard minimum 900 mm), and column grids. We then recalculate rack orientation to maximize row continuity while maintaining clear cross-aisle transfer tunnels, egress fire exit routes, and dedicated battery charging bays without touching structural building columns.
What are the lead times from initial CAD layout sign-off to port dispatch?
Standard production turnaround for standard-profile VNA pallet racking orders (5 to 15 standard 40ft High Cube containers) ranges between 20 to 28 calendar days following technical drawing sign-off and deposit receipt. For massive giga-distribution facilities or complex automated picking subframes requiring customized cold-roll tooling, phased container dispatches are planned systematically to match on-site concrete curing and mechanical erection schedules.
What installation assistance and structural warranty does HEDA Shelves provide globally?
Every project includes a comprehensive engineering document package containing 3D exploded assembly diagrams, step-by-step installation manuals, torque tightening specifications for anchor bolts, and load rating signage placards compliant with SEMA / FEM 10.2.02. For turnkey international contracts, HEDA Shelves provides remote video engineering supervision or dispatches experienced bilingual installation project managers to direct local contractor crews. All structural racking elements carry our standard 5-year commercial warranty against manufacturing defects, weld failures, or material fatigue under design operating thresholds.
