Engineered for maximum structural stability, seismic compliance, and high-density space efficiency. Sourced directly from our automated roll-forming and powder-coating manufacturing lines to serve worldwide distribution centers, FMCG hubs, and 3PL logistics facilities.
Industrial pallet racking and heavy-duty shelving systems operate under immense static shear stress, dynamic forklift impact loads, and cyclic vibrational fatigue. As an authoritative manufacturer with over two decades of metallurgical research, Guangzhou Heda Shelves Co., Ltd. specifies premium certified high-tensile Q235B and Q355B structural carbon steels. These raw coils deliver high yield points and uniform elongation, preventing catastrophic shear fractures under heavy peak-load scenarios.
Our upright columns undergo continuous computer-monitored roll-forming, producing multi-bend geometric sections with continuous load-bearing stiffeners. Unlike standard lightweight C-channels, our proprietary Omega (Ω) column profiles distribute localized buckling stresses uniformly along the vertical axis, ensuring structural compliance with rigorous European standard EN 15512 and American RMI (Rack Manufacturers Institute) MH16.1 specifications.
Whether deploying systems across the intense hyper-arid thermal swings of the Middle East (GCC ports of Jebel Ali, Khalifa, Dammam, and Jeddah) or within seismic zones across the Pacific Rim, our engineering department performs full 3D Finite Element Analysis (FEA) to verify baseplate moment-resisting capacities, anchor embedment shears, and maximum allowable floor slab deflection ratios.
Full vertical integration guarantees that raw steel coils are converted into finished structural racking systems under strict in-house ISO 9001:2015 quality surveillance, eliminating intermediary markups and delivery bottlenecks.
Selecting the correct storage system requires balancing SKU selectivity against cubic floor density and forklift investment. This technical comparison provides critical inputs for plant engineers and procurement executives.
| Storage Topology | Selectivity Ratio | Floor Density | Aisle Clear Width | Compatible Material Handling | Optimal Industry Scenarios |
|---|---|---|---|---|---|
| Selective Pallet Racking | 100% Immediate Direct Access | Moderate (35–40% footprint) | 3,000–3,500 mm (Counterbalance) | Standard Counterbalance / Reach Truck | High-turnover multi-SKU FMCG, 3PL retail fulfillment centers |
| Double Deep Racking | 50% Direct (2 deep lanes) | High (Up to 55% footprint) | 2,800–3,200 mm | Deep-reach pantograph forklift | Identical SKU manufacturing buffers, bulk carton reserve stock |
| Drive-In / Drive-Through | LIFO / FIFO (Block picking) | Very High (Up to 75% footprint) | Dedicated drive-through channel | Narrow-chassis counterbalanced truck | Cold storage, seasonal beverage packaging, low SKU volume |
| Four-Way Radio Shuttle | Automated FIFO / LIFO | Ultra-High (Up to 85% footprint) | Transfer aisle only (automated) | Lithium battery radio shuttles + Lift | Automated sub-zero cold rooms, meat and dairy distribution |
| Heavy-Duty Cantilever | 100% Frontal Access | Custom Vertical Density | Unrestricted front columns | Side-loaders, 4-way multi-directional trucks | Steel pipes, extrusions, timber boards, construction rebars |

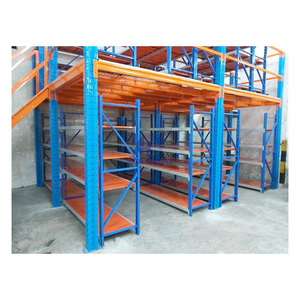

| Rack-Supported Mezzanine | Tiered Split Access | Maximum Vertical Stacking | Multi-level stairwells / chutes | Manual hand carts, vertical goods lifts | Automotive spare parts, apparel e-commerce bin picking |
Verifiable International Quality Assurance: CE Certification (No. 2435-CPR-8605159) • ISO 9001:2015 (No. 18624Q00169R0M) • RoHS Environmental Compliance
Supply chain leaders are transitioning from static storage purchases to modular, automated, and ESG-aligned architectures. Evaluate how emerging logistics vectors impact your warehouse capital expenditure (CAPEX).
Warehouses are increasingly engineered with precise structural deflection tolerances to facilitate retrofitting of automated shuttle carts, autonomous mobile robots (AMRs), and stacker cranes without tear-downs.
To counter rapid coastal oxidization and saline moisture in trade ports like Jebel Ali and Dammam, heavy industrial buyers now mandate automated 5-stage zinc phosphating combined with specialized hybrid polyester coatings.
Corporate supply chains require verified environmental footprints. We utilize electric-arc furnace (EAF) low-carbon steel coils and volatile organic compound (VOC)-free thermoset powders that pass strict European RoHS regulations.
Rapid delivery SLAs in mega-cities have driven the adoption of multi-level rack-supported mezzanines, effectively multiplying inner-city logistics square footage by 200% to 300% without new civil construction permits.
Authoritative, clear engineering guidance addressing common concerns raised by procurement officers, project consultants, and operations directors before commissioning heavy storage installations.
To deliver an optimized, code-compliant storage layout within 24–48 hours, our structural engineering department requires five primary datasets:
1. Architectural CAD Drawings: Floor plan identifying internal columns, clear height under roof joists/sprinklers, dock doors, civil fire escape exits, and floor joints.
2. Unit Load Specifications: Exact dimensions of the palletized load (Width × Depth × Height, including pallet overhang) and maximum gross weight per pallet position.
3. Material Handling Equipment (MHE): Forklift make/model, mast collapsed height, maximum lift elevation, and required minimum right-angle stacking aisle width (ASt).
4. Slab Load-Bearing Capacity: Floor concrete slab thickness, compressive strength rating (e.g., C25/30 or C30/37), reinforcement mesh details, and allowable point-load tolerance (kN/m²).
5. Regional Environmental Criteria: Seismic zone acceleration values (PGA) and ambient thermal ranges, critical for high-bay cold storage rooms or desert logistics parks.
Our structural design follows European Standard EN 15512:2020 (Steel static storage systems — Adjustable pallet racking systems — Principles for structural design). For horizontal beam members, the maximum allowable vertical deflection under full design load is strictly limited to 1/200th of the clear beam span (L/200).
For example, on a standard 2,700 mm beam carrying two 1,000 kg pallets (2,000 kg total level load), the central deflection under static load will not exceed 13.5 mm. Furthermore, a minimum safety factor of 1.5 to 1.65 is integrated against yield stress for all cold-formed upright assemblies and beam connectors.
Yes. Middle East and European regional municipalities require explicit proof of life-safety and fire sprinkler clearances before issuing occupancy and insurance certificates. Our engineering drawings calculate and clearly indicate:
• Longitudinal & Transverse Flue Spaces: Ensuring unobstructed vertical channels (minimum 75 mm to 150 mm) for early ceiling-level heat detection and automatic sprinkler water penetration according to NFPA 13 standards.
• Fire Hydrant & Escape Clearances: Primary transit aisles and secondary escape paths are mapped to exceed municipal Civil Defense width requirements.
• Load Notice Signage: System loading plaques and dynamic capacity plates provided for every aisle face, compliant with regulatory occupational safety mandates.
Inferior racking manufacturers frequently spray powder directly over mill-scale or oily steel coils, resulting in rapid micro-corrosion, bubbling, and delamination when exposed to coastal air (such as in Dubai, Jeddah, or Singapore). At HEDA Shelves, all steel profiles undergo an automated continuous multi-stage pre-treatment wash:
1. Hot alkaline degreasing to remove mill lubricants.
2. Chemical acid pickling to dissolve surface rust and mill scale.
3. Multi-stage clean water rinsing.
4. Micro-crystalline iron/zinc phosphating, converting the raw steel surface into an inert, porous crystalline matrix.
5. Deionized water rinse and drying tunnel.
This crystalline conversion provides exceptional physical anchoring for our high-grade electrostatic powder, delivering a corrosion-resistant finish with salt-spray test endurance exceeding 500 hours.
International sea transport exposes structural racking components to extreme moisture, container sweating, and vessel vibration. We pack all exports using heavy-duty logistics protocols:
• Upright Frames: Nested in bundles bound with high-tensile steel banding, wrapped in multi-layer protective PE film with protective corrugated edge-guards and timber dunnage blocks to prevent flange deformation.
• Load Beams: Bundled in uniform tier stacks with wooden runners, with beam end-connectors wrapped to eliminate paint-abrasion and connector claw damage.
• Hardware & Accessories: Baseplates, anchor bolts, row spacers, and safety pins are sorted, bagged, and crated in fumigated export wooden cases with detailed bilingual packing lists corresponding directly to the project assembly drawing.
Yes. Every project includes comprehensive 3D isometric installation drawings, exploded-view structural details, and torque specifications for floor anchor bolts. For complex multi-tier mezzanine floors or automated radio shuttle configurations, we offer two levels of site support:
1. Remote Engineering Dispatch: Real-time high-definition video walkthroughs and dedicated technical project managers assigned to your on-site mechanical contractor.
2. Factory Installation Supervisors: Dispatch of our senior mechanical site engineers directly to your facility in the GCC, Europe, Southeast Asia, or the Americas to lead local assembly crews, verify laser alignment, and provide load-testing sign-off.
Receive an engineered 2D CAD spatial floor plan, accurate 3D structural visual rendering, and an itemized factory-direct quotation tailored to your operational SKUs and budget. Direct global port logistics from our 30,000 m² manufacturing plant.
