1. Rapid Semi-to-Full AS/RS Transition

Manual forklift operations encounter operational limits with rising labor expenditures and warehouse velocity demands. Global procurement is shifting heavily toward Radio Shuttle Racking and Automatic 4-Way Shuttles that eliminate internal forklift lanes and automate batch buffering.

2. Direct Factory Engineering Sourcing

Middlemen and local trading agencies add 25% to 40% in project markups without offering engineering culpability. International supply chain directors now procure direct from certified OEMs that provide in-house structural FEA calculations, custom profile roll-forming, and stamped compliance files.

3. Decarbonization & Green Steel Mandates

Global ESG disclosure regulations (such as the EU CSRD and green building certifications like LEED) are pushing racking procurement toward scrap-recycled electric arc furnace (EAF) steels, low-VOC powder cures, and freight container loading optimization designed to curb maritime carbon emissions.

4. Dynamic Cold Chain Optimization

With chilled and blast-frozen warehouse power costs spiking worldwide, cubic density in temperature zones from 4°C to -30°C is an urgent balance sheet priority. Cold-chain operators are discarding low-density selective layouts in favor of pallet flow gravity racks and cold-resistant radio shuttle carriers.

Cold Chain, Food & Beverage

In thermal-controlled cold stores where cooling a single cubic meter is expensive, Radio Shuttle and Pallet Flow Racks maximize cube space while ensuring non-interrupted FIFO rotation for dates, dairy, frozen seafood, and meat supplies.

• Low-temperature cold-rolled steel tested against brittle fractures down to -30°C.
• Stainless steel hardware and moisture-sealed electronics on shuttle carriers.

Automotive Parts & Re-Export Logistics

Automotive supply networks manage tens of thousands of SKUs ranging from miniature O-rings to heavy engine blocks and sheet panels. Integrating Multi-Tier Mezzanines with ground-floor pallet racks optimizes floor utilization.

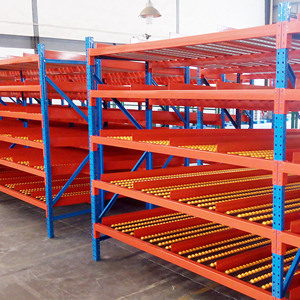

• High-density carton flow rollers for rapid picking of fast-turn components.
• Dedicated tire racking with curved beam seats to prevent rubber deformities.

Building Supplies & Heavy Fabrication

Long, awkward, or non-palletized construction inventory—including steel rebar bundles, PVC pipes, aluminum extrusions, and timber panels—poses severe racking collapse risks if loaded onto standard pallet beams. Cantilever Racking is engineered for this load profile.

• Heavy-duty column uprights handling up to 15,000 kg total vertical loads.
• Tapered cantilever arms bearing up to 3,000 kg per level with safety retention pins.

1. Verify Real Slab Capacity & Punching Shear

A fatal error in racking procurement is designing high-density racks without calculating concrete slab point loading. An upright column carrying 12,000 kg exerts massive localized pressure. Baseplates must be properly sized and anchored with expansion bolts rated for non-cracked concrete.

2. Inspect Beam Connector Safety Locks

Forklift operator error is an unavoidable operational variable. Pallet lift impact can knock a beam out of its upright slots if locking pins are defective. Demand automatic spring-loaded steel safety pins or grade-8.8 structural retention bolts rather than flimsy plastic pins.

3. Scrutinize Flue Spaces & Fire Sprinklers

Insurance providers (such as FM Global) and regional Civil Defense authorities enforce strict transverse and longitudinal flue spaces (typically 150mm minimum). Racking designs that block water spray penetration risk regulatory closure or steep insurance premium penalties.
