30,000 Tons
Monthly Production Capacity
Q355B Steel
High-Tensile Cold Rolled Profiles
10,000+ Cases
Global Industrial Install Footprint
100% Direct
Turnkey Factory-Direct Pricing
Engineered Product Matrix
Industrial Storage Systems for Sultanate of Oman Logistics
From Freezone Sohar transshipment staging facilities to Khazaen Economic City multi-temperature distributions hubs, discover high-density structural racking systems engineered for ultimate volumetric density and structural safety.
Localization Architecture
Engineering High-Density Pallet Racking for Oman's Operating Environments
Deploying pallet racking infrastructure across Muscat, Sohar, Duqm, and Salalah requires strict engineering adaptations addressing high airborne salinity, ambient temperatures surpassing 48°C, fine particle intrusion, and high-cube vertical spaces.
Coastal Corrosion & Humidity Defenses
Warehouses operating near the Port of Sohar and Salalah encounter continuous high-humidity marine air carrying dissolved salt particulates. Our structures undergo a certified 10-stage automated pre-treatment featuring pickling, phosphating, and electrostatically applied thermo-cured epoxy-polyester coatings (>80μm thickness) to prevent under-film oxidization.
Seismic & Ground Subgrade Verification
Structural foundation calculation in the Gulf requires factoring structural dead loads, wind gusts in open-yard cantilever arrays, and ground settlement variables over reclaimed soils. Upright baseplates, anchor bolt specifications, and transverse cross-bracing profiles comply strictly with FEM 10.2.02 and EN 15512 seismic performance margins.
Cold-Room Energy Efficiency (Khazaen)
Chilling and freezing cubic volume in the GCC is one of the highest operating expenditure drivers. Radio shuttle and drive-in high-density pallet racking systems maximize volumetric cube utilization up to 85%, significantly reducing refrigerated floor square meter demands for dates, dairy, pharmaceuticals, and protein logistics.
Structural Steel Baseline: Certified Chinese Q355B vs. Standard Q235
HEDA Shelves fabricates structural uprights and load beams with certified Q355B low-alloy high-strength steel (yield strength ≥ 355 MPa), delivering over 35% higher structural yield reserve than conventional Q235 steel. This guarantees zero beam sag beyond the strict L/200 deflection tolerance under continuous maximum rated capacity (up to 4,000 kg/beam pair).
System Selection Guide
High-Density Pallet Racking Comparative Engineering Matrix
Review the structural trade-offs, access rates, and mechanical specifications between mainstream high-density systems for Omani distribution centers.
| Racking Topology | Space Cube Efficiency | Pallet Selectivity | Handling Inventory Logic | Recommended Industrial Context in Oman |
|---|---|---|---|---|

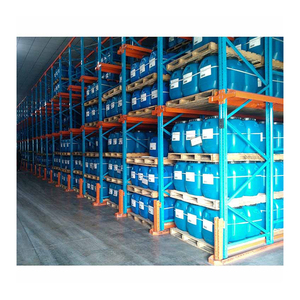

| Drive-In Racking | 70% - 78% | Low (Per Lane Batch) | LIFO (or FIFO Drive-Through) | Cold storage, beverage bottling lines, bulk homogenous FMCG |
| Radio Shuttle System | 80% - 88% | Medium (Per Level/Tunnel) | FIFO or LIFO Automated | Mega-scale pharmaceutical hubs, food security reserves, -25°C cold storage |
| Double Deep Racking | 60% - 65% | 50% Direct Access | LIFO per pair | Dry grocery warehousing, construction materials, 3PL transshipment |
| Very Narrow Aisle (VNA) | 65% - 72% | 100% Immediate | FIFO / LIFO Direct | High-bay warehouses in Sohar Freezone, high SKU variety automotive parts |
| Teardrop / Standard Selective | 40% - 50% | 100% Immediate | Total Random Access | Retail distribution, fast-paced spare parts picking, workshop buffers |
Macro Logistics Vision
Oman Vision 2040: Macro Logistics Transformation & Racking Demand
The Sultanate of Oman is rapidly evolving from an oil-reliant economy into a dominant Indian Ocean logistics and multimodal transshipment corridor through aggressive free zone expansion.
Port of Sohar & Freezone Hub
Acting as the prime gateway to GCC and global markets, Freezone Sohar demands immense Grade-A logistics warehouses with clear ceiling heights reaching 14 meters, accelerating the migration from floor stacking to heavy-duty high-bay racking systems.
Khazaen Economic City Inlands
Positioned along the Batinah Expressway near Muscat, Khazaen dry port is centralizing national food distribution, dry retail, and cold chains. Space optimization per pallet position is critical to curbing recurring HVAC energy costs.
Duqm Special Economic Zone (SEZAD)
Duqm's deep-sea commercial infrastructure targets oil and gas maintenance, offshore maritime spares, and heavy mechanical equipment. Heavy-duty cantilever racking and multi-ton selective racking form the backbone of this logistics node.
Salalah Free Zone Transshipment
Strategically facing East-West maritime lanes, Salalah acts as a rapid re-export point into East Africa, Yemen, and GCC nations. Rapid-turnaround flow racks and double-deep racking expedite high-velocity container packing operations.
Factory-Direct Authority
Why Omani Warehouse Operators Partner with HEDA Shelves
Established in 2001 with a premier 30,000 square meter intelligent manufacturing facility in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. eliminates intermediary trading costs while enforcing strict structural quality control across all export fabrication.
We export regularly to Sohar Port, Muscat, and Salalah, offering custom OEM/ODM solutions tailored to exact warehouse architectural parameters. Every order is packed with sea-freight reinforced strapping and custom wooden cradles matching detailed CAD erection drawings.
CE Certified: No. 2435-CPR-8605159
ISO 9001:2015 Quality Management
RoHS Non-Toxic Powder Finish
FEM 10.2.02 Load Tested
Turnkey Engineering Deliverables for Oman
- ✓ Free 2D CAD & 3D Render Layouts: Engineered within 48 hours based on your slab plans, fire exit corridors, and sprinkler drops.
- ✓ ROP Civil Defence Compliance Support: Aisle clearances, flue spaces (longitudinal & transverse), and exit paths formatted for local authority approval.
- ✓ Container Optimization Packing: Precision bundle packing and labeled component tagging minimizes container demurrage at Sohar port.
- ✓ On-Site Supervision & Remote Guidance: Full installation CAD manuals, step-by-step videos, and available field supervisors.
01
Data & Structural Consultation
We review your warehouse building parameters, slab bearing capacity (kN/m²), pallet sizes (1200x1000 / 1200x800mm), payload weights, and forklift turning radiuses.
02
3D Modeling & Static Calculations
Our structural engineers deliver comprehensive CAD layouts, static load safety calculations, and 3D visual renderings for internal and civil defense review.
03
Precision Factory Fabrication
Continuous automatic roll forming, high-speed CNC punching, robotic welding, and automatic electrostatic powder curing in our Guangzhou production base.
04
GCC Export Shipping & Assembly
Ocean freight handling directly to Port of Sohar, Salalah, or Muscat, accompanied by component bundling, piece marking, and erection instructions.
Procurement Knowledge Hub
Frequently Asked Questions by Warehouse Managers in Oman
Get authoritative answers regarding customs clearance, ROP civil defence fire codes, maritime shipping transit, and structural safety.
What are the shipping transit times and logistics routes from your factory to Sohar or Salalah? +
Shipments depart directly from Guangzhou, Nansha, or Shenzhen ports in South China to major Omani terminals including the Port of Sohar, Port of Salalah, and Port Sultan Qaboos (Muscat). Standard ocean transit times range from 16 to 24 days depending on direct shipping feeder lines. Every 40ft High Cube container is mathematically loaded to maximize weight-to-volume ratio, with uprights bundled in steel strapping and beam packages cradled on dunnage for rapid un-stuffing without component distortion.
How do your racking designs comply with Royal Oman Police (ROP) Civil Defence regulations? +
ROP Directorate General of Civil Defence and Ambulance mandates stringent fire suppression accessibility, including specific longitudinal flue space (typically minimum 150 mm between back-to-back rack frames) and transverse flue spaces to allow early ESFR sprinkler penetration. Our engineering plans clearly chart these clearances, specify wire mesh decking for water flow compliance, and establish wide perimeter egress paths ensuring rapid consultant sign-off and insurance approval.
How does the powder coating protect against the humid and saline environment of Oman's coastal ports? +
In ports like Sohar, marine salt mist combined with 90%+ ambient relative humidity can rapidly degrade poorly pre-treated steel. HEDA Shelves employs a rigorous automated 10-step surface pre-treatment line encompassing high-pressure degreasing, acid pickling to strip scale, and micro-crystalline zinc phosphating. We apply a lead-free, electrostatically charged epoxy-polyester architectural powder cured at 180–200°C, producing a dense 80–100 μm dry film thickness tested against standard 500-hour salt spray ASTM protocols.
Which pallet standards are compatible with your high-density racking systems in Oman? +
Our systems accommodate both ISO standard pallet footprints commonly deployed across Oman and the GCC: the standard Industrial Pallet (1200 mm width × 1000 mm depth, widely used in FMCG, beverage, and manufacturing) and the Euro Pallet (1200 mm width × 800 mm depth, frequent in import logistics). Beams, depth-support skid bars, and radio shuttle internal tracks are fabricated to match your specific bottom-board entry configuration (2-way, 4-way, or perimeter base).
Do you supply on-site installation support or certified third-party assembly teams in Oman? +
We provide comprehensive installation manuals, labeled 3D component erection plans, and detailed torque tension tables with every order. For turnkey projects, we offer two paths: remote engineering video support to guide your designated local contractor, or deploying experienced HEDA Shelves site installation supervisors directly to Oman to oversee the unboxing, upright framing, laser leveling, anchoring, and beam load verification.
What technical data is required from our facility to begin 3D layout modeling? +
To generate your complimentary 2D CAD layout and 3D visual model within 48 hours, our structural team requires: (1) Architectural floor plan DWG or PDF showing building columns, clear wall boundaries, and roll-up doors; (2) Clear height beneath the lowest roof purlin or fire sprinkler pipe; (3) Pallet footprint dimensions including overhang and maximum loaded weight; (4) Forklift model, turning radius, and maximum mast lift elevation.
Upgrade Your Warehouse Volumetric Storage in Oman
Connect directly with our senior structural racking engineers today. Receive a custom 2D CAD layout, 3D structural rendering, and comprehensive factory-direct C&F Port of Sohar/Salalah quotation.
