Engineered Warehouse Racking Solutions for Mexico City Logistics
Every system is designed with high-grade structural Q235B/Q355B cold-rolled steel, tailored for high-cube distribution centers, e-commerce fulfilment, and dense cold storage across the Valley of Mexico.
250KG Iron Adjustable Boltless Pallet Racking Long Span 5-Layer Light Duty Storage Shelving Units Garage Metal Stacking Steel
- Capacity: 250 kg/layer uniform loading
- Structure: Boltless interlock, quick assembly
- Ideal For: Urban pick-stations & automotive spare parts

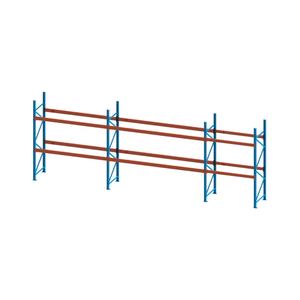

4 Tier Industrial Shelf Heavy Duty Metal Galvanized Steel Very Narrow Aisle Pallet Racking For Warehouse Storage
- Aisle Width: 1,500 - 1,800 mm (VNA Turret)
- Finish: Hot-dip galvanized & powder-coated
- Benefit: Up to 50% floor footprint reduction
Selective Pallet Single Sided Ibeem Pvc Pipe Storage Cantilever Rack
- Profile: Heavy structural hot-rolled I-Beam
- Capacity: Up to 3,500 kg per arm
- Application: Steel profiles, conduits, PVC pipes
Supplier Wholesale Warehouse Rack Steel Corrosion Protection Warehouse Shelf Boltless Shelving
- Pretreatment: Pickling, phosphating, zinc primer
- Durability: 1000hr salt-spray tested resistance
- Best For: Chemical storage & cold warehouses
Racking And Shelving Suppliers Adjustable Warehouse Pallet Rack Industrial Shelving Systems
- Selectivity: 100% direct pallet accessibility
- Pitch: 50mm / 75mm flexible beam adjustability
- Pallet Sizes: Standard GMA (48x40") & Euro (1200x800)
Adjustable Customized Gravity Storage Shelf Heavy Duty RackingSystem
- Dynamic Rotation: Strict FIFO gravity rollers
- Safety: Speed controllers & end-stop dampers
- Market Match: FMCG, dairy, and pharmaceuticals
Large Capacity Automated Vertical Lift Module VLM Automated Warehousing Pallet Racking Picking System Vertical Lifting Module
- Vertical Utilization: Up to 15m structural height
- Picking Principle: Goods-to-person ergonomic pick
- Integration: ERP/WMS interface with real-time tracking

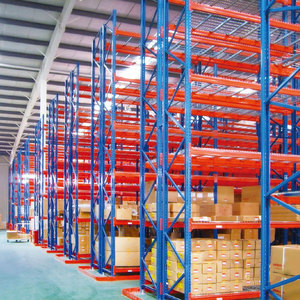

Narrow Passage Storage Shelves High Density Logistic Racking
- Configuration: Drive-In / Drive-Through deep lanes
- Space Maximization: 75% higher volumetric capacity
- Application: High-volume batch storage in CDMX
The Mexico City Logistics Matrix: Macro Nearshoring & Last-Mile Constraints
The Metropolitan Area of the Valley of Mexico (ZMVM), home to over 22 million consumers, represents the most critical logistics epicenter in Latin America. With cross-border trade intensifying under the USMCA (T-MEC) framework and international manufacturers relocating assembly operations to Mexico, industrial real estate throughout the Greater Mexico City region faces unprecedented density requirements. Key submarkets such as the CTT Corridor (Cuautitlán, Tultitlán, and Tepotzotlán), along with Vallejo 4.0, Iztapalapa, Naucalpan, and the Toluca-Lerma basin, operate at vacancy rates persistently below 1.5%.
Industrial land scarcity within the Valley of Mexico has caused warehouse lease rates to climb sharply. Consequently, enterprise operations can no longer afford horizontal expansions. Facility directors, warehouse engineering managers, and 3PL contractors are forced to leverage high-cube structural racking systems—maximizing every vertical meter from 8 to 14 meters of clear roof height.
CTT Prime Logistics Hub
The Cuautitlán, Tultitlán, and Tepotzotlán belt serves as the central artery for Class A mega-distribution centers. Demands focus on Very Narrow Aisle (VNA) systems, automated shuttle integrations, and seismic frame durability.
Vallejo 4.0 Urban Re-Industrialization
Vallejo's transformation focuses on inner-city e-commerce fulfilment, requiring compact multi-tier mezzanines, goods-to-person Vertical Lift Modules (VLM), and rapid parcel staging arrays.
Toluca & Lerma Manufacturing Basin
Serving automotive assembly, heavy machinery, and tier-1 parts suppliers. Demands high-load selective racks, cantilever storage for metal extrusions, and heavy-duty coil storage racks.
Seismic Engineering Mandates: Designing Racks for CDMX Geotechnical Realities
Racking installations in the Valley of Mexico cannot be treated like standard static steel structures. The lacustrine soft subsoil of Mexico City (particularly geotechnical Zone III - Lake Bed Zone and Zone II - Transition Zone) exhibits severe seismic wave amplification during tectonic events originating from the Cocos and North American plate subduction zones along the Pacific coast. Racks behave as tall, flexible structures carrying massive dynamic live loads; improper structural modeling can trigger catastrophic progressive collapse.
Our engineering protocols comply with both the RMI (Rack Manufacturers Institute) MH16.1 specifications and Mexico City’s strict building code—the Complementary Technical Norms for Seismic Design (Normas Técnicas Complementarias - NTC-RCDF):
- Ductile Frame Response & Base Plate Sizing: Upright profiles are cold-formed from high-yield structural steel with enlarged, thickened base plates (typically 12mm to 16mm thick) anchored by heavy-duty chemical or mechanical wedge anchors engineered to withstand dynamic base shear and uplift overturning moments.
- Beam-to-Column Locking Mechanisms: Incorporates heavy 4-rivet and 5-rivet connectors with heavy-duty safety locking pins that resist vertical ground acceleration and longitudinal seismic detachment.
- Dynamic Response Spectrum Modeling: Every CAD layout and structural calculation undergoes finite element analysis (FEA) factoring in local soil acceleration factors (Ao), structural ductility factors (Q), and natural harmonic vibration periods.
- Cross-Aisle & Down-Aisle Structural Bracing: Bolted horizontal and diagonal K-bracing and portal ties prevent torsion and out-of-plumb drift when loaded racks experience earthquake oscillations.
| Racking Type | Primary Application in Mexico City | Floor Utilization | SKU Selectivity | Seismic Damping Consideration |
|---|---|---|---|---|
| Selective Pallet Racking | General FMCG, Retail, 3PL Distribution (CTT Corridor) | 40% - 50% | 100% Direct | Standard baseplates; dynamic horizontal ties recommended. |
| Very Narrow Aisle (VNA) | High-Cube Logistics Parks, E-commerce Hubs (Tepotzotlán) | 65% - 75% | 100% Direct | Strict floor flatness requirement (DIN 15185 / F-min); elevated top-tie portals. |
| Drive-In / Drive-Through | Cold Storage, Beverage & Bulk Staging (Tultitlán/Iztapalapa) | 70% - 85% | LIFO / FIFO | Reinforced top-bracing beams and heavy ground-guide rails to resist sway. |
| Gravity Pallet Flow | Perishables, Pharmaceuticals, Dairy Distribution (Toluca) | 80% - 90% | Strict FIFO | Braking rollers and end stops prevent pallet ejection during seismic tremors. |
| Structural Cantilever | Pipes, Tubing, Lumber & Automotive Sheet Metal (Vallejo) | Flexible | Continuous | Heavy I-Beam base-to-column welded connections; custom sway braces. |
The 10-Stage Precision Manufacturing Workflow
As an international manufacturing powerhouse operating a 30,000 square meter facility with over 300 experienced technical specialists, we produce in excess of 30,000 metric tons of steel storage systems every month. Unlike commercial trading intermediaries, we control the entire lifecycle of industrial racking production, ensuring end-to-end traceability for Mexican procurement audits.
Raw Material Sourcing
Certified Q235B & Q355B hot-rolled steel coils verified for tensile yield and chemical purity.
Precision Slitting
High-speed automated coil slitting guarantees exact strip widths for structural cold rolling.
Automated Punching
Multi-station computer-controlled continuous punching for uniform pitch accuracy (±0.1mm).
Continuous Roll-Forming
Precision multi-pass roll forming creating high moment-of-inertia omega upright profiles.
Profile Straightening
Laser-calibrated straightening machines eliminate camber, twist, and residual stresses.
Robotic Arc Welding
CO2 gas-shielded automated robotic arms securely bond beam end connectors with deep penetration.
Mechanical Polishing
Shot blasting and edge de-burring prepare the steel substrate for maximum coating adherence.
Pickling & Phosphating
Multi-stage immersion cleaning strips oxides and deposits an anticorrosive phosphate conversion layer.
Electrostatic Powder Coat
Automated powder coating curing at 180°C creates a resilient 60-90μm impact-resistant polymer coat.
QC & Seaworthy Bundling
Comprehensive load test verifications, palletized wooden cradles, and labeled export containerization.
Direct Logistics to Central Mexico: Shipments are packed for intermodal transit, departing directly to the Pacific port of Manzanillo (Colima) or Lázaro Cárdenas (Michoacán), with rapid customs clearance and bonded rail or truck freight transfer directly to Pantaco Intermodal Terminal or customer project sites throughout the Valley of Mexico.
Why Global & Mexican Supply Chain Operators Choose HEDA Shelves
Navigating warehouse construction or racking expansion projects in Mexico requires a partner with international project credentials, certified production quality, and the agility to deliver tailor-made engineering configurations:
Certified Structural Compliance
Compliant with ISO 9001:2015, CE European Machinery Directives, and RoHS standards. Fully documented mill certificates, weld testing, and technical documentation prepared for municipal inspection and fire department (Protección Civil) verification.
Free 2D CAD & 3D BIM Layouts
Our in-house structural engineering department generates full 2D warehouse space optimization plans, 3D realistic renderings, and aisle clearance analyses before production commences, preventing costly site miscalculations.
End-to-End OEM / ODM Engineering
Custom beam profiles, specialized pallet support bars, wire mesh decks, post protectors, and rack-supported multi-tier platforms designed precisely around your unique MHE (Material Handling Equipment) and inventory profiles.
Frequently Asked Questions: Industrial Racking Procurement in Mexico City
Direct technical answers addressing the regulatory, structural, and operational questions most commonly encountered by plant directors, procurement executives, and facilities engineers in Mexico.
How do HEDA racking systems comply with Mexico City's seismic building regulations (NTC-RCDF)?
What warehouse parameters are required to receive an optimized 2D/3D layout proposal?
What is the typical shipping transit time to Mexico City, and which ports are utilized?
Can HEDA pallet racks accommodate both GMA North American pallets and European standard pallets?
What safety accessories are recommended to pass Protección Civil inspections in CDMX?
How are components protected against chipping, impact, and local ambient conditions?
Accelerate Your Mexico City Warehouse Storage Capacity
Partner directly with an ISO 9001 and CE certified manufacturer. Connect with our engineering department today to receive a complete 2D/3D CAD layout, seismic structural calculation, and factory-direct price quotation for your industrial site in Mexico City.
