Industrial Pallet Racking & Warehouse Stacking Solutions
Precision-rolled high-tensile structural components engineered for Peruvian supply chain operations, retail DC expansions, agricultural cold stores, and industrial staging terminals.
Seismic Ready

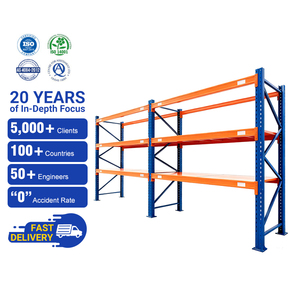

Customized Heavy Duty Industrial Pallet Racking
- Capacity: 1,000 - 4,500 kg / level
- Frame: 50mm / 75mm pitch adjustability
Logistics Handling

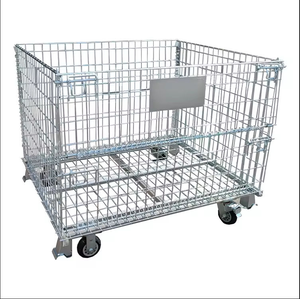

Steel Wire Mesh Foldable Logistics Storage Cage
- Load: Up to 1,500 kg stackable
- Finish: Electro-galvanized / Powder
Dynamic Stacking

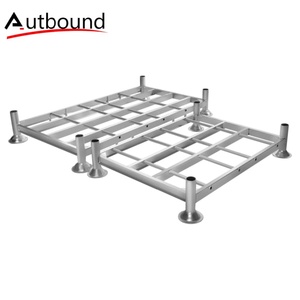

Heavy Duty Steel Post Pallet Stacking Racks
- Design: Removable posts for flexibility
- Stacking: 4-high dynamic load
Fire Safety Compliant
Heavy Duty Pallet Racking Wire Mesh Decking
- Safety: Enhances overhead sprinkler flow
- Reinforcement: 3 to 4 welded channels
Cold Chain Ready
Stackable Folding Steel Pallet Storage Racks
- Application: Cold storage & seasonal surge
- Structure: Collapsible Q235B steel frame
Fast Assembly
JDS Boltless Adjustable Steel Storage Shelves
- Load: 300 - 800 kg / level uniform load
- Usage: Spare parts, picking & eCommerce
Vertical Footprint

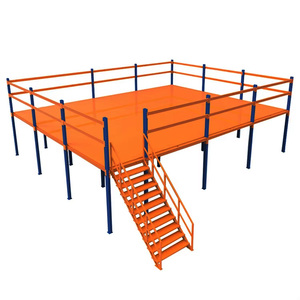

Two-Level Steel Platform Mezzanine Racking
- Design: Doubles usable vertical warehouse area
- Capacity: 300 - 1,000 kg / m² floor rating
Modular Commercial
Industrial Multi-Tier Extendable Steel Shelving
- Flexibility: Expandable modular assembly
- Target: Archive, retail backroom, staging
Optimizing Storage Density in Peru's Pacific Rim Seismic Corridor
A technical evaluation of Double Deep Pallet Racking systems under severe seismic loads, coastal marine atmospheres, and changing freight dynamics near the Mega Puerto de Chancay.
Peruvian Norma Técnica E.030 Seismic Sizing
Warehouse structures located along coastal Peru (including Callao, Lurín, and Huachipa) fall within Seismic Zone 4 (PGA ≥ 0.45g). Our Double Deep racking systems are engineered using high-ductility structural steel, oversized heavy-gauge baseplates, heavy frame bracings, and multi-anchor configurations that dissipate horizontal seismic energy while preventing beam unseating during subduction-zone seismic events.
Density Mechanics: Selective vs. Double Deep
Double Deep racking eliminates 50% of the access aisles required by traditional selective racking by storing pallets two deep in back-to-back rows. When operated with pantograph reach trucks or specialized deep-reach fork attachments, storage capacity increases by 30% to 40% compared to standard layouts while maintaining 50% immediate pallet selectivity—ideal for medium-SKU, high-volume palletized throughput.
ISO 12944 C3/C4 Coastal Marine Coating
Warehouses situated within 25 km of the Pacific coastline face high relative humidity and salt aerosol exposure. Our manufacturing process integrates an 8-stage pre-treatment cycle with hot alkaline degreasing, zinc-phosphate conversion, and thermosetting electrostatic polyester powder coating (70-90μm thickness) to prevent rust, blistering, and chemical peeling in unconditioned industrial buildings.
| Storage Racking Parameter | Standard Selective Racking | Double Deep Racking (Recommended) | Drive-In Racking System |
|---|---|---|---|
| Warehouse Floor Utilization | Approx. 35% - 40% | Approx. 55% - 65% | Up to 75% |
| Direct Pallet Selectivity | 100% Immediate Access | 50% Immediate Access (FILO per 2 slots) | Less than 15% (Strict FILO) |
| Seismic Frame Deflection (Zone 4) | Standard Drift Limits | Enhanced Horizontal Tie Resistance | Requires Rigid Top/Back Seismic Ties |
| Required Material Handling Equipment | Standard Counterbalance / Reach | Pantograph Reach / Telescopic Forks | Slim-Chassis Drive-In Forklift |
| Optimal Application Profile | High SKU variety, fast pick rates | FMCG, cold storage, batch manufacturing | Very low SKU count, bulk seasonal stockpiling |
Double Deep Racking in Peru's Prime Economic Zones
From cold chain storage in the Ica valley to customs logistics hubs around Callao and Chancay, our racking is engineered to meet specific operational requirements.
Ica & Piura Fruit Export Facilities
High-cube Double Deep racking maximizes refrigerated airspace for table grapes, avocados, and blueberries awaiting refrigerated container stuffing, lowering kilowatt consumption per stored pallet.
Callao & Lurín Logistics Corridors
Accommodates fast-moving import consumer goods and industrial supplies moving through port customs terminals, doubling holding capacity without expanding land footprints.
Huachipa & Villa El Salvador DCs
Supplies supermarkets and department store retail chains with batch-controlled inventory storage, maintaining high throughput for daily fulfillment across metropolitan Lima.
Southern Mining Hubs (Arequipa & Moquegua)
Engineered for high-tonnage spares, grinding media, and mining chemical storage. Heavy-duty beams and reinforced upright columns ensure safety under intense point loads and seismic vibrations common in the southern sierra.
Chancay Mega Logistics Park Developments
Designed for multi-modal cross-docking operations and high-velocity transshipment warehouses connecting South American agricultural corridors with direct trans-Pacific trade routes to Asia.
Peruvian Logistics & Warehousing Trends (2025-2030)
Key drivers shifting warehouse storage design from basic floor stacking to high-density, seismic-certified engineered racking systems.
1. Impact of Mega Puerto de Chancay
The operational commissioning of the Chancay Multipurpose Port Terminal is transforming central coastal Peru into South America's primary maritime hub. Surrounding logistics parks in Huaral and north Lima demand high-bay, narrow-aisle, and Double Deep racking systems that can process 40-foot container volumes quickly.
2. Urban Industrial Land Cost Pressures
Industrial land prices in established Lima districts (Callao, Ate, San Luis) have driven logistics operators toward Lurín, Chilca, and Huachipa. Rising square-meter costs demand maximum vertical space utilization, accelerating the replacement of standard 6-meter selective setups with 10-to-12-meter high Double Deep configurations.
3. Rigorous INDECI Municipal Inspections
Peruvian municipal authorities and INDECI (Instituto Nacional de Defensa Civil) enforce strict structural safety, emergency egress widths, and sprinkler water clearance. Our layout designs match NFPA 13 sprinkler penetration standards and maintain safe aisle clearances for operational compliance.
Precision Manufacturing & Structural Quality Control
Every upright frame, load beam, and connector is produced in our 30,000 m² factory using certified high-strength steel coil, precision roll forming, and automated powder coating lines.
01. Certified Steel Selection
High-tensile prime coil (SS400, Q235B, Q355B) tested for yield point, chemical composition, and tensile elongation before production starts.
02. Continuous CNC Punching
Automated punch presses deliver precision hole patterns at 50mm/75mm increments, ensuring accurate beam level adjustments.
03. Precision Roll Forming
Multi-roller forming lines shape complex upright sections with up to 12 cold-rolled bending facets to resist seismic torsional loads.
04. Pickling & Phosphating
Automated dip tanks remove mill scale and oil, applying a microscopic zinc-phosphate barrier to ensure powder coating adhesion.
05. Electrostatic Powder Curing
Automated spray booths apply durable epoxy-polyester powder baked at 180°C–200°C, producing a scratch- and impact-resistant finish.
Engineered Reliability for Peruvian Procurement Managers
Direct factory partnership delivering end-to-end support—from initial AutoCAD layouts and seismic structural calculations to international container shipping to Puerto del Callao.
25+ Years Manufacturing
Over two decades of international manufacturing with more than 10,000 completed warehouse systems worldwide. We understand heavy-duty structural steel and international shipping requirements.
Free 2D CAD & 3D Modeling
Our engineering team delivers detailed warehouse layouts, forklift turning-radius analyses, and 3D architectural renders within 48 hours to accelerate internal stakeholder and INDECI approvals.
Certified Structural Safety
Certified to CE (EN 15512), ISO 9001:2015, and RoHS standards. Our structural sections are load-tested and calculated to absorb high horizontal accelerations without catastrophic structural failure.
Direct Callao Port Logistics
Direct ocean freight shipping from Guangzhou to Puerto del Callao and Chancay. Components are bundled, palletized, and labeled to match construction drawings for efficient on-site erection.
Frequently Asked Questions by Warehouse Operators in Peru
Practical answers to technical, logistical, and operational questions regarding Double Deep pallet racking installation and procurement.
Q. What forklift equipment is required for Double Deep racking in Peru?
Double Deep racking requires specialized deep-reach equipment, such as a pantograph reach truck, telescopic fork reach truck, or a counterbalance forklift fitted with hydraulic pantograph attachments. Most major forklift distributors in Lima (Linde, Toyota, Crown, Jungheinrich) supply reach equipment with lift heights of 7 to 11+ meters suited to our beam profiles.
Q. How are seismic requirements under Peruvian Code E.030 handled?
Under Norma Técnica E.030, coastal Peru (Zone 4) requires a design acceleration factor of Z = 0.45. Our engineering department designs Double Deep uprights with heavier metal gauges, larger baseplates, dual wedge anchor bolts, and specialized horizontal portal ties between back-to-back frames to increase frame rigidity and resist seismic forces.
Q. What is the typical transit lead time to Puerto del Callao?
Production for standard 40-foot high-cube containers takes approximately 15 to 25 days depending on project tonnage. Ocean freight transit from our factory in Guangzhou/Shenzhen to Puerto del Callao runs 28 to 35 days direct. We provide complete commercial invoices, packing lists matching bundle tags, and certificates of origin (Form F for China-Peru FTA) to simplify SUNAT customs clearance.
Q. How do you verify pallet weights and avoid overloading?
Every system includes engraved aluminum or UV-resistant PVC load capacity plaques mounted at aisle ends showing maximum load per beam level and bay weight ratings. We run finite-element structural simulations (ANSYS) for your specific pallet dimensions—including standard 1200x1000mm industrial pallets and 1200x800mm Euro pallets.
Q. Does Double Deep racking work in cold storage environments?
Yes. Double Deep is widely used in cold stores across Ica, Trujillo, and Callao because cooled warehouse volume is costly. By minimizing access aisles, Double Deep increases storage density by up to 40%, lowering refrigeration power costs per pallet. We use low-temperature powder coatings and cold-rolled steel tested to maintain ductility at -25°C.
Q. What installation support is provided for local assembly teams?
Every project includes detailed 2D anchor-bolt layouts, beam elevation diagrams, component bills of materials, and step-by-step 3D assembly guides. We provide remote video support with our engineering team throughout installation, and can dispatch on-site erection supervisors for large-scale logistics developments.
Ready to Optimize Your Peruvian Warehouse Space?
Contact our structural engineering team today to receive a free warehouse layout consultation, customized 2D/3D AutoCAD drawings, and a direct factory quotation delivered to Puerto del Callao.
- Seismic Zone 4 calculations
- Factory-direct container pricing
- Complete 48-hour CAD proposals
- China-Peru FTA documentation
