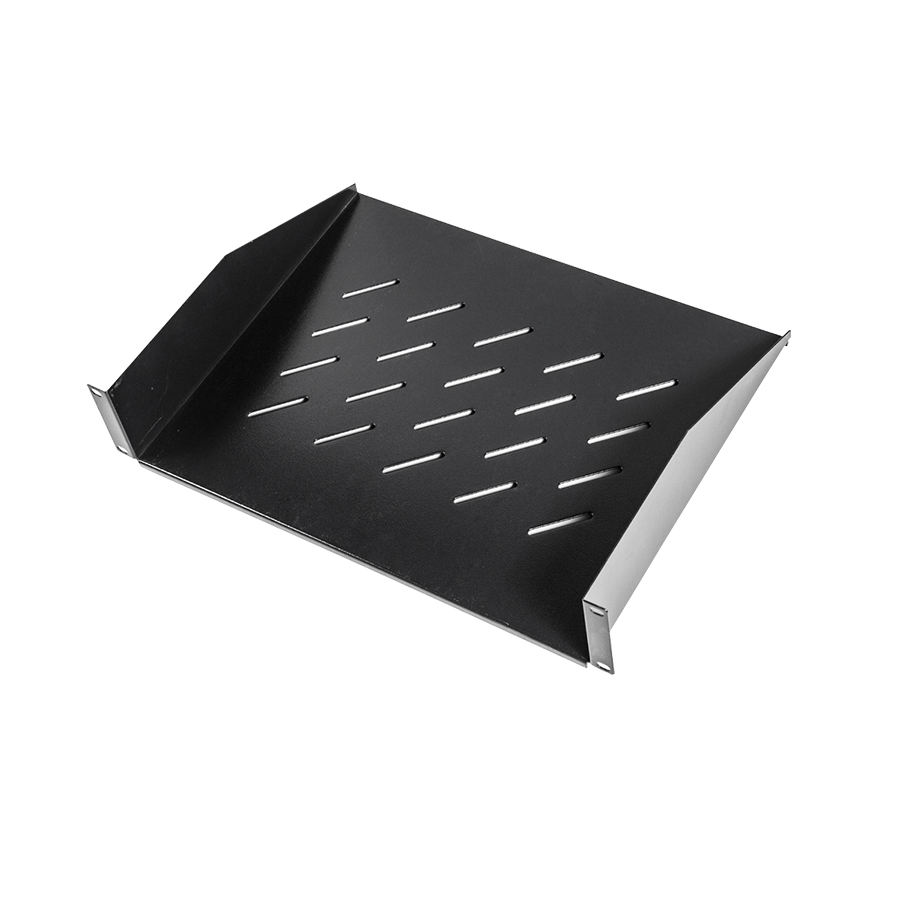

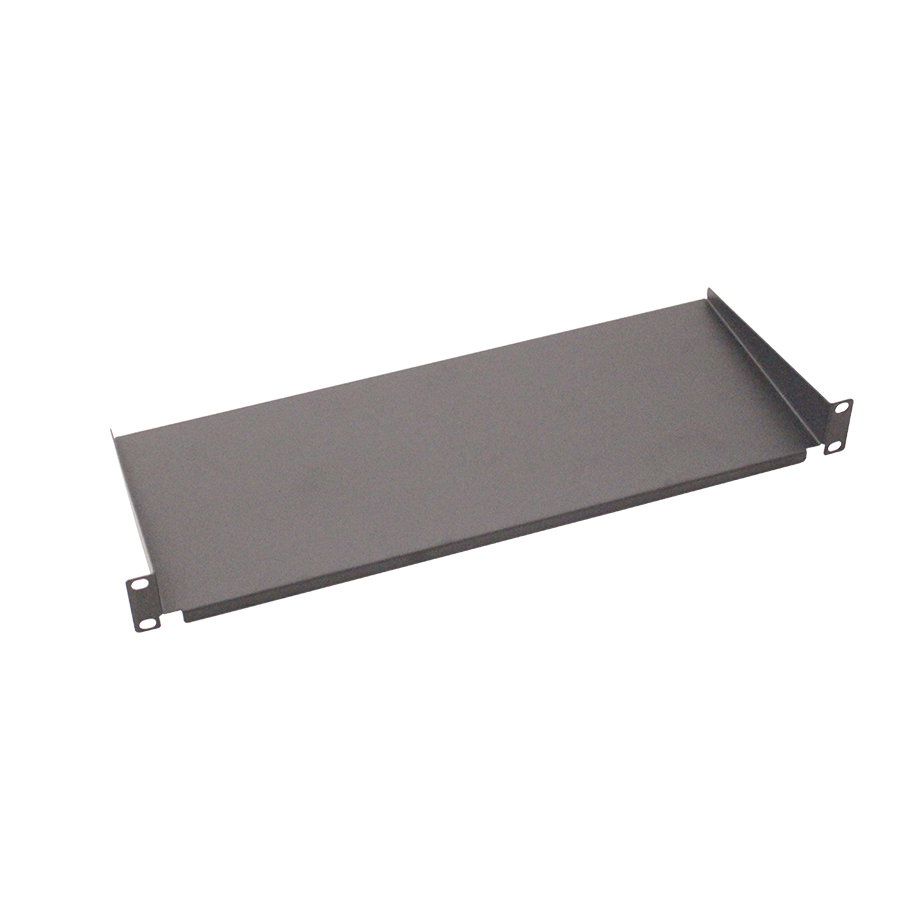

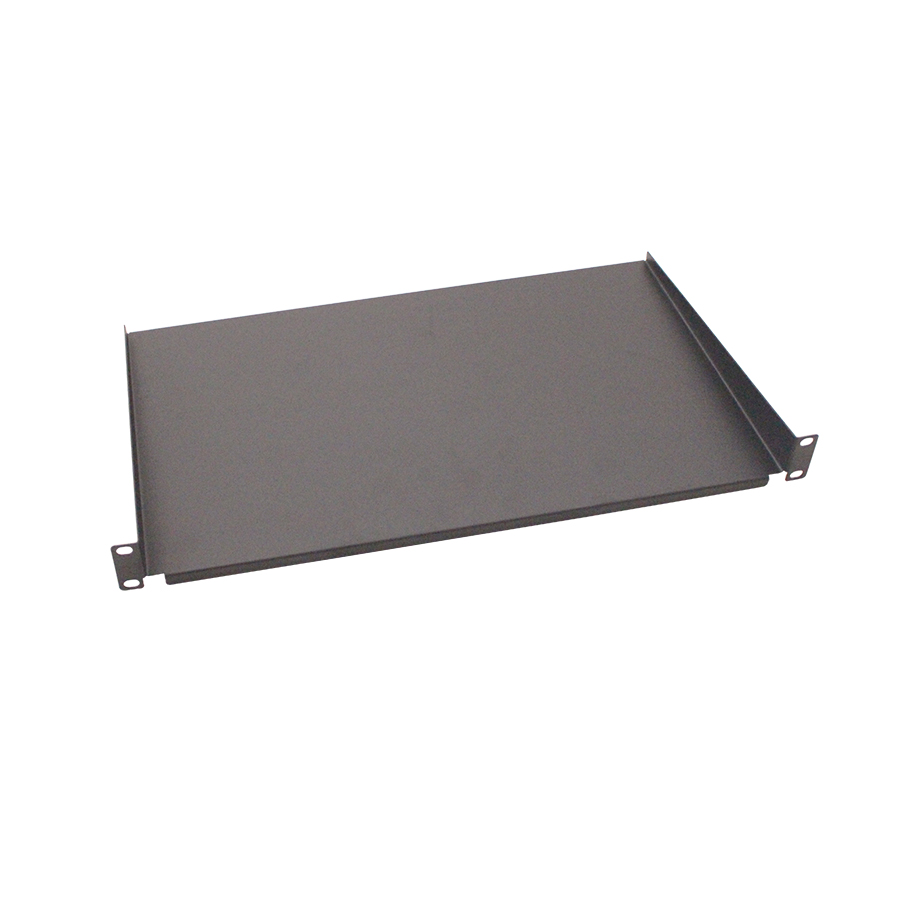

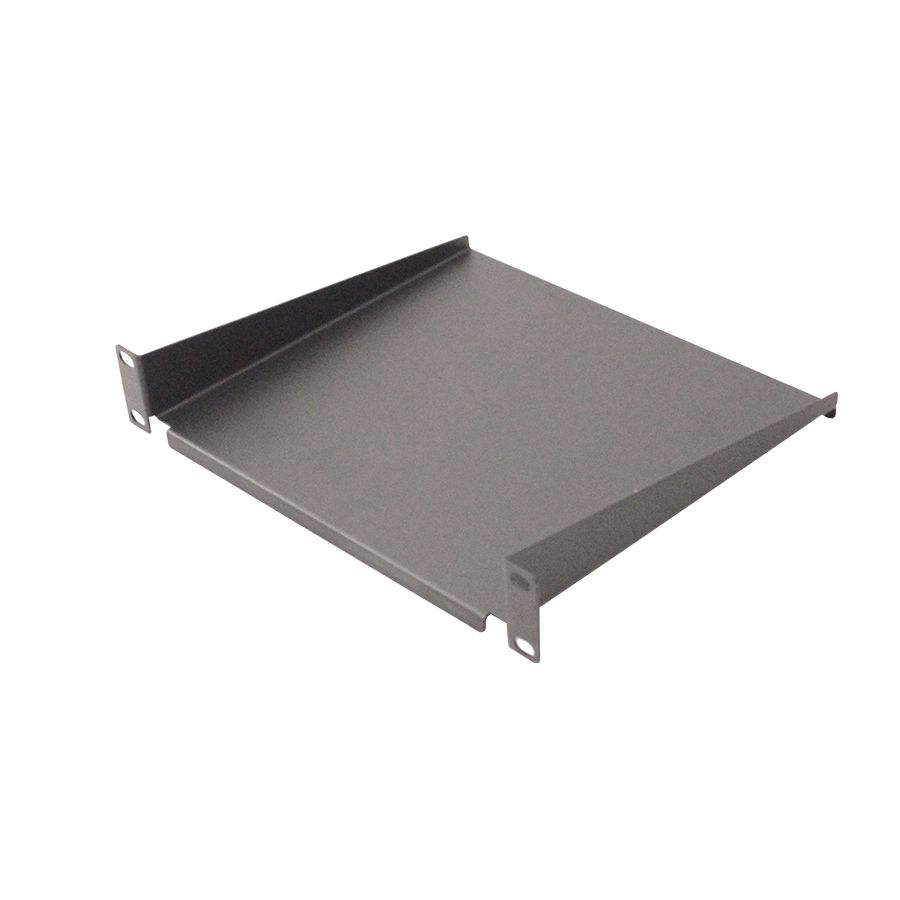

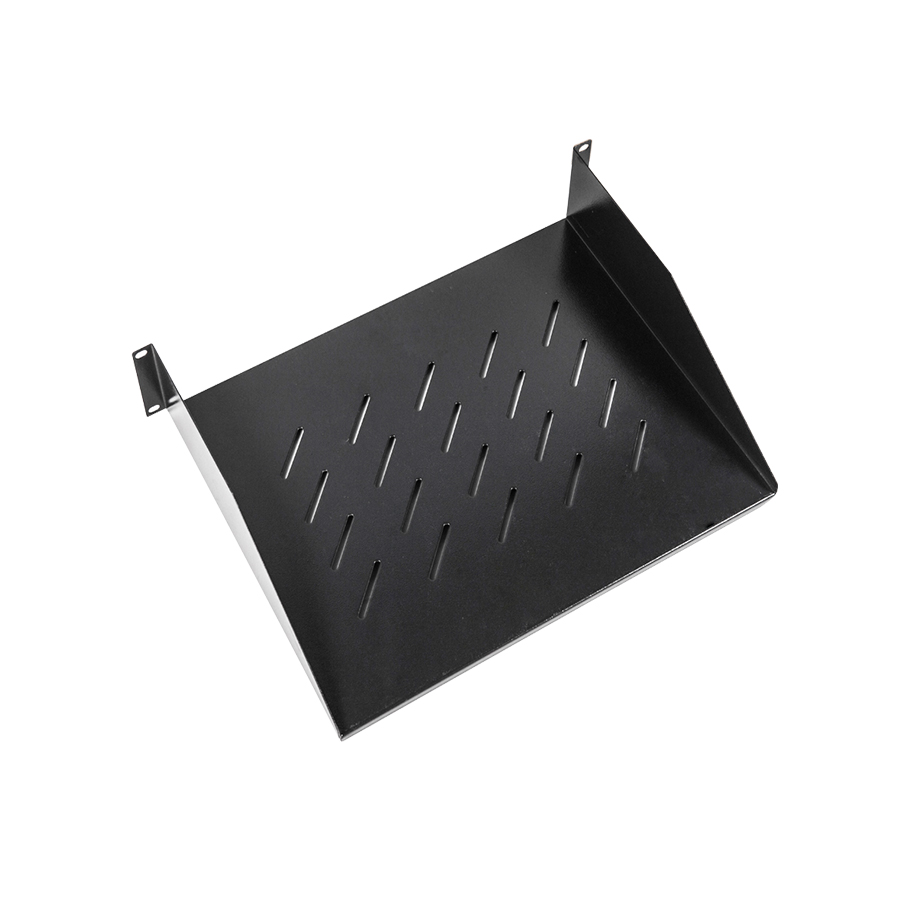

19'' Cantilever Adjustable Cantilever Shelf Used for Network Cabinet Racks
Product Description
19'' Cantilever Adjustable Shelf for Network Racks
Application: Used for supporting network equipment in webitelecomms server rack.
Key Features & Specifications
Width: 19" Installation
200mm, 300mm (Can be customized)
1U, 2U, 3U, 4U
20~30 kg, usually used for wall cabinet
SPCC cold rolled steel or EG steel
Degreasing, pickling, phosphoric, powder coating (Can be Galvanized)
RAL9005 (Black) / RAL7035 (Grey)
| Thickness | Depth | Materials |
|---|---|---|
| 1.20 mm | 270 / 350 mm Depth | SPCC cold rolled steel |
Product Overview & Technical Parameters
Features Overview

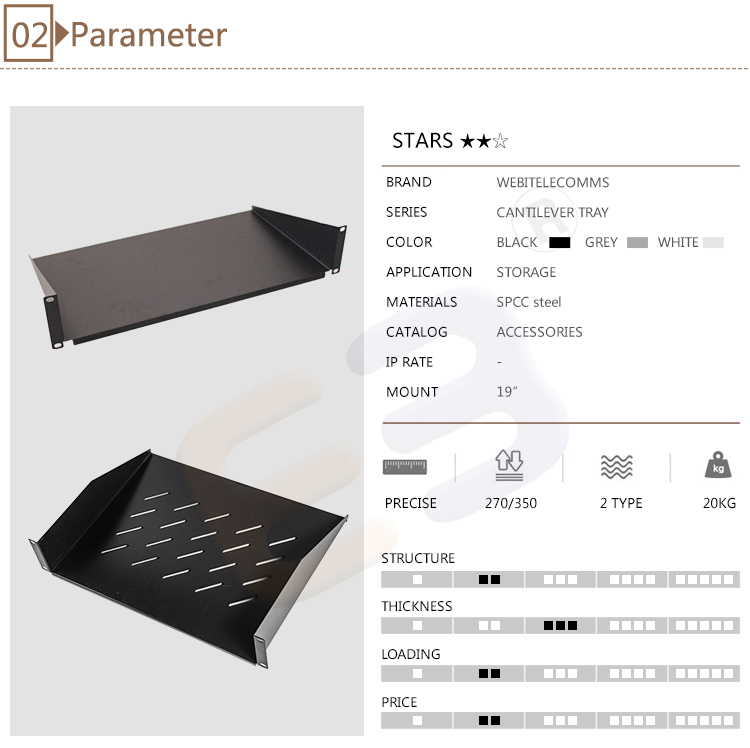

Parameter Specifications

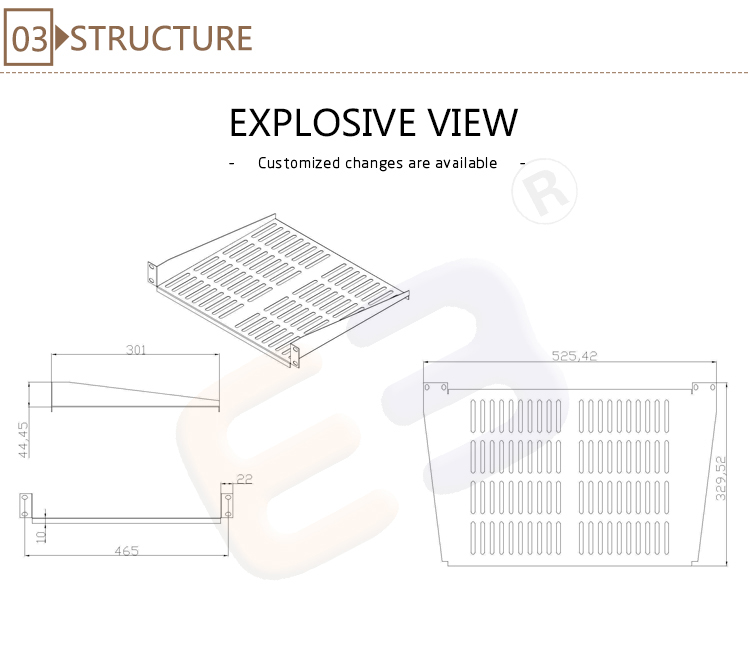

Structure Details
Packing & Manufacturing
Packing Display
About Us & Workshop
Certifications
Exhibition Shows
FAQ Reference
Frequently Asked Questions (FAQ)
What rack size is this cantilever shelf compatible with?
This cantilever shelf is engineered for standard 19-inch network racks and server cabinets, commonly used in wall-mounted enclosures.
What is the maximum load bearing capacity?
The shelf has a verified bearing capacity of 20 to 30 kg, suitable for supporting routers, switches, and peripheral network equipment.
What depth and height configurations are available?
Standard depths include 200mm, 270mm, 300mm, and 350mm, with custom depth options available. Available height profiles are 1U, 2U, 3U, and 4U.
What steel material and thickness are used?
It is manufactured using high-grade SPCC cold rolled steel or EG steel with a standard thickness of 1.20 mm for enhanced rigidity.
What surface finish and color options can be selected?
The surface undergoes degreasing, pickling, phosphoric treatment, and durable powder coating, with galvanized options available. Standard color finishes include RAL9005 (black) and RAL7035 (grey).
What is the recommended application for this shelf?
It is primarily designed for supporting non-rackmountable IT and telecommunications hardware inside webitelecomms server racks and wall cabinets.
