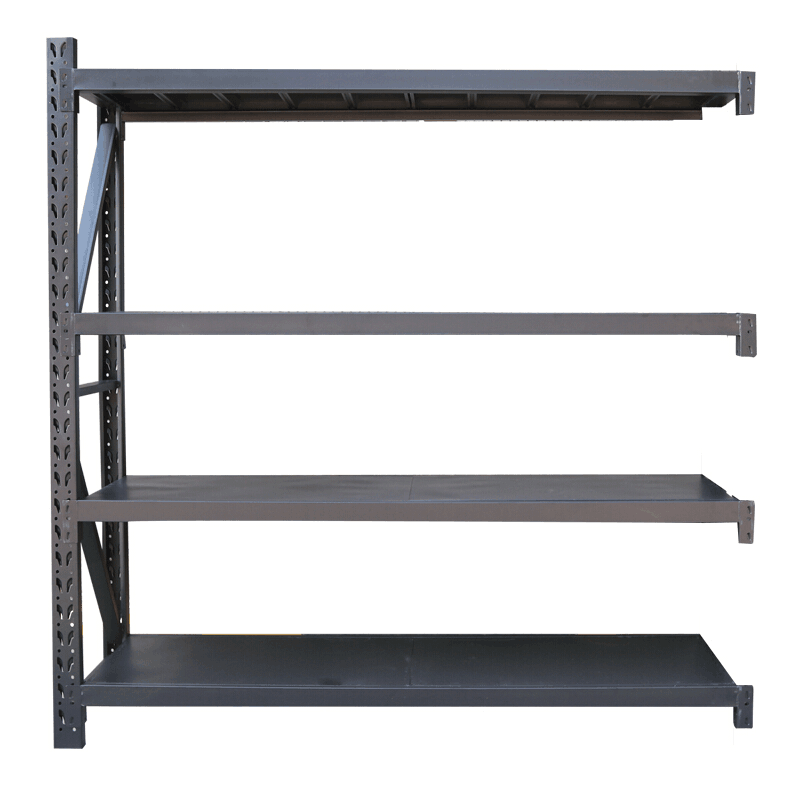

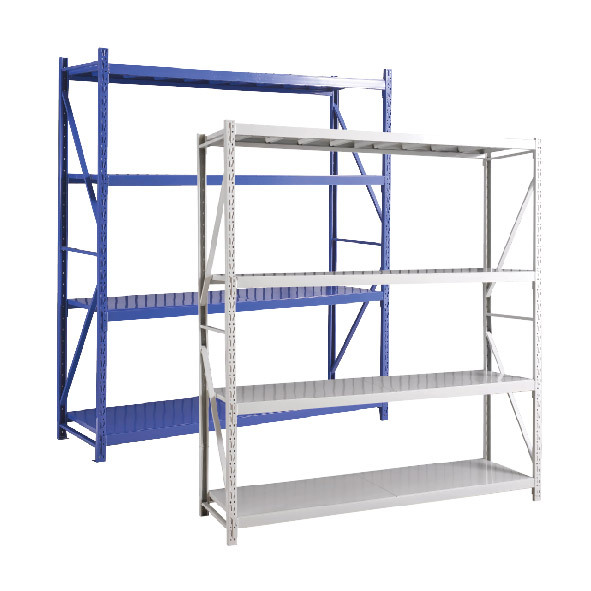

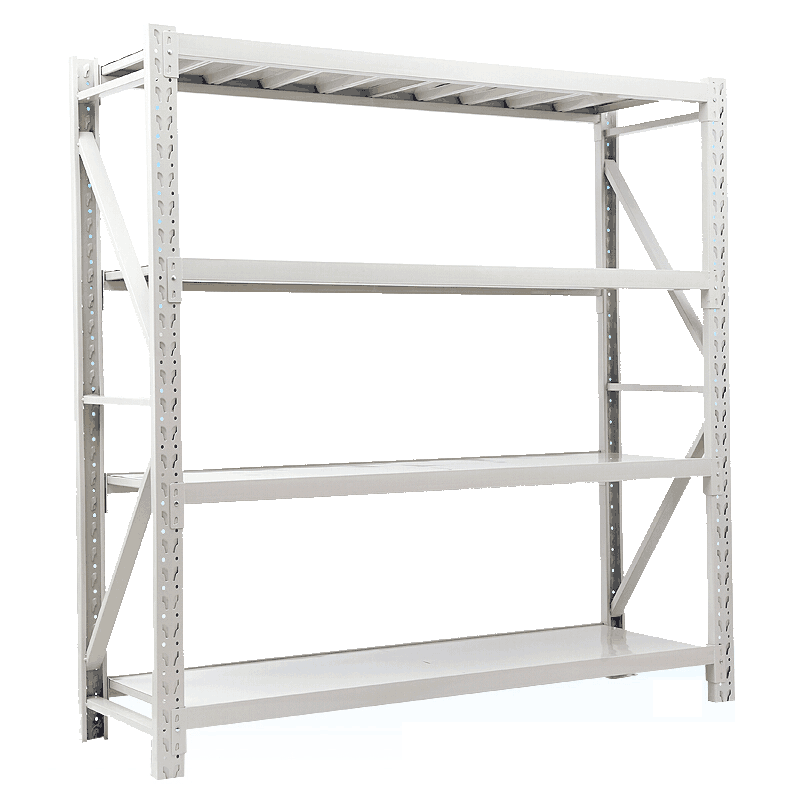

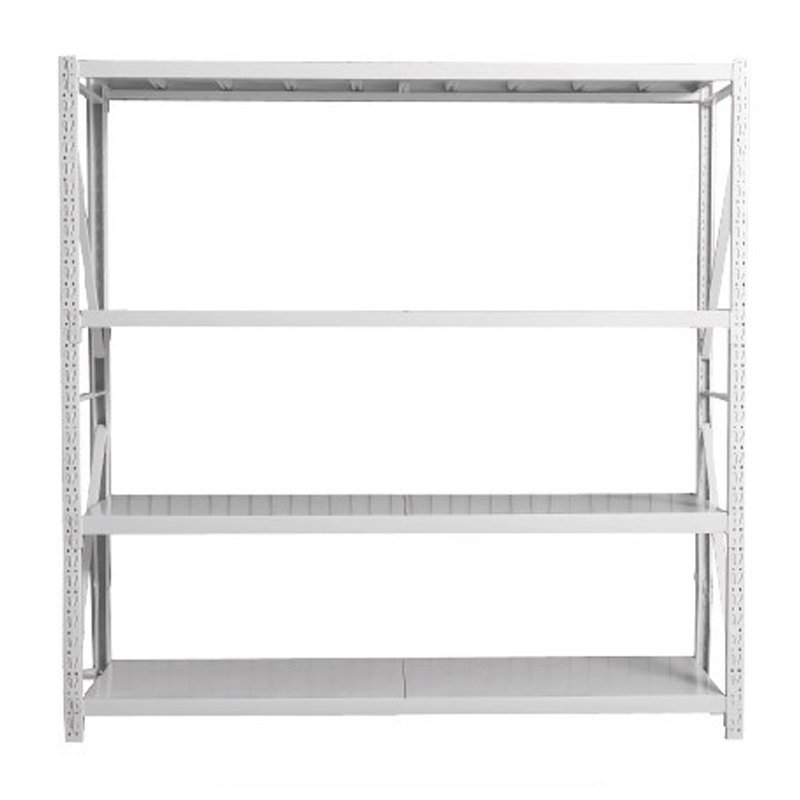

4-Shelf Light Duty Boltless Rivet Shelving Metal Shelf Storage Racks For Garage And Supermarket Shelves HJQ-105
Product Description
4-Shelf Light Duty Boltless Rivet Shelving Metal Shelf Storage Racks For Garage And Supermarket Shelves HJQ-105
Specifications
| Item No. | HJQ-105 | Type | Boltless / Rivet Shelving |
| Product Name | Multi-Layers Medium Duty Storage Rack | Material | Steel |
| Optional Color | Black / Blue / White | Size (mm) | H2000 * W1000 * D500 |
| Layer | 4 layers | Feature | Adjustable layers |
| Surface Treatment | Powder coated | Max Load Capacity | 200kg / layer |
| Application | Warehouse, supermarket, logistics, etc | Net Weight (kg) | 18.7 |
| Package Size (mm) |
2000*500*100mm (Column: 2pcs/box) 990*260*100mm (Beam: 8pcs/box) 900*480*118mm (Panel: 4pcs/box) |
Gross Weight (kg) | 20.32 |
Medium duty shelvings belong to shelves, distinguished and named according to the loading capacity, between light and heavy racking. Generally could load 150-600kg per level.
- Use high quality steel roll-formed; full assembly steel shelves structure.
- Main components include uprights, beams, bracings, and layer panels.
- Simple structure and easy installation with completely boltless setup.
- Assembles directly with infinite connection capability for modular rows.
- Optimized to handle medium goods via direct manual handling.
- Compatible with common handling equipment and various building structures.
- The most popular and cost-effective racking solution for warehouses.
Structural Key Points

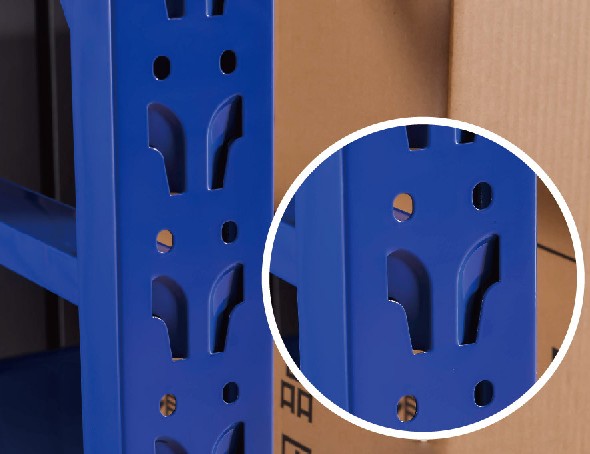

Butterfly Hole Design: Perfectly combined with the fastener on the beam, the height of inter-layer spacing can be adjusted at will, allowing free assembly and disassembly.

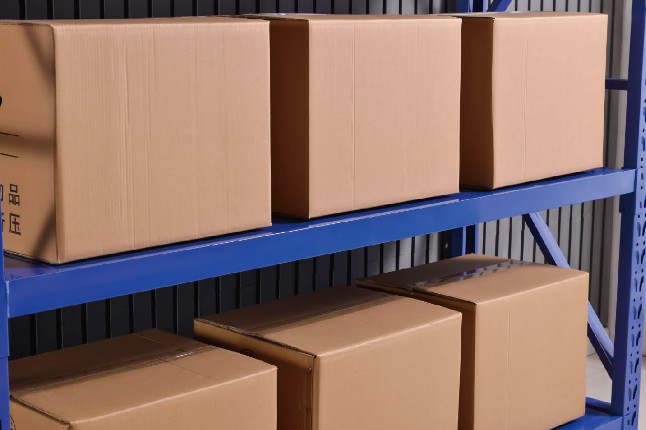

Reinforced Column Support: The column features both transverse and oblique supports. High-strength welding ensures zero shaking and maximizes load-bearing capacity.

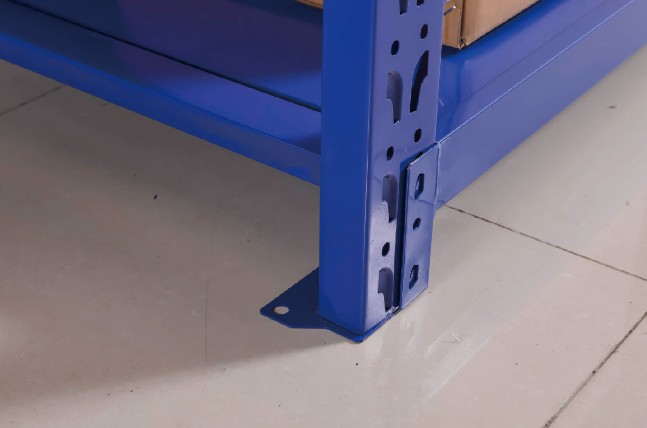

Widened Welding Plate: Enhances surface friction between the shelving base and the floor, significantly upgrading shelf stability.

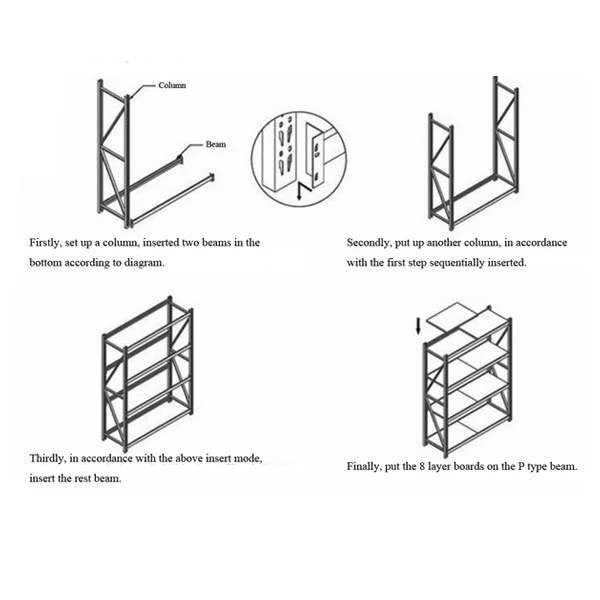

Installation Instructions

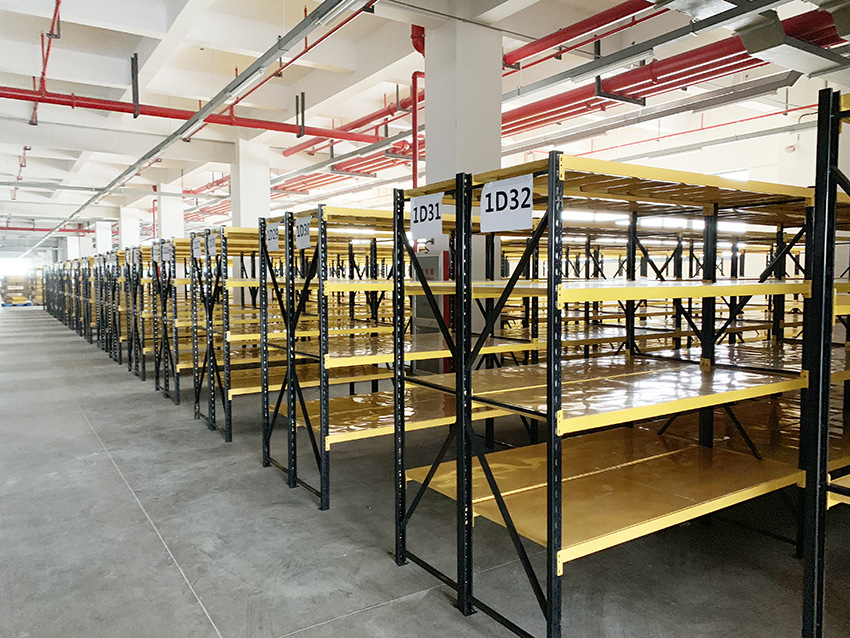

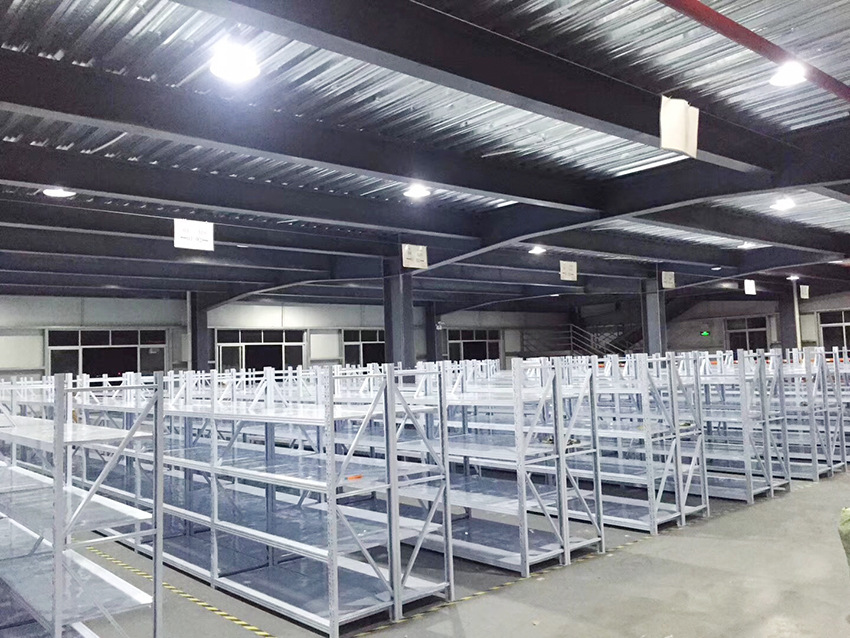

Production & Application Showcase
Frequently Asked Questions (FAQ)
Q1: What is the load capacity of the HJQ-105 storage rack?
The rack has a rated load capacity of 200 kg per layer, making it ideal for medium-duty manual warehouse handling and retail inventory.
Q2: Are tools or bolts required for assembly?
No bolts are required. It features an intelligent boltless rivet and butterfly-hole mechanism that fits directly together for quick assembly.
Q3: Can the height of the individual layers be adjusted?
Yes, the beam fasteners can be inserted into the upright butterfly holes at custom height increments, allowing easy adjustment according to item dimensions.
Q4: What material and finish are applied to the shelving?
The shelving is manufactured from cold-formed structural steel and finished with an electrostatic powder coating to ensure durability and rust prevention.
Q5: What colors and size options are available?
The standard dimensions are H2000mm * W1000mm * D500mm across 4 layers. Standard color options include Black, Blue, and White.
Q6: How is the HJQ-105 rack packaged for transit?
The rack is boxed compactly into three segments: Columns (2 pcs/box), Beams (8 pcs/box), and Layer Panels (4 pcs/box) with a total gross weight of approx. 20.32 kg.
