Four Way Shuttle Racking System Radio Pallet Shuttle Rack Automated Warehouse Storage Steel Corrosion Cold Storage Racks
Product Description
Four-way Shuttle Racking
Car Shuttle Rack 4 Direction Pallet Mobile Rack System Warehouse Storage Equipment Four-Way Radio Shuttle Racking With Efficient

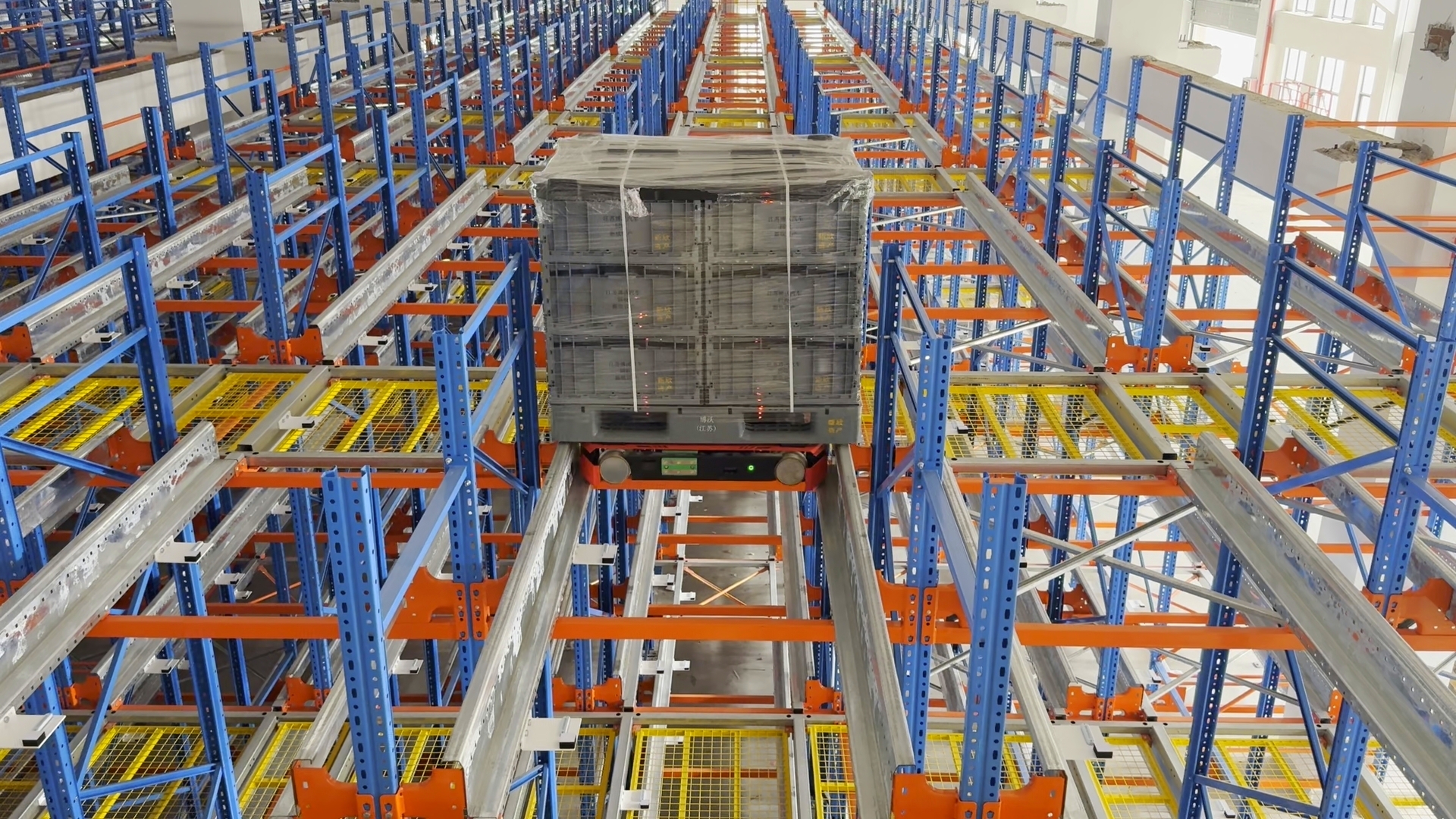

Four-way shuttle racking system is an automated intensive storage system integrating multi-layer racking and its peripheral equipment, which realizes the four-way logistics operation of the same level operation lane through the shuttle body according to the operation instruction, and can realize the storage scheduling and management of any storage position on the same level.
The system combines with the elevator to realize the intelligent shuttle car or storage items for leveling operation, in order to realize the three-dimensional dynamic storage management of the storage unit in the whole storage area.
Product Display

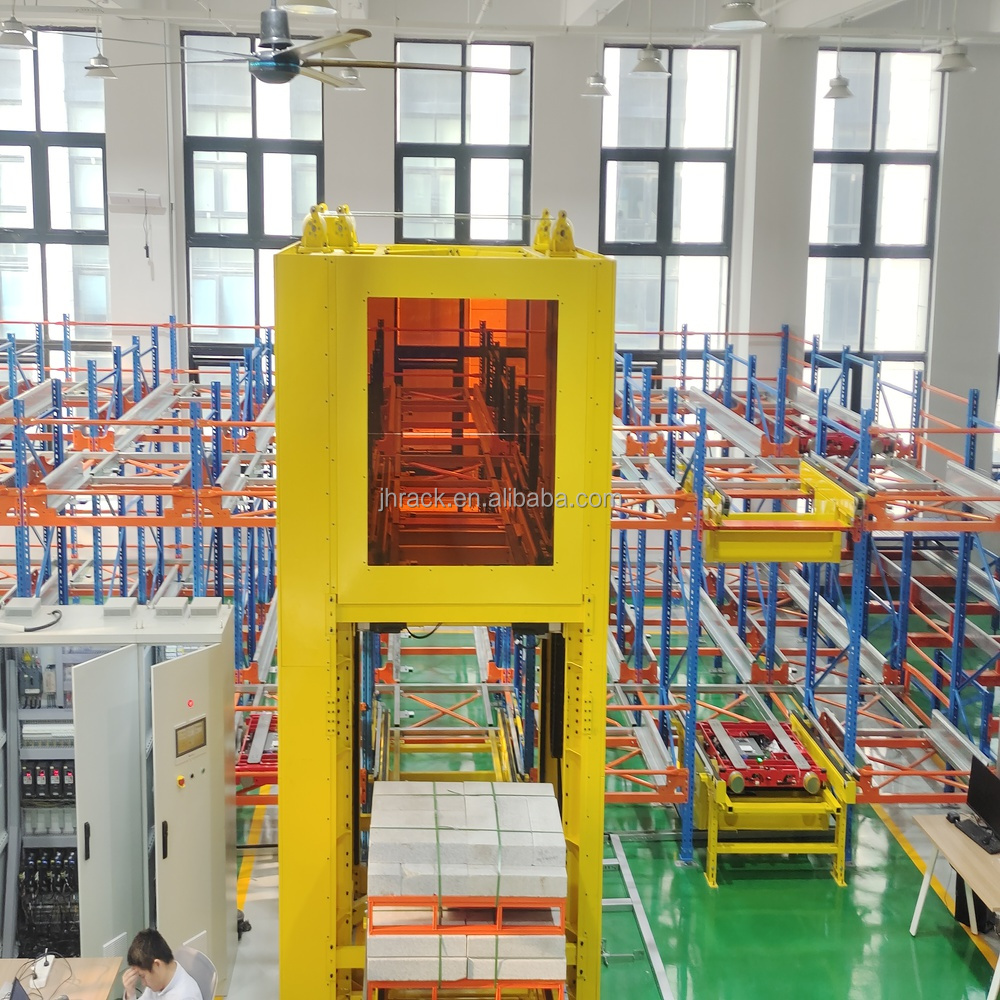

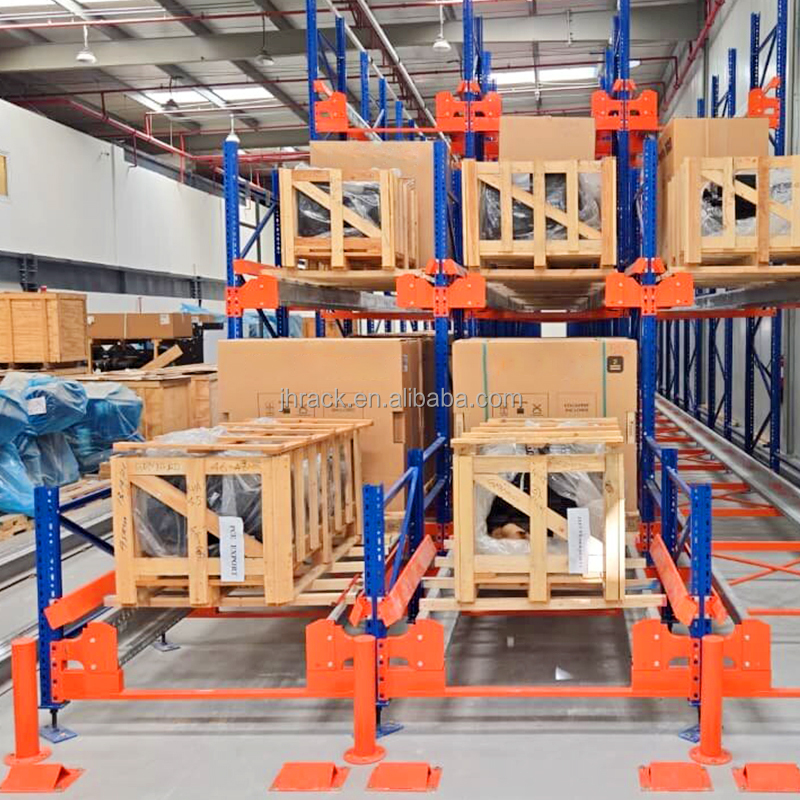

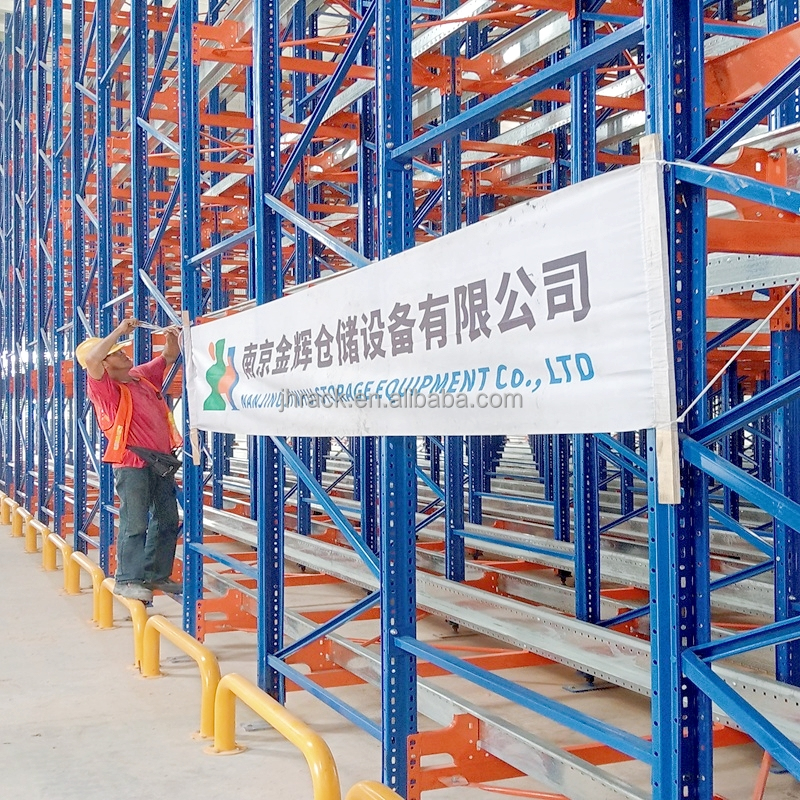

Four-way shuttle Rack system

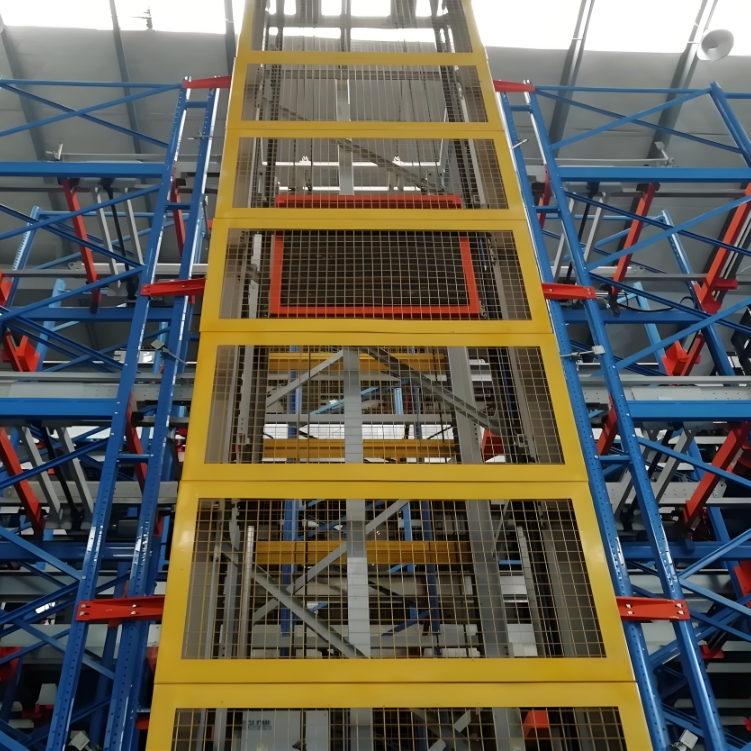

Four-way shuttle elevator is a key equipment, the main function is responsible for the goods pallet in and out of the warehouse operation, to support the efficient operation of the four-way shuttle system.
It is mainly responsible for vertical lifting and levelling tasks, and can be used in conjunction with pallet or box type 4-way shuttles to achieve high density storage and fast access to goods.

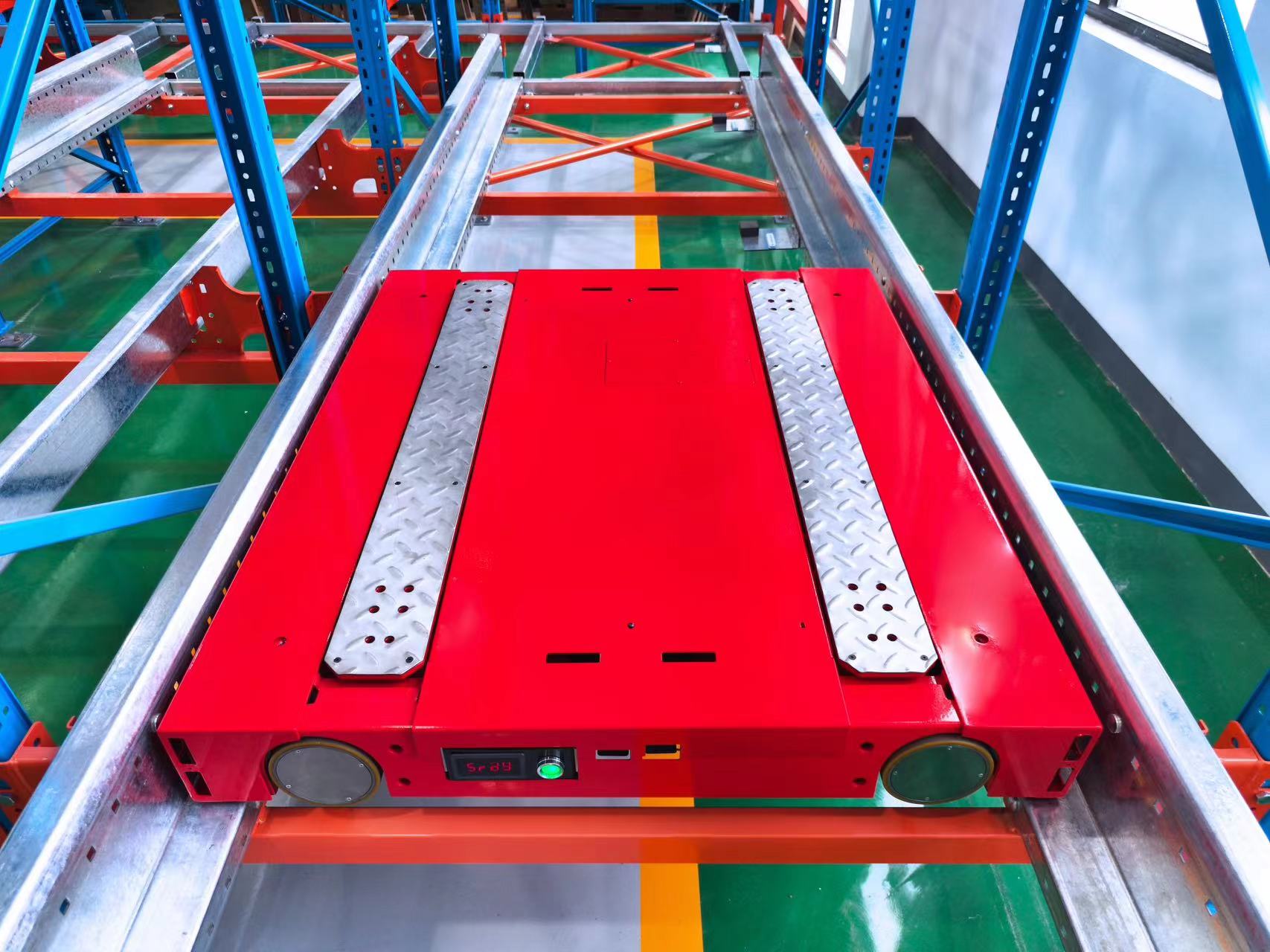

Four-way shuttle
Four-way shuttle is a highly automated logistics equipment, it can move in the x-axis and y-axis of the shelves in two directions, with no need to turn to achieve the characteristics of four-direction driving, which is also the source of its name.

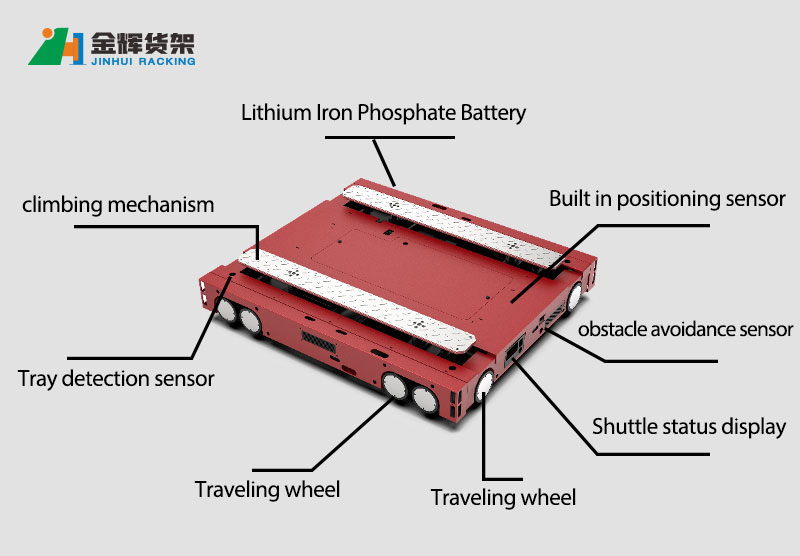

Product Structure
1. Core technology: The core of the system is the four-way shuttle bus, which is equipped with advanced navigation technology and can move goods between shelves efficiently without manual intervention.
2. Storage efficiency: By reducing the number of channels required by traditional shelves, the four-way shuttle shelf system greatly improves the space utilization and storage density of the warehouse.
3. Flexibility: The design of the four-way shuttle allows them to move freely between multiple shelves and channels, providing a high degree of flexibility and adaptability to meet different storage needs.
4. Automated operation: The integrated control system can be seamlessly connected with the warehouse management system (WMS) to realize automatic scheduling and monitoring of jobs.
5. Safety and monitoring: The system design includes multiple safety features, such as obstacle detection, emergency stop.
6. Application field: The system is suitable for various industries, such as food and beverage, medicine, e-commerce, third-party logistics, etc., especially for environments that require high storage efficiency and accuracy.
These characteristics of the four-way shuttle shelf system make it a powerful solution in modern logistics and warehouse management, and provide a reliable, efficient and extensible storage option for enterprises.
Specification
| The Specification of 4-Way Shuttle Car | |
|---|---|
| Running Speed | 1.2/1.5m/s |
| Running without Loading | 90m/min |
| Running with Max Loading | 60-72m/min |
| Total Weight of Loading | 1000-1500kg |
| Size Range Available: L x Wmm | W1100~1350 x D800~1100mm |
Packing & Delivery
Company Profile
Nanjing Jinhui Storage Equipment Co., Ltd. established in 2006, is a professional engaged in the research, development, sale and service of pallet racking, mezzanine floor, cantilever racking, light and middle duty shelving, steel pallet.
We have 2 production plants, and plants cover areas of 40000 square meters, factory building area total of 20000 square meters office area total of 4000 square meters.
We are located in Nanjing city with convenient transportation access. We are rich of know how equipped with advanced streamlined product line. Besides an sophisticated team of installing and after service guarantee a happy experience of our product. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
In addition, we have obtained CE, 10S9001, 10S14001 and TUV certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Asia, North America, South America, Africa. We also welcome OEM and ODM orders.
Certificate
Joint Venture
FAQ
Are you a factory or trading company?
We are a manufactory for storage rack.
Where is your factory located? How can I visit there?
Our factory located in Nanjing City Jiangsu Province, China. You can fly to Nanjing airport directly. We will pick you up at Nanjing international airport. All our clients, from home or abroad, are warmly welcome to visit us.
What is the raw material of your products?
The material we choose is Q235 steel.
What is the packaging of the products?
Standard export package. All parts packed by steel belt and covered by plastic film.
What is the term of payment?
(1) T/T payment. (2) LC at sight.
What is your delivery time?
It depends on the order quantity and racking types, normally is 15 to 30 days after receipt of the deposit.
