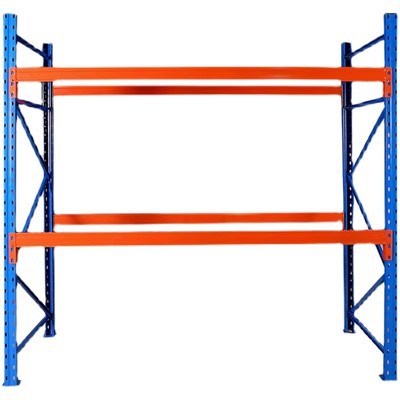

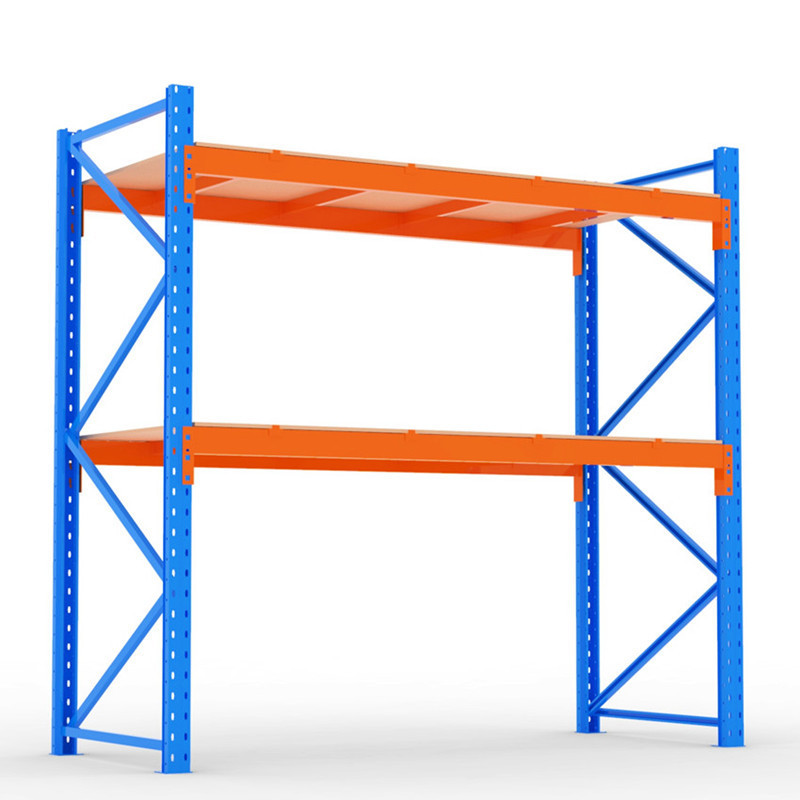

Custom Heavy-Duty Metal Rack Storage Shelf High Quality Iron Warehouse Racking Cargo Storage Equipment Customized Heavy-Duty
Product Description

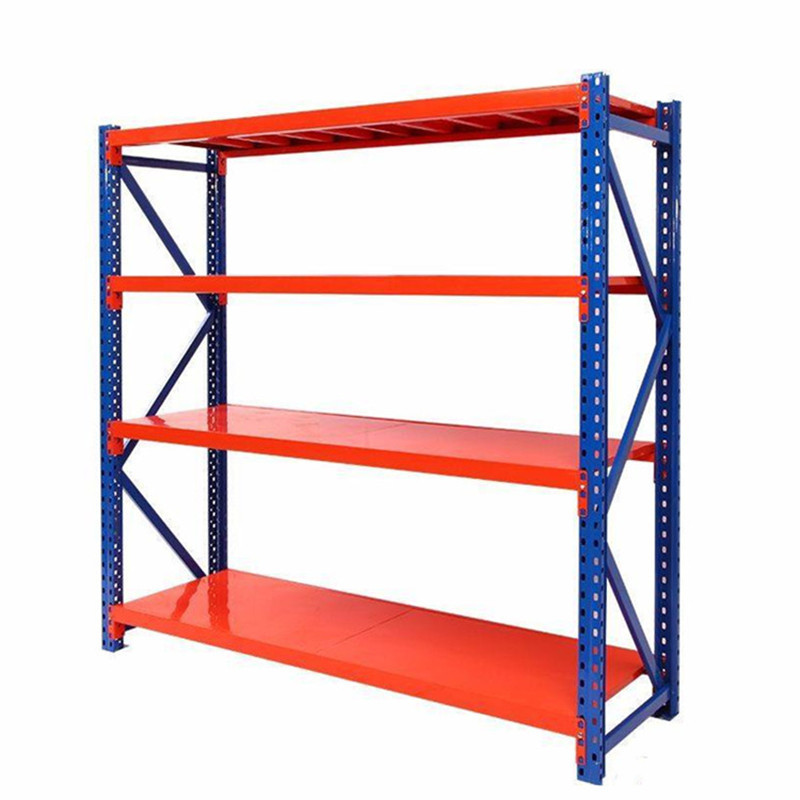

Products Description
| Brand | Csrack |
| Product Name | L2300*W1000*H2550mm ( As your request ) |
| Layer | 2 ( As your request ) |
| Load Capacity | 1000KG (As your request ) |
| Upright Specification | 2550*1000*90*70*1.5mm |
| Beam Specification | 2300*100*45*1.2mm |
| Usage | Warehouse/Supermarket/Industry storage rack & shelf |
Customized.
Pls. Tell the size and loading per layer.Our accpet customize size and loading capacity.

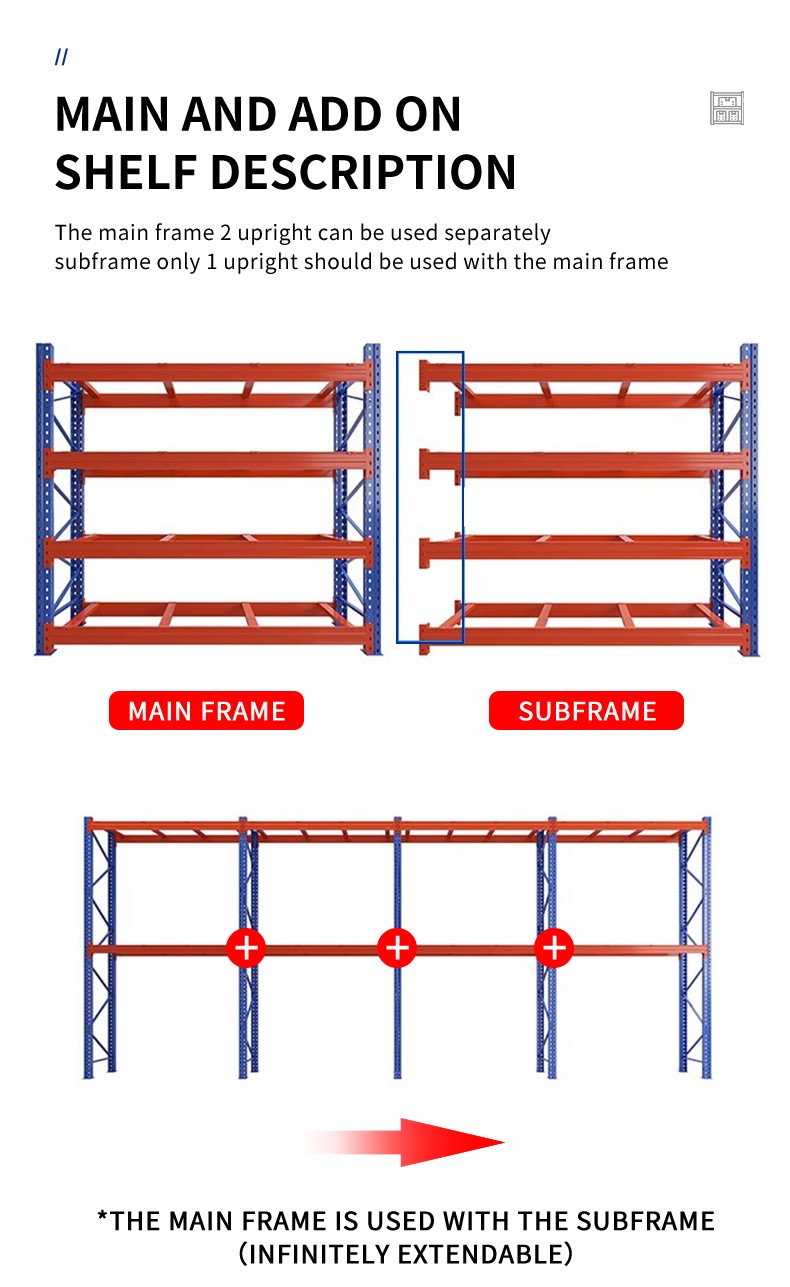

If you need, The shelf can add extra layer.(Standard is 2 layers)
| Model | Capacity/KG | Size( L*W*H )mm | Layer | Remark |
|---|---|---|---|---|
| CS-H01 | 1000KG | 2300*1000*2550 | 2 |
Upright:2550*1000*90*70*1.5mm Beam:2300*100*45*1.2mm |
| CS-H02 | 1500KG | 2300*1000*2550 | 2 |
Upright:2550*1000*90*70*1.5mm Beam:2300*100*45*1.5mm |
| CS-H03 | 2000KG | 2300*1000*2550 | 2 |
Upright:2550*1000*90*70*1.8mm Beam:2300*120*45*1.5mm |
| CS-H04 | 3000KG | 2300*1000*2550 | 2 |
Upright:2550*1000*90*70*2.0mm Beam:2300*140*45*1.5mm |
| CS-H05 | 4000KG | 2300*1000*2550 | 2 |
Upright:2550*1000*90*70*2.0mm Beam:2300*160*45*1.5mm |

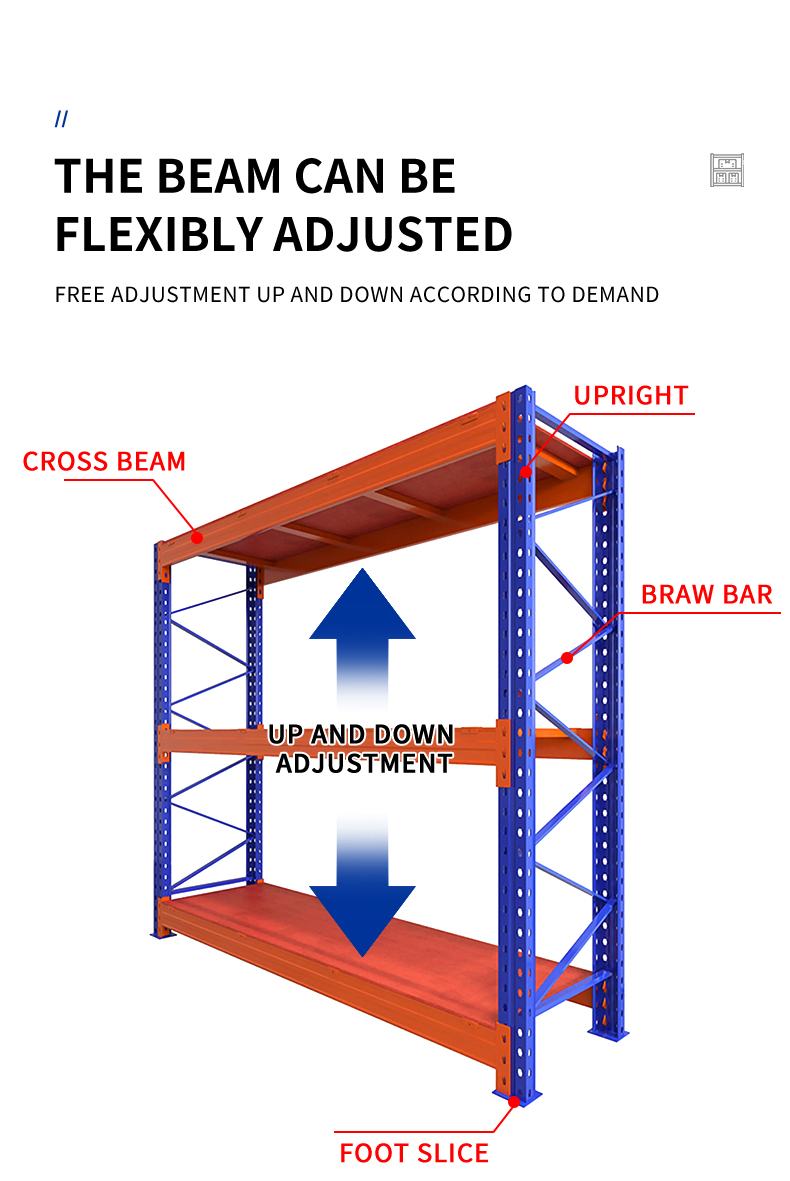

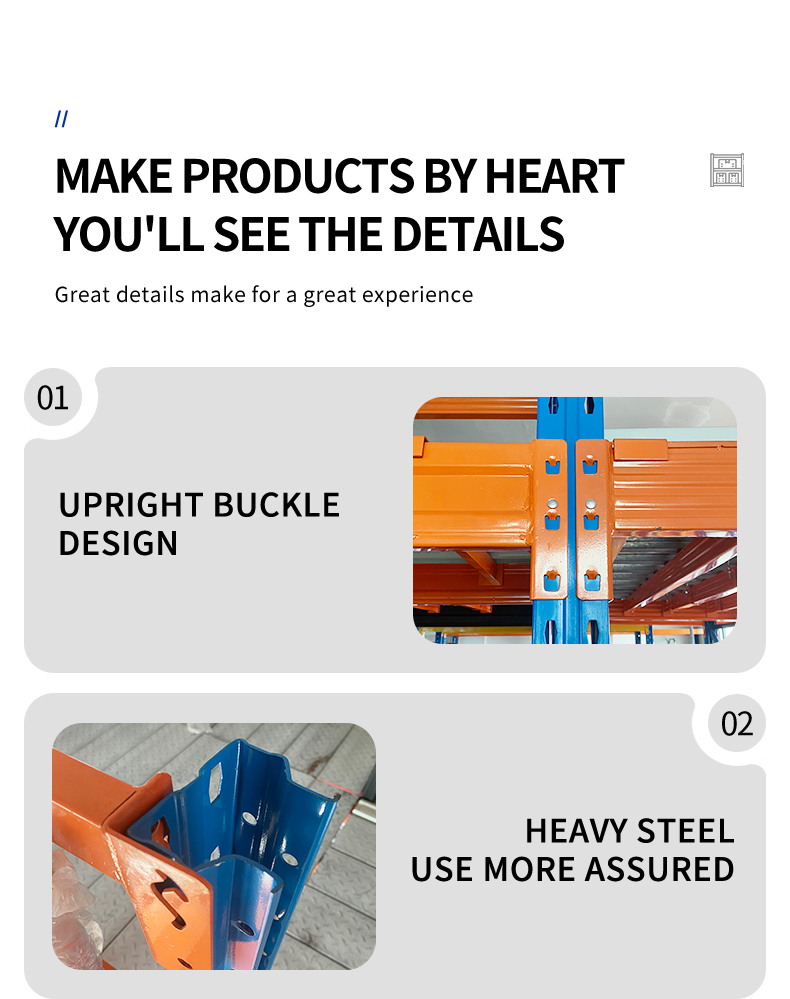

Details Images

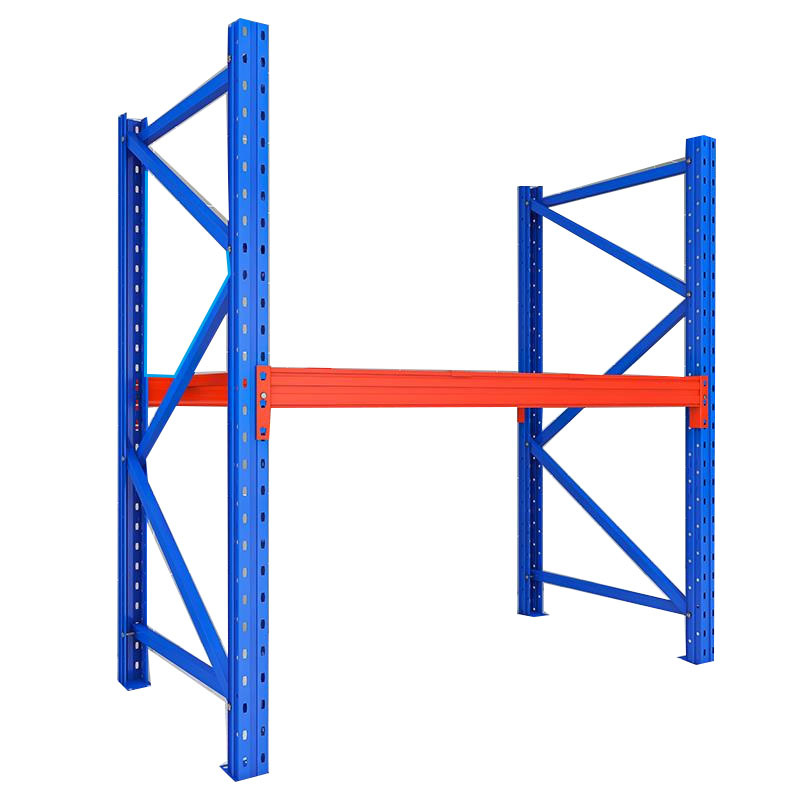

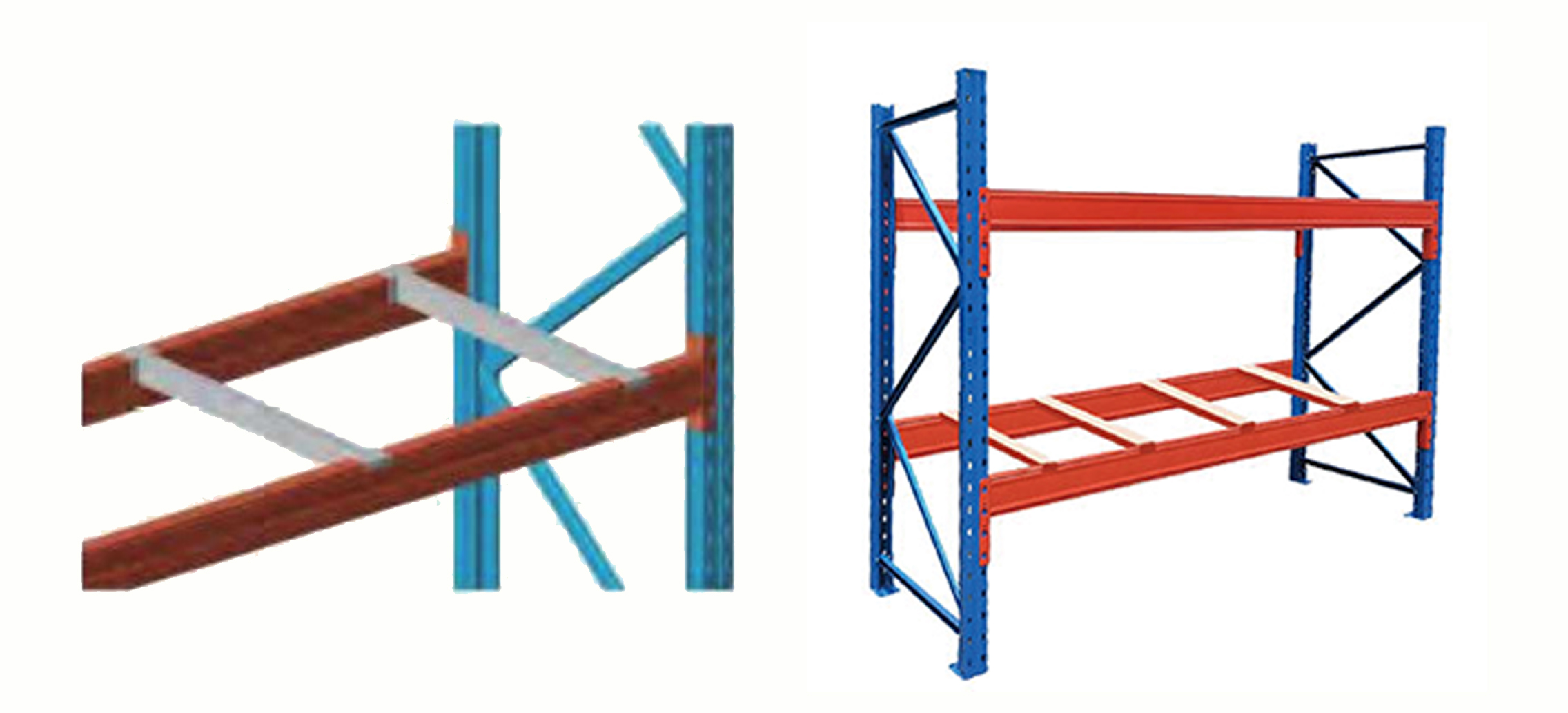

RACK WITH BAR FOR PALLET

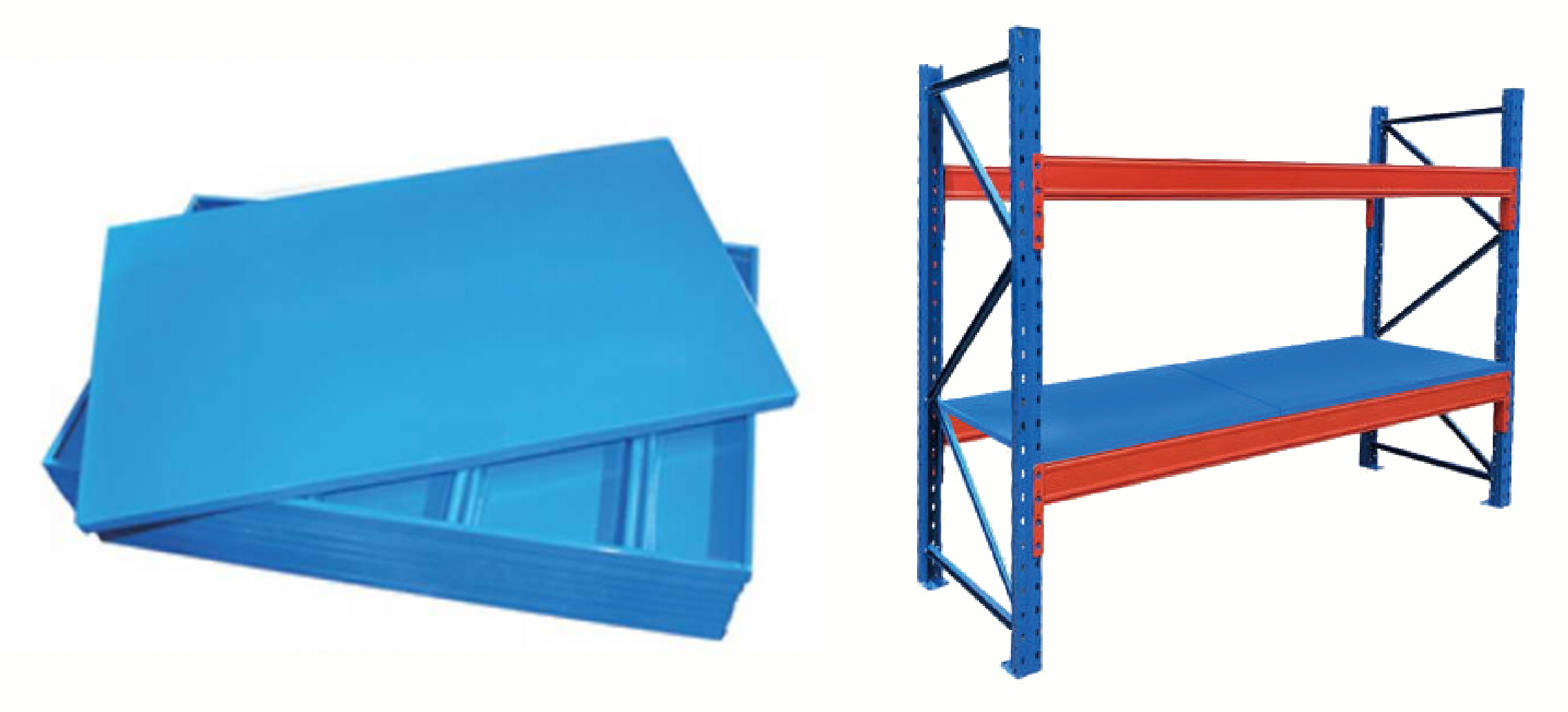

RACK WITH METAL SHELVES

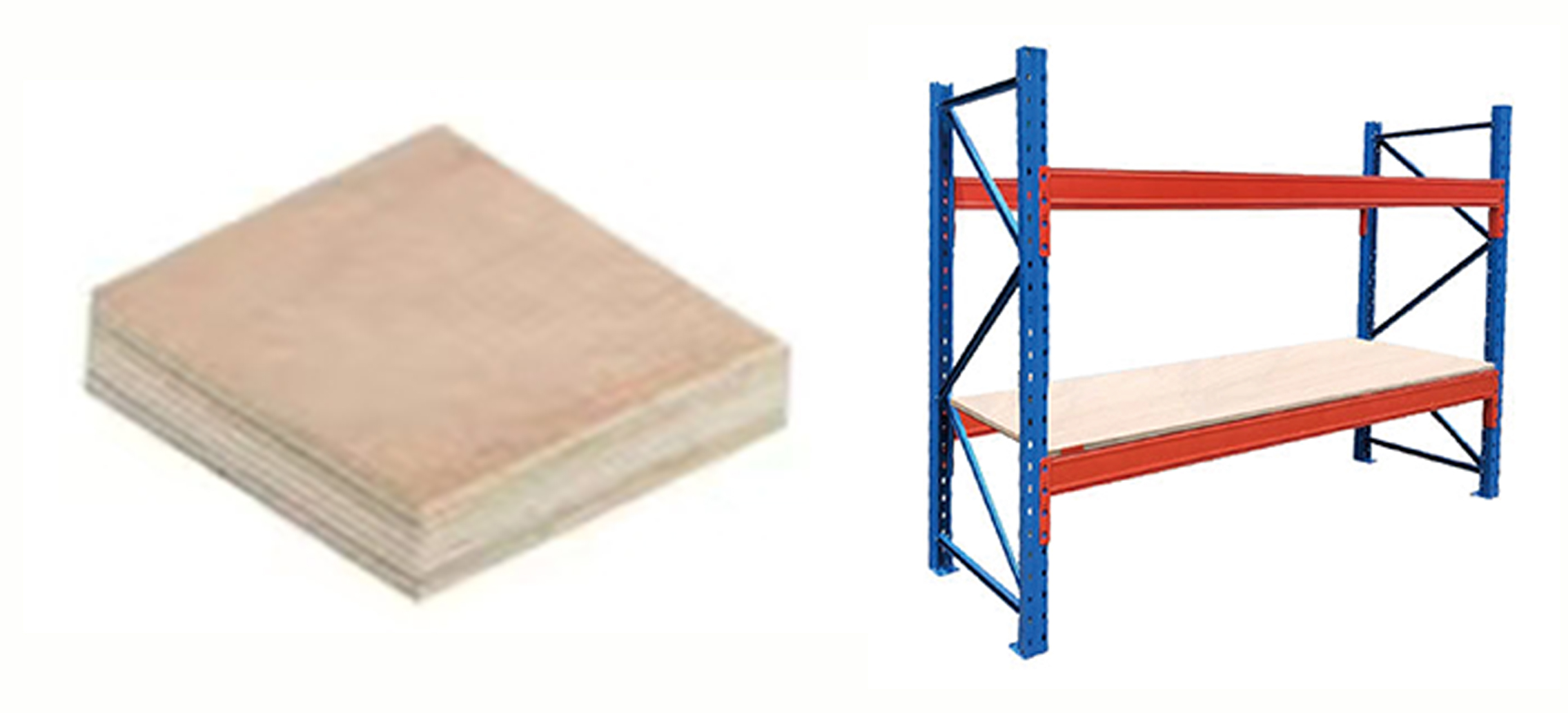

RACK WITH WOODEN SHELVES

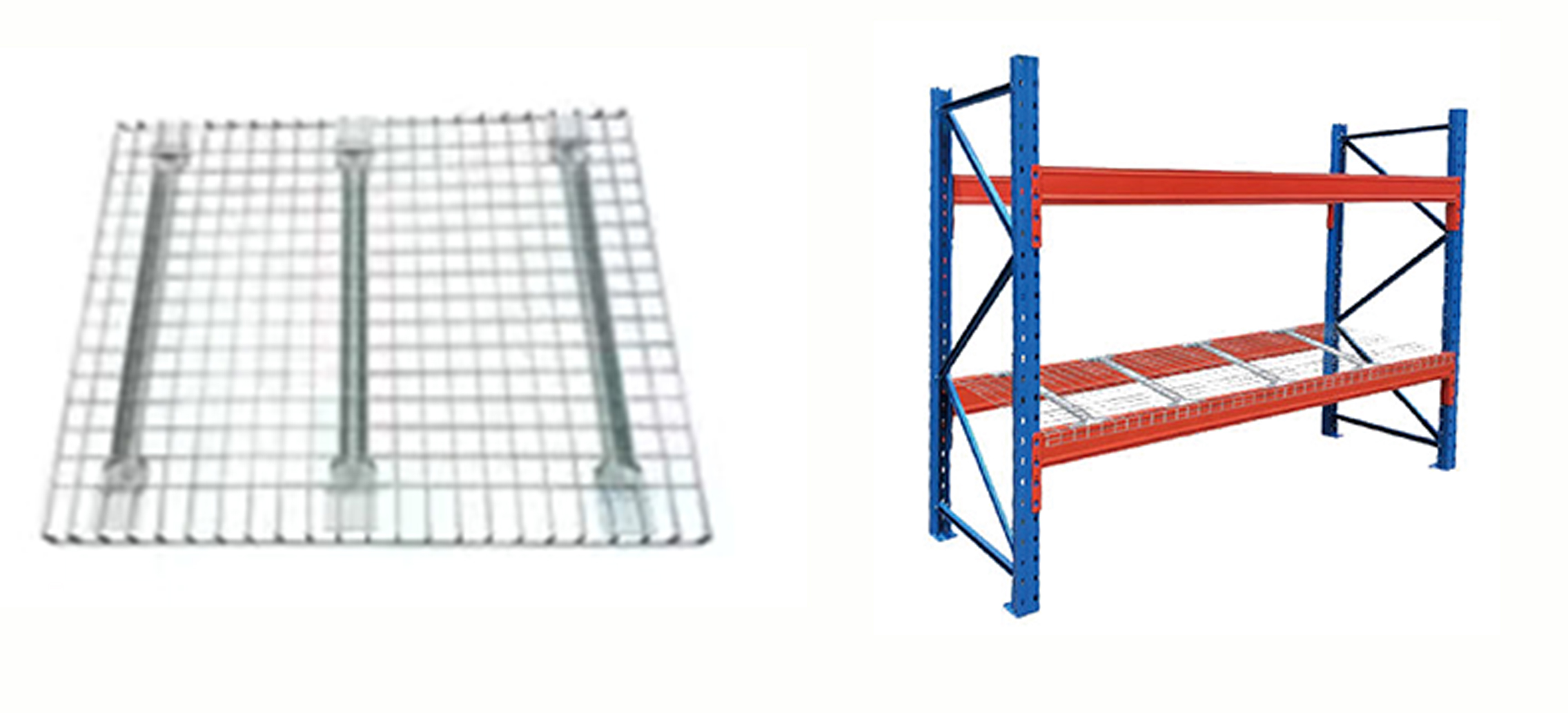

RACK WITH MESH SHELVES

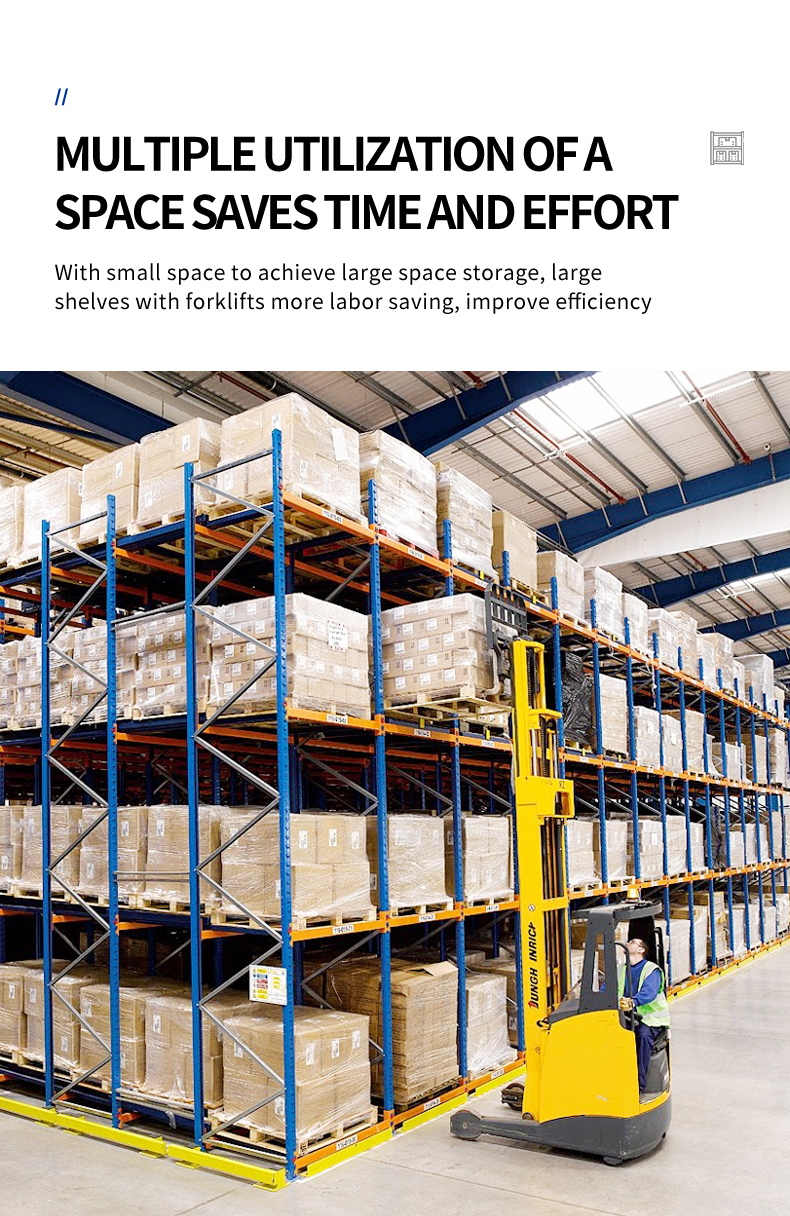

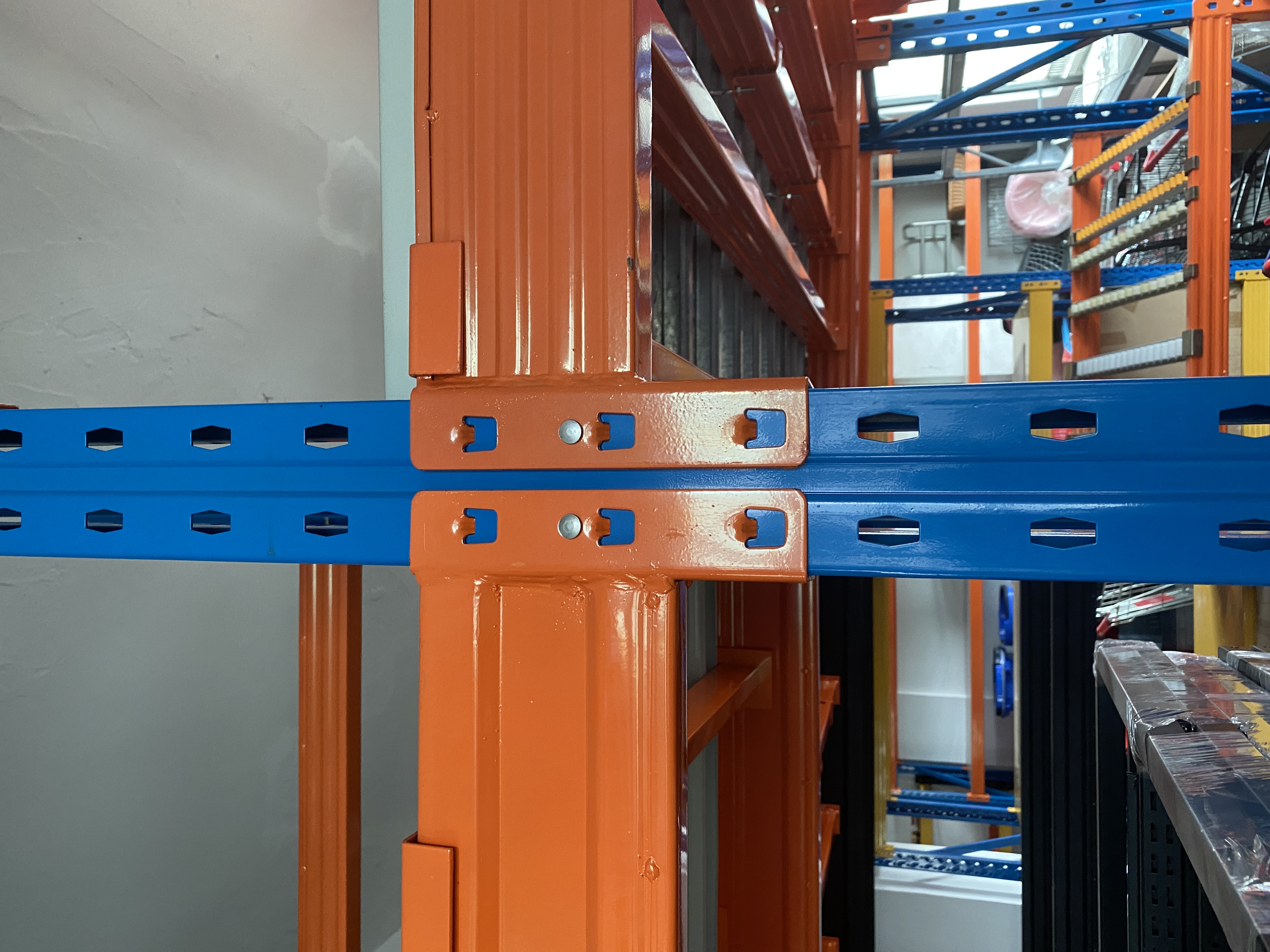

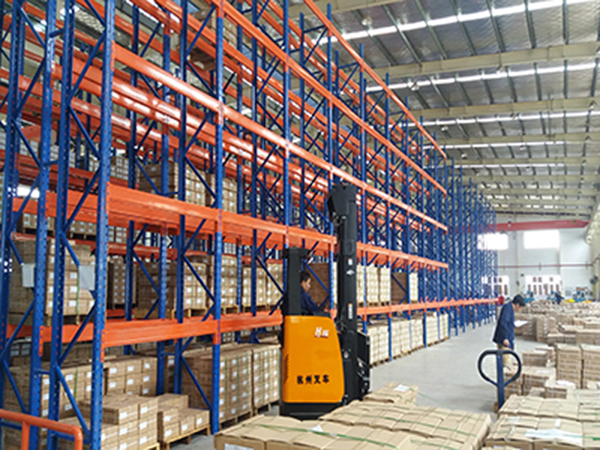

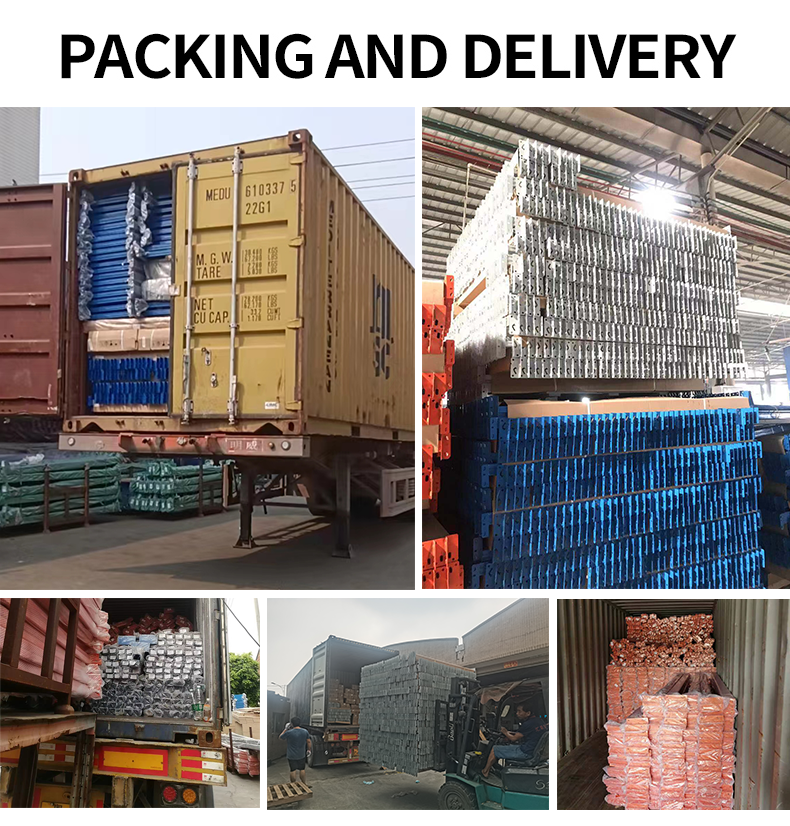

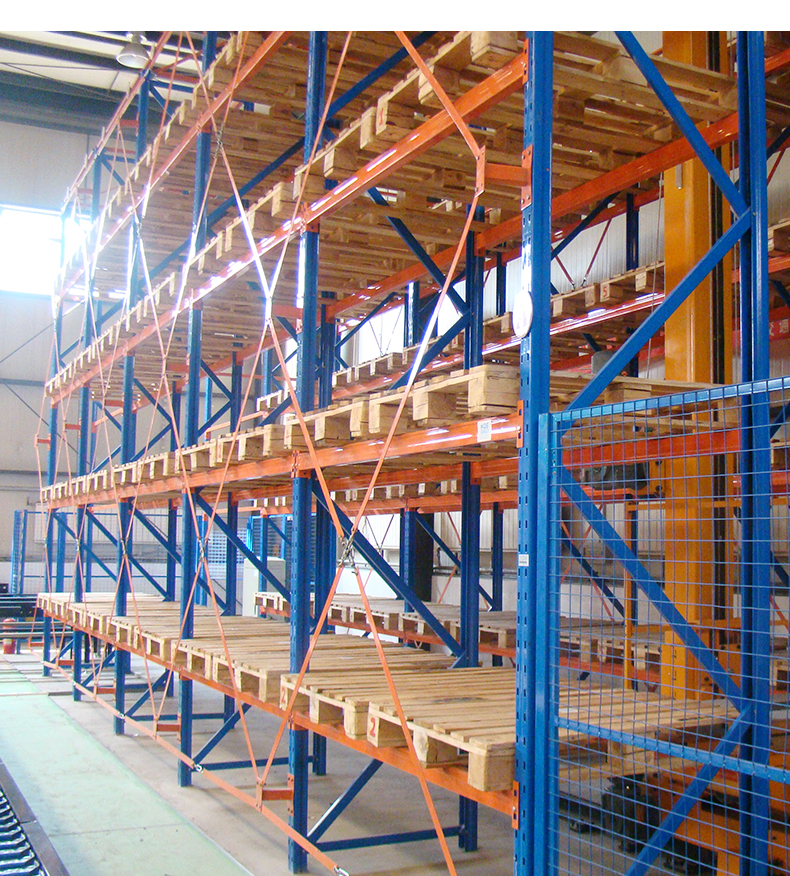

Customer Photos
FAQ
Q1 Where is your factory located?

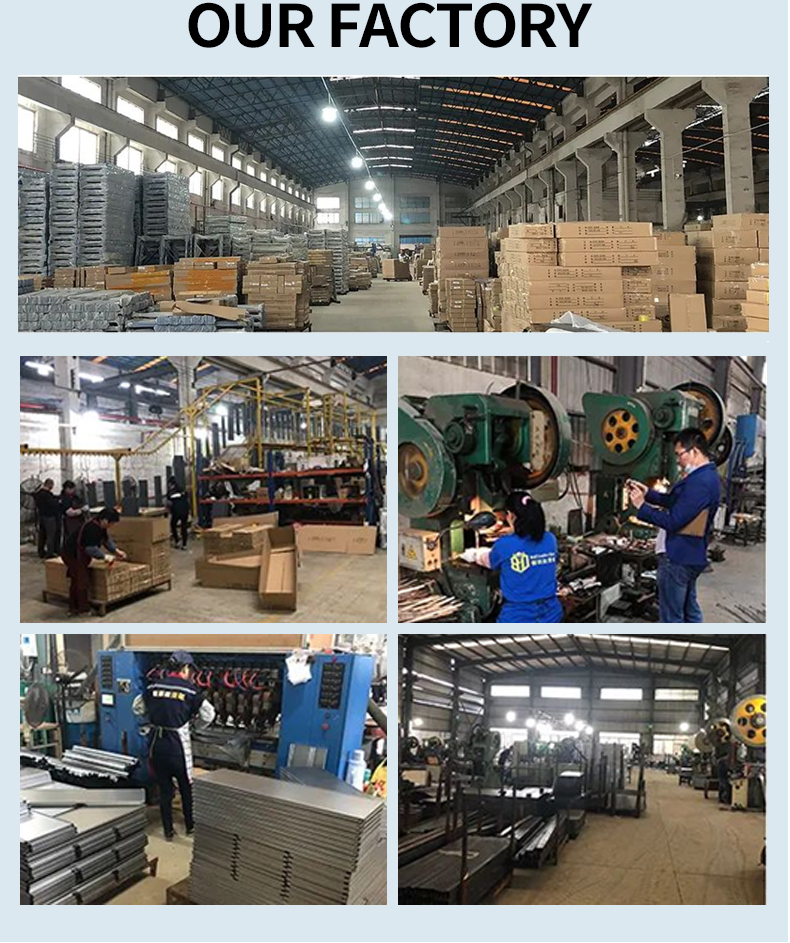

A: Our factory is located in Guangzhou.
Q2 What is your delivery time?
A: For standard size models, we have plenty of material in stock, less than 500pcs, 3-7 day is ok;
For customized models, the delivery date depends on the quantity. In generally, it is 7-15 days.
We can finish production in 15 days under 332 CBM, 9 containers.
Q3 What is the term of payment?
A: 40% of deposit , and balance will be cleared by T/T before delivery.
Q4 What is the trade term?
A: In generally, we will use EXW or FOB. Other terms can be negotiated.
Q5 Do you have minimum order quantity limitation?
A: We don’t have MOQ limitation. But if you don’t have other goods to share the container and the quantity is less than 10pcs, we would sincerely recommend you buy at the local market. Because the international freight will be expensive.
Q6 Are samples available?
A: Yes, samples are available at any time.
But due to the big size, we would like to suggest you to check some raw material if you just want to check the quality. If you have container needs to be shipped together recently, then you can buy any quantity you want.
