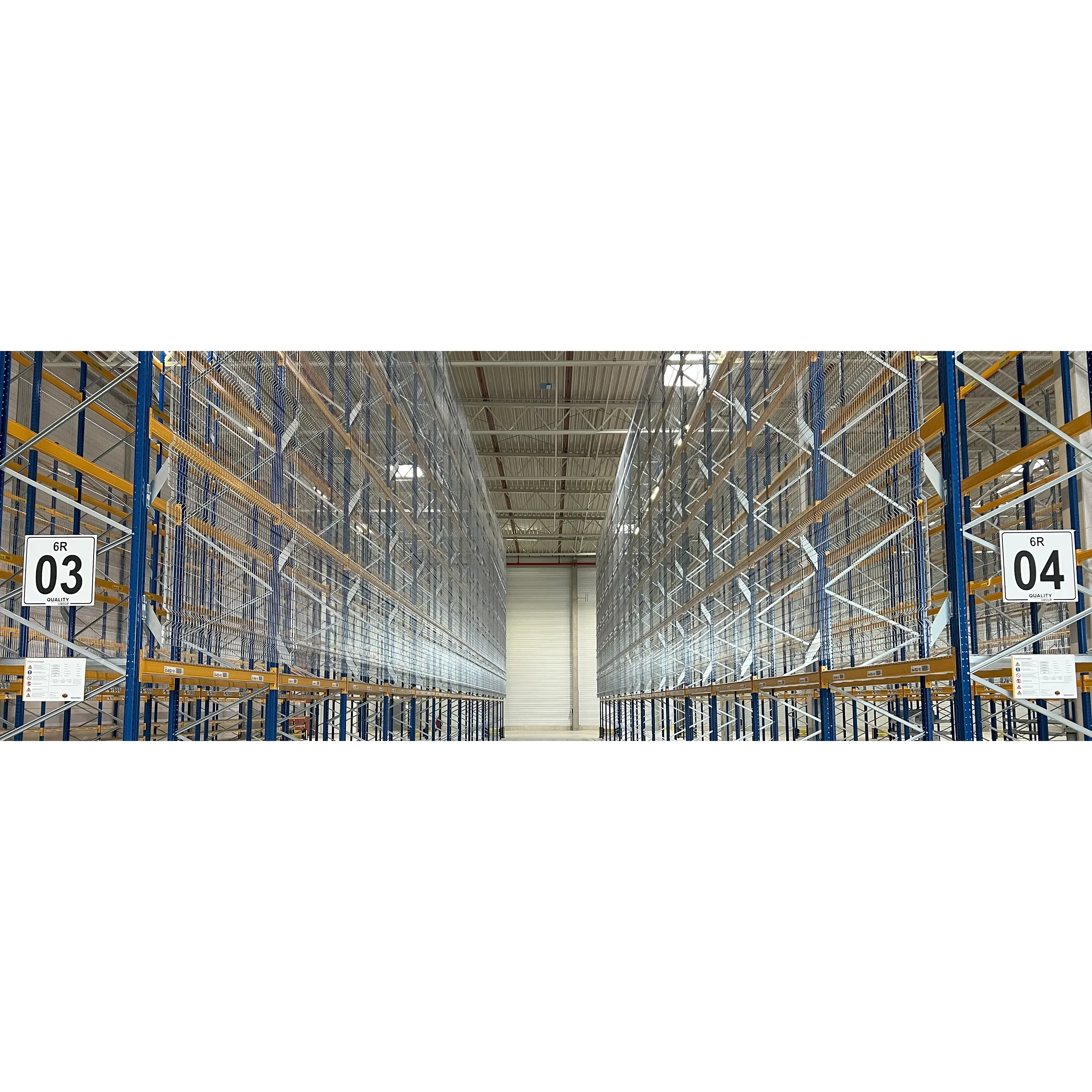

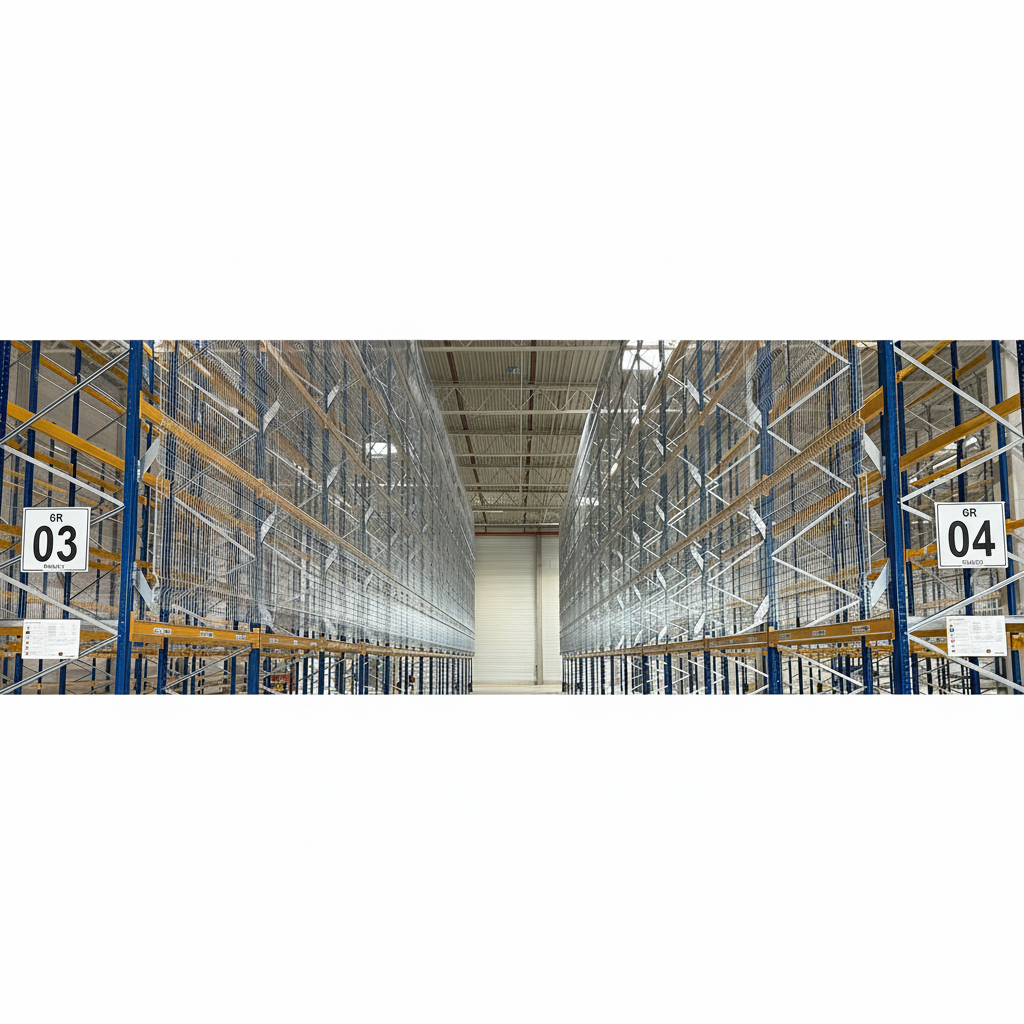

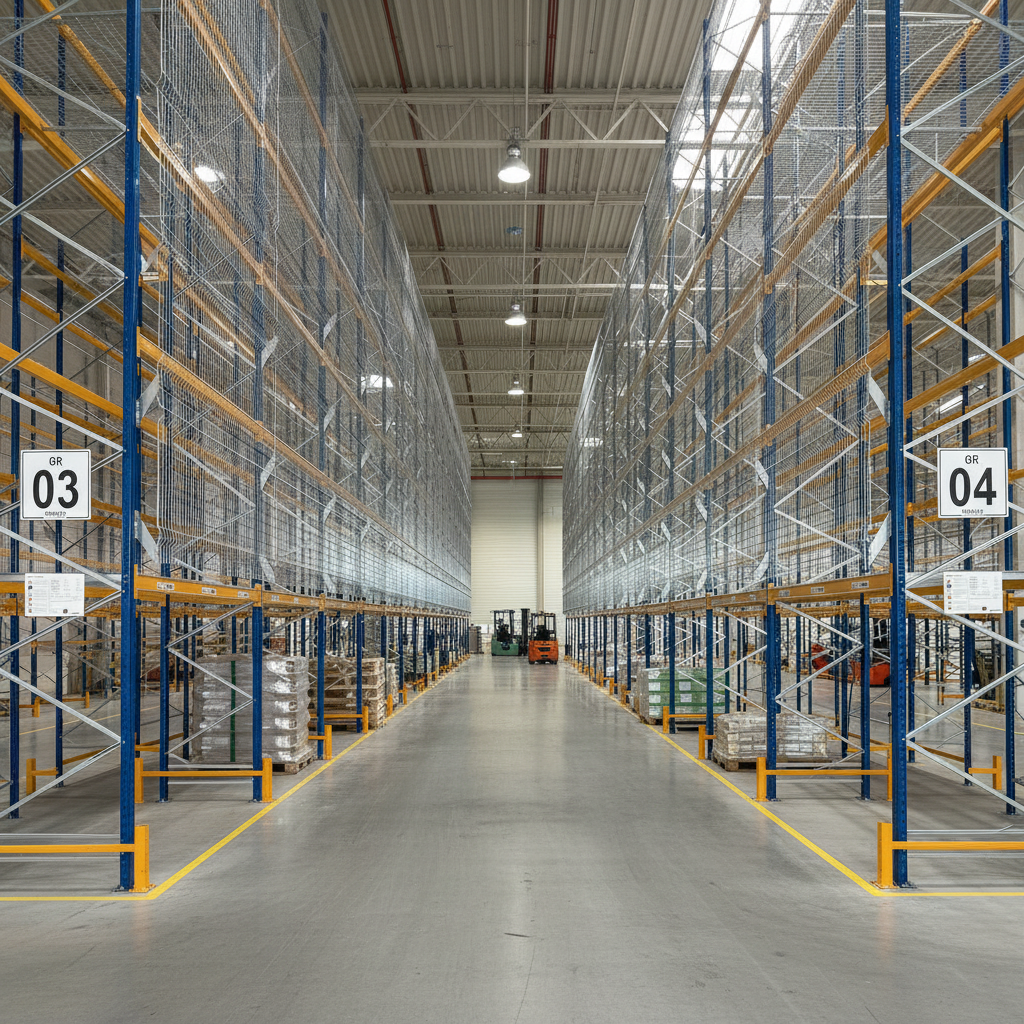

Debion Protect Grid Back Wall System For Warehouse Shelving Storage Solution
Product Description
Product Description
The DEBION® PROTECT grid back wall system is an easy-to-install, cost-effective, and flexible back wall system for shelving units. It is characterized by particularly simple assembly and direct connection to the vertical posts. The system can be universally applied to any shelving system, is adjustable on-site, and is designed to be visually appealing.
Simple Assembly: Direct connection to vertical posts, universally compatible, and adjustable on-site.
Custom Flexibility: Variable shelf spacing upon request and custom dimensions available without long delivery times.
Reinforced Grid: Galvanized steel construction with Ø 3.8 mm wire thickness and 2 or 3 horizontal embossings.
Ideal Applications: Safe, translucent, and economical solution suited for retail, logistics, and warehouses.
Specifications
| Material | Galvanized Steel |
|---|---|
| Wire Thickness | Ø 3.8 mm |
| Mesh Size | 50 × 100 mm |
| Reinforcement | 2 or 3 horizontal embossings |
| Standard Dimensions (L×H) | 2,760 mm × 1,480 mm / 980 mm 3,660 mm × 1,480 mm / 980 mm |
| Console Specifications | Standard console spacing: 150 mm (delivered in left and right versions) |
| Fastening Material | M10 fastening material included (2 consoles + 1 additional piece per wall required per back wall grid) |
| Fields of Application | Retail, logistics, and warehouse shelving units |
Company Information
| Company Name | WDM Deutenberg GmbH |
|---|---|
| Company Address | Putlitzer Strasse 8 |
| Company Country | DE |
Frequently Asked Questions
What are the main applications for the DEBION® PROTECT system?
The system is ideally suited for retail, logistics, and warehouses, serving as a safe, translucent, and economical solution for shelving back walls.
What material and wire specifications are used?
The back wall grid is manufactured from galvanized steel with a wire thickness of Ø 3.8 mm, a mesh size of 50 × 100 mm, and reinforced by 2 or 3 horizontal embossings.
Can the grid back wall system be installed on any shelving unit?
Yes, it features a direct connection to vertical posts, can be universally applied to any shelving system, and is adjustable on-site.
What standard dimensions are available?
Standard dimensions include 2,760 mm × 1,480 mm or 980 mm (L×H), as well as 3,660 mm × 1,480 mm or 980 mm. Custom dimensions and variable shelf spacing are also available without long delivery times.
What hardware is required and included for mounting?
M10 fastening material is included. Consoles are provided in left and right versions with a standard spacing of 150 mm. Each grid requires 2 consoles plus 1 additional piece per wall.
Who is the manufacturer of DEBION® PROTECT?
The product is manufactured by WDM Deutenberg GmbH, located at Putlitzer Strasse 8, Germany (DE).
