Heavy-Duty Boltless Shelving Racking Systems Industrial Steel Iron Warehouse Racks Heavy Duty Storage Rack with CE Certificate
Product Description
Warehouse Storage Boltless Rack Heavy Duty Pallet Racking System Garage Storage Warehouse Racking System
| Product name | Heavy Duty Warehouse Shelves Racks | Place of Origin | China, Shandong |
| Brand Name | NESRACK | Usage | Warehouse Storage |
| Type | Selective Pallet Rack | Color | Blue, Orange |
| Material | Steel | Application | Goods storage |
| Feature | Corrosion Protection | Surface treatment | Powder Coating |
| Use | Warehouse Rack | Size | Customer Size |
| Weight Capacity | 2000-5000kg/layer | Packing | Customize |
| Width | 60/80 cm or customize | Certification | ISO9001 / CE |
| Height | max12000mm | Structure | Assembled |
| OEM&ODM | OEM&ODM |
Product Description

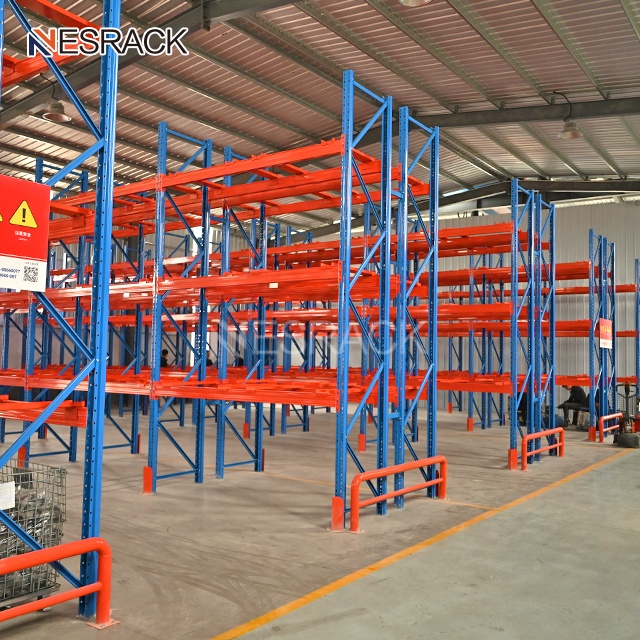

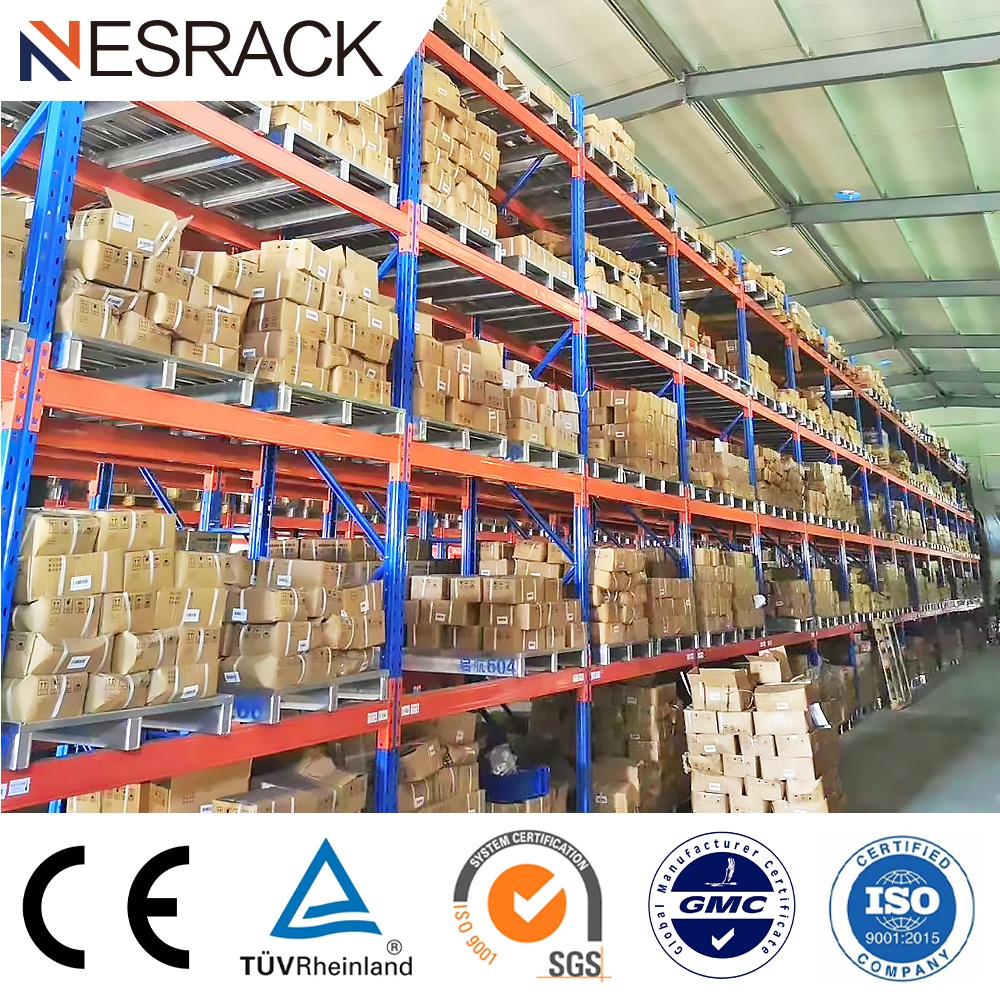

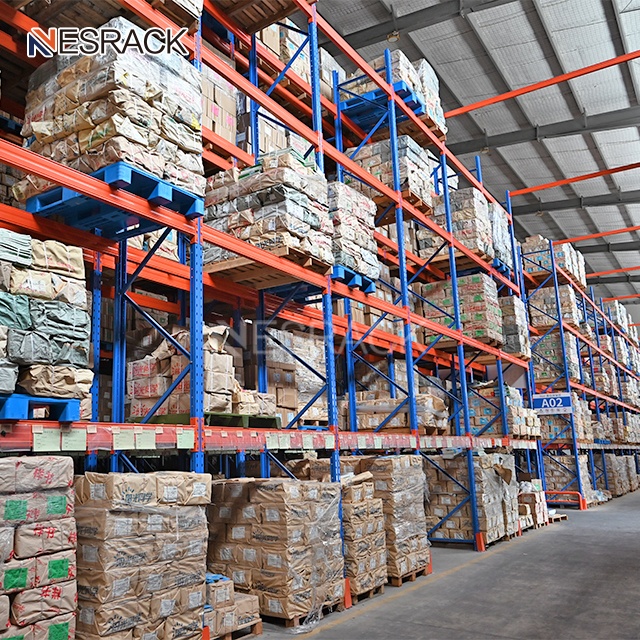

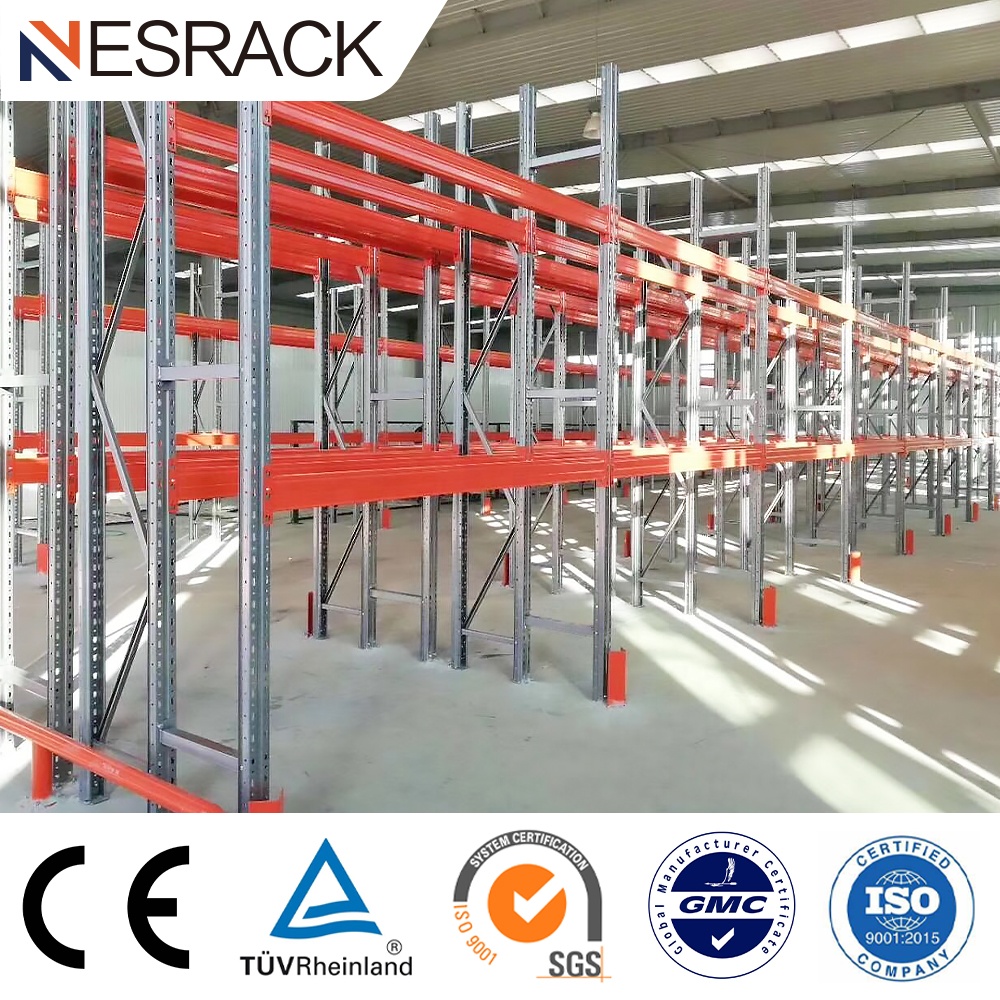

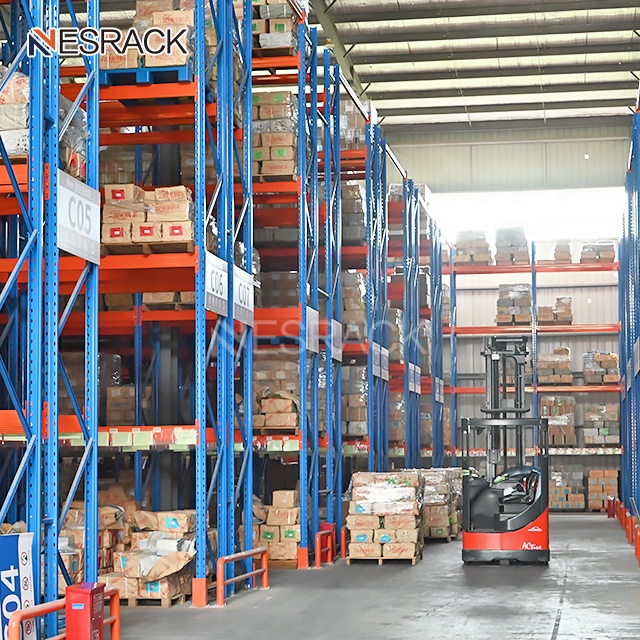

Pallet Racking
Pallet racking systems provide a direct access to all pallets, and is the most economical choice in terms of cost. It is composed of upright frames and beams. It is designed for optimizing storage of goods of all sizes and weights. With a wide range of components and accessories, NESRACK can tailor-make to meet your precise requirements. And our structure is versatile for any application and conditions. Easy to install and dismantle.
Column specification and bearing capacity
-
01
Easy installation and reasonable structure.
-
02
High-precision diamond-shaped hole design, plug-in structure, adjustable height up and down.
-
03
Fix the columns and beams to prevent the beams from falling due to improper operation.
-
04
Increase the shelf load and adapt to more types of pallets.
| Column height | 3 layers beam | 4 layers beam | 5 layers beam |
| 2000 | 3500 | 2500 | 2100 |
| 2500 | 3500 | 2500 | 2100 |
| 3000 | 4000 | 3600 | 2900 |
| 3500 | 3100 | 2400 | 2100 |
| 4000 | 3100 | 2400 | 2000 |
| 4500 | 3000 | 2400 | 2000 |
| 5000 | 3000 | 2300 | 2000 |
Main Components
Frame
The frame of European 50mm pallet rack is connected by two uprights, horizontal bracing, diagonal bracing, two base plates and screw.
Beam
The longest beam can be 4.5mm, and the max loading capacity can be 4000kg/per level. Other specifications please contact us for details.
Success CASE
Exhibition
Company Profile
SHANDONG NELSON STORAGE EQUIPMENT CO., LTD has focused on top quality storage and logistics equipment for over 15 years in China. With the 15 years of industry experience, we have become an excellent pacesetter in the warehouse racking industry. Today, NELSON has been one of the producers of quality pallet racking and other racking equipments, such as: drive-in rack, radio shuttle rack, cantilever rack, mezzanine, steel platform, medium duty shelving, light duty shelving. NELSON Racking is located in Chinese beautiful city Jinan. As a global supplier in the heavy duty, medium duty, light duty racking equipment and related accessories, NELSON Racking is to create added value for customers around the world.
Our Partner
Packing & Delivery
Standard Export Packaging
For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide those details so that I can quote the most cost-effective option.
Frequently Asked Questions (FAQ)
Q Why choose us?
Professional design team, adequate production capacity, got ISO, CE certificate, comply with AS4084, RMI and FEM standard.
Q What is the material of your products?
The material we choose is Q235/Q345 steel.
Q What is the purchase process for your product?
Design drawing → Confirm drawing → Quotation → PI → Confirm PI → Arrange 30% deposit → Manufacture → QC inspect → Pay balance → Shipping.
Q What is the packaging of the products?
Standard export package. All parts are packed by steel belt and covered with protective film.
Q What is the minimum order quantity (MOQ)?
Normally is one 20ft container, and also depends on the size of your products.
Q What are the payment terms and delivery time?
Payment terms: We accept TT or L/C at sight, etc. Delivery time: Normally 3-4 weeks after receipt of the deposit.
