Heavy Duty Storage Rack Pallet Rack System Shelf for Industrial Storage Rack
Product Description
Product Specifications
| Product Name | Heavy Duty Warehouse Shelves Racks | Brand Name | NESRACK |
| Place of Origin | Shandong, China | Type | Selective Pallet Rack |
| Usage / Application | Warehouse Storage / Goods Storage | Color | Blue, Orange |
| Material | Steel | Surface Treatment | Powder Coating |
| Weight Capacity | 2000-5000kg / layer | Structure | Assembled |
| Size | Customer Size | Width | 60 / 80 cm or customize |
| Height | Max 12000mm | Feature | Corrosion Protection |
| Certification | ISO9001 / CE | OEM & ODM | Supported |
| Packing | Customize | ||
Product Overview
Warehouse Storage Boltless Rack Heavy Duty Pallet Racking System Garage Storage Warehouse Racking System

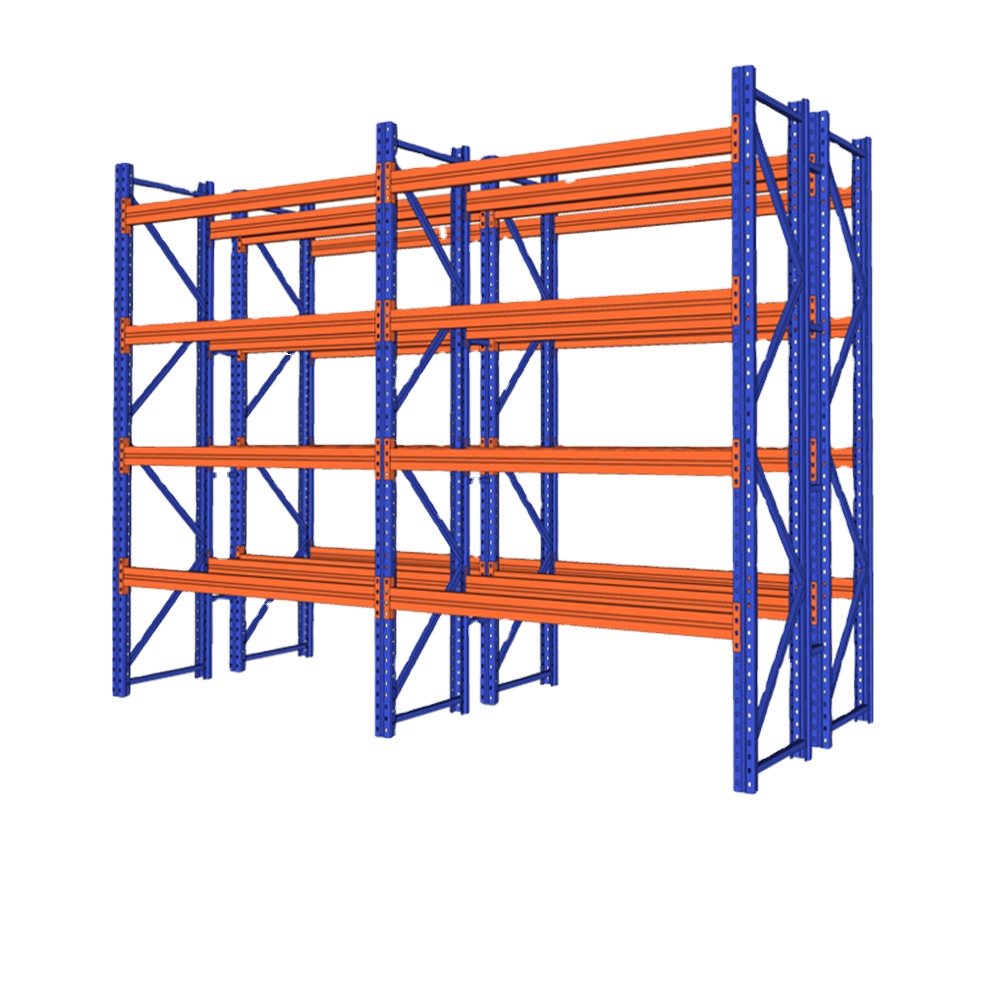

Pallet Racking
Pallet racking systems provide a direct access to all pallets, and is the most economical choice in terms of cost. It is composed of upright frames and beams. It is designed for optimizing storage of goods of all sizes and weights. With a wide range of components and accessories, NESRACK can tailor-make to meet your precise requirements. And our structure is versatile for any application and conditions. Easy to install and dismantle.
Column Specification and Bearing Capacity
01
Easy installation and reasonable structure.
02

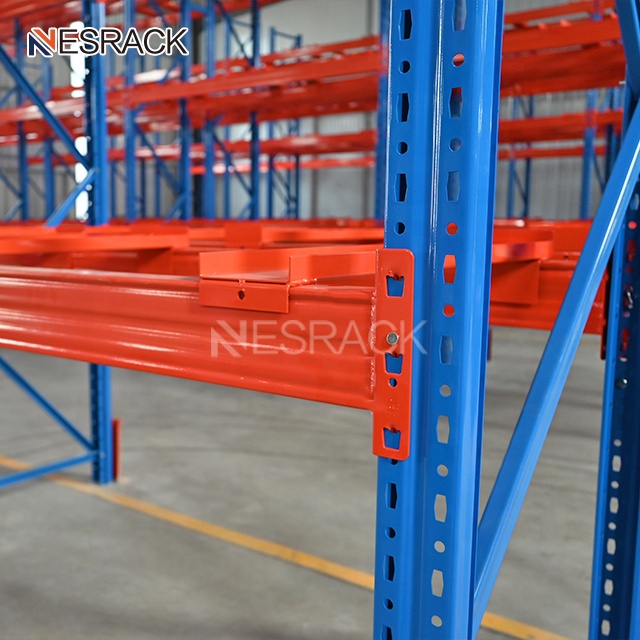

High-precision diamond-shaped hole design, plug-in structure, adjustable height up and down.
03
Fix the columns and beams to prevent the beams from falling due to improper operation.
04
Increase the shelf load and adapt to more types of pallets.
| Column Height (mm) | 3 Layers Beam | 4 Layers Beam | 5 Layers Beam |
|---|---|---|---|
| 2000 | 3500 | 2500 | 2100 |
| 2500 | 3500 | 2500 | 2100 |
| 3000 | 4000 | 3600 | 2900 |
| 3500 | 3100 | 2400 | 2100 |
| 4000 | 3100 | 2400 | 2000 |
| 4500 | 3000 | 2400 | 2000 |
| 5000 | 3000 | 2300 | 2000 |
Main Components
Frame: The frame of European 50mm pallet rack is connected by two uprights, horizontal bracing, diagonal bracing, two base plates and screws.
Upright
H-bracing & D-bracing
Base Plates
Beam
Beam Specifications: The longest beam can be 4.5m, and the max loading capacity can be 4000kg/per level, other specifications please contact us for details.
Success Case
Exhibition
Company Profile
SHANDONG NELSON STORAGE EQUIPMENT CO., LTD has focused on top quality storage and logistics equipment for over 15 years in China. With 15 years of industry experience, we have become an excellent pacesetter in the warehouse racking industry.
Today, NELSON has been one of the producers of quality pallet racking and other racking equipments, such as: drive-in rack, radio shuttle rack, cantilever rack, mezzanine, steel platform, medium duty shelving, light duty shelving. NELSON Racking is located in the Chinese beautiful city Jinan. As a global supplier in heavy duty, medium duty, light duty racking equipment and related accessories, NELSON Racking is dedicated to creating added value for customers around the world.
Our Partner
Packing & Delivery
Standard export packaging: For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide those details so that I can quote the most cost-effective option.
Frequently Asked Questions
Q Why choose us?
Professional design team, adequate production capacity, ISO and CE certificates, fully complying with AS4084, RMI, and FEM standards.
Q What material is used for your products?
The material we choose is high-grade Q235 / Q345 steel.
Q How to purchase your products?
Design drawing → Confirm drawing → Quotation → PI → Confirm PI → Arrange 30% deposit → Manufacture → QC inspect → Pay balance → Shipping.
Q What is the packaging of the products?
Standard export package. All parts are packed by steel belts and covered with film.
Q What is the minimum order quantity (MOQ)?
Normally one 20ft container, which also depends on the specific size of your products.
Q What are the payment terms and delivery time?
Payment terms: TT or L/C at sight, etc. Delivery time: normally 3-4 weeks after receipt of deposit.
