Ready-to-Trade Heavy Duty Steel Cantilever Racking Warehouses Enhances Storage Efficiency Organized Accessible Multi-Level
Product Description
Specification
| Item | Value |
|---|---|
| Product Name | Cantilever Racking |
| Model Number | Heavy Duty Roll-Formed Cantilever Rack |
| Material | G450, G550, SS400, SS490 High Class Carbon Steel |
| Use | Warehouse Rack |
| Weight Capacity | 1500Kg/Arm Max |
| Height | Customized |
| Color | Customized Color |
| MOQ | 1 Set |
| Delivery time | 15-30days depending on quantity |
| Brand Name | Viet Mechanical |
| Feature | Corrosion Protection |
| Warranty | 24 Months |
| Usage | Warehouse Storage System |
| Packing | Standard Exported Package |
| Service | Customer Designs |
| Finish | Hot Dip Gavanized; Powder Coating |
| Certification | CE |
Product Description
Advantages of using Cantilever Racking
Space saving
Compared to leaving goods scattered on the warehouse floor, which takes up a lot of space and is difficult to load and unload, using a Cantilever racking will help your goods be neatly stored in a scientific way, saving many space for your warehouse.
Flexibility in installation
With the ability to easily disassemble, the installation can flexibly adjust the number of support arms, the height distance to fit different types of goods.
Satisfy your storage needs
Storing goods on cantilever rack will increase the density of goods, neatly arranged goods help to choose the correct type of goods to be imported and exported, help operate more efficiently and quickly.
Outstanding load
Exceptional storage capacity with loads up to 5000kg - 6000kg/floor. This type of rack is produced depending on the needs of the customer and the type of goods to be stored.
High Quality storage racking
With high-quality steel material, Cantilever rack has outstanding quality and has the strength to withstand deformations due to impact. With flexible adaptability to all types of warehouses and stored goods. Cantilever racking is always a safety measure for both stored goods and operators.

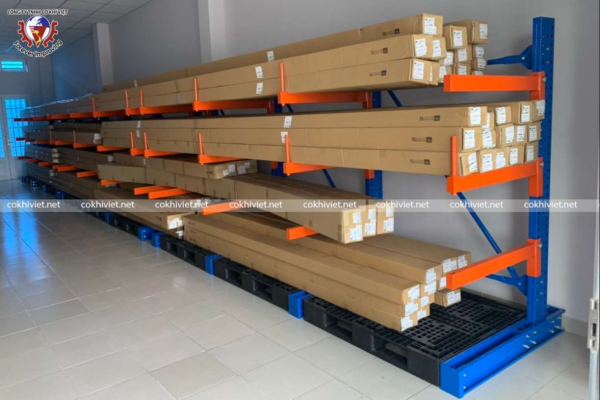

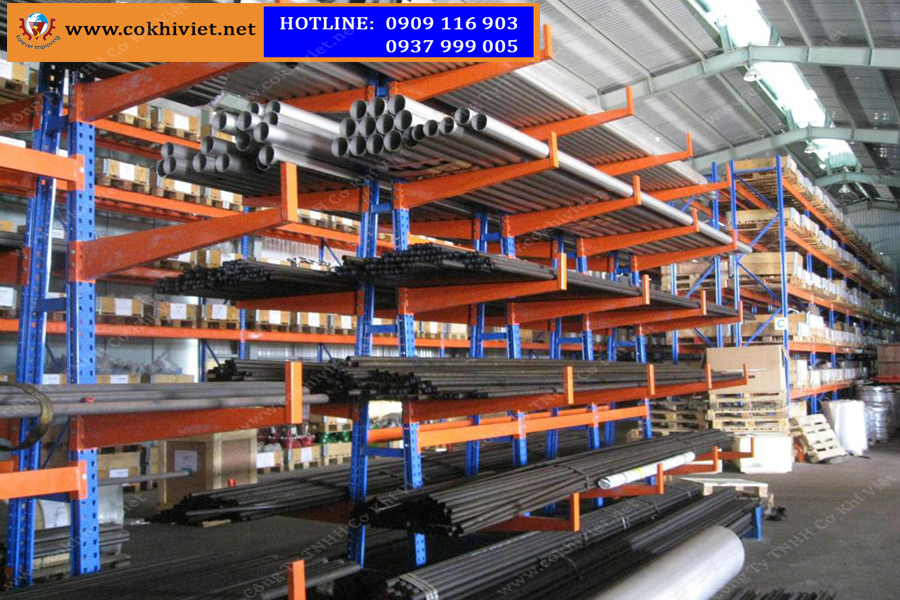

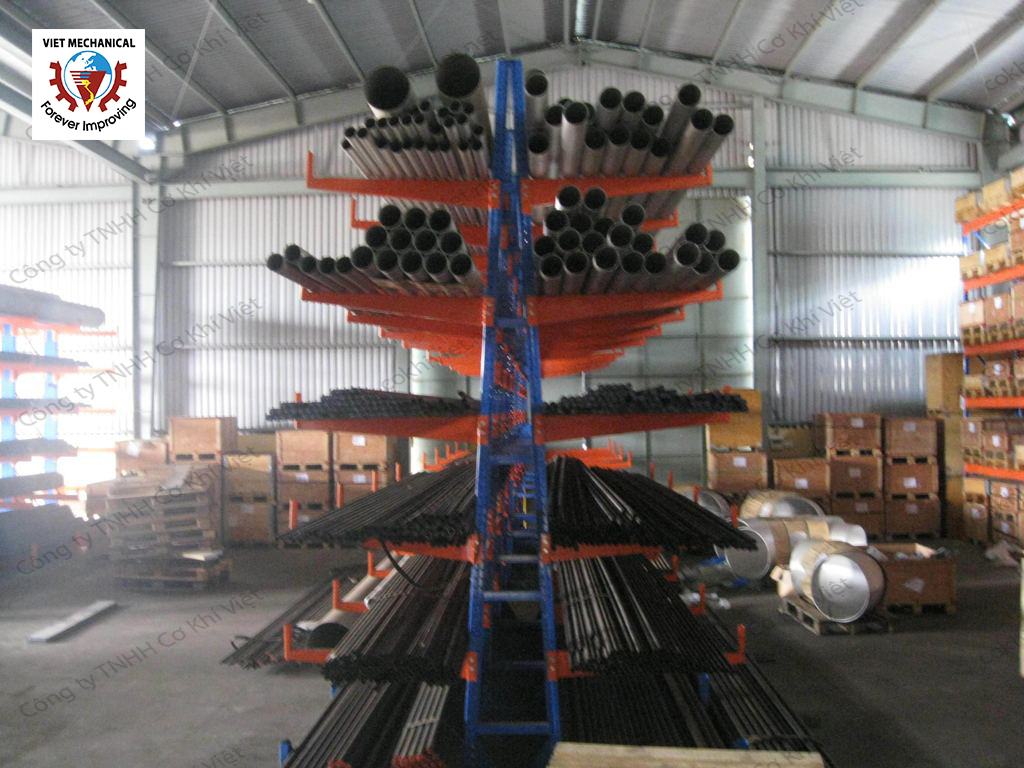

Cantilever racks installed in viet mechanical’s customer which carried long products
Technical components of the Cantilever racking system

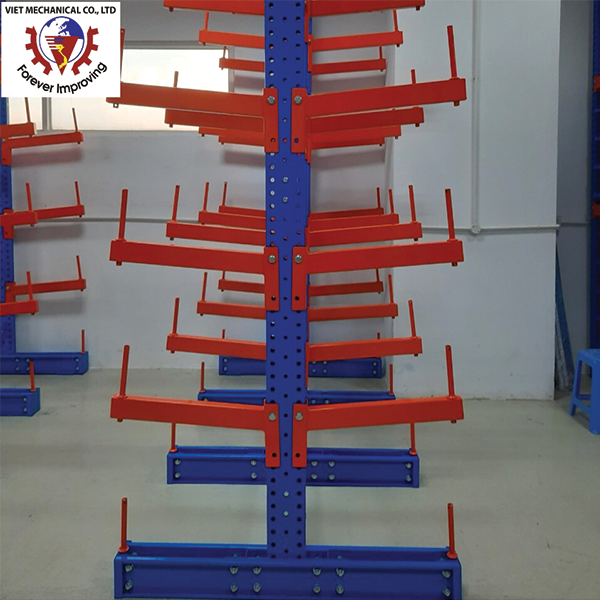

Basically, the Cantilever racking has two main parts: Uprights and support arms. And other components such as: base plate, arm stop, cross bracing, bracing set, base pat, foot pads, switch mill...
Uprights: Uprights are made of profiled steel with modern machines, the thickness of the column depends on the desired load of the customer. Uprights can be made from one to two columns to match the load capacity of the goods. There are holes on each uprights for mounting brackets with hooks or bolts for height adjustment. The distance between the pillars is 2 to 7.5m or other sizes based on customer's requirements.

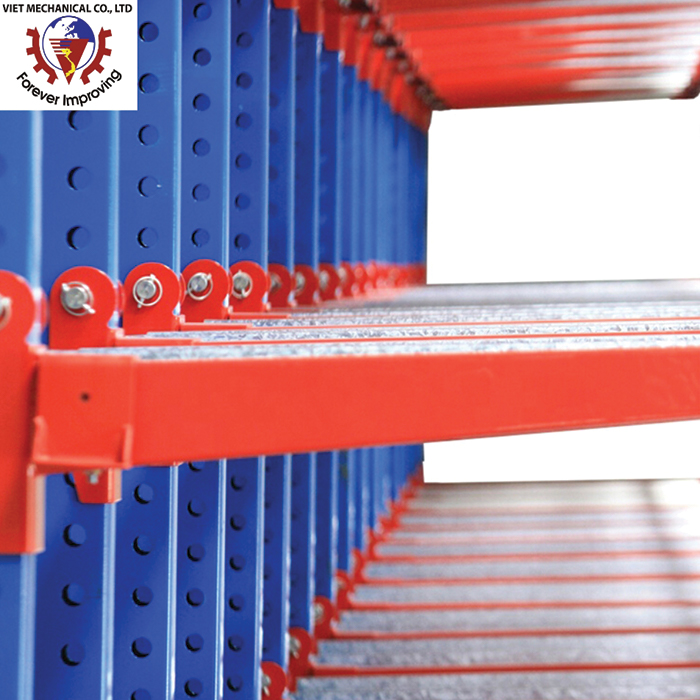

Support arms: As one of the main parts of the racking system, it is manufactured from profiled steel with different sizes. The supporting arms are attached to uprights using a pat or bolt. The Support arms are designed depending on the type of cargo, cargo load, loading and unloading method and the unique needs of the customer. The support arms are placed at a certain inclination and the top of the support arm is equipped with a latch to prevent the goods from falling during storage. On the support arm can be marked for easy management by the operator.

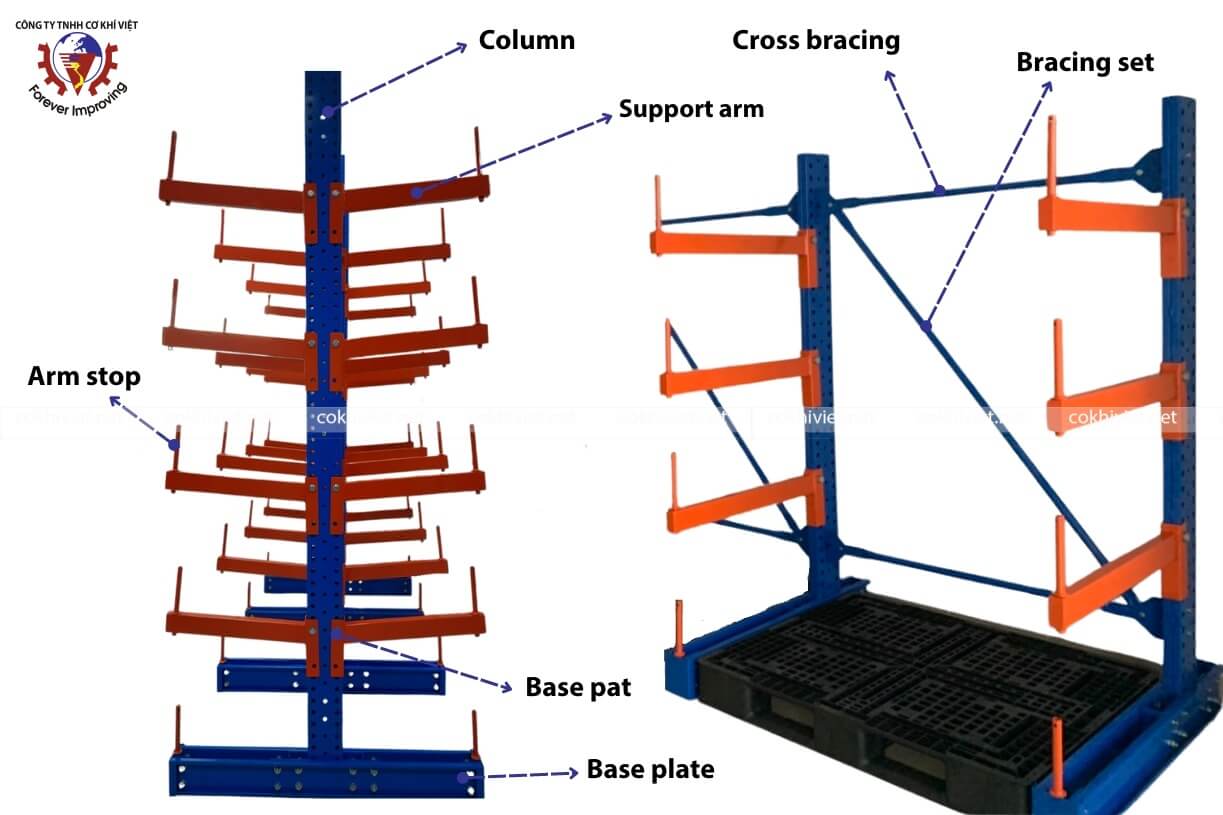

Annotation of the main components in the cantilever racking system
Other ingredients:
- Base plate: This is the part that is in direct connect with the floor of the warehouse and the base is fixed by foot pads, helping the system to be firm and fixed.
- Bracing set: The part that connects all the uprights together, forming a solid and stable block for the racking system.
- Signage: This is a sign to list the technical characteristics of the racking system. They are placed in visible areas.

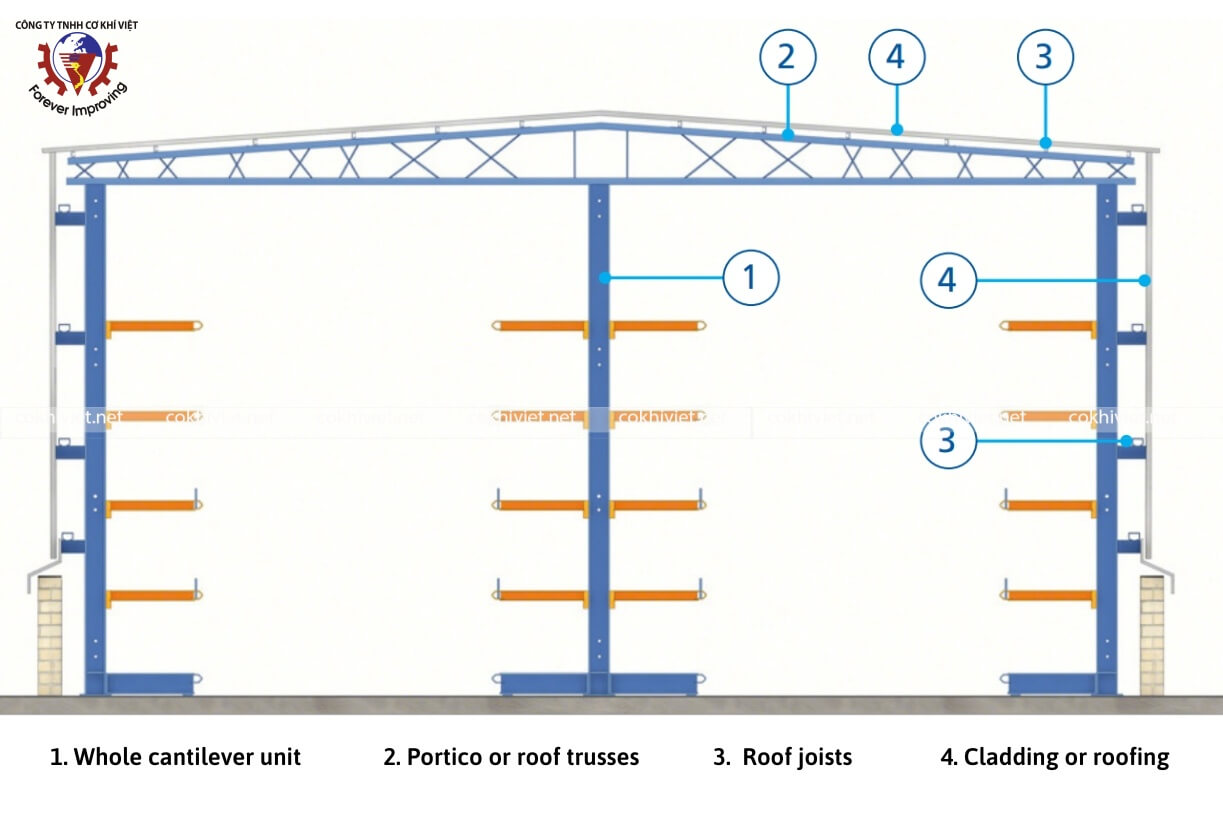

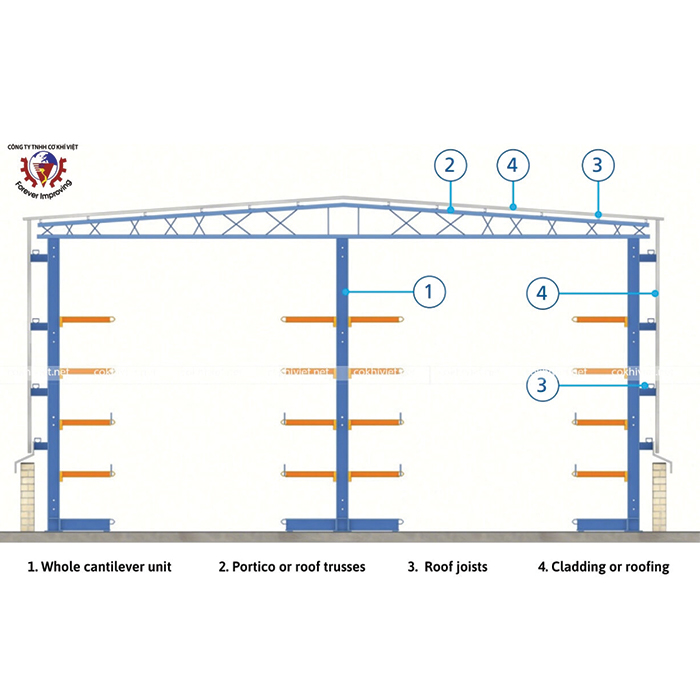

Building the racking house:
This is a form of installation based on the original ideas to make the most of the surface area and height, used as a shelf to store specialized support. The construction will need to calculate the building load, external impacts such as environment, weather,... and the load of stored goods. However, this has the advantage of being easier to install, flexible and specialized.
Cantilever racking house system
Company Profile
Scale production: Factory system of Viet Mechanical with a total area of 11,000 m2 with a full range of advanced machinery systems: Central CNC stamping system with automatic stamping lines, CNC bending machine system, System of automatic rolling machine lines, automatic welding machine system and two automatic electrostatic painting lines.
Manufacturing capacity for storage racks: Viet Mechanical has welcomed many delegations to visit the factory from many different countries such as the US, Switzerland, Australia, Thailand, Cambodia, etc. Through the factory tour process, partners can evaluate the manufacturing capacity, supply capability, as well as modern machinery and equipment, automatic production processes, and packaging systems at Viet Mechanical.
Viet Mechainical delivers 10-20 containers per month. After receiving the order, production can be completed in 20 days.
Export processing
Geographical position
Cat Lai Port is Largest Port System in Central Vietnam, located in District 2 of Ho Chi Minh City, Vietnam, on the left bank of the Saigon River, about 16 km away from the city center. Its geographical position makes it a convenient gateway for the import and export of goods to and from southern Vietnam, including Ho Chi Minh City, Dong Nai, Binh Duong, and Ba Ria-Vung Tau provinces.
Cat Lai Port's strategic location and transportation infrastructure make it an ideal gateway for the import and export of goods to and from southern Vietnam, Viet Mechanical believes your orders will be delivered in the short time.
Cat Lai Port is also located close to other major ports in the region, such as Tan Cang - Cai Mep International Terminal (TCIT) and Phu My Port. This proximity allows for efficient transportation of goods by sea and land, which can help shorten the delivery time to customers.
Loading goods to container
Shipment
| Item | Loading Port | Destination Port | Period |
|---|---|---|---|
| 1 | CAT LAI PORT, VN | Long Beach Port | 14-25 days |
| 2 | CAT LAI PORT, VN | Houston Port | 20-35 days |
| 3 | CAT LAI PORT, VN | Miami Port | 25-35 days |
| 4 | CAT LAI PORT, VN | New York Port | 25-40 days |
Production standards for storage racks of Viet Mechanical
To meet the export criteria for storage racks, depending on each customer or the regulations of the country, there will be specific requirements for production standards. However, among them, there are some common standards that Viet Mechanical has achieved to meet the demand for exporting storage rack manufacturing for the international market, such as:
- Material Standard JIS (Japanese Industrial Standard): This is one of the leading quality production standards in Japan and is a production standard for the industrial sector in many countries.
- Design Standard FEM 10.02.07 (Federation Europene de la manutention): This is a set of design and safety standards in Europe and provides design rules that incorporate specific characteristics.
- ASTM (American Society for Testing and Materials) paint standard: This is the American paint standard, and the paint materials used by Viet Mechanical meet the highest quality standards for application in the automatic painting line, including some main types such as powder coating, galvanized coating, hot-dip galvanized coating.
- Quality standard ISO 9001:2015: ensure the highest product quality when leaving the factory.
- Input material: SS400 steel, Ensure full certificate of input quality materials.
- Packing: Exported products are pre-packaged with quality export materials such as Corrugated paper, carton box, plastic film, steel tie and air bag... packed into blocks, and transported in containers. The goods inside the container are fixed with straps and shock-absorbing devices to avoid damage during transportation.
Production standards for storage racks of Viet Mechanical
Certification
Main Categories
Our Partners
Contact Us
FAQ
When was your company established and what is your factory scale?
Viet Mechanical was established in May 2008. In 2017, Viet Mechanical was developed and put into operation a factory system with a scale of 11,000 m2, in Duc Hoa 1 Industrial Park, Long An. The production capacity is about 300,000 tons per month.
How long is your delivery time?
Delivery time depends on your package. Normally, the delivery time is 25 - 45 days. Depending on the quantity, we will calculate the most reasonable and fastest production and delivery time. Production can often be completed in 20 days.
What products do you export?
Our main export product lines include: Selective (teardrop/dexion/tradition), Cantilever (dexion/tradition), Automatic Racking system - Radio Shuttle, Double deep, Drive in, VNA, Mezzanine, Steel pallets (powder coated, galvanized, hot dipped galvanized), and processing details of mechanical equipment.
To which countries have you exported your storage racks?
Since 2015, Viet Mechanical has exported international standard Vietnamese storage racks to markets such as the US, Switzerland, Australia, Denmark, China, India, the Netherlands, Pakistan, Mauritius, and Southeast Asian countries such as Cambodia, Thailand, Indonesia, Singapore, Malaysia, etc.
What trade terms and payment terms do you offer?
We offer EXW/FOB/CIF and can handle all international transaction terms. C/O (Certificate of Origin) can be provided. Generally, our payment terms are 50% T/T in advance as deposit, and 50% T/T against copy of B/L as balance.
How is the packaging handled and how can we visit your factory?
Packaging materials include corrugated paper, carton boxes, crossties, pallets, angle steel, plastic film, steel ties, and air bags, secured inside containers with shock-absorbing devices. You can contact our representative via email: [email protected] or via WhatsApp: +84-909-221-683 to arrange a tour.
