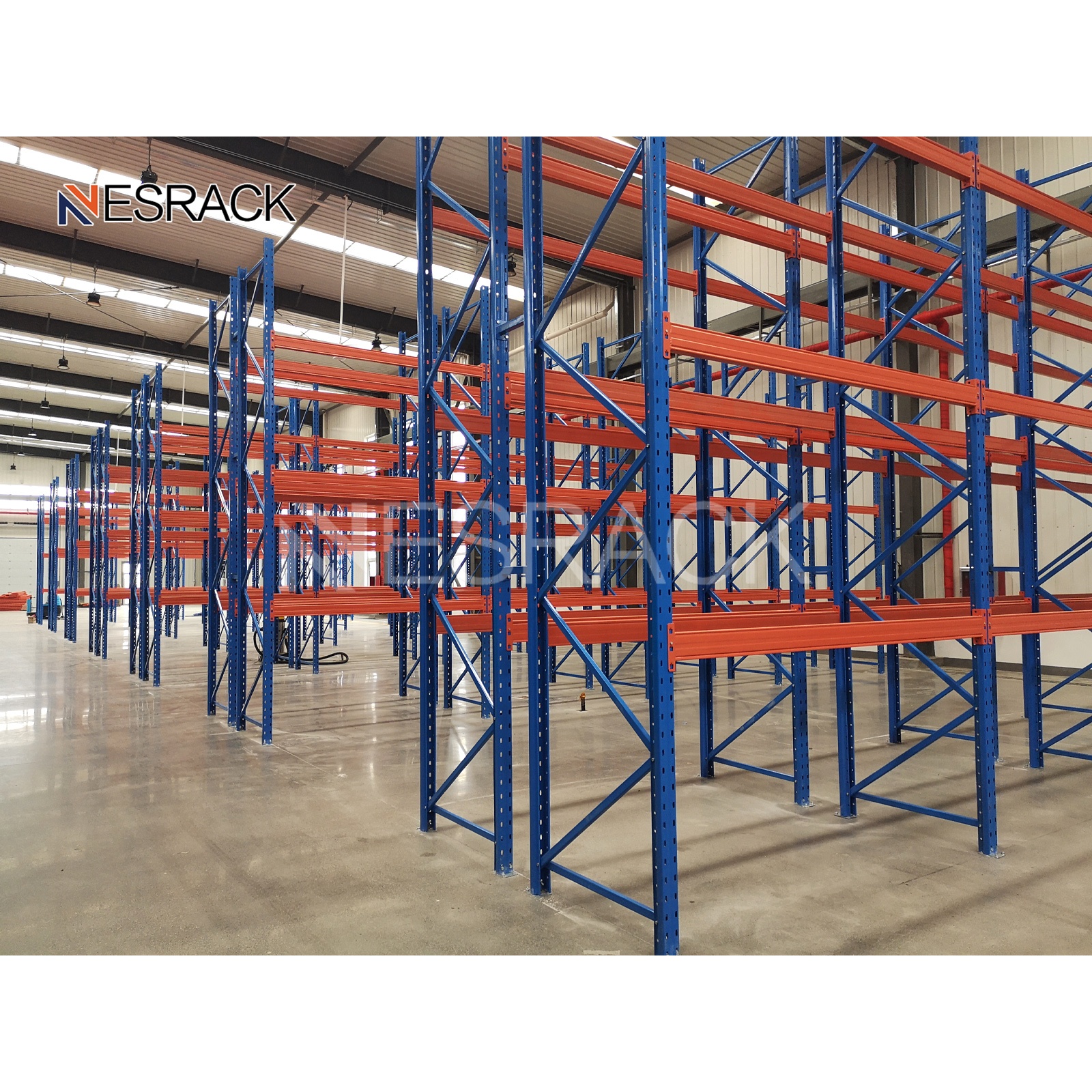

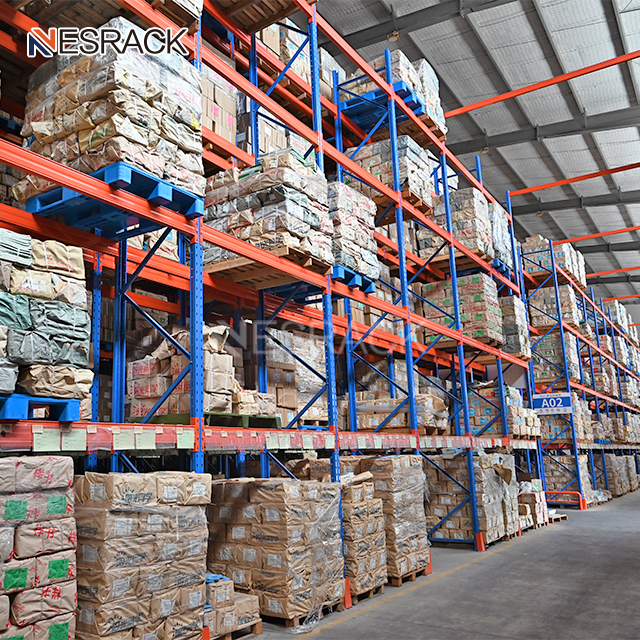

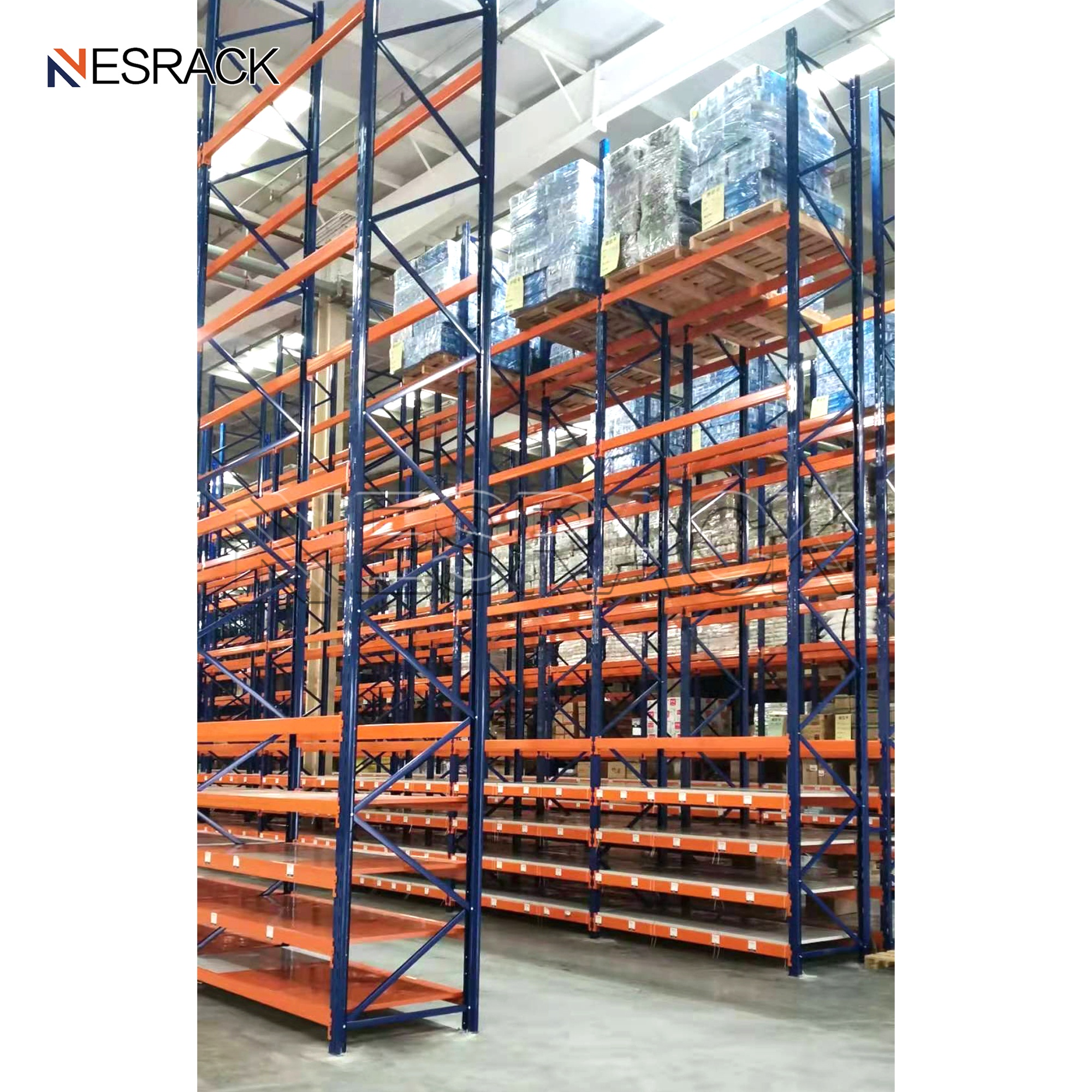

Pallet Multilevel Racking Heavy Duty Warehouse Storage Shelf System Warehouse Stacking Pallet Rack
Product Description
Product Specifications
| Product Name | Heavy Duty Warehouse Shelves Racks | Item Value | Selective Pallet Rack |
| Brand Name | NESRACK | Place of Origin | China, Shandong |
| Material | Steel | Usage / Application | Warehouse Storage / Goods Storage |
| Color | Blue, Orange | Surface Treatment | Powder Coating |
| Weight Capacity | 2000-5000kg/layer | Feature | Corrosion Protection |
| Height | Max 12000mm | Width | 60/80 cm or customize |
| Size | Customer Size | Structure | Assembled |
| Certification | ISO9001 / CE | Use | Warehouse Rack |
| Packing | Customize | OEM & ODM | Supported |
Product Description

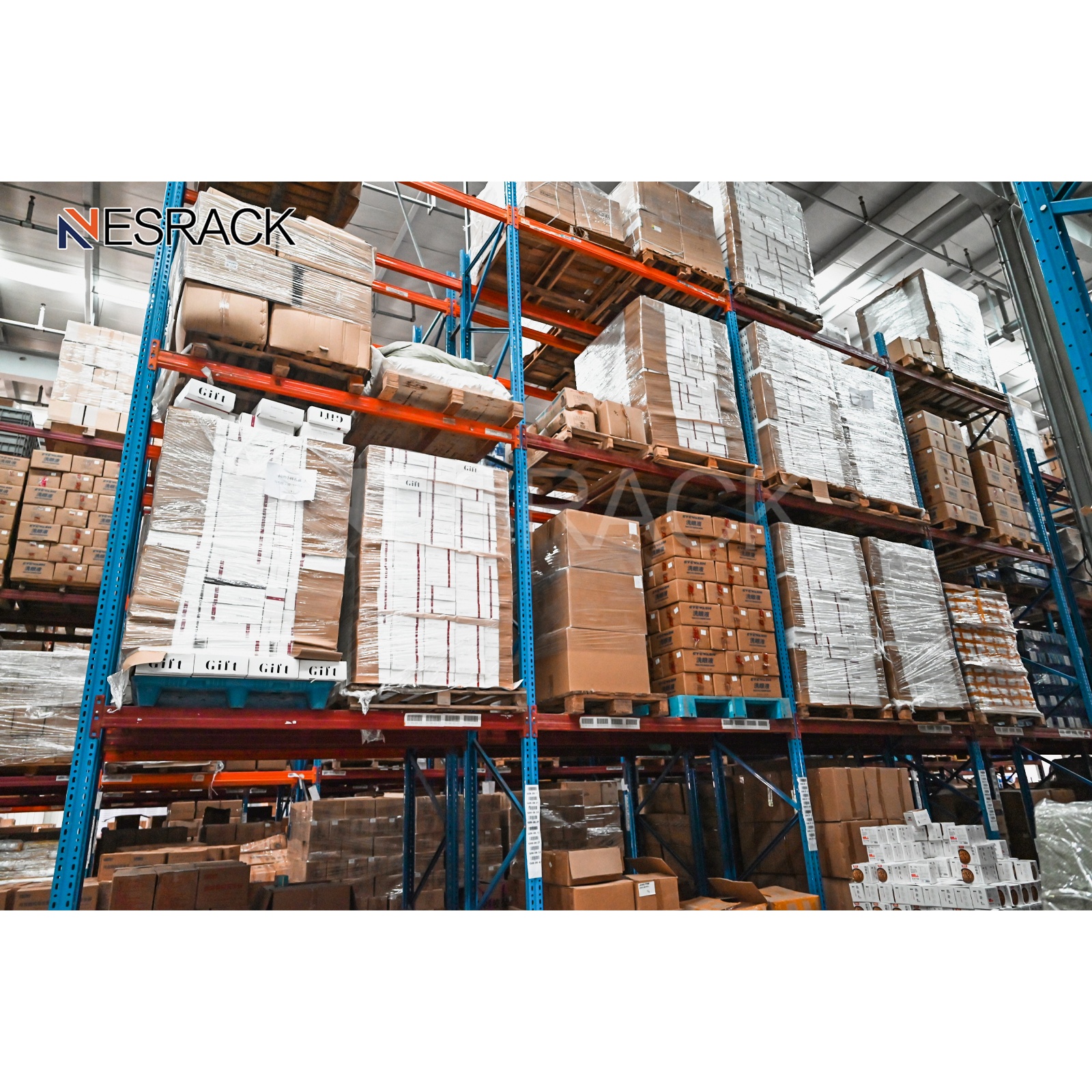

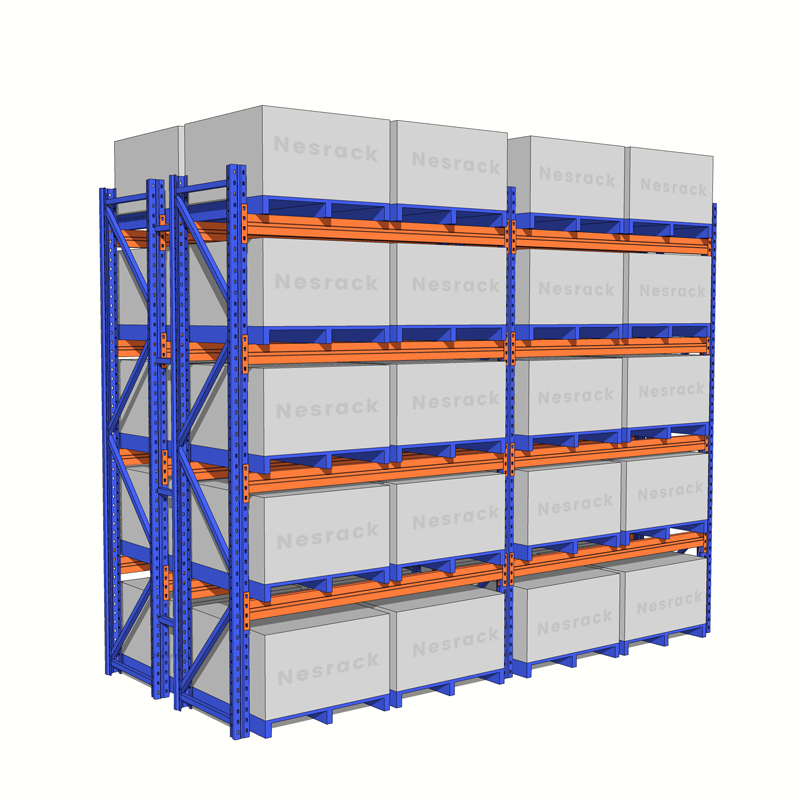

Pallet Racking
Pallet racking systems provide direct access to all pallets and represent the most economical choice in terms of cost. Composed of upright frames and beams, it is designed for optimizing the storage of goods of all sizes and weights.
With a wide range of components and accessories, NESRACK can tailor-make solutions to meet your precise requirements. Our structure is versatile for any application and condition, remaining easy to install and dismantle.

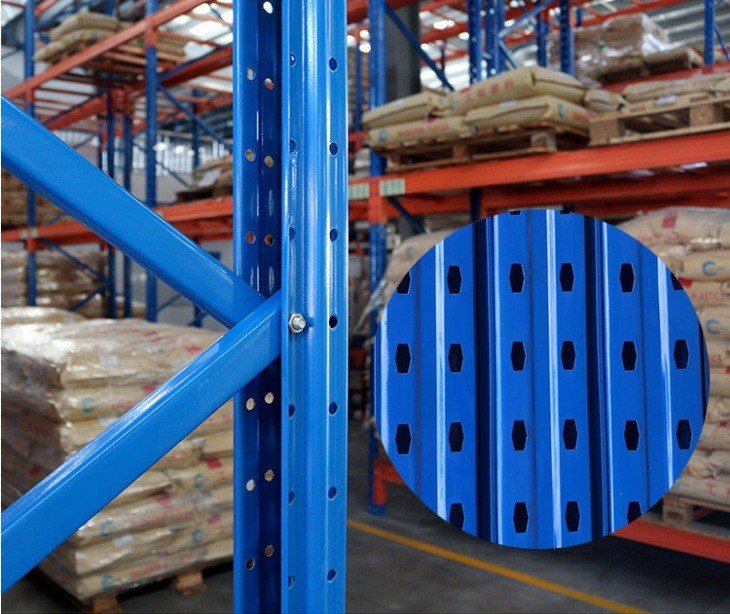

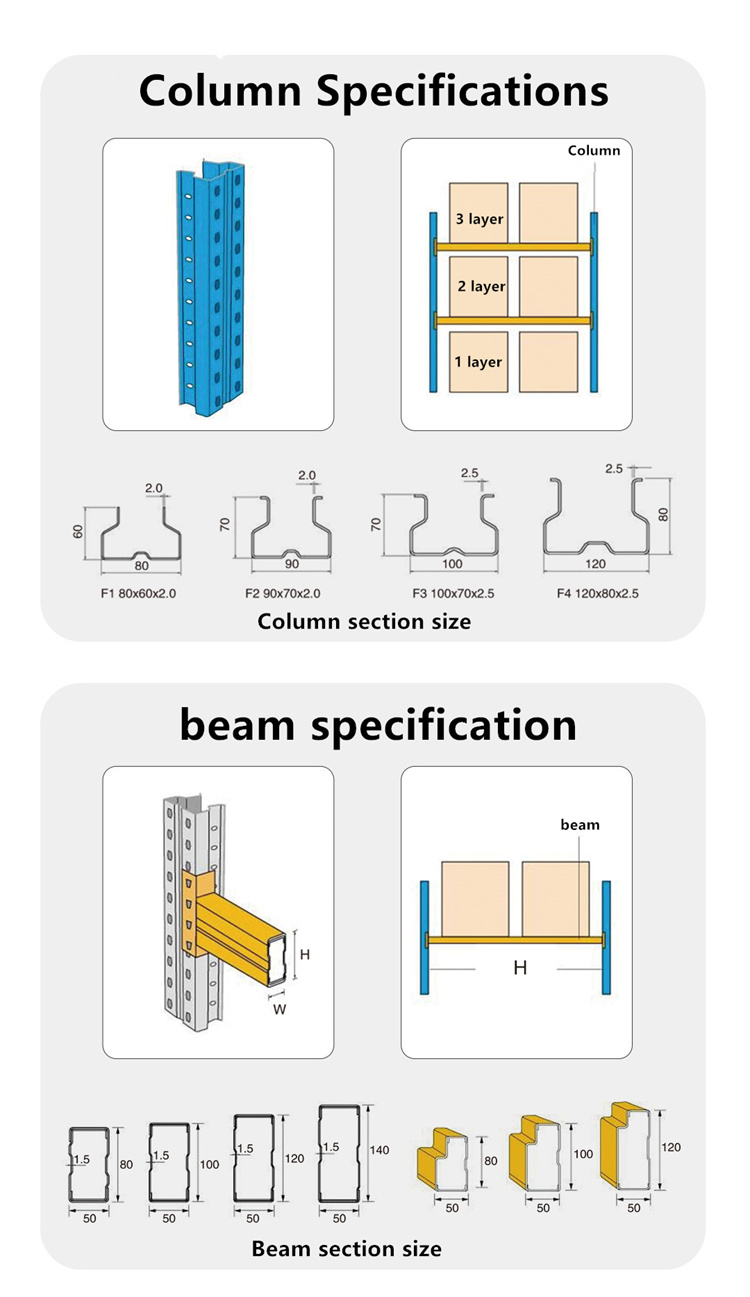

Column Specification and Bearing Capacity
01
Easy installation and reasonable structure.
02
High-precision diamond-shaped hole design, plug-in structure, adjustable height up and down.
03

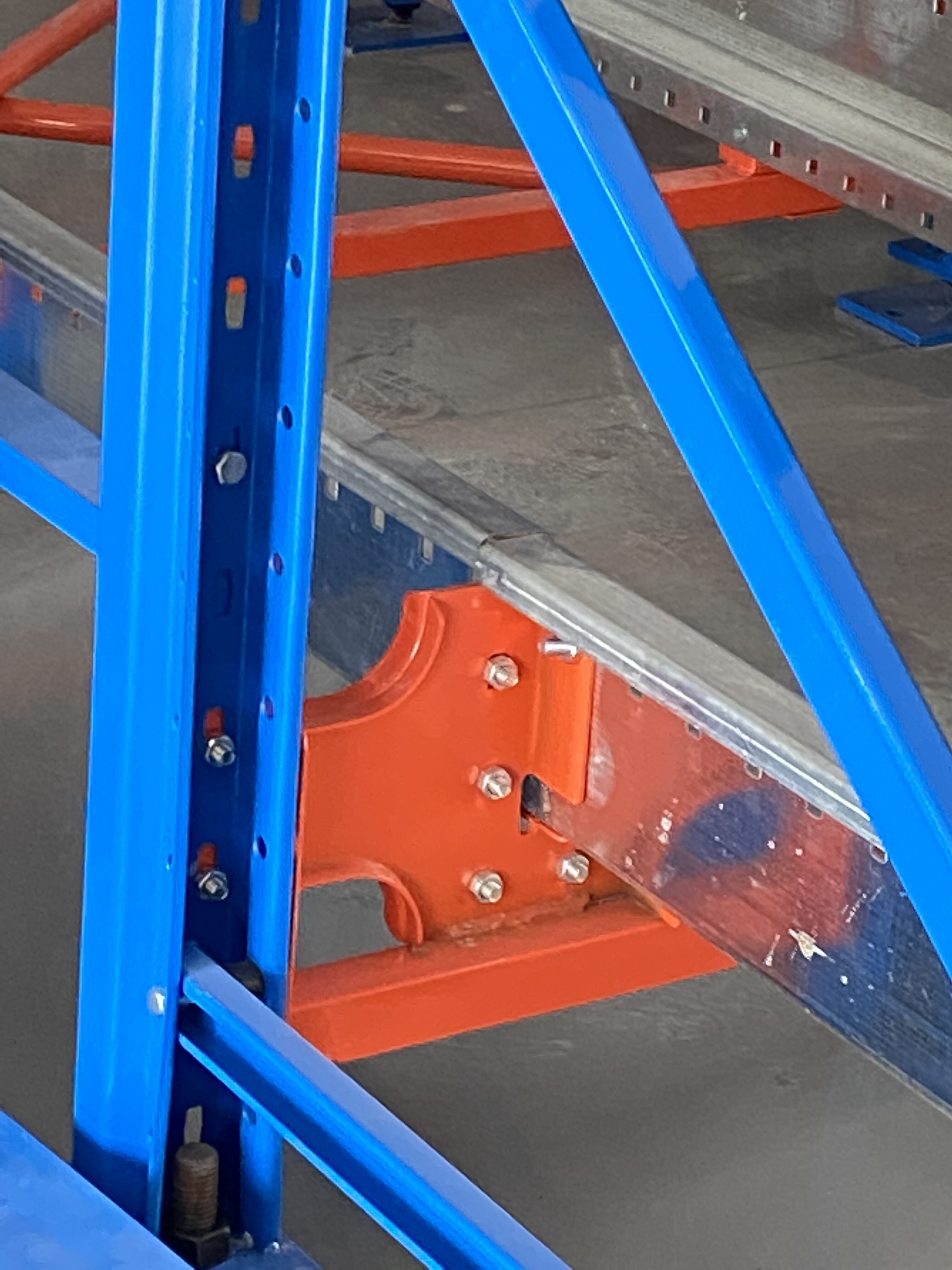

Fix the columns and beams securely to prevent beams from falling due to improper operation.
04
Increase the shelf load and adapt to more types of pallets.
| Column Height | 3 Layers Beam | 4 Layers Beam | 5 Layers Beam |
|---|---|---|---|
| 2000 | 3500 | 2500 | 2100 |
| 2500 | 3500 | 2500 | 2100 |
| 3000 | 4000 | 3600 | 2900 |
| 3500 | 3100 | 2400 | 2100 |
| 4000 | 3100 | 2400 | 2000 |
| 4500 | 3000 | 2400 | 2000 |
| 5000 | 3000 | 2300 | 2000 |

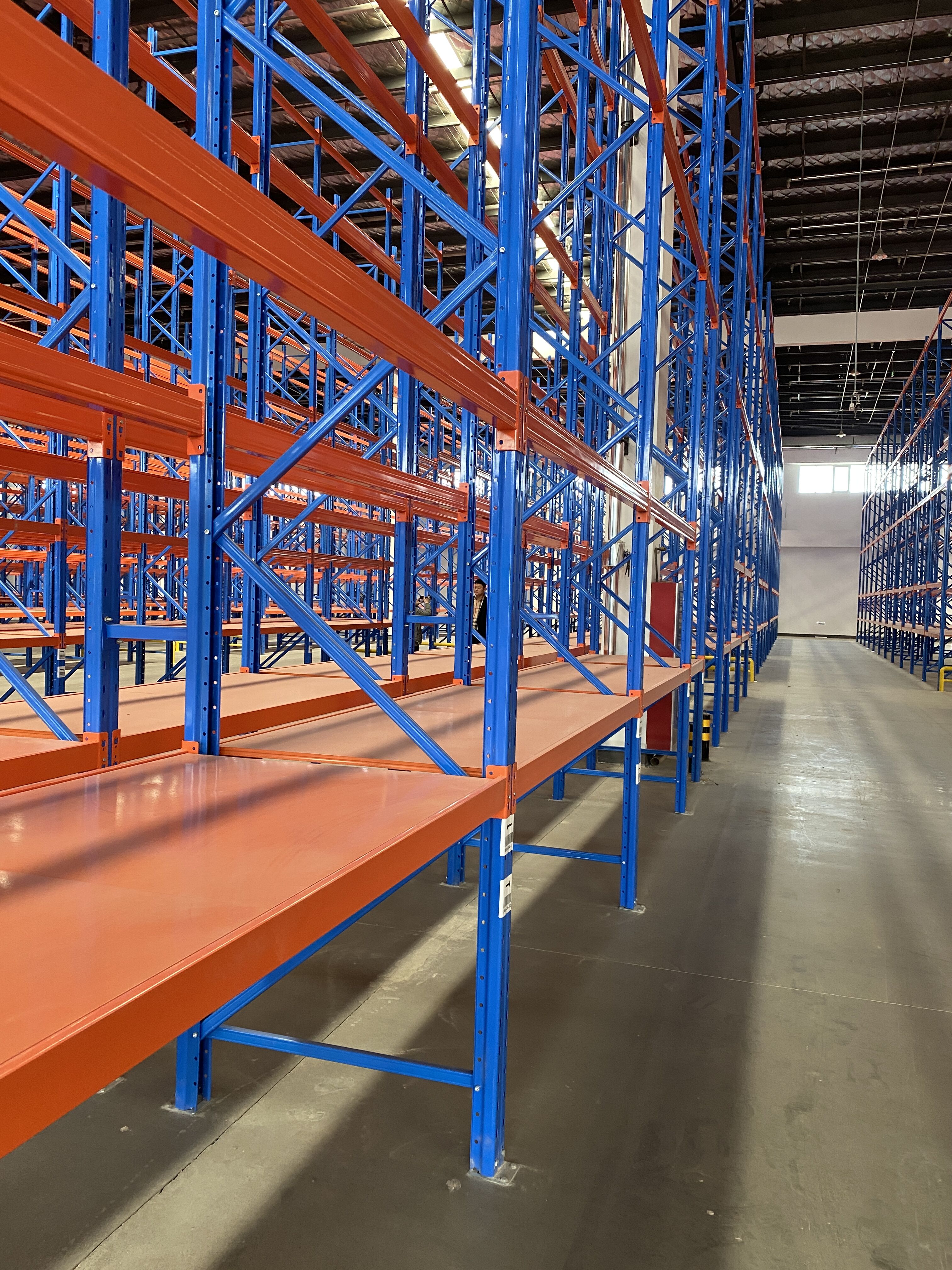

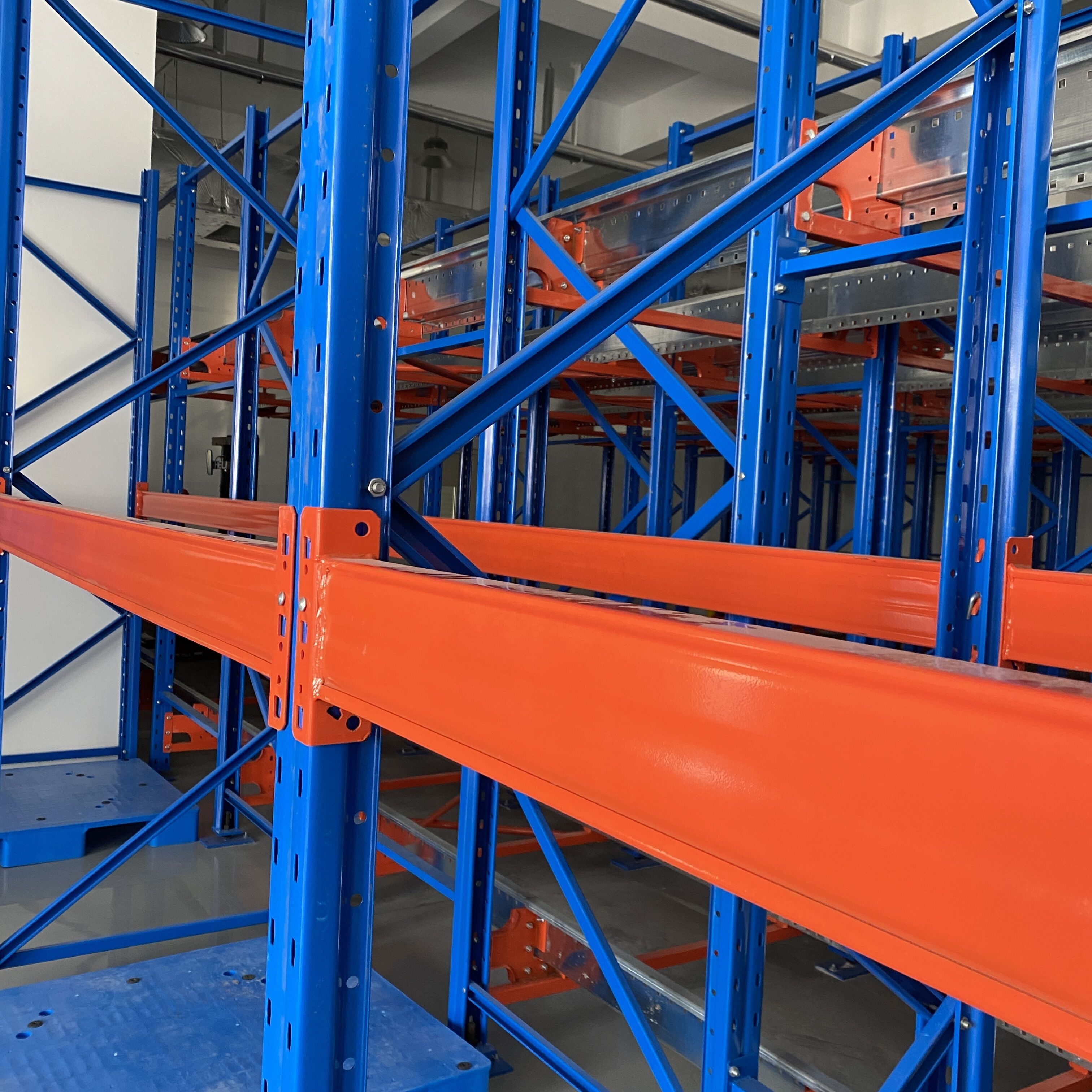

Main Components

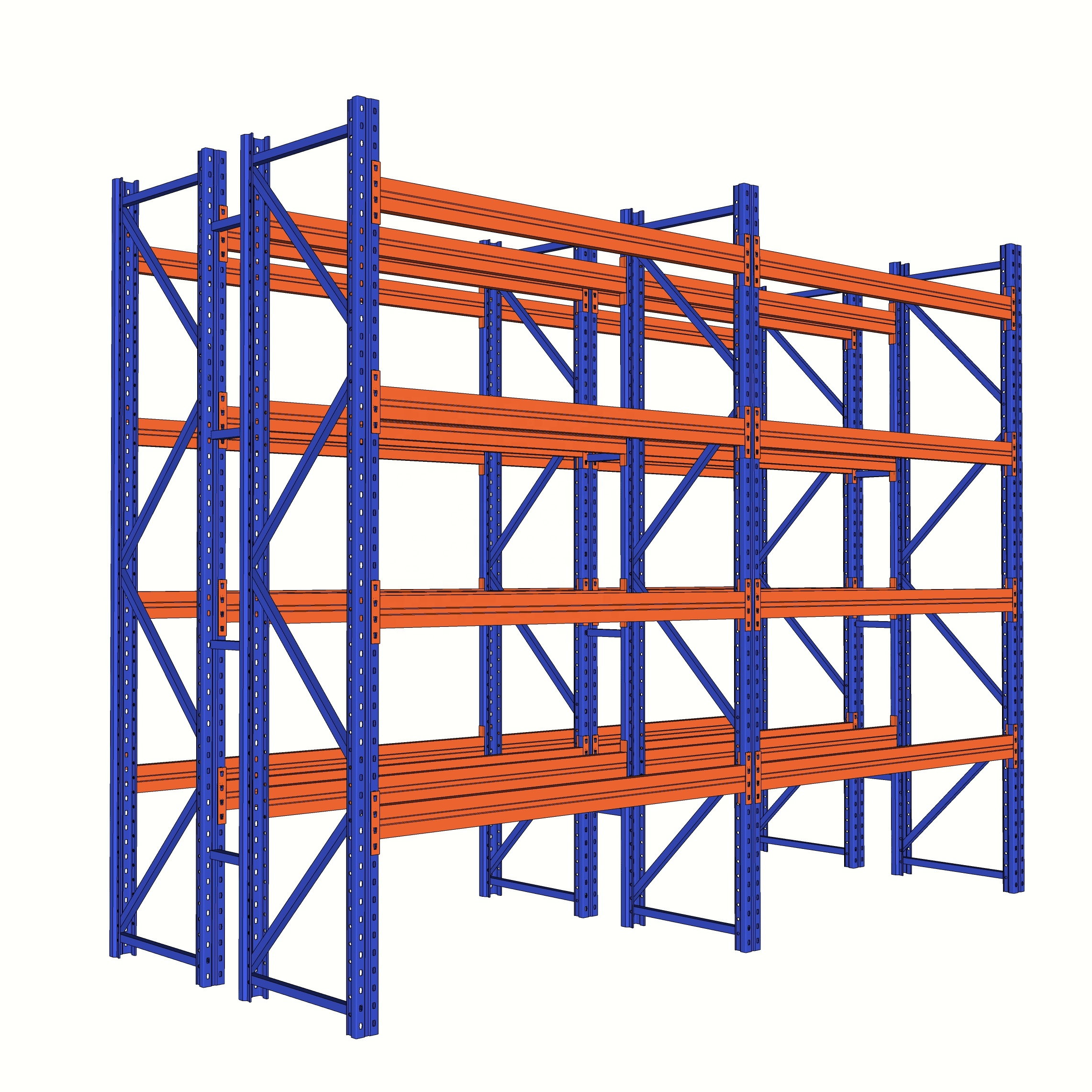

Frame Structure
The frame of the European 50mm pallet rack is connected by two uprights, horizontal bracing, diagonal bracing, two base plates, and assembly screws.

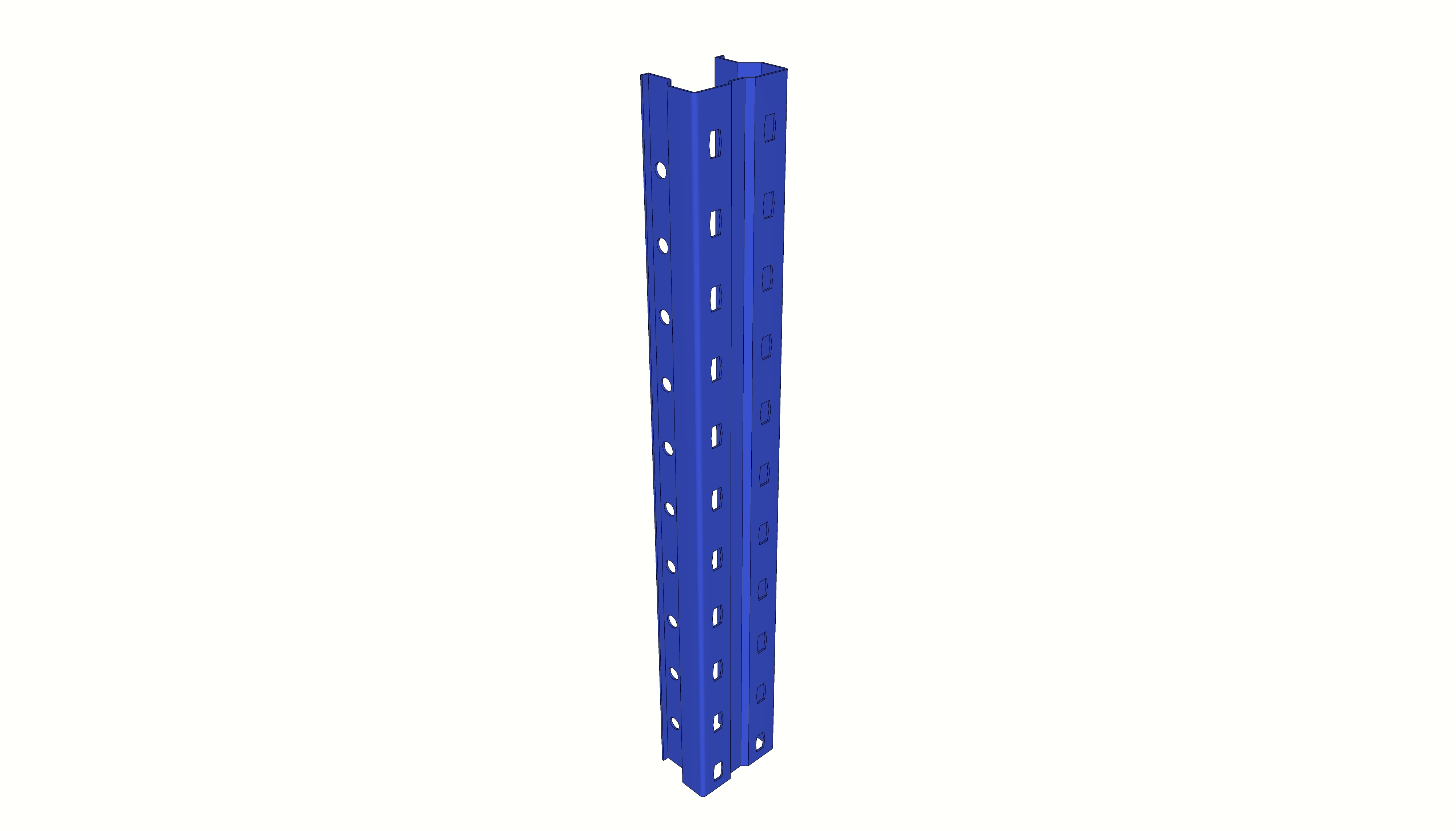

Upright
H-bracing and D-bracing
Base Plates
Beam Specifications
The longest beam can be up to 4.5m, and the maximum loading capacity can reach 4000kg per level. For other custom specifications, please contact us for details.

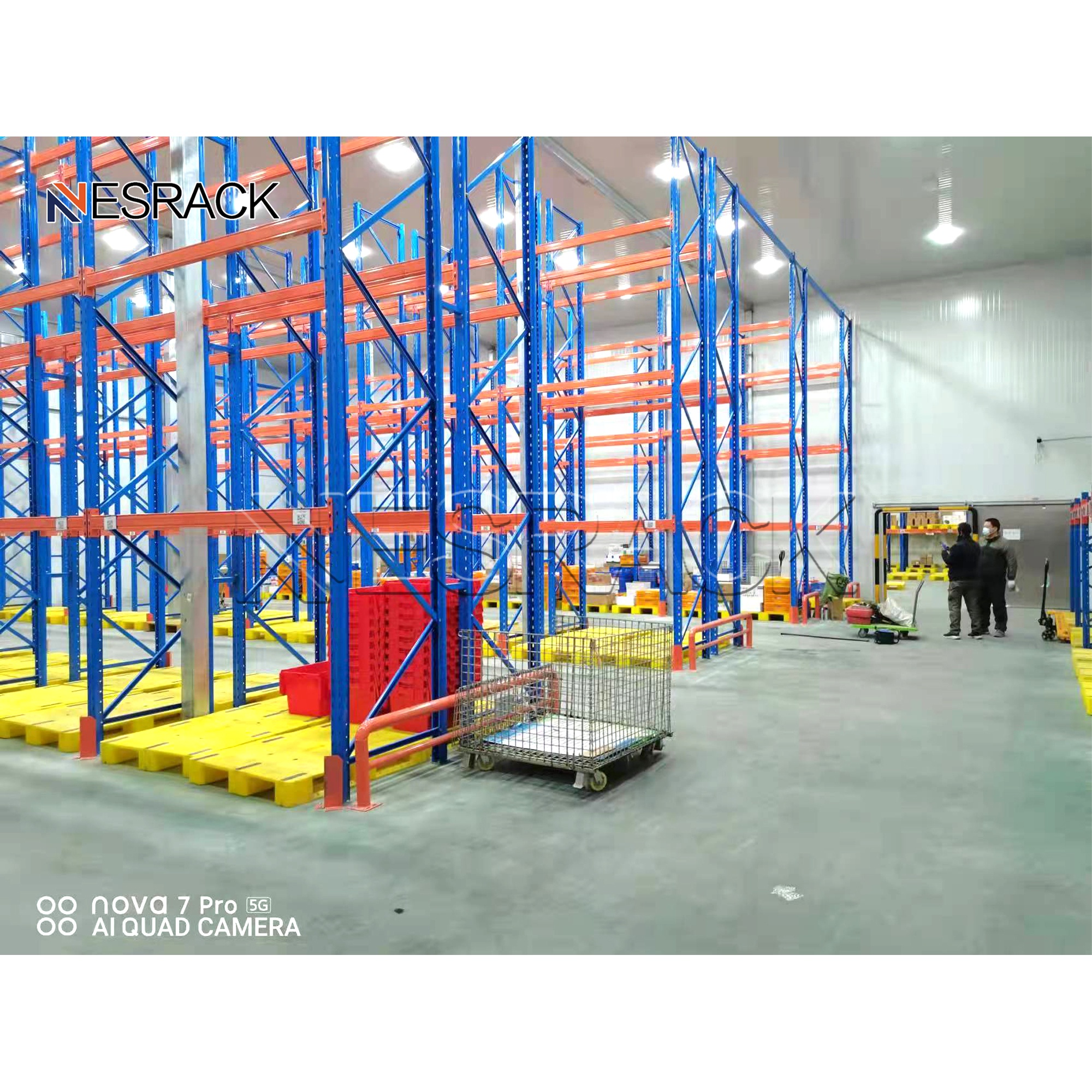

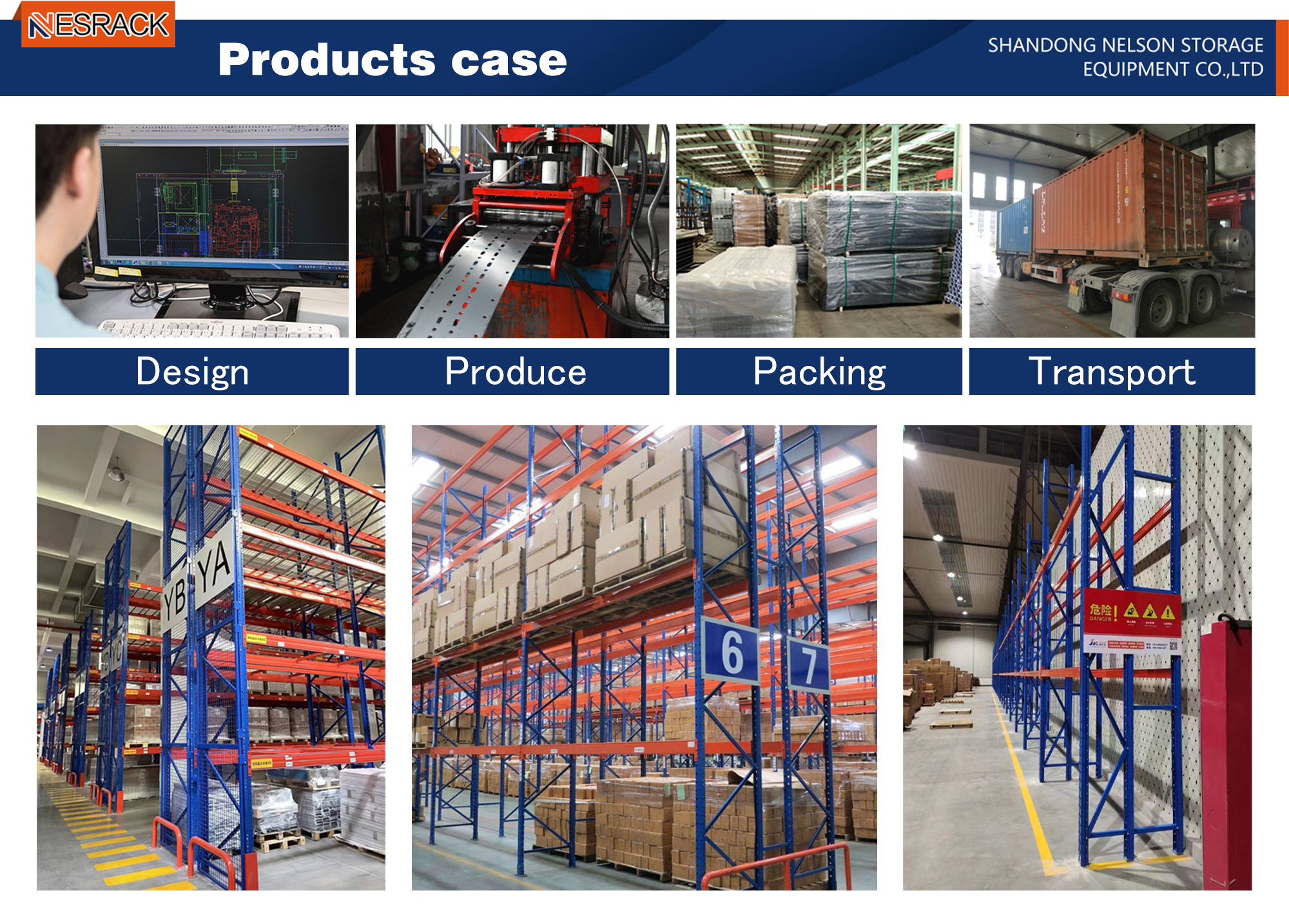

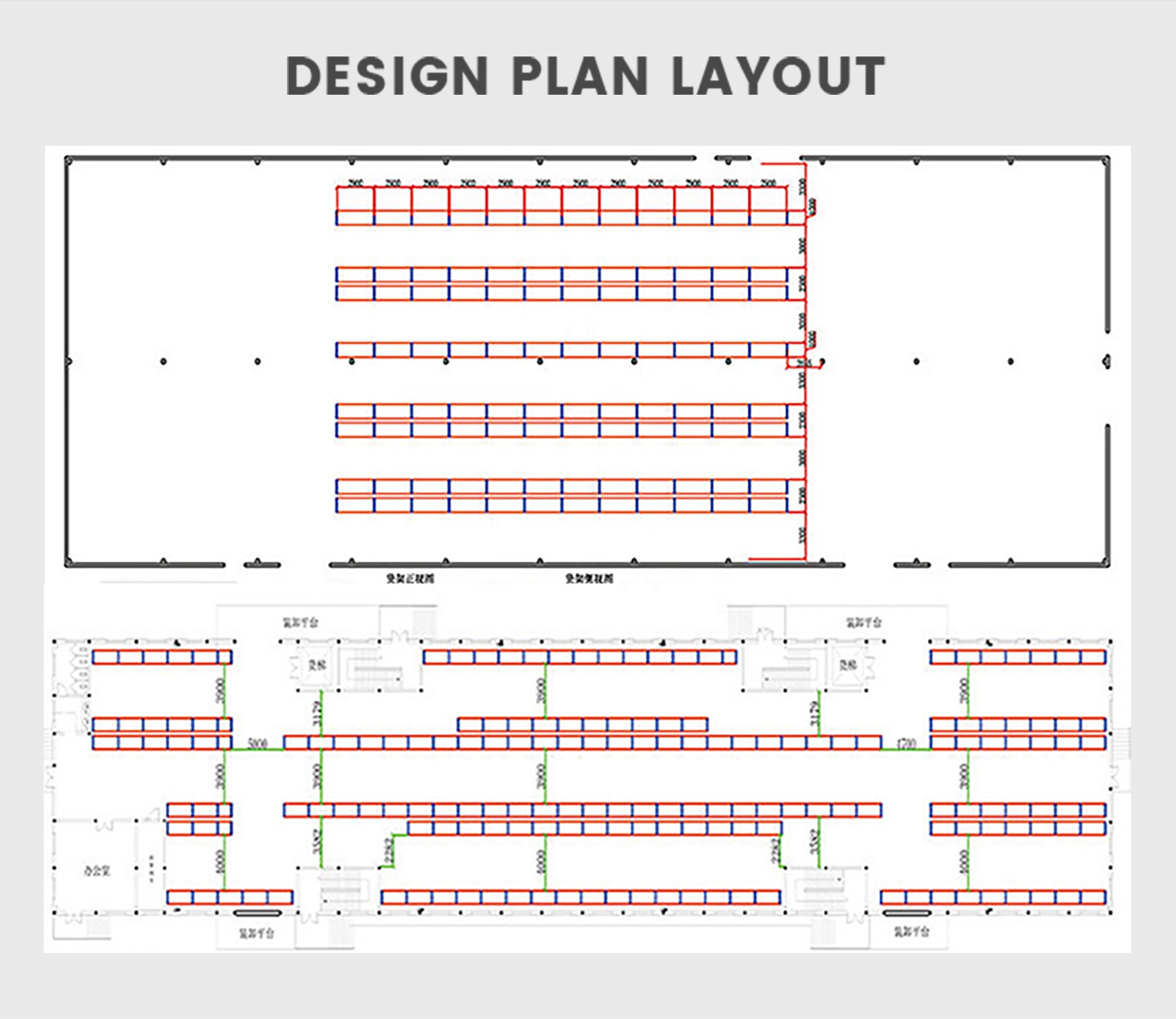

Success Cases
Exhibition
Company Profile
SHANDONG NELSON STORAGE EQUIPMENT CO., LTD
SHANDONG NELSON STORAGE EQUIPMENT CO., LTD has focused on top quality storage and logistics equipment for over 15 years in China. With 15 years of industry experience, we have become an excellent pacesetter in the warehouse racking industry.
Today, NELSON has been one of the leading producers of quality pallet racking and other racking equipment, such as drive-in rack, radio shuttle rack, cantilever rack, mezzanine, steel platform, medium duty shelving, and light duty shelving.
NELSON Racking is located in the beautiful Chinese city of Jinan. As a global supplier of heavy duty, medium duty, and light duty racking equipment and related accessories, NELSON Racking is dedicated to creating added value for customers around the world.
Our Partner

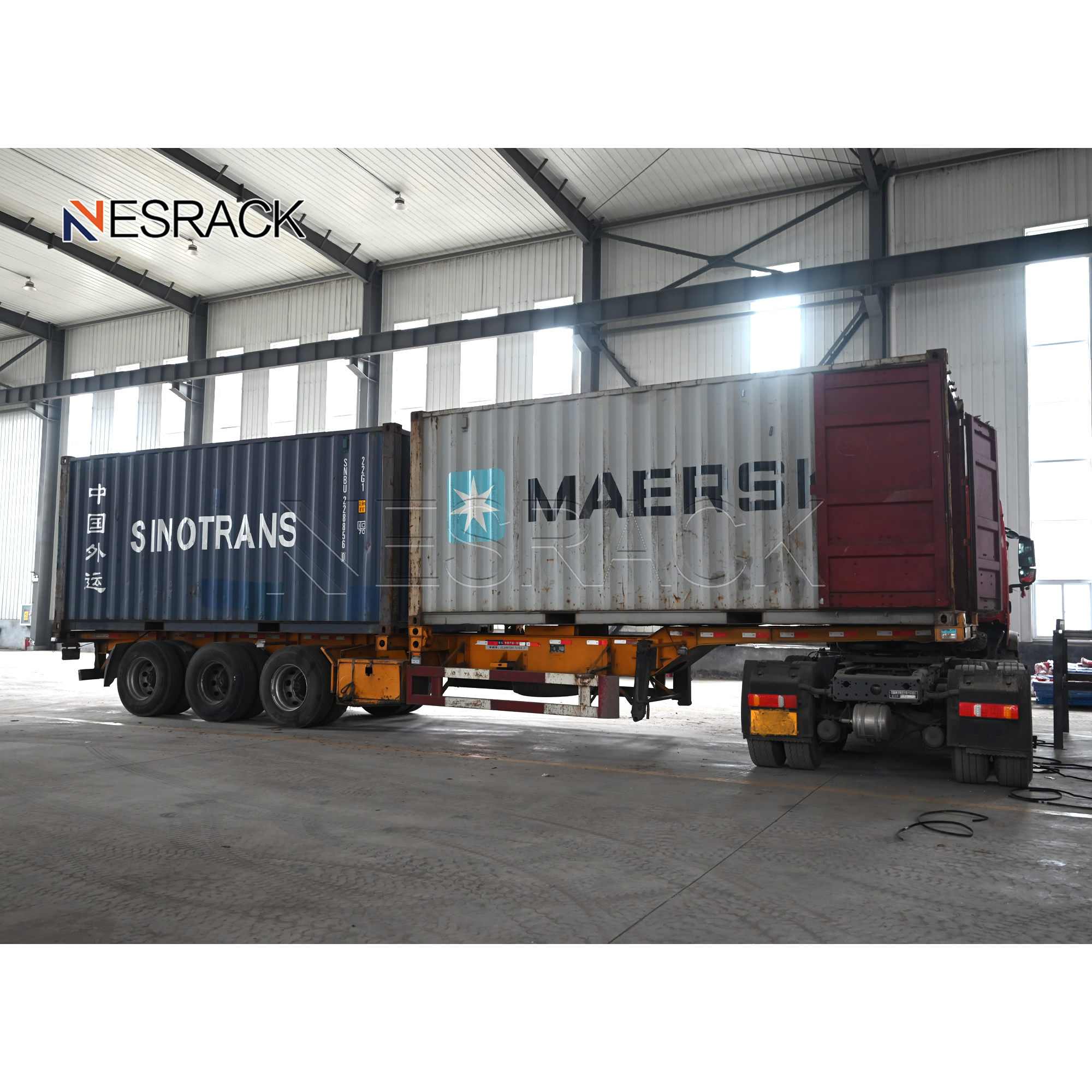

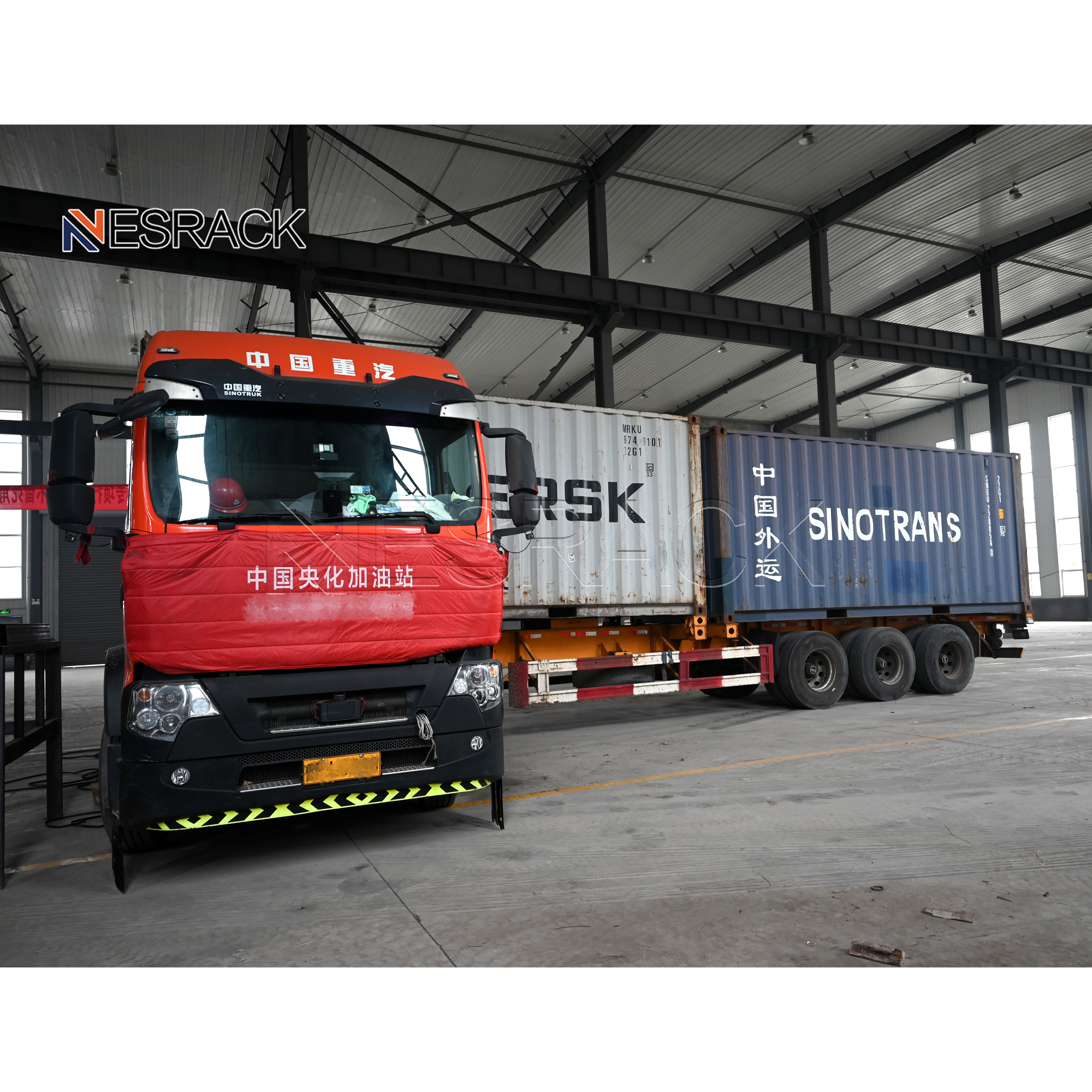

Packing & Delivery
Standard Export Packaging
For international shipping, costs and timeframes depend on product quantity and delivery address. For a specific estimate, please provide those details so that we can quote the most cost-effective option for you.
Recommend Products
Frequently Asked Questions
Why choose us?
Professional design team, adequate production capacity, certified with ISO and CE, and fully compliant with AS4084, RMI, and FEM standards.
What is the material used in your products?
The primary raw material we select and manufacture with is premium Q235 and Q345 high-strength steel.
How do we purchase your products?

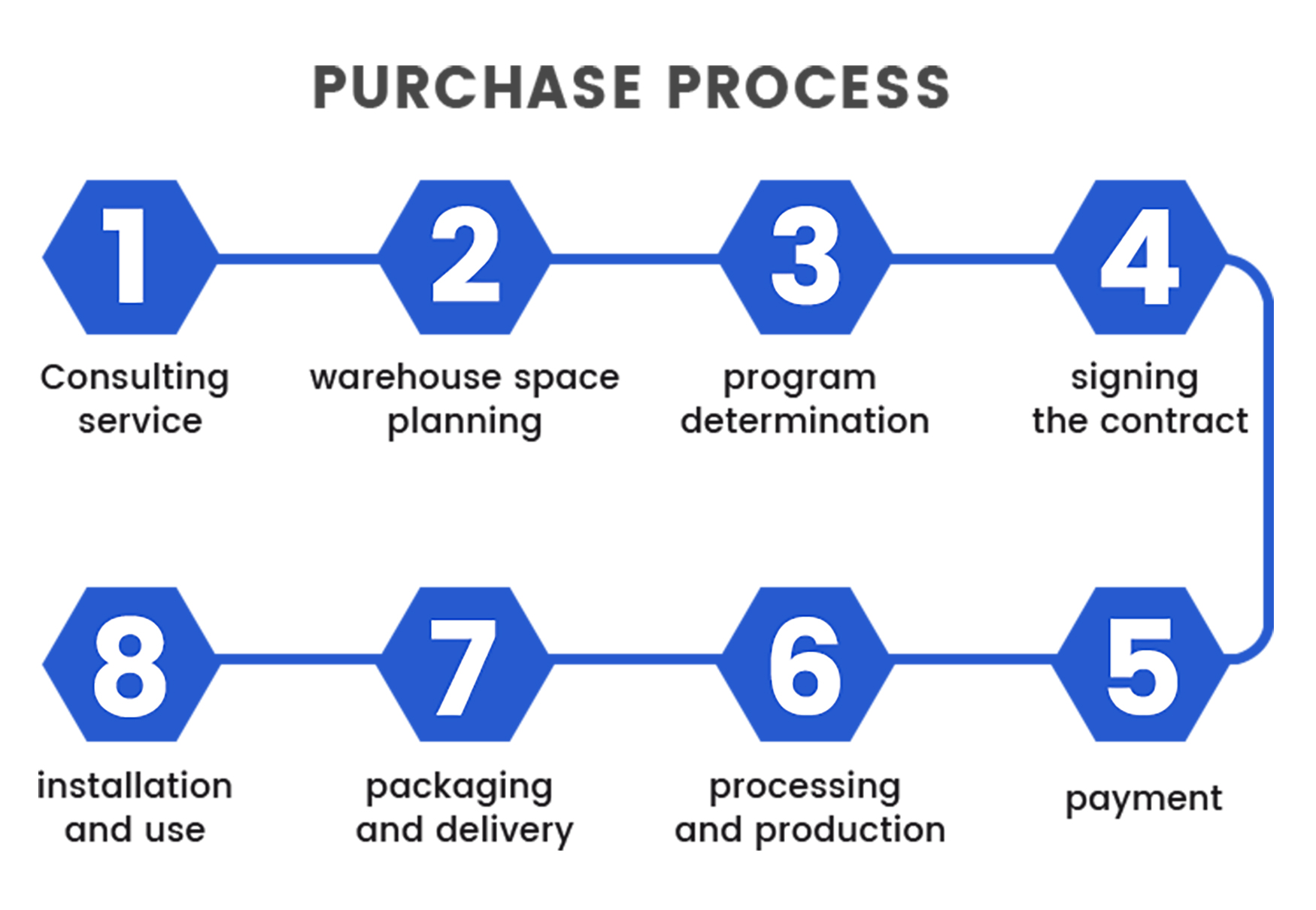

Design drawing → Confirm drawing → Quotation → PI → Confirm PI → Arrange 30% deposit → Manufacture → QC inspect → Pay balance → Shipping.
What is the packaging of the products?
Standard export package. All parts are securely bundled with steel belts and covered with protective film for sea transit.
What is the Minimum Order Quantity (MOQ)?
Normally, the MOQ is one 20ft container, which also depends on the dimensions and specifications of your products.
What are the payment terms and delivery lead time?
Payment terms: We accept TT or L/C at sight, etc. Delivery time: Normally 3 to 4 weeks upon receipt of the deposit.
