Heavy Duty Warehousing Racking Systems
Product Description
Product Description

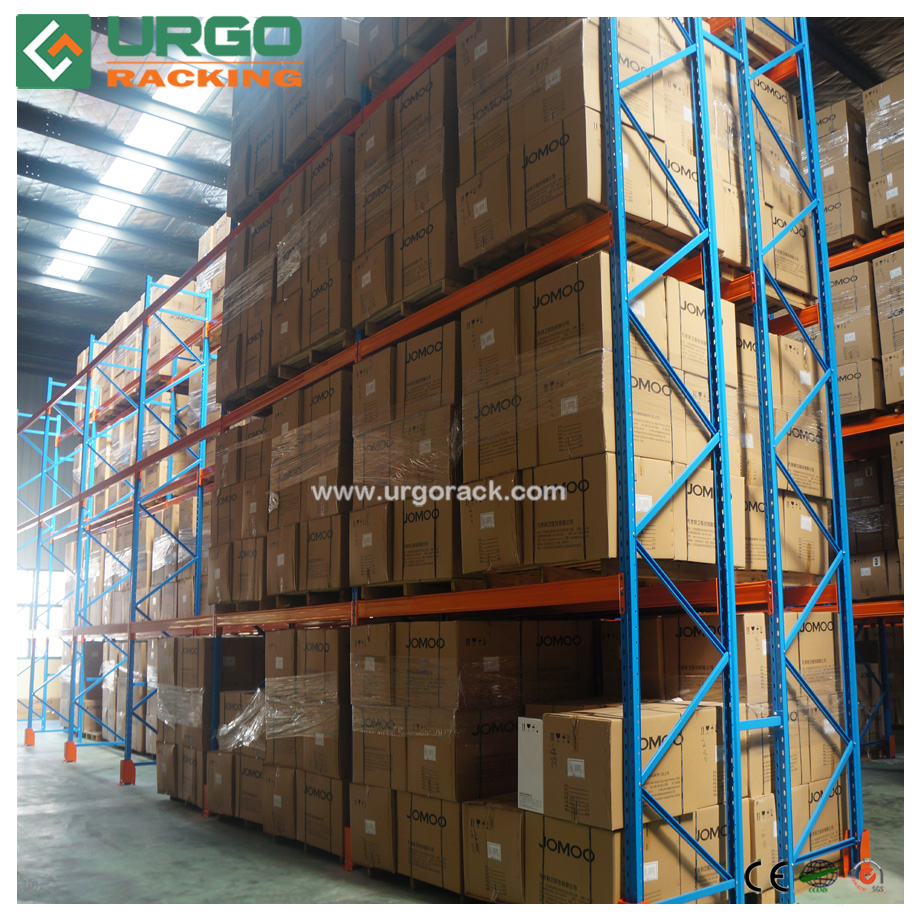

URGO Heavy duty pallet rack is very cost-effective, providing high capacity storage and easy access to all pallets. It offers direct access to all pallets with great load flexibility. It installs quickly and adjusts easily to your specific needs.
At present, our all raw materials are from the large domestic steel corps, stable quality, combined with our own advantages and provide the prefect logistics storage system to the clients.

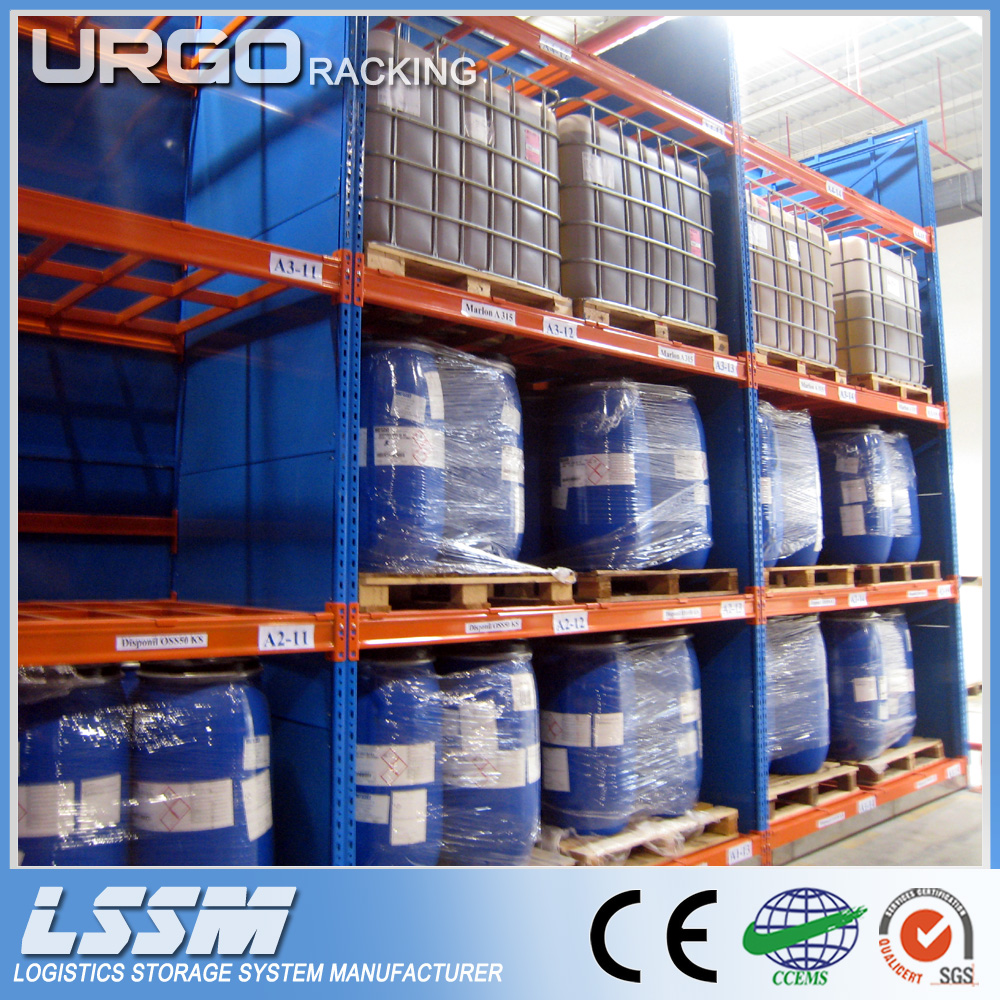

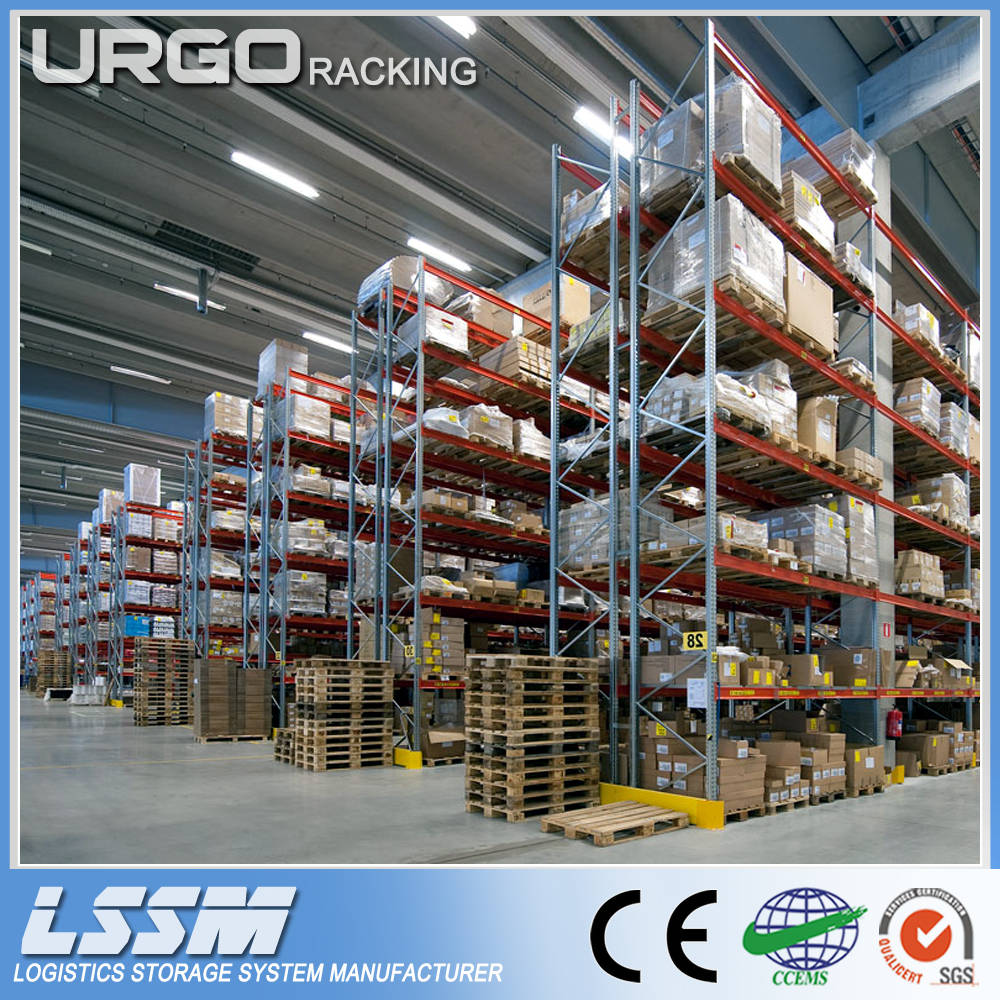

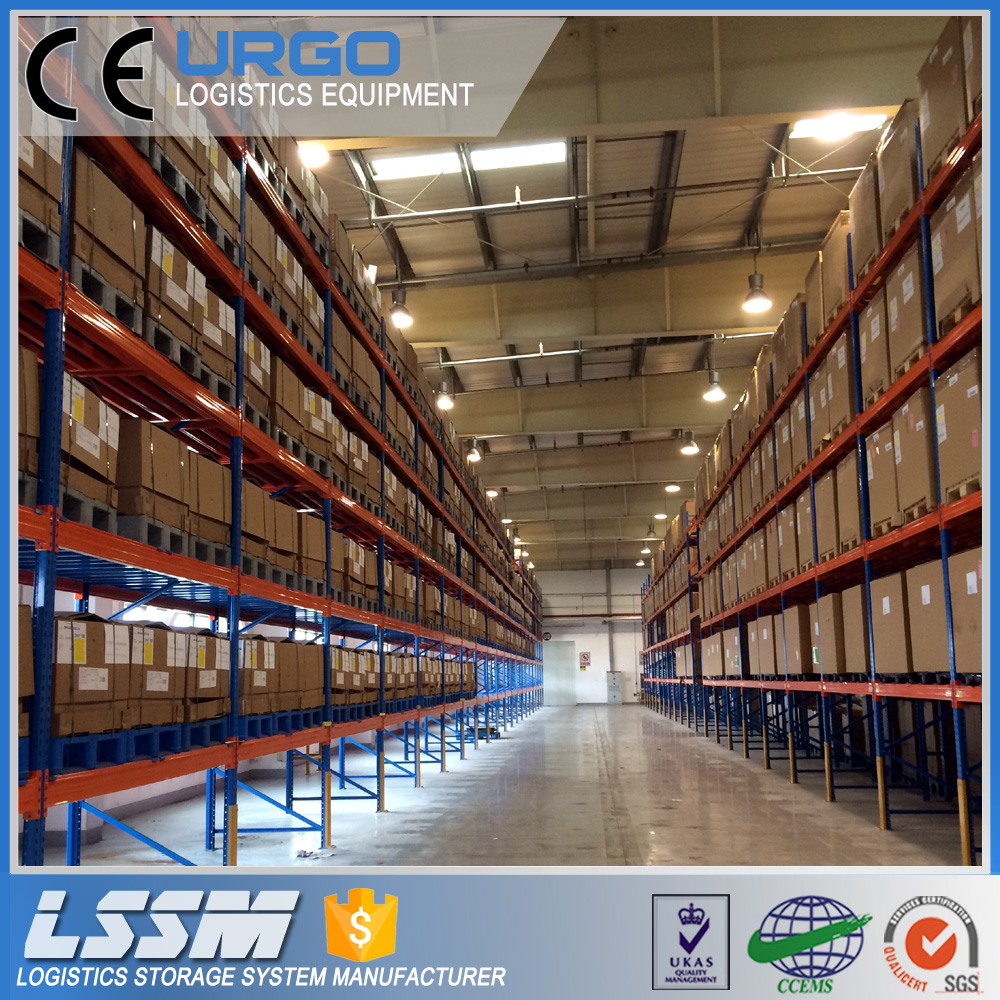

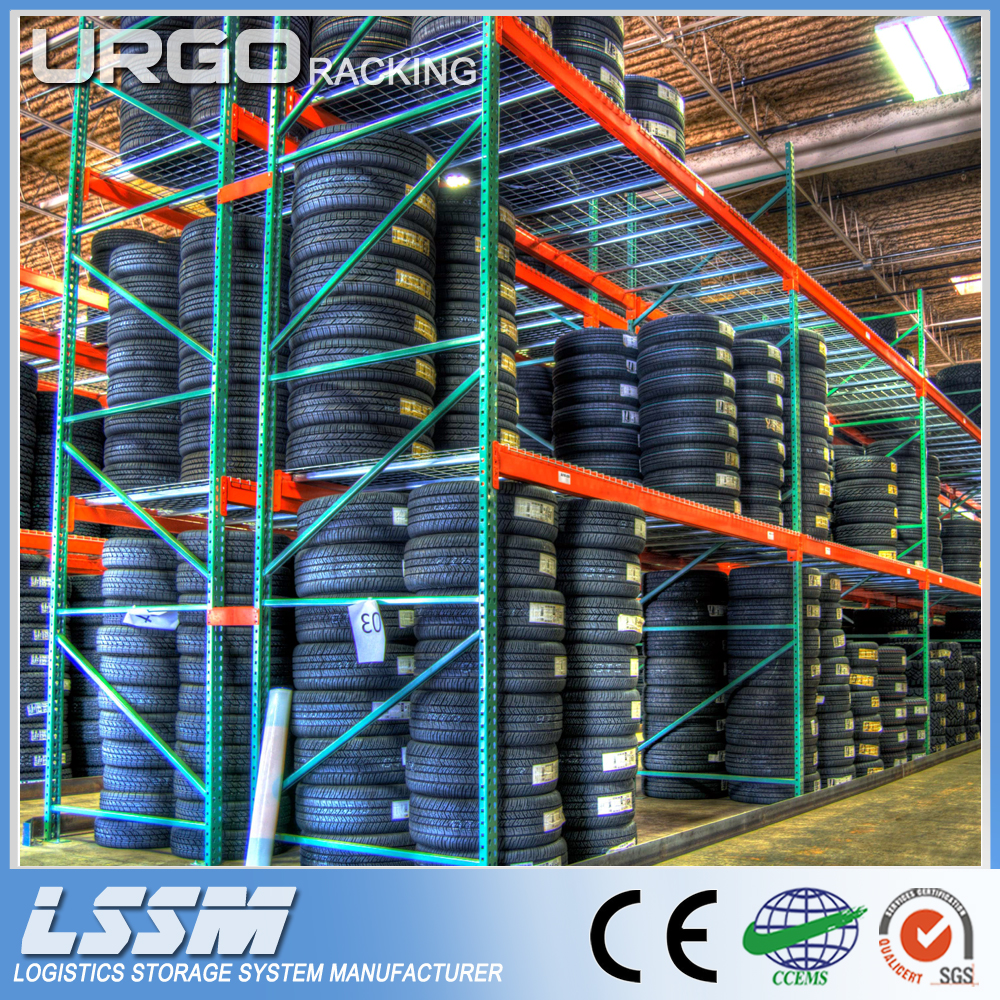

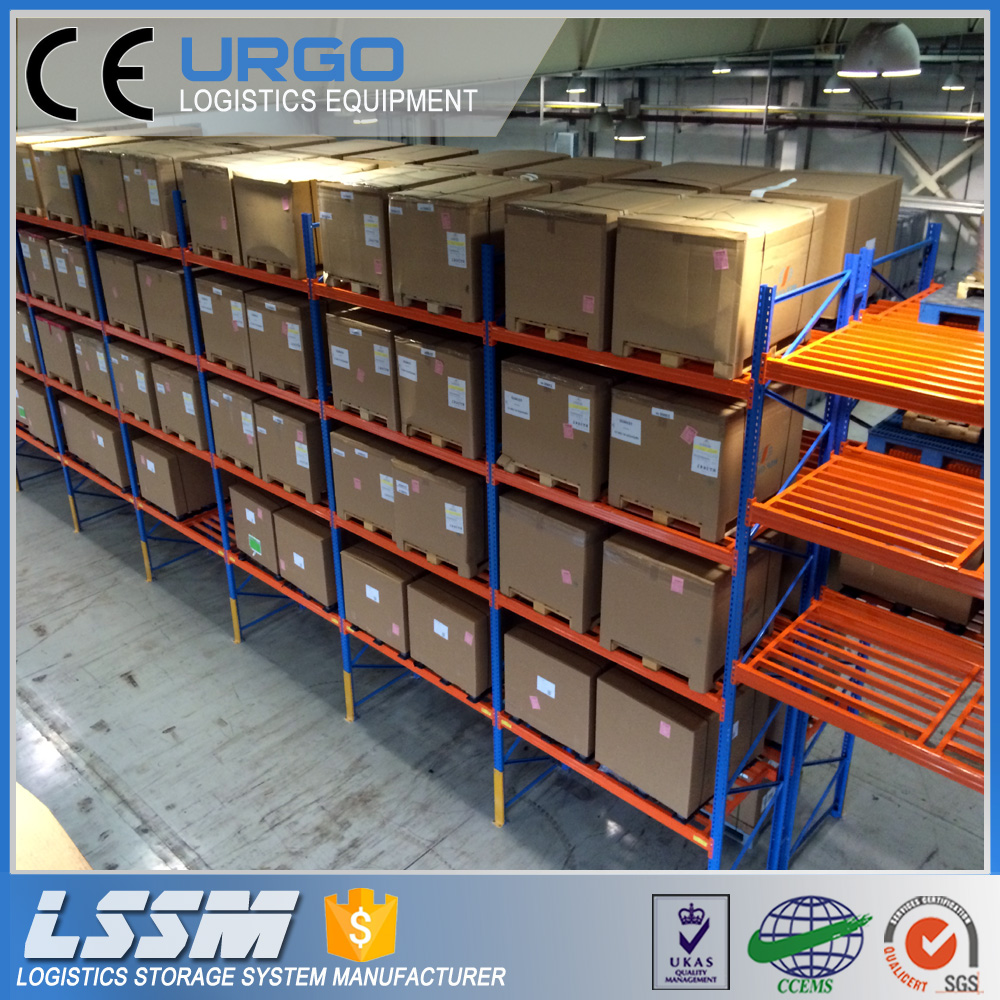

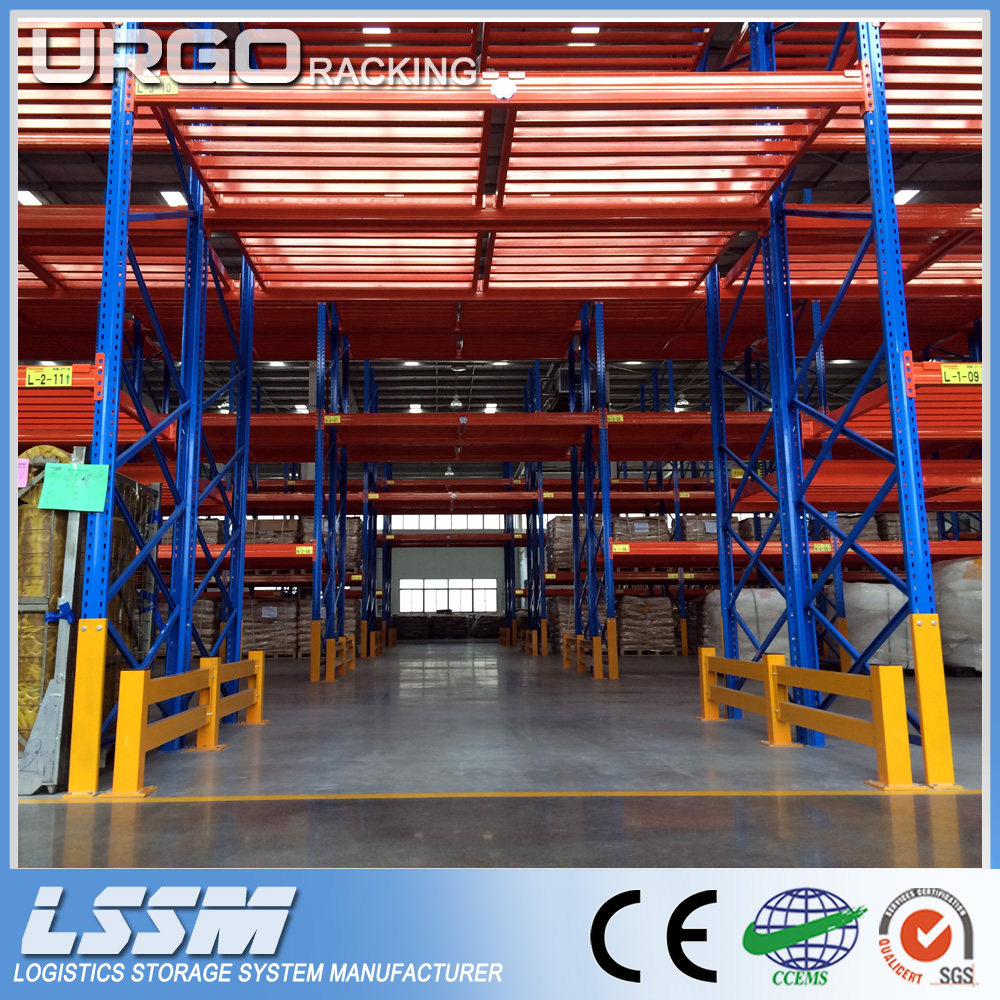

Applications: Warehouse & logistics, food/drug distribution, petroleum/chemical plants, automotive distributors, big box retail hardware and home improvement stores.
Column Section Sizes (Bearing Requirements):
Structure and Cross Section of Beam Height:
Rectangular tube beam: 60 / 80 / 100 / 120mm
C shape tube beam: 80 / 100 / 120 / 140mm
Box beam: 80 / 90 / 100 / 110 / 120 / 140 / 160 / 180mm
Corbel box beam: 80 / 90 / 100 / 110 / 120 / 140 / 160mm
P type box beam: 76.2 / 80 / 101.6 / 110 / 114.3mm
URGO Heavy Weight Pallet Rack Features:
1. 100% accessibility to individual pallets
2. Easy picking lower levels
3. Good storage density
4. Easily installed and repositioned
5. No special lift trucks required
Product Structure

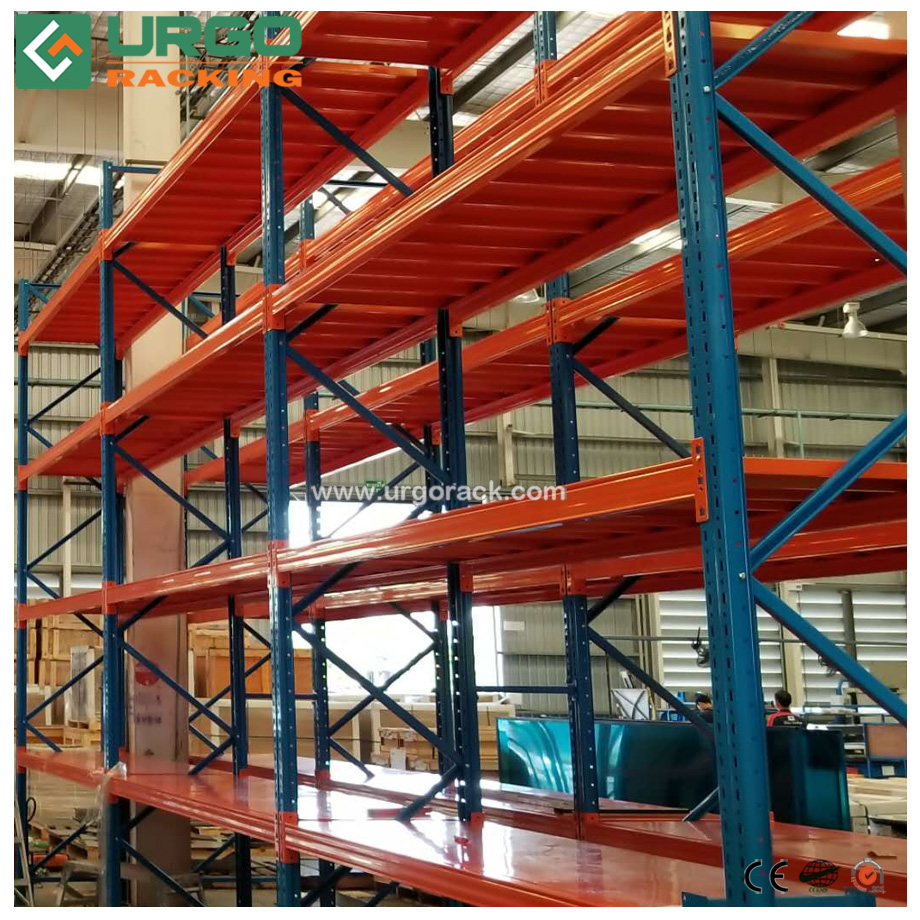

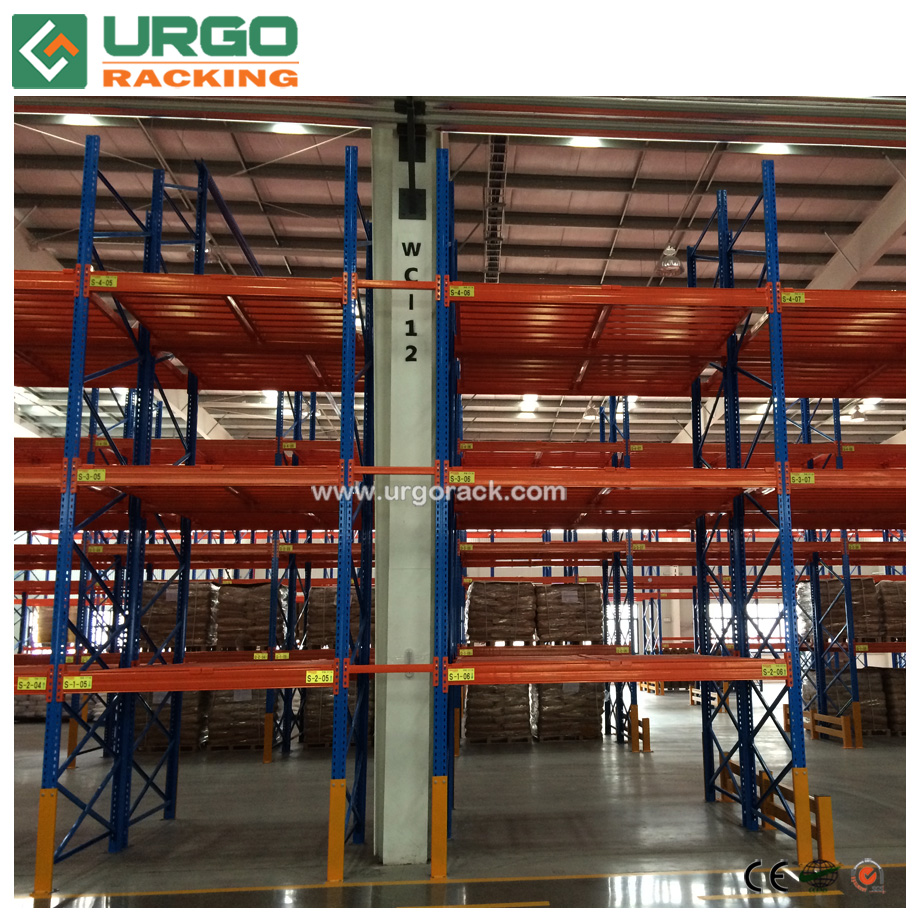

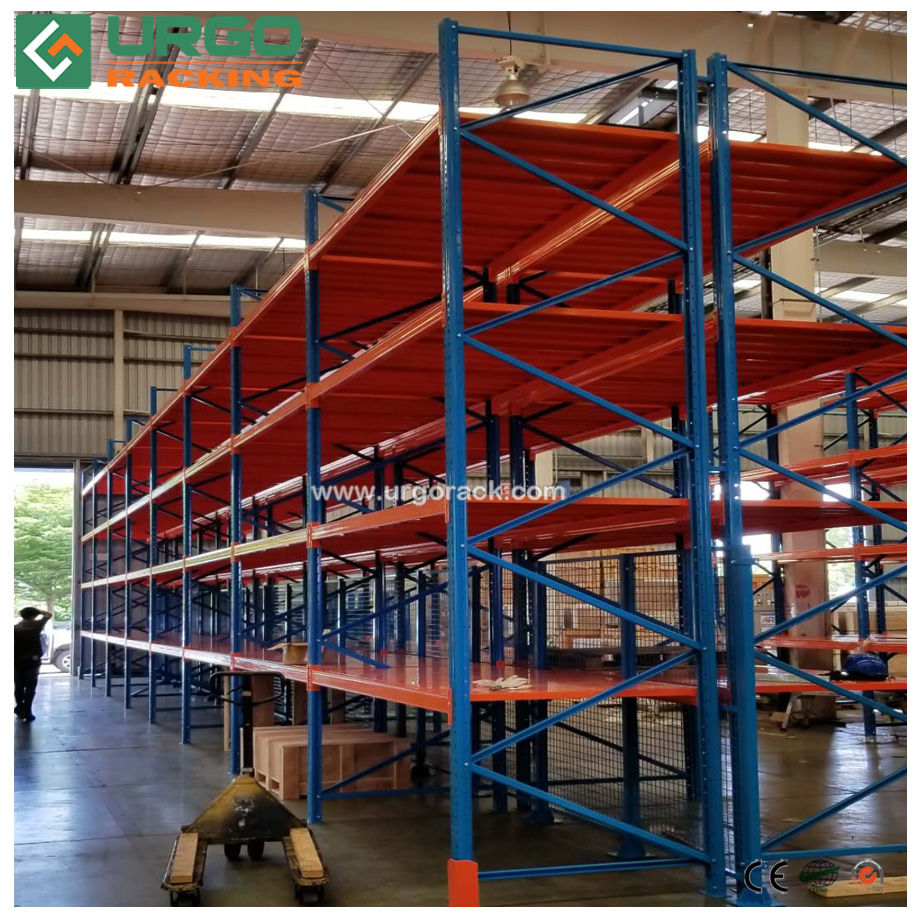

The structure of URGO heavy duty pallet rack includes uprights and beams. According to the customer's actual pallet load capacity and warehouse size, select the column and beam specifications, as well as increasing racking accessories.
Upright Specifications:
- High load capacity: up to 21,000kg.
- Frames include all elements needed for assembly: bracing, feet, and nuts & bolts.
- Blue epoxy coated (RAL 5012 / 5015 / 5017).
- Standard heights: From 2 to 11.5m.
- Adjusted by 50/75mm pitch.
Column Profiles:
| Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
|---|---|---|
| W80 x D60 | 1.8 - 2.0 | 4000 - 6000 KG |
| W85 x D67 | 1.8 - 2.3 | 7500 - 12500 KG |
| W90 x D60 | 1.8 - 2.5 | 8000 - 10000 KG |
| W90 x D70 | 1.8 - 2.5 | 10000 - 12000 KG |
| W100 x D70 | 2.0 - 2.5 | 11000 - 14000 KG |
| W120 x D95 | 2.3 - 3.0 | 17000 - 21000 KG |
Beam Profiles (Box Beam Loading):
| Loading (kg) Specification (mm) |
The Length of Box Beam (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | - | - | - | - |
| 90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | - | - |
| 100 x 50 x 1.5 | - | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | - | - |
| 110 x 50 x 1.5 | - | - | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | - |
| 120 x 50 x 1.5 | - | - | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | - |
| 140 x 50 x 1.5 | - | - | - | 3868 | 3330 | 2720 | 2370 | 2020 | - |
| 160 x 50 x 1.5 | - | - | - | - | 4220 | 3690 | 2970 | 2600 | 2340 |
| 160 x 50 x 1.8 | - | - | - | - | - | 4400 | 3420 | 3020 | 2590 |
| 160 x 50 x 2.0 | - | - | - | - | - | 4130 | 4170 | 3320 | 2840 |
Beam Profiles (P Box Beam Loading):
| Loading (kg) Specification (mm) |
The Length of P Box Beam (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | - | - |
| 110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | - |
| 120 x 50 x 1.5 | - | 3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 |
| 140 x 50 x 1.5 | - | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505 |
Main Spare Parts Profiles:
Optional Accessories
Packaging & Shipping
URGO Packaging and Shipping Are Your Cargo's Safeguard.
We own a professional logistics team. First-class packaging technique meets your customized packing plan. Every step of logistics progress is thoroughly under our strict control. We ensure your order is received safely within the agreed duration. On-time delivery is our supreme promise.
Company Information & Honor
Engineering & Support Services
Storage Plan Design:
URGO company has a professional warehousing logistics storage system design team that can further optimize solutions based on the client's existing storage scheme.
Choose to cooperate with URGO company can meet all your design needs:
- Experienced professional staff at any time to provide relevant technical guidance, pricing, and dedicated service.
- Production cycles and storage risks are reduced to a minimum to ensure efficient customer investment.
- A full range of logistics warehouse racks designed to provide maximum economic benefit.
Installation Support:
URGO company has a professional racking installation team that can install or relocate the corresponding position of storage rackings or other related logistics equipment according to different customer needs.
Service Commitment:
Integrity and pragmatic, innovative and high quality. With up to 15 years of industry experience, high standards in design and production allow URGO racking systems to support a ten-year warranty for normal use—the industry's longest warranty period.
Popular Products Showcase
URGO Pallet Rack Series
Frequently Asked Questions (FAQ)
Q1
What makes URGO different from other suppliers?
1) Excellent Service: Quick response with formal pricing provided within 12 hours.
2) Quick Manufacturing Time: Selective pallet racking produced within 15 days, strictly honoring formal contract schedules.
3) Special Export Design: Plastic clips safeguard beams from transit surface damage, and uprights are securely wrapped in protective plastic film.
4) Long Warranty: High design and manufacturing standards back products with a 10-year manufacturer warranty.
2) Quick Manufacturing Time: Selective pallet racking produced within 15 days, strictly honoring formal contract schedules.
3) Special Export Design: Plastic clips safeguard beams from transit surface damage, and uprights are securely wrapped in protective plastic film.
4) Long Warranty: High design and manufacturing standards back products with a 10-year manufacturer warranty.
Q2
What are the accepted payment terms?
1) Standard terms: 30% T/T down payment and balance settled prior to shipment.
2) 100% LC at sight.
2) 100% LC at sight.
Q3
Can I track the production status of my order?
Yes. Production updates and stage-by-stage photographs are communicated proactively throughout the manufacturing process, keeping you fully informed in real time.
Q4
How can I receive a fast and accurate project quotation?
Please provide the following primary details:
- Pallet racking dimensions: Height × Depth × Length
- Number of storage levels
- Loading capacity required per level
- Total racking quantity
Q5
Do you provide custom warehouse storage scheme design?
Yes. URGO features an in-house engineering team specializing in warehousing logistics systems. We optimize existing customer warehouse drawings to ensure peak storage capacity, operational safety, and maximum return on investment.
Q6
Do you offer on-site installation support and structural relocation?
Yes. URGO maintains a trained, dedicated installation team capable of assembling, configuring, or relocating racking units and related logistics infrastructure according to your facility's operational schedule.
