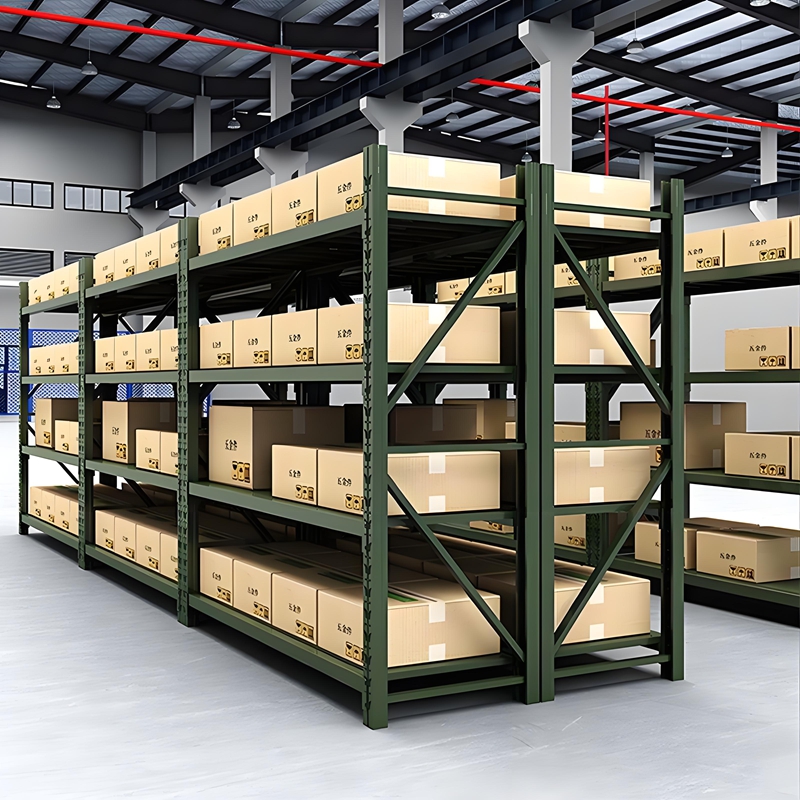

High Capacity Durable Steel Pallet Racks Medium Shelf New EU Standard Warehouse Rack System for Order Fulfillment
Product Description
Medium Duty Industrial Metal Shelving Rack for Storage Warehouses Stacking Racks & Shelves
Medium Duty Rack Structure
1 Rack Column
Made of cold-rolled steel by a special roll forming machine. The upright column features double-row holes at a 50mm pitch along a straight line for mounting beams. Opposing columns are assembled into a shelf frame using horizontal connecting beams and diagonal bracing.

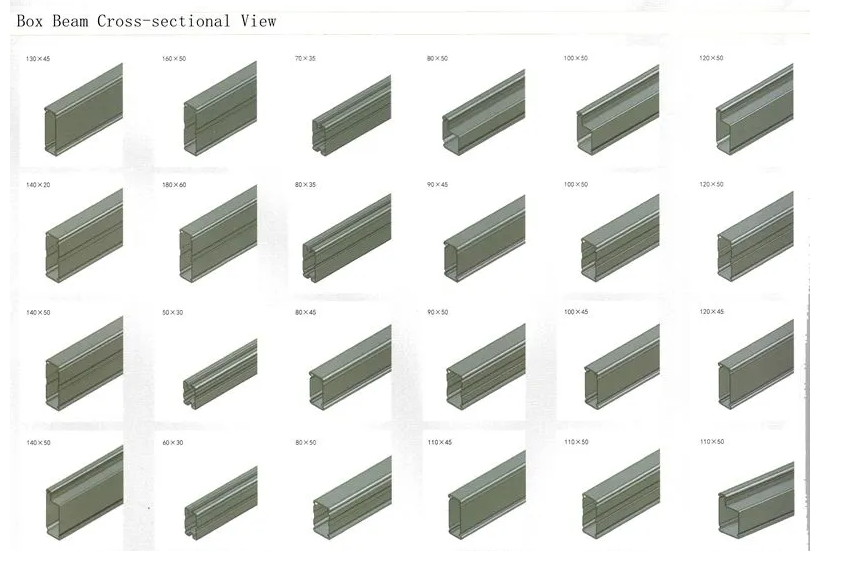

2 Ladder Beams
Utilizes "P" type pipes, commonly known as "ladder beams." The height of the ladder corresponds directly with the height of the steel deck.
3 Steel Plate Decks
Manufactured with premium cold-rolled steel plates, precisely bent on all four sides according to the required dimensions.
4 Complete Assembly
Beams and columns mount securely into a rigid frame, finished by laying the steel plates to create a fully formed medium-sized shelf unit.
5 Precision Finishing
All parts are precisely formed, polished, pickled, phosphated, and coated with fully automated electrostatic powder spraying. Provides a smooth, elegant surface with 50mm pitch layer adjustability and quick disassembly.
Features
✓ Fully Assembled Structure
Flexible free combination, convenient installation, and straightforward disassembly.
✓ Integrated Safety Locks
Steel buckles insert securely between beams and columns, complete with a safety lock mechanism to prevent accidental dislodgement.
✓ Section Optimization
Optimized cross-section profiles and versatile pipe selections greatly enhance overall load-bearing capacity.
✓ 50mm Pitch Adjustment
Columns feature a 50mm hole spacing to easily adjust layer heights according to merchandise dimensions.
✓ Structural Reinforcement
Adjacent back-to-back columns can be fortified with tie-bars; column base plates anchor to the floor for maximum safety and stability.
✓ High Load & Easy Setup
Suitable for manual picking or stowage delivery. Up to 300kg maximum load per layer, screw-free installation, and infinite bay connections.

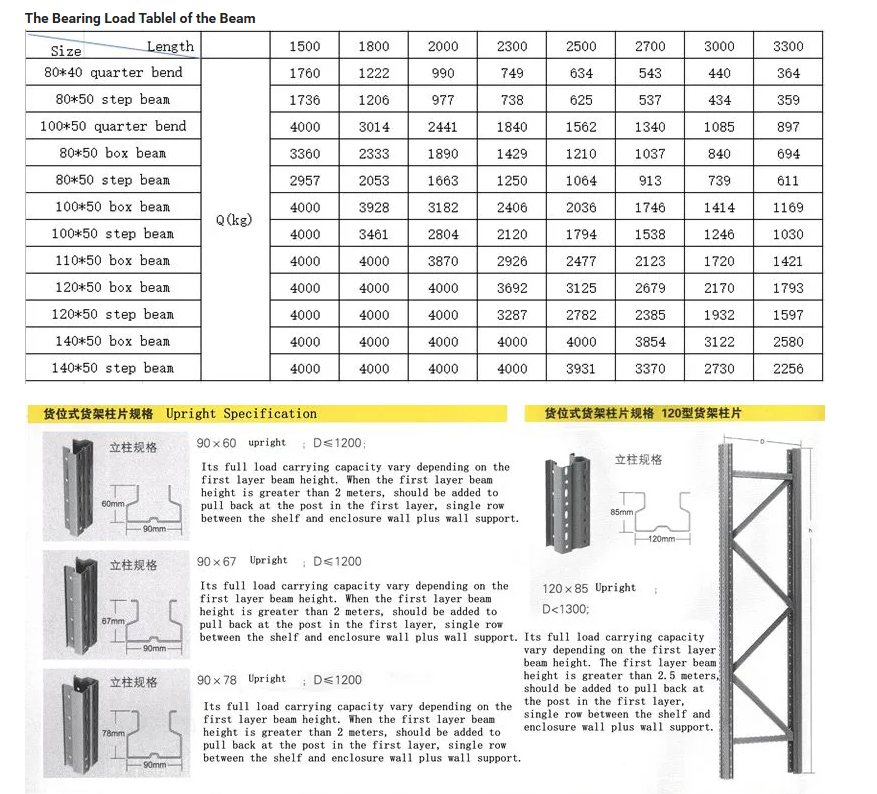

Product Specifications
| Product Name | Medium Duty Racking/shelf | Type | Multi-Level Racking |
| Brand | Yuanjin | Mobility | Adjustable |
| Texture | Metal.. | Place of Product | Jiangxi Province, China |
| Certification | ISO9001 / ISO14001 / ISO45001 | Modes of packing | Pallet Package or as Requested |
| Size | Sizes Can Be Customized | After sale service | 10 years normal use |

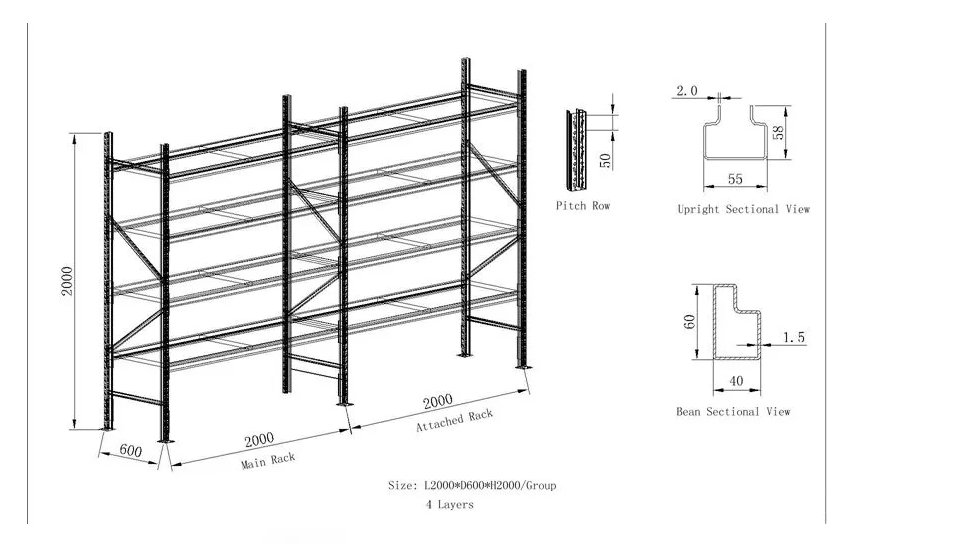

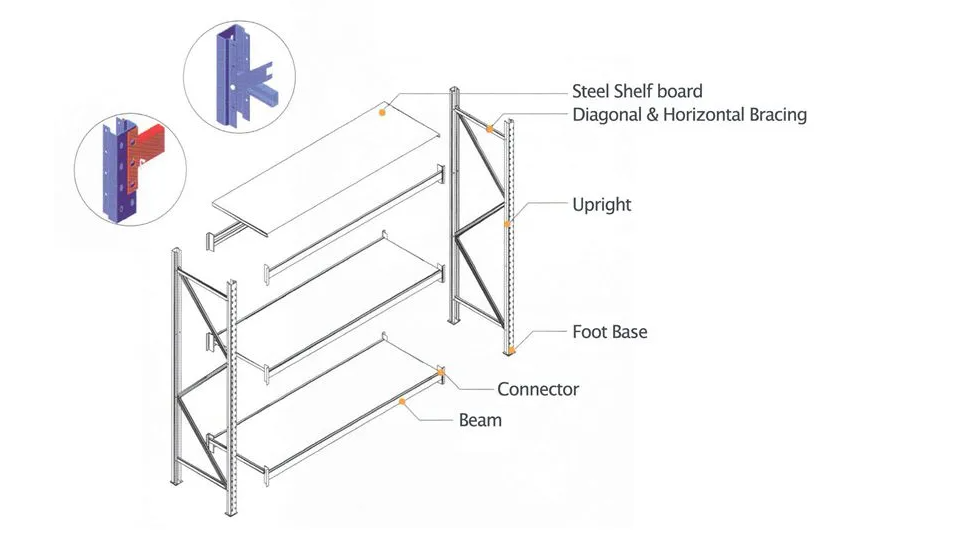

The Composition of Medium-Duty Racks
Medium Duty Racks are assembled from columns, beams, and laminates. An independent group contains two pairs of columns and is termed the main frame (Starter). When multiple units are connected in a continuous row, subsequent units share adjacent columns and are designated as subframes (Add-on).
Starter:
Two pairs of columns plus horizontal & diagonal bracing.
Add-on:
One pair of columns plus horizontal & diagonal bracing.
Beam:
2 pieces per layer.
Shelf Board:
Placed securely on top of two horizontal beams.
