Industrial Storage Shelves Roller Track Large Load Capacity Rolling Rails Aluminium Sheet Strip Flow Rack Design Pallet Storage
Product Description

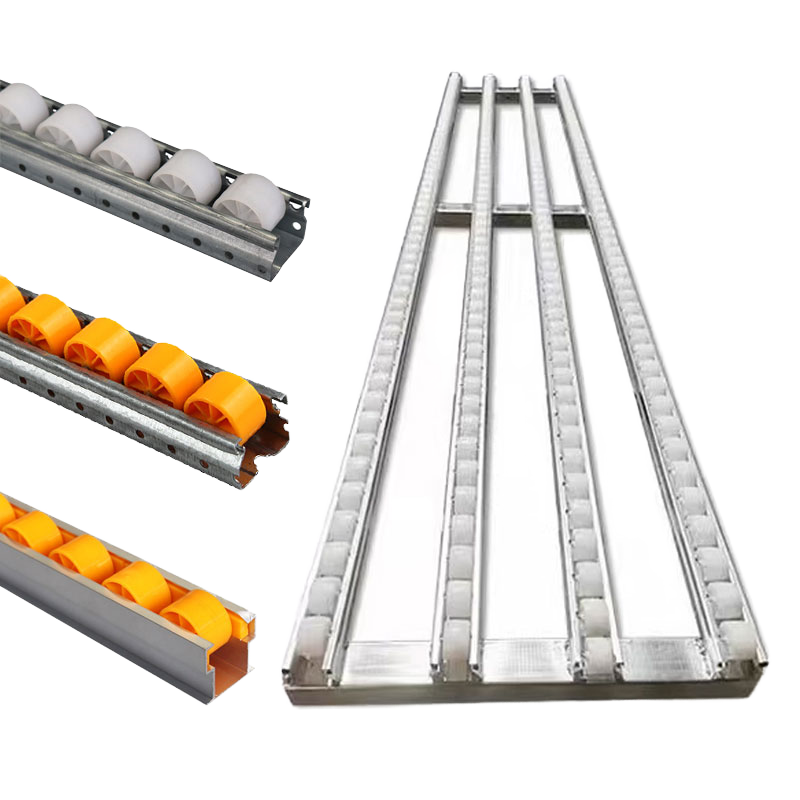

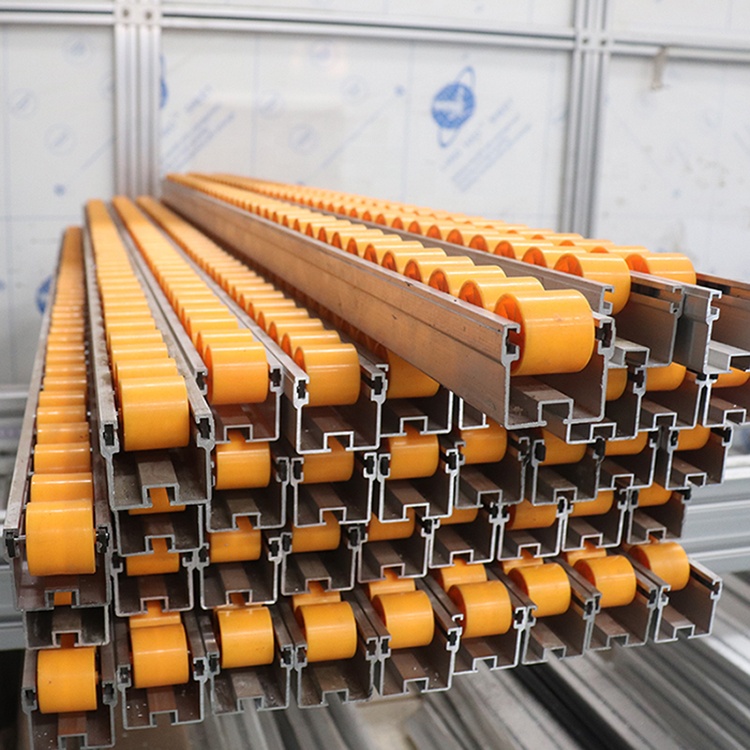

Roller Track for Pipe Rack System Aluminum flow rails plastic roller wheel conveyor
We deal with conveyor technology for an uninterrupted flow of goods. We have a range of roller conveyor for all scenarios. All of our conveyors are customised to fit the space and use aluminium profiles to frame and support the conveyor in any configuration. Their various uses are extensive, from transporting goods between workbenches to large automated production facilities.
Product Description

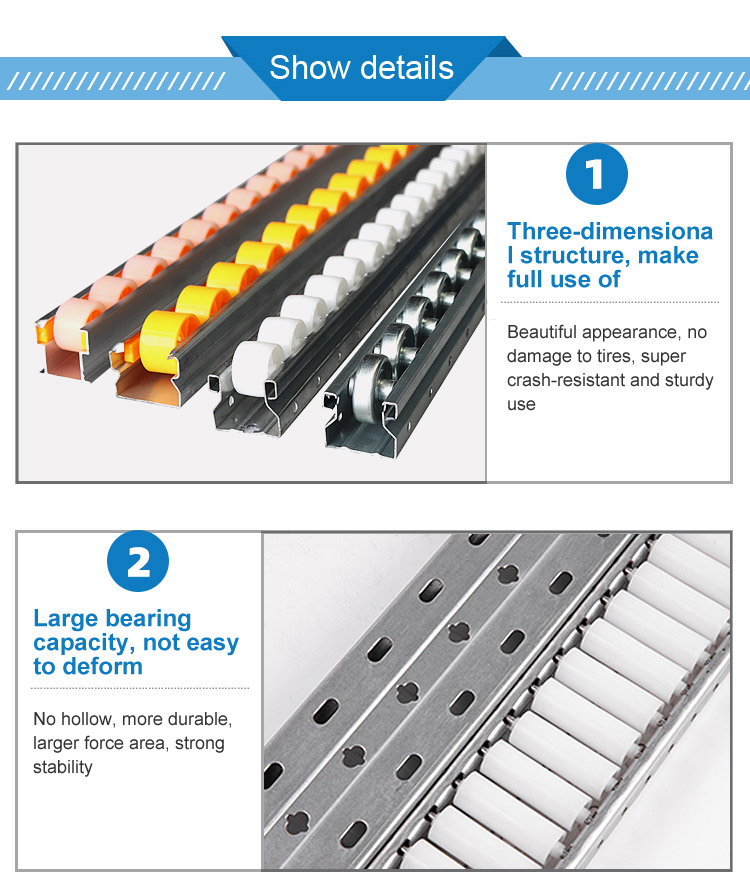

- Durable loading capacity for heavy duty.
- Easily assemble without any special skills requirements.

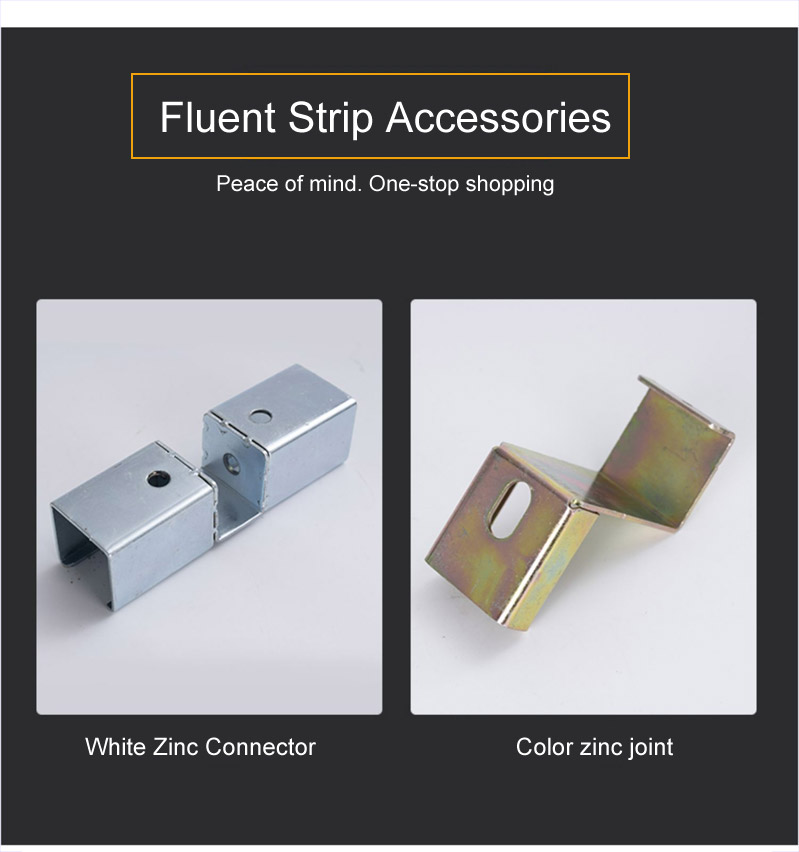

- Providing joint for placons conecting lean pipe perfectly.
- Low friction can deliver goods smoothly.
- Excellent quality and reasonable price.
- Short delivery time.

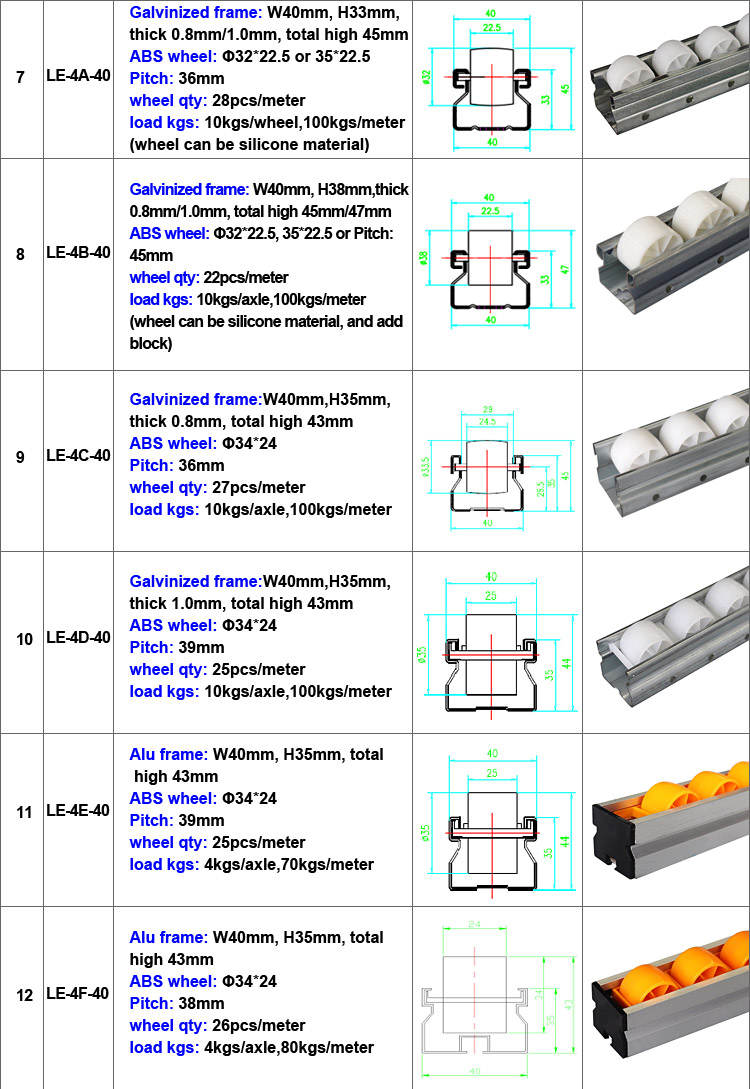

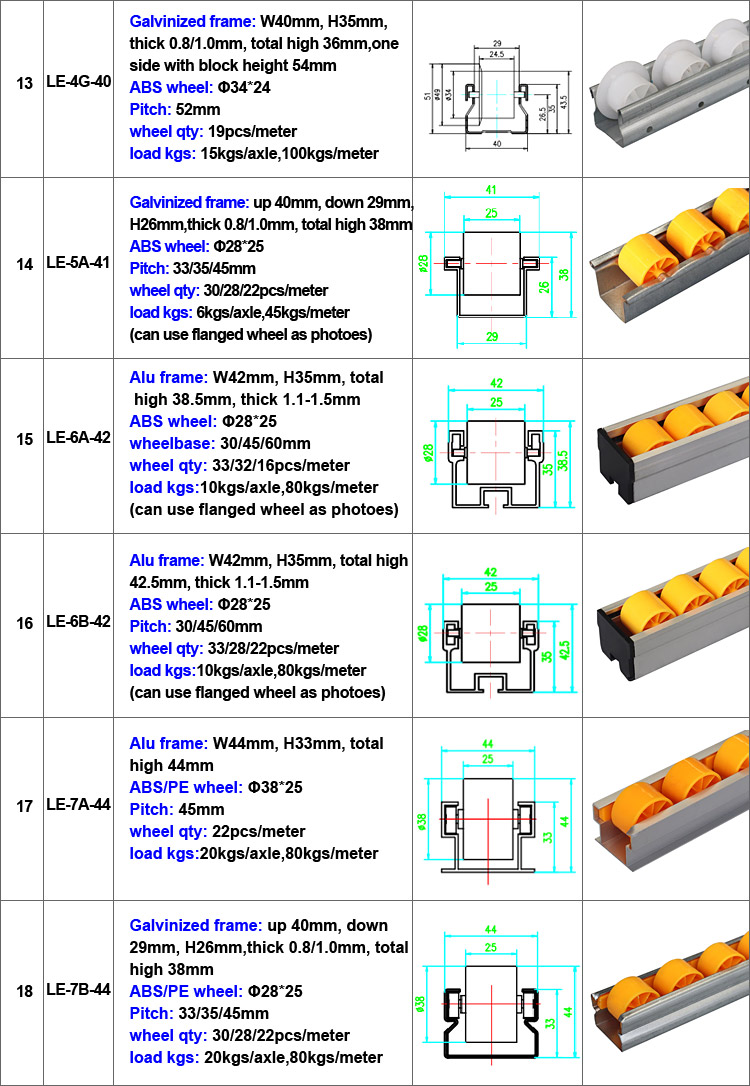

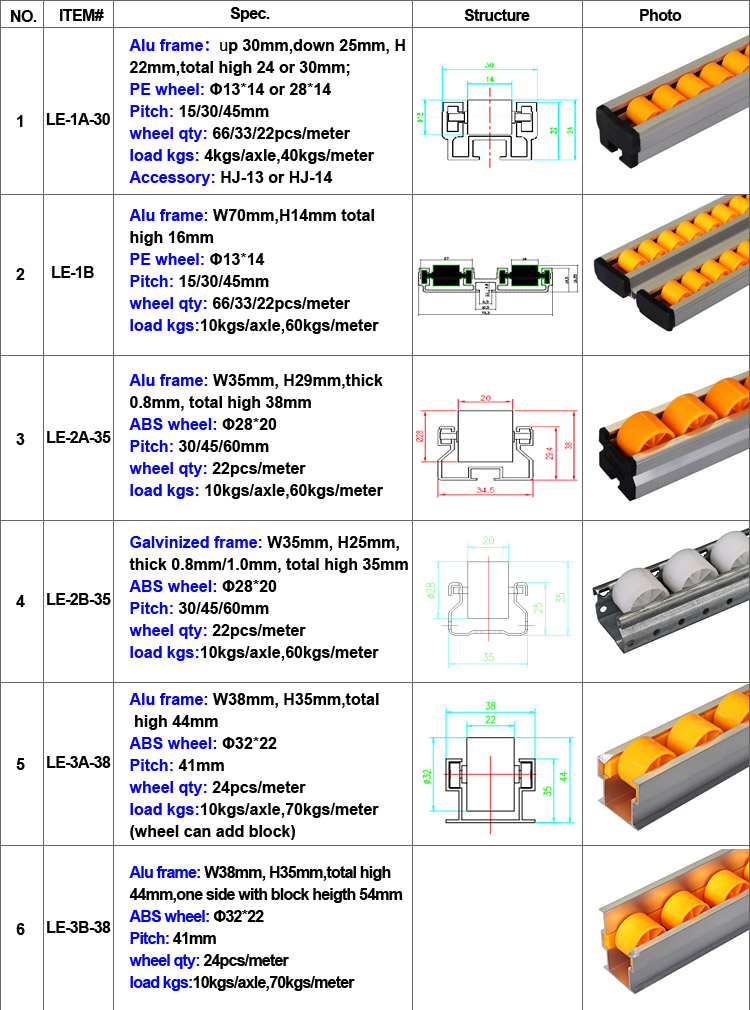

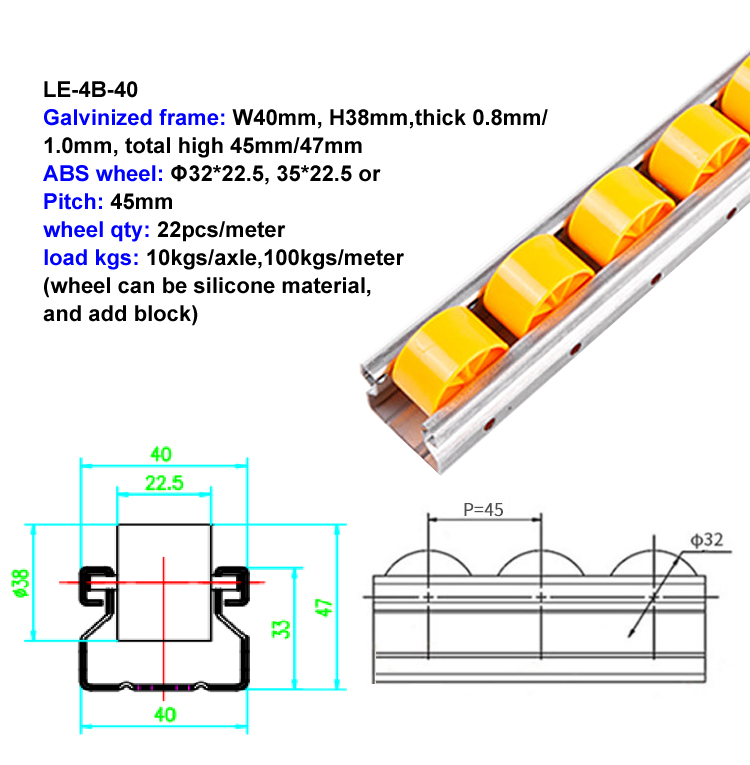

| Frame material | Galvanized Steel/ Aluminum Aloy |

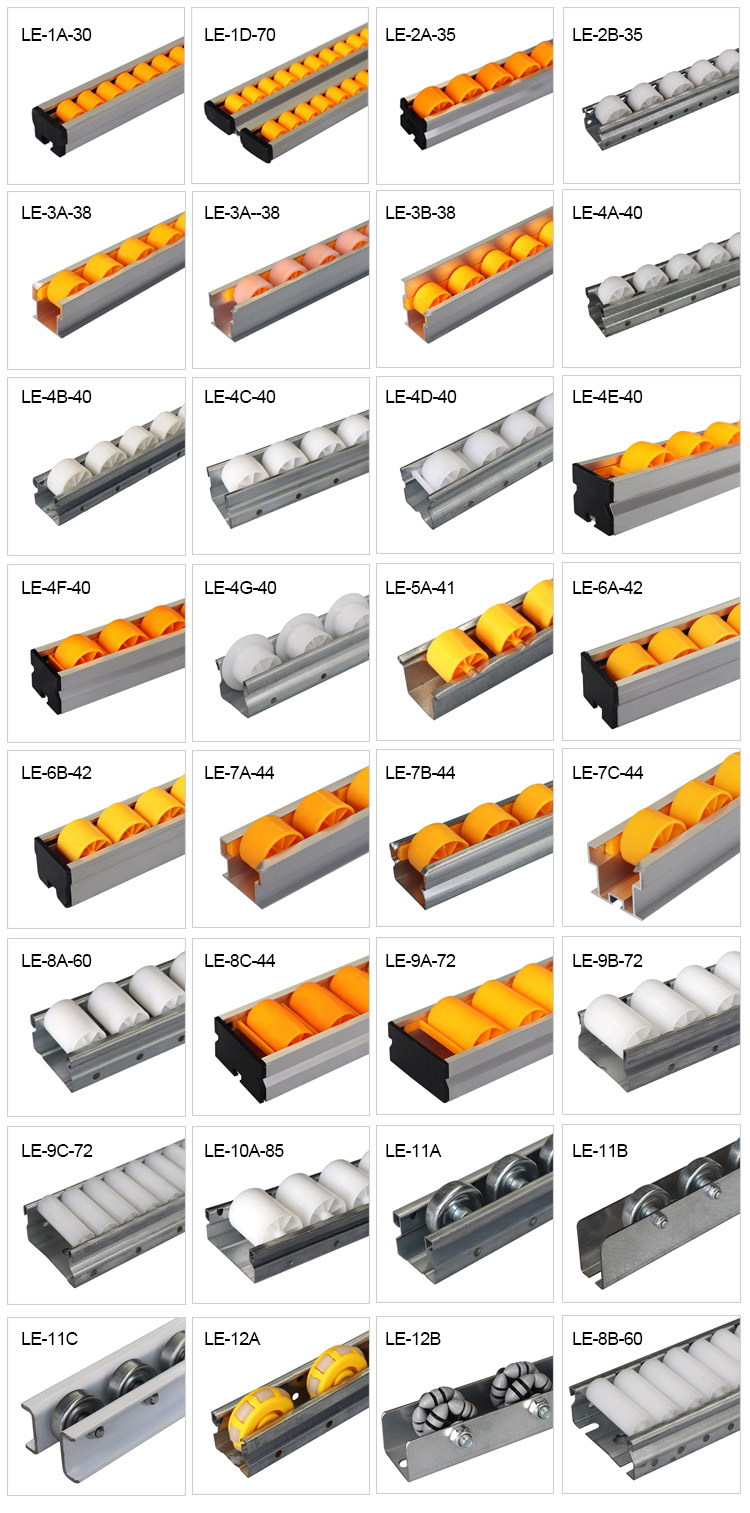

| Model | GF-35, GF-40, GF-40A, GF-40B, GF-41, GF-44, GF-60A, GF-60B, etc |
| Rollers material | PE, ABS |
| Diameter of rollers | Diameter of rollers |
| Thickness of frame | 1.0mm, 0.8mm or Customize |
| Width of roller | 20/25/22.5/25//25/42/42mm |
Product Features
- For simple goods transportation - Side Strip conveyors can be used.
- Conveyors with Caster Rail - This system is flexible for manual work piece transport.
- Roller Conveyors with easy running castors for universal use. Can also use with Flanged wheel for guidance along Conveyor line or castor ball sets and EDS brush sets suitable for table tops that connected to your interlinked track.
- Chain driven roller Conveyors.
Industrial Roller Tracks Suitable for Most Applications

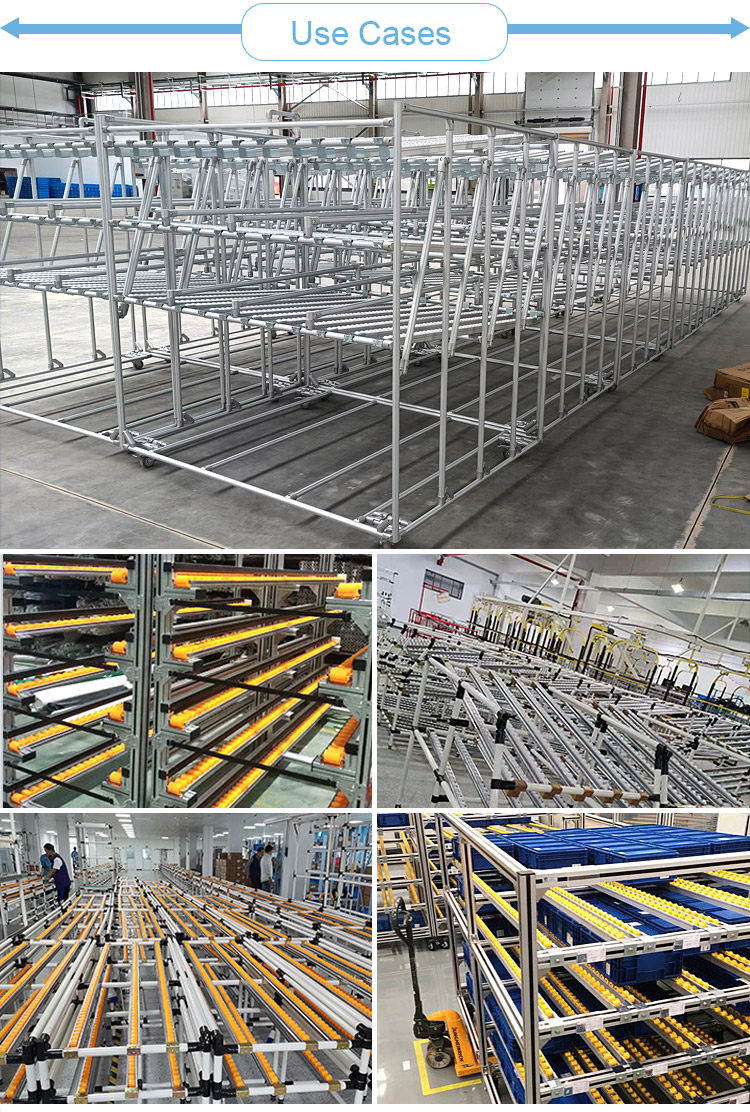

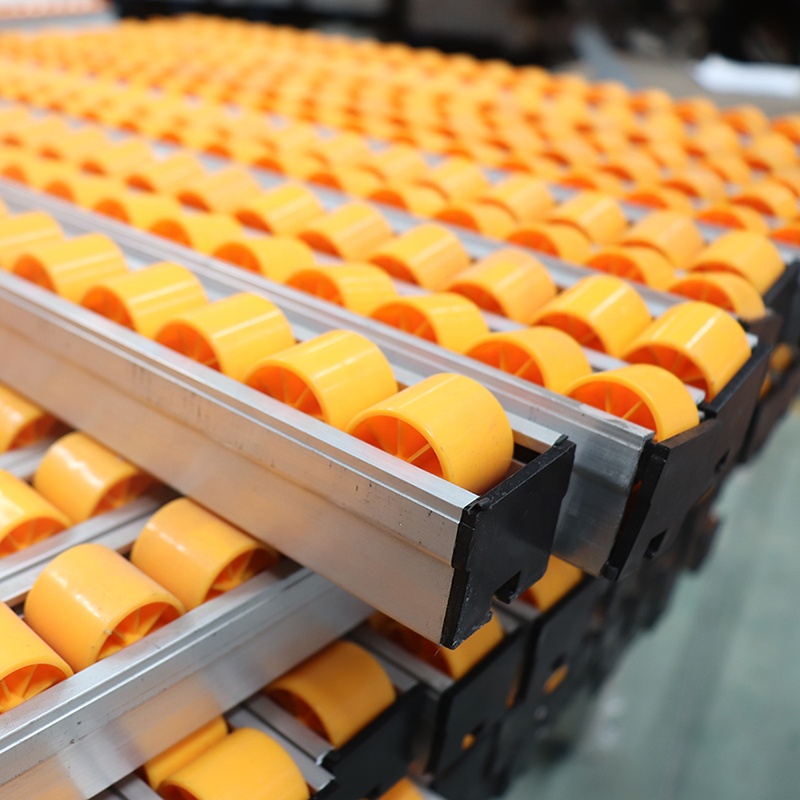

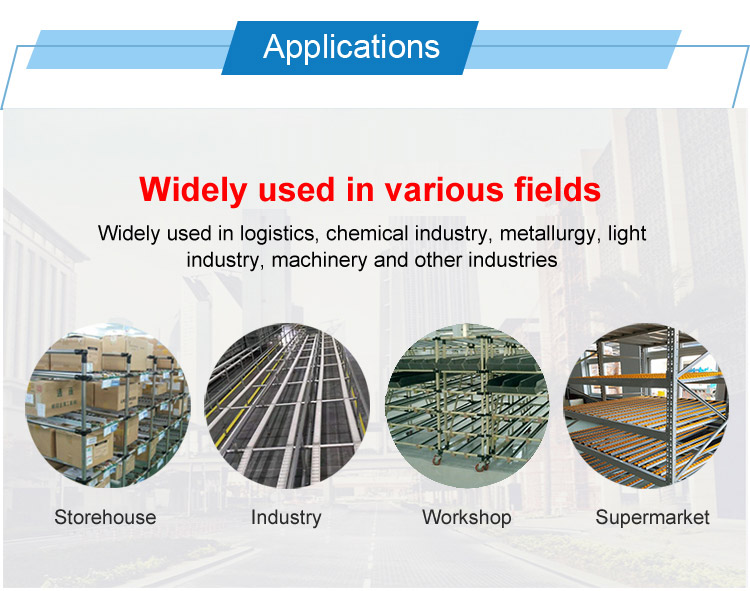

Fitted with the large-diameter 32 mmrollers suited to the majority of applications,The high densityof 28 rollers per linear metre meansonly 2 mm spacing between rollers.This high density ensures a smoothflow. The zinc roller track can be used in many fields, such like: worktable, furnitures, pipe rack,production line, office facilities,storage racking equipments,and other house appliances, it can help to raise working efficiency.

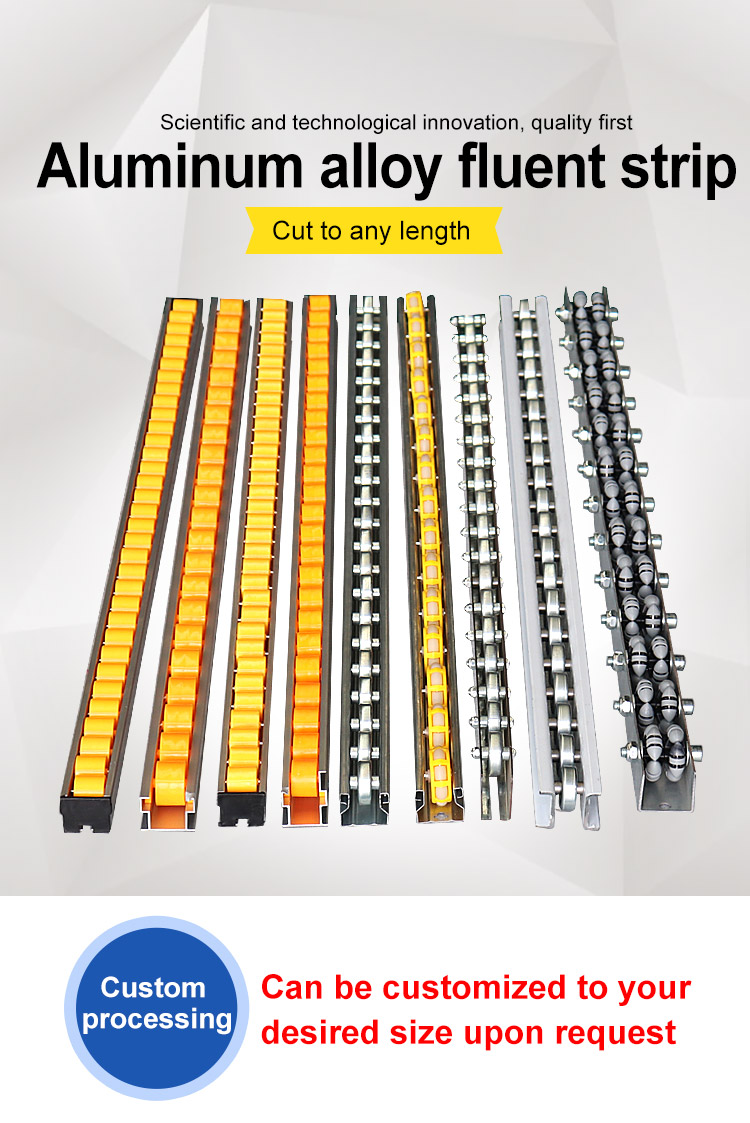

A fluent bar is also called a slideway. There are mainly sheet metal fluency bars and aluminum alloy fluency bars. Because of its convenient installation and placed the articles above the running smooth and agile, as the name suggests it is called a fluency, many of them are used in the material rack of the workshop, etc.
Please contact us for more sizes and specification as per your request.
FAQ & Contact Us
What kinds of supplier we are?
We were a standard t-slot and v-slot aluminum supplier, but we found this wasn't what our customers needed. Our customers needed a company who was willing to go the extra mile to help them from start to end. From there we found our niche by being a full-service custom industrial solutions provider. We believe that no project is too small, and we've never found a project too big to handle. From the very beginning, we've looked to serve the industry's needs and that's what we have continued to do over the past 10 years. We are not only provide materials, but also Professional Research & Design technical department, for all of your benefits.
What's the lead time for small order and mass production?
There will need about 7 to 10 days to open the new molds, then we will send customer the trial sample for approval before mass production, after the sample was approved, it will take around 10 to 15days for mass production for a normal 40 High Q container.
How can I get a quotation from your company?
In order to quote asap, please provide us the following information as many as you can:
1). Detail drawings (CAD/PDF/DWG/IGES/STEP)
2). Material
3). Quantity
4). Surface treatment
5). Any special packaging or other requirement
1). Detail drawings (CAD/PDF/DWG/IGES/STEP)
2). Material
3). Quantity
4). Surface treatment
5). Any special packaging or other requirement
Can I have a sample for testing?
Yes, we can offer customer free samples that value under $50, but you know the international shipping cost is expensive, we will honest hope our customer can accept the shipping cost, absolutely, If customer have DHL or fedex account, we can send free samples very soon.
Can the roller track systems be customized to specific dimensions?
Yes, all of our conveyors and roller track frames are customized to fit your space requirements and configurations, including profile thickness, width, and roller materials.
What materials are available for the rollers and frame structures?
The frames are typically manufactured using Galvanized Steel or Aluminum Alloy, while the roller wheels are constructed from high-durability PE or ABS materials.
