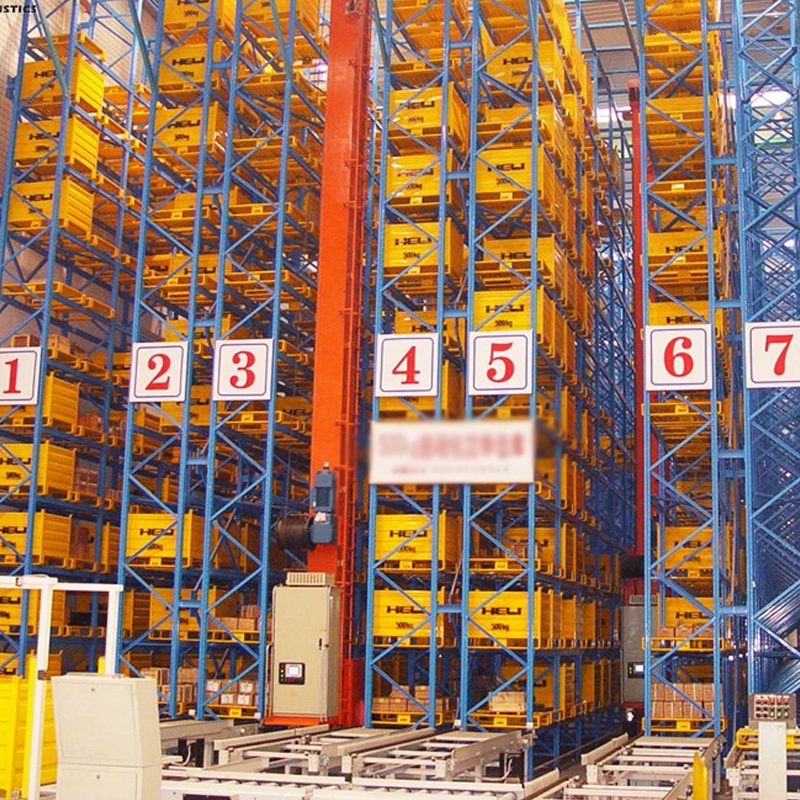

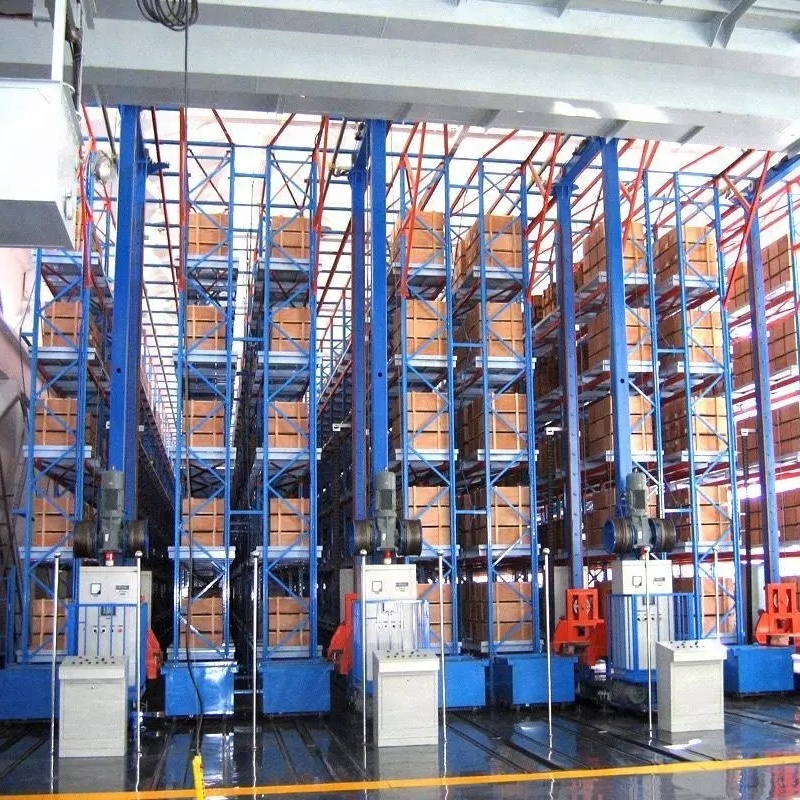

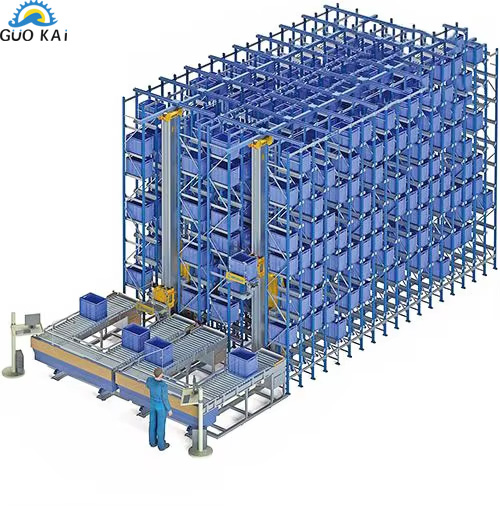

Multi Level Rack ASRS Warehouse Robot Storage Retrieval Picking System Asrs Racking System with Stacking Crane
Product Description
Overview

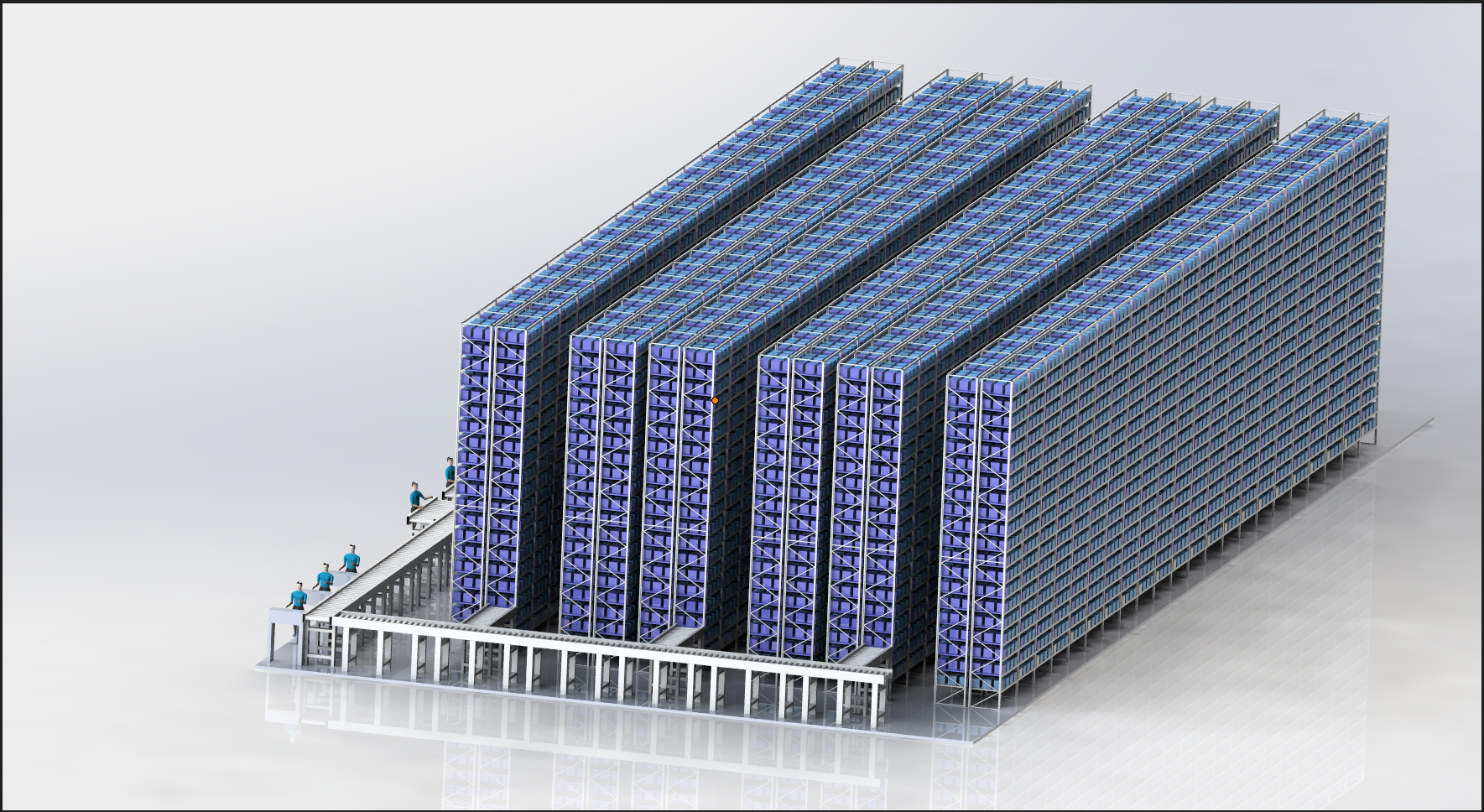

Automated Storage & Retrieval Systems (ASRS)
The automatic three-dimensional storage system consists of high-rise three-dimensional shelves, automatic stacker, conveying system, automatic control system (WCS), warehouse management system (WMS), and related peripheral equipment.
Automatic storage system can make full use of storage space, and online control of equipment can be realized through storage management system (WMS). Based on the principle of first in first out, quickly and accurately handle the goods and reasonably manage the inventory data.
Advantages
- Save inventory floor space and improve space utilization
- Automatic cargo access, accurate, fast and safe
- Be precise in information management and save labor force
- Improve the contingency capacity of production
- Accelerate the turnover of warehousing funds
- Low transportation cost and high operating efficiency
- Improve the inventory management level of enterprises
Engineering & Details

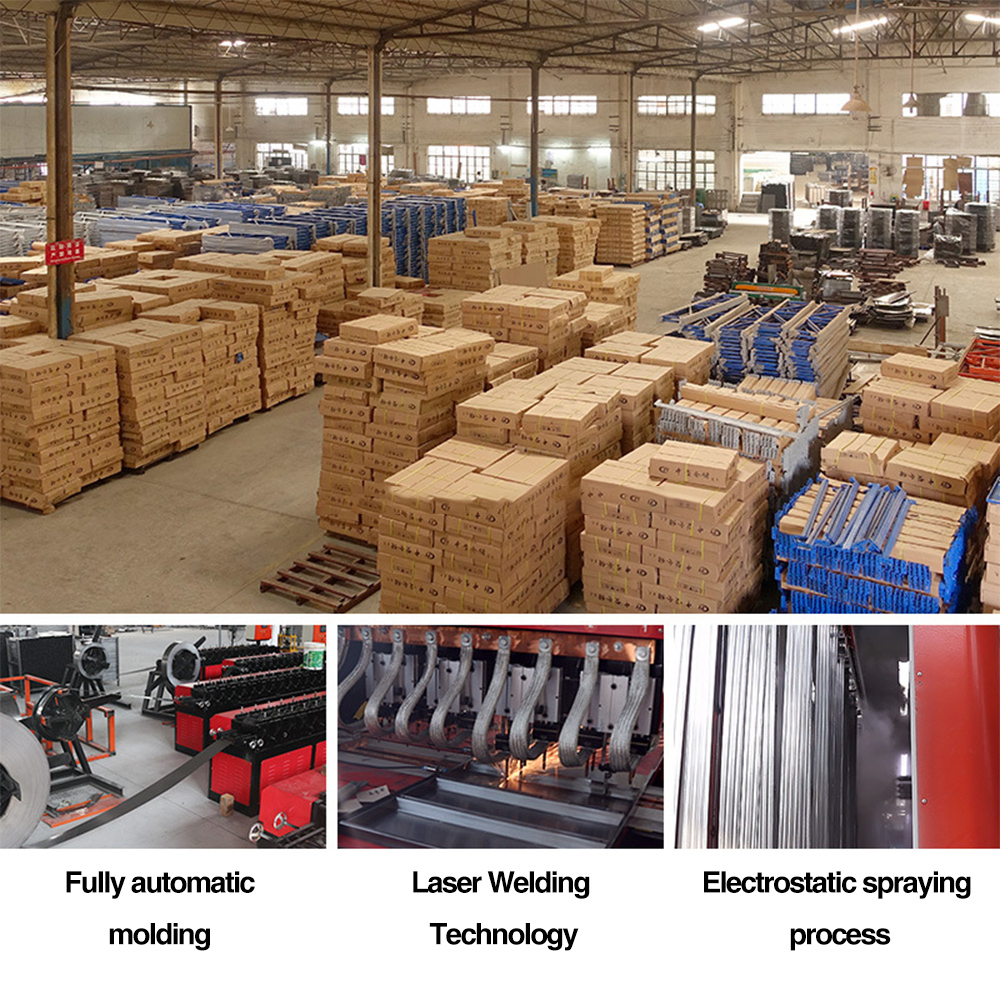

Manufacturing Technique

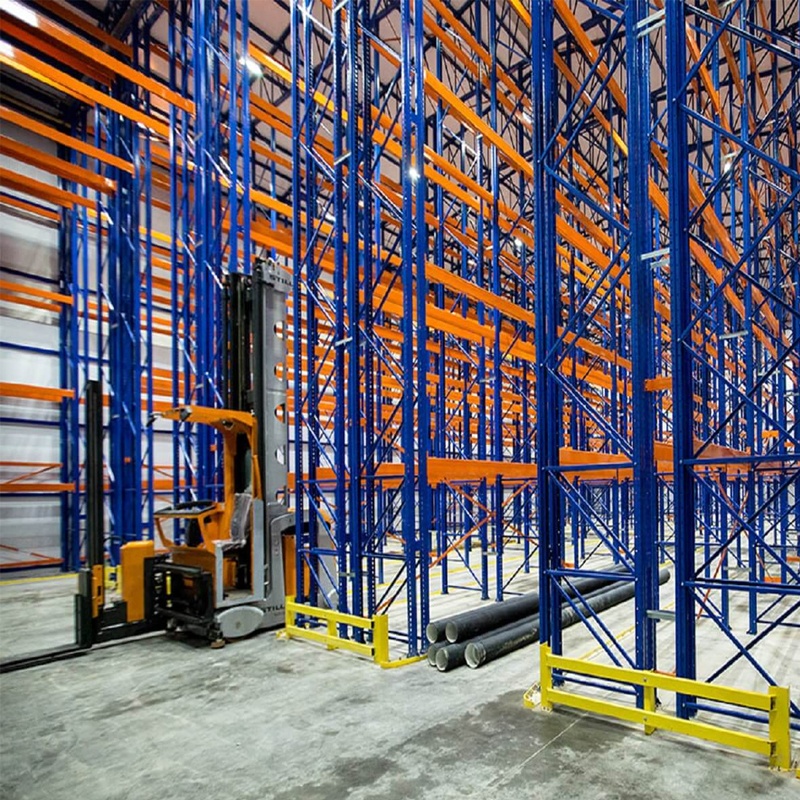

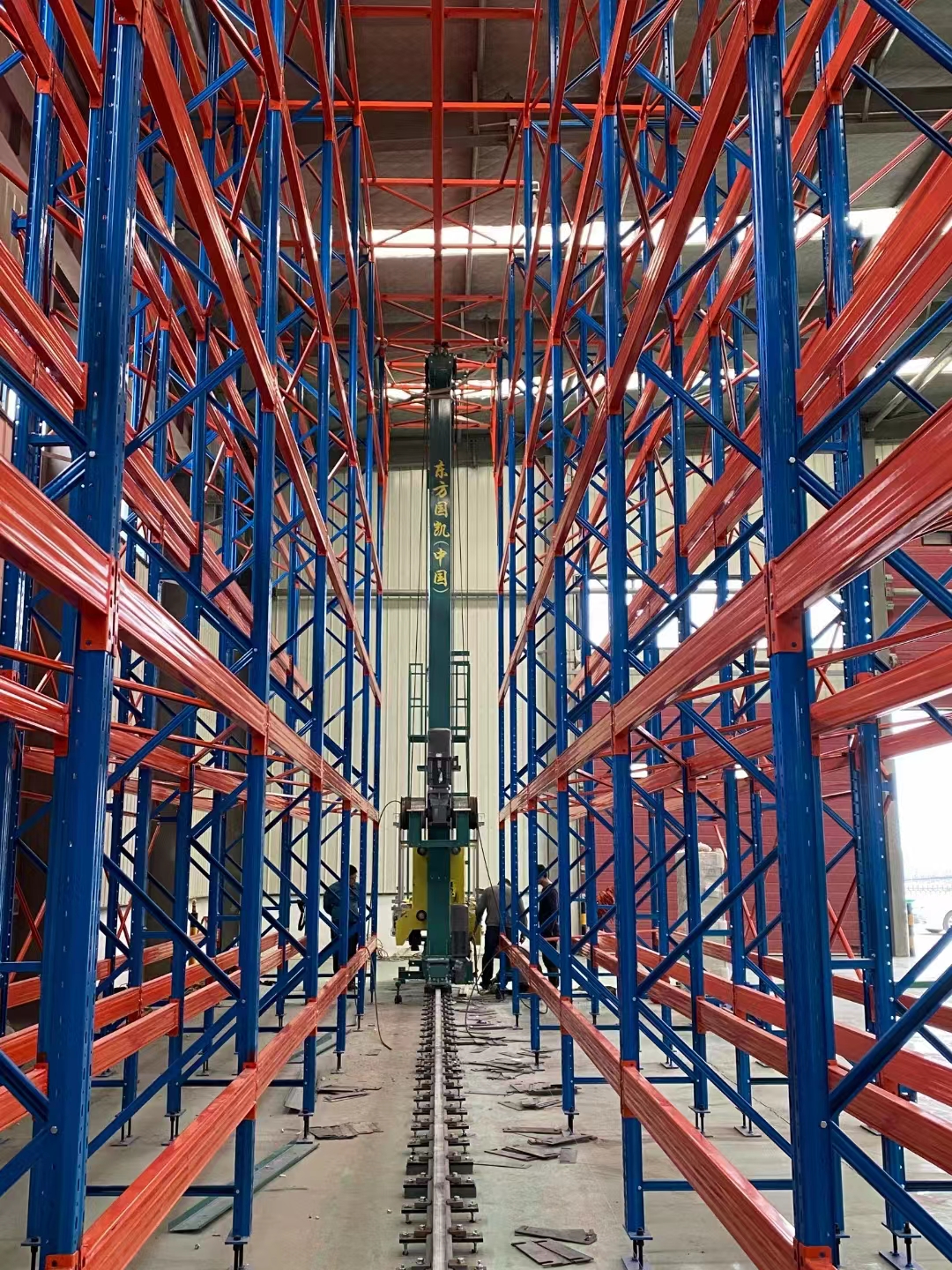

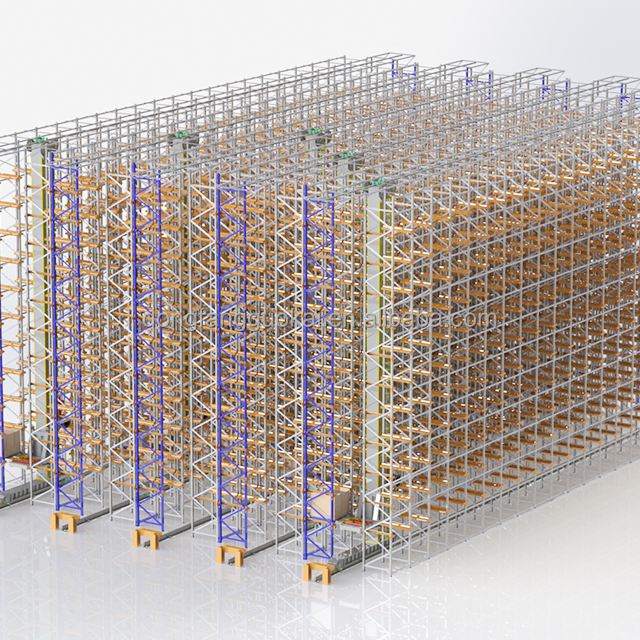

Racking
Structural feature: ASRS System are usually equipped with pallet racking and drive-in racking, both of which are composite structure. Steel panels and wooden panels are available for loading with good capacity. Conveyors will do the loading and unloading job under the instruction from the central computer. ASRS System is mainly used in the food, tobacco, electronic, mechanical and armament industry.

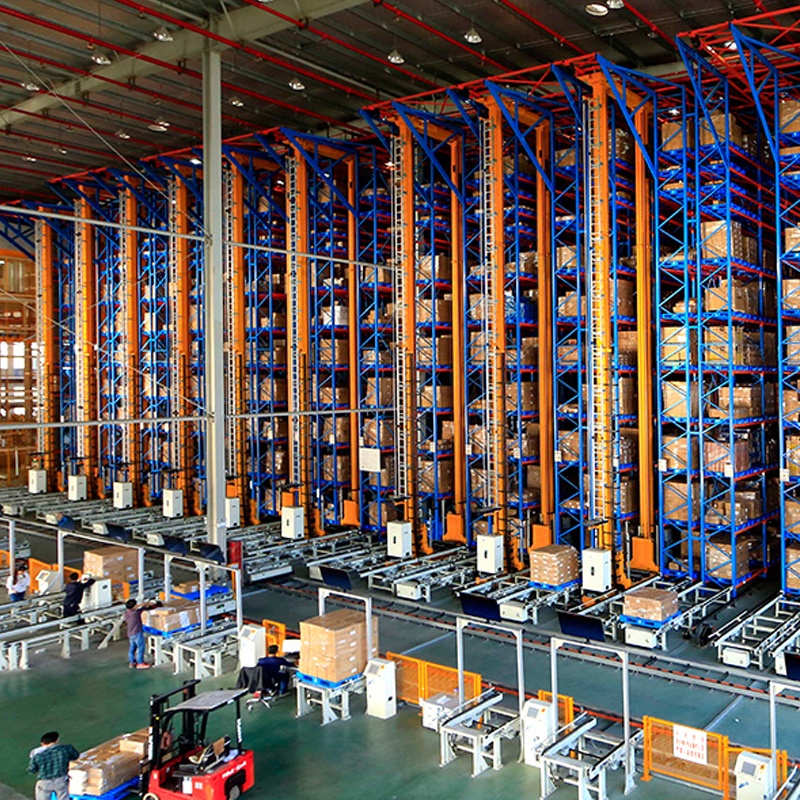

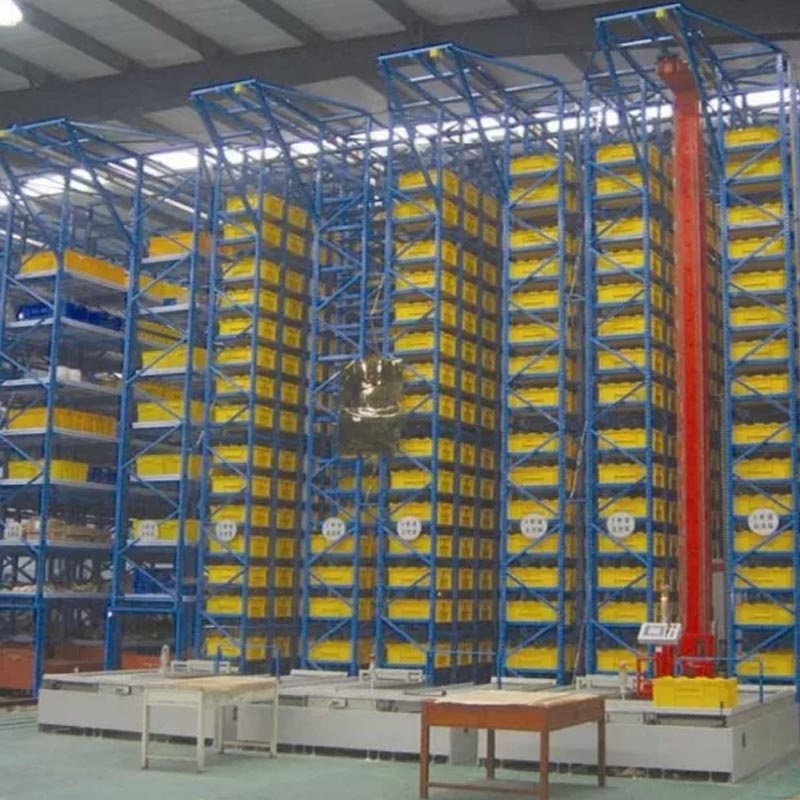

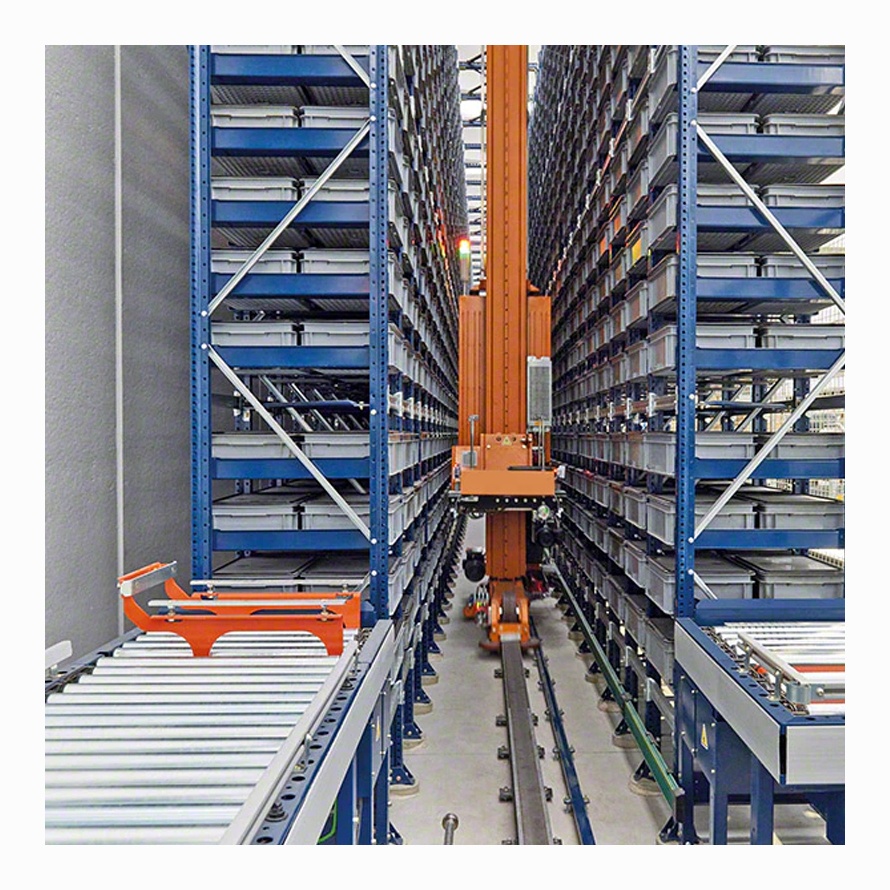

Stacker
Structural feature: Double upright structure, steady and reliable, vector frequency conversion drive and encoder position control, mechanical and electronic safety devices to ensure safe using of the system; All the way tracing technology by information transferring; Electric components are imported from abroad; Touching screen interface for easy operation; Making manual, semiautomatic, automatic and linkage control come true; Used in many situations by combining with other logistics equipment.

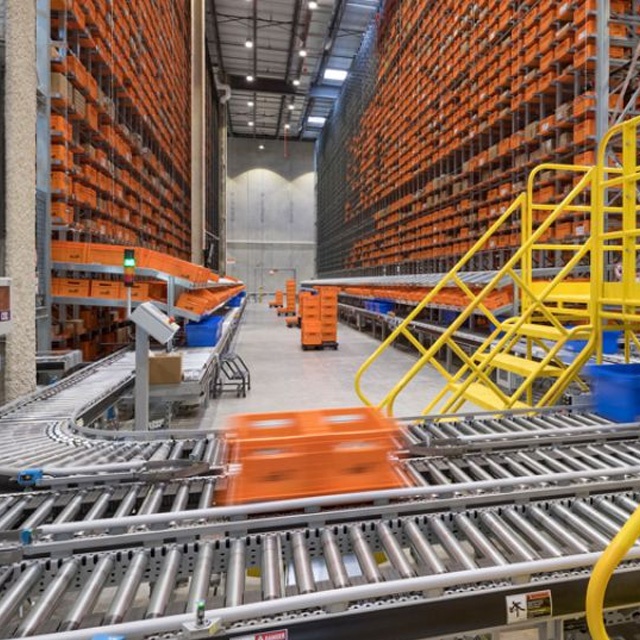

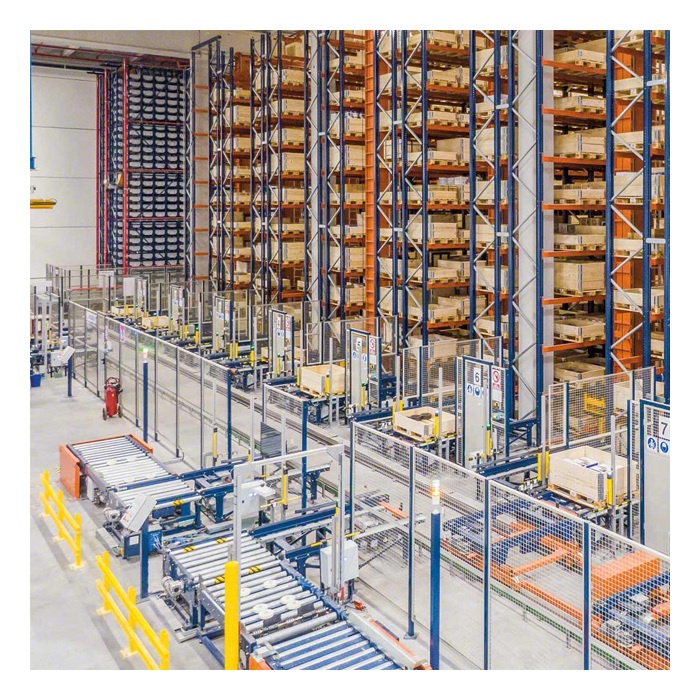

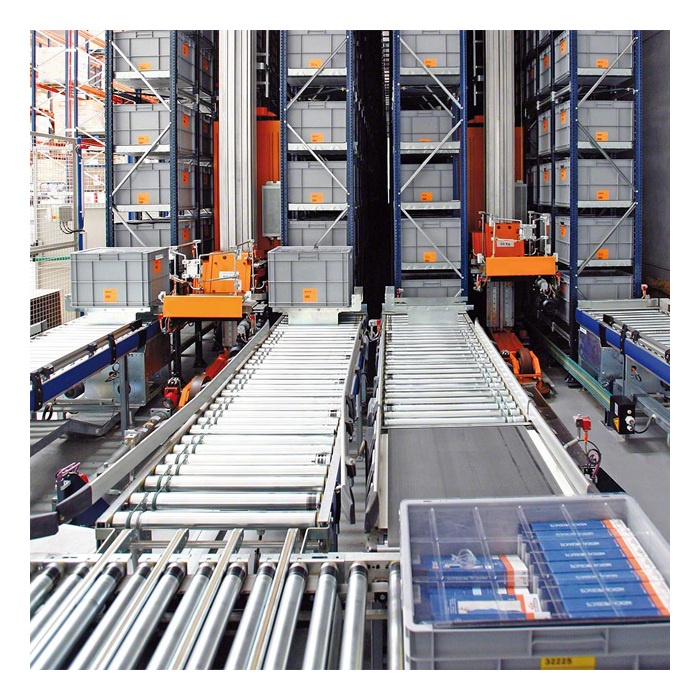

Conveying System
Structural feature: Conveying system is usually equipped in the front or back of warehouse for conveying goods here and there, bridging the procedures done by forklifts and stackers by using rolling conveyor or chain conveyor and combining with lifts, rotating devices and other equipments.

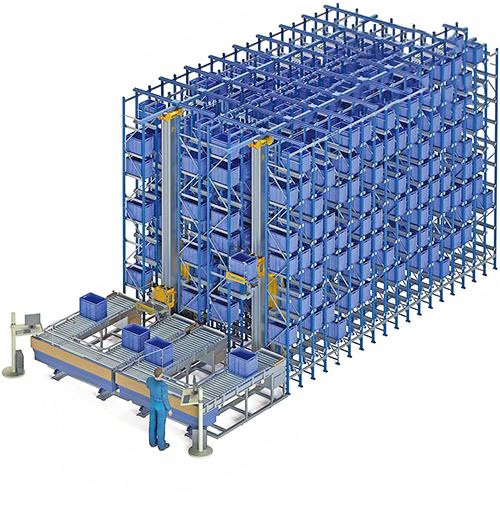

Controlling System
Structural feature: Communicating with WMS and ECS through OPC agreement, PROFIBUS bus network, set up by Siemens S7-300 controller can operate all conveyors offline, doing conveying of goods automatically. Please refer to the attached drawing for details of conveying system.
WMS System
Hardwares of WMS System: Star network structure, network server, RF server, computers for management and monitor, RF base station and RF terminal for in/out warehouse of goods.
Specifications
Product Specifications
| Material | Cold-rolled Steel |
|---|---|
| Surface | Electrostatic spraying |
| Size | Customize according to your needs |
| Color | Customize according to your needs |
| Feature | Corrosion Protection |
| Payment Terms | 40% deposit upon signing the contract, the balance will be cleared by T/T before delivery |
| Delivery Time | 25-35 working days after received deposit |
About Us
Company Profile
Beijing Dongfang Guokai Industrial Equipment Co., Ltd. was established in 2003 with a registered capital of 210 million yuan. It is a high-tech enterprise specializing in the planning, design, manufacturing, installation, and consulting services of fully automated three-dimensional warehouse systems, warehouse shelf systems, WMS/WCS software systems, and specialized logistics appliances.
The headquarters is located in Beijing, the capital city, and has established branches and factories in many places throughout the country.
The company has strong technical and R&D capabilities, and its products are widely used in third-party logistics, cold chain, food and beverage, medicine, complete vehicles and components, e-commerce, and other fields at home and abroad. It has successfully obtained the manufacturing qualification for Class B equipment in the "List of Equipment Manufacturers of the People's Liberation of China", and has been recognized as a "high-tech enterprise" by the government.
The company is committed to establishing a sound quality control system, and its independently developed and produced products have passed the certification of ISO9001:2015 international quality system, ISO14001:2015 international environmental management system, etc.
Currently, the main products include a series of high-end shelf products such as fully automated three-dimensional warehouse systems, shuttle car shelves, crossbeam shelves, drive-in shelves, electric mobile shelves, attic shelves, steel structure platforms, shelf shelves, fluent shelves, cantilever shelves, and various logistics special appliances.
Qualifications
Certifications
Each of our products has passed authoritative professional certification, and there are about 100+ patents to ensure your peace of mind.
Help Center
Frequently Asked Questions
Are you a manufacturer or trading company?
Since 2003, we have started to provide overall warehouse solutions. We have two factories located in Tianjin and Nanning, China. Welcome to visit anytime.
What information is required for an ASRS quotation request?
First of all, we need to know the number of your storage spaces, the maximum number of goods in and out per hour, and the size of the warehouse. This is a complex system, and we need to fully communicate to provide an optimal design.
Could you produce according to customers' design?
Of course, we have rich experience in overall warehouse solutions, and we build hundreds of projects every year customized to client specifications.
What are your trading and payment terms?
40% deposit upon signing the contract, and the balance will be cleared by T/T before delivery.
What is your delivery time?
Delivery takes 25-35 working days after receiving the deposit, according to the order quantity and drawing size.
How can I install the racks, and what is the packaging manner?

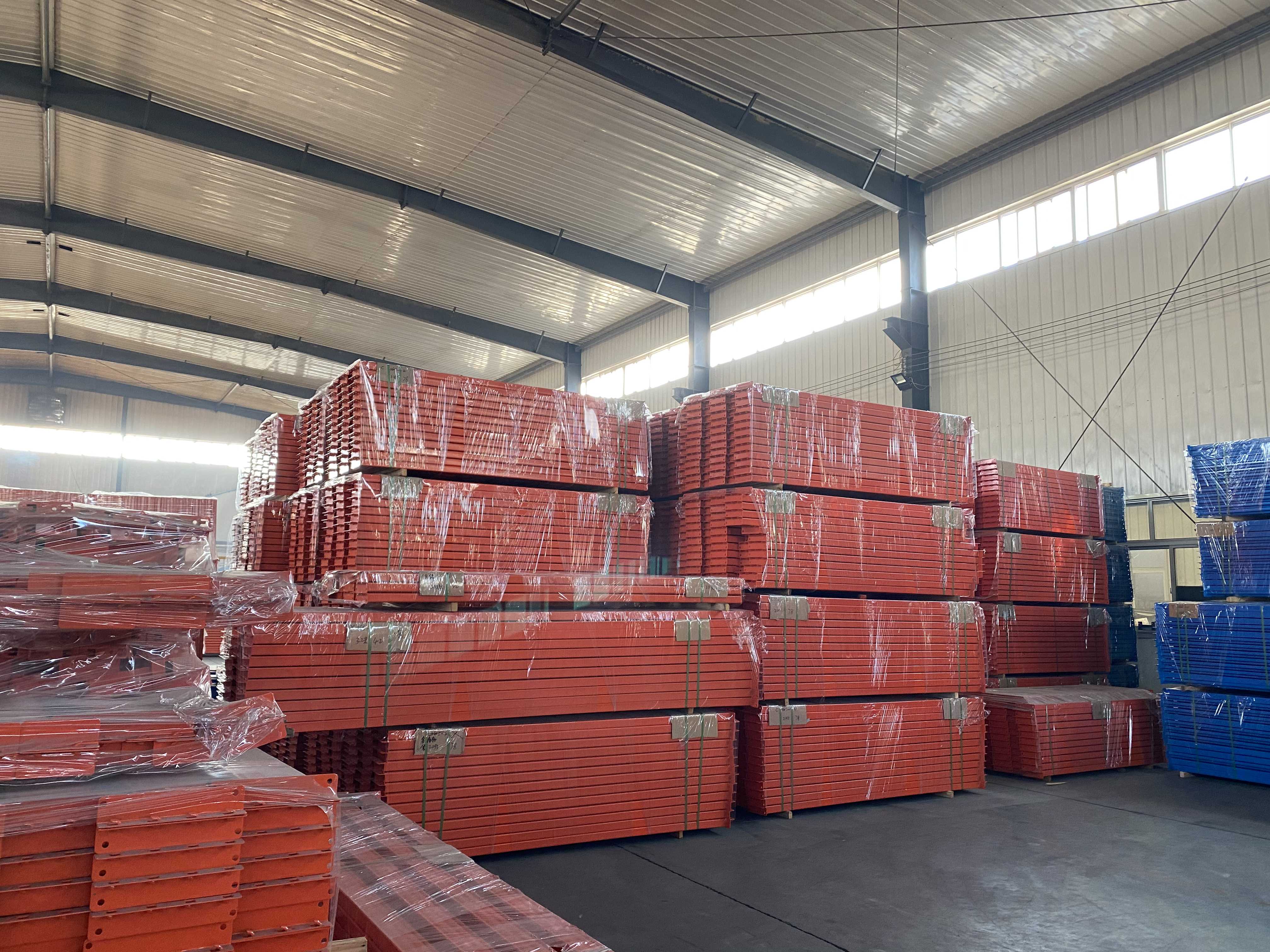

We provide detailed installation instructions for every type of shelf. If needed, we can also arrange engineers to provide guidance. Generally, shelves are flat packed with air bubble film in standard export packaging; wooden boxes are available upon client request.
