Q235b Steel Single Deep Double Side Selectivo Slective Pallet Storage Rack Warehouse Equipment
Product Description
Specifications Overview
| Upright frame | 80*60 to 120*95mm many size available and thickness 2.0 / 2.3 / 2.5 / 3.0mm |
| Beams | 80*50 to 180*50 many size available and thickness has 1.5 / 2.0mm |
| Famous color | RAL 2004 / 5005 / 5015 / 7035 / 1003 |
| Surface treatment | Powder coating |
| We offer free design with instant quotation | |
Company Information
Established in 1999, Jiangsu Xin Zhong Ya Racking Manufacturing Co. Ltd., devotes itself to the design and manufacture of storage equipment. We are specialised in producing various pallet racking, longspan shelving, drive in racking, cantilever racking, mezzanine and steel platform, Steel/Plastic Pallet, Storage Cage and other related storage equipment.
It provides 100 percent accessibility and good stock rotation. It is fully adjustable and easily installed. Equipment and capital investment for such a system is also the most economical.
It is designed to meet almost all pallet sizes or weight and suitable to be used with all types of lift trucks. A wide range of protection accessories is available, such as corner guards, column protector, back mesh, pallet support bar, etc. making storing a lot more safer.
Key Advantages
Versatility and flexibility to meet any storage needs:
- Pallets can be located, accessed and moved individually.
- Infinitely adjustable and offering a wide range of options and components.
- Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
- Strength and rigidity prevents compression damage to goods.
- Bottom level of pallets can be stored on the floor, lowering structure costs.
- Quality guarantee: 3 years.
- More than 300 workers enable us to guarantee the delivery time; normal orders within 20 days.
Features & Load Range
Loading Capacity
<4000Kg / level; Whole rack <13500Kg
Height
3,000 - 11,850 mm
Depth
838 - 1,200 mm
Length
1,500 - 3,300 mm
Special sizes are also available to specific storage needs.
Customized Solutions
Please inform us the following information, we can provide the solutions as your requirement, thanks!
- 1) Size of the warehouse
- 2) Width, depth and height for each unit of rack
- 3) How many levels for each unit of rack
- 4) Loading capacity for each pallet or for each level of beams
- 5) Color
Product Structure & Accessories
Post and Beam (Section Size) & Storage Rack Design

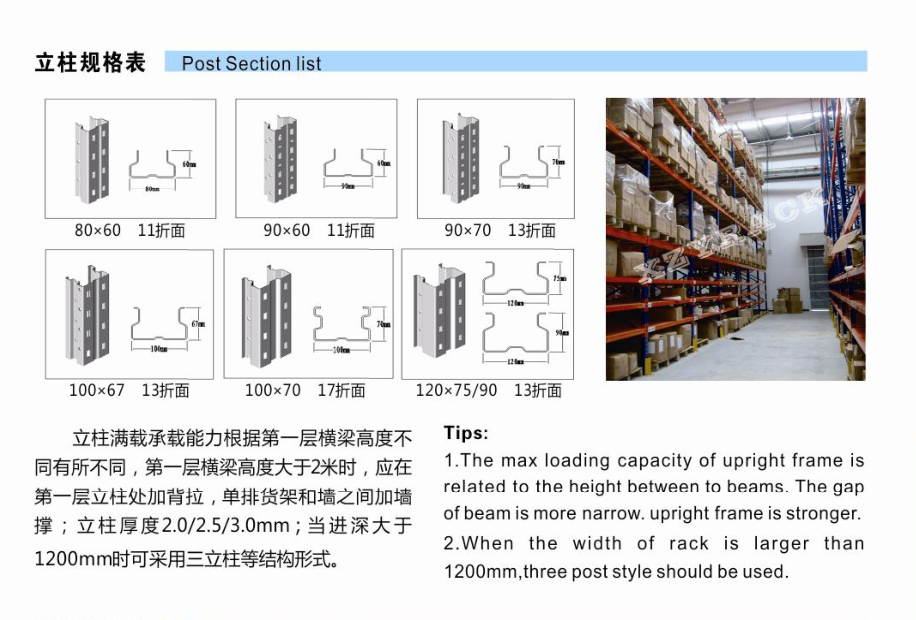

Post and Beam (Section Size)

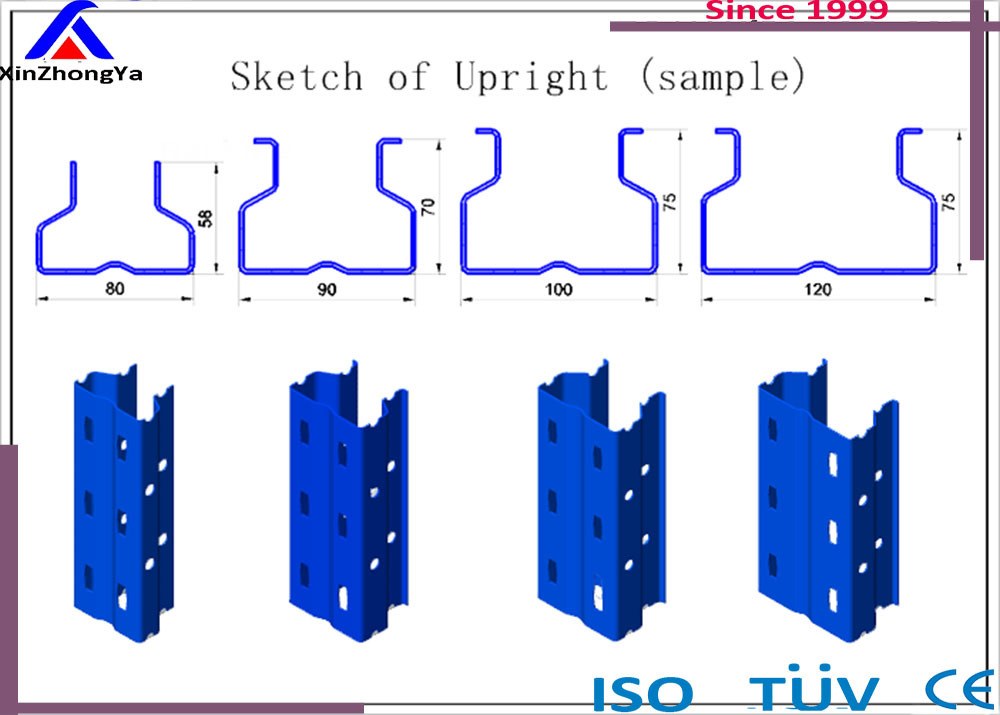

Storage Rack Design

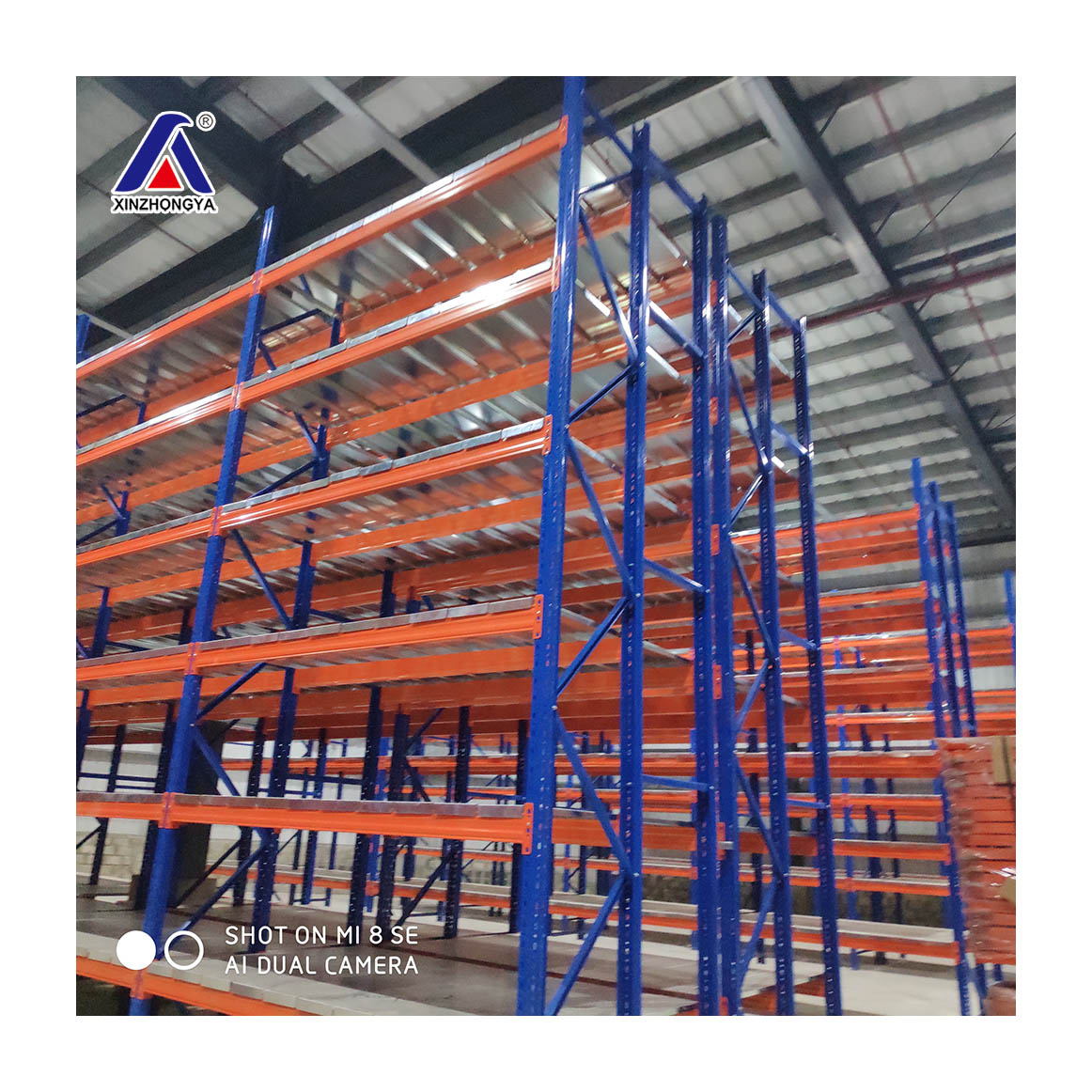

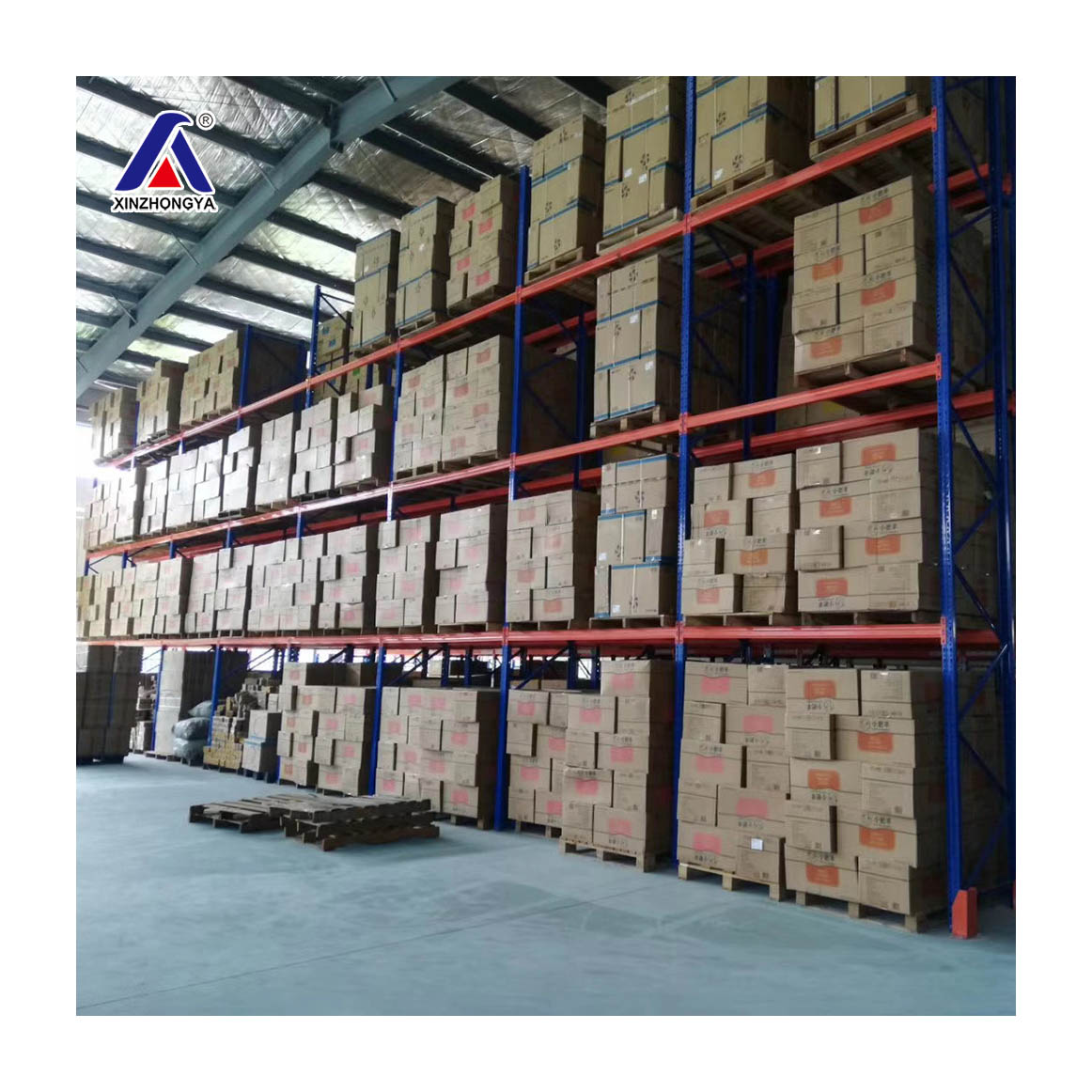

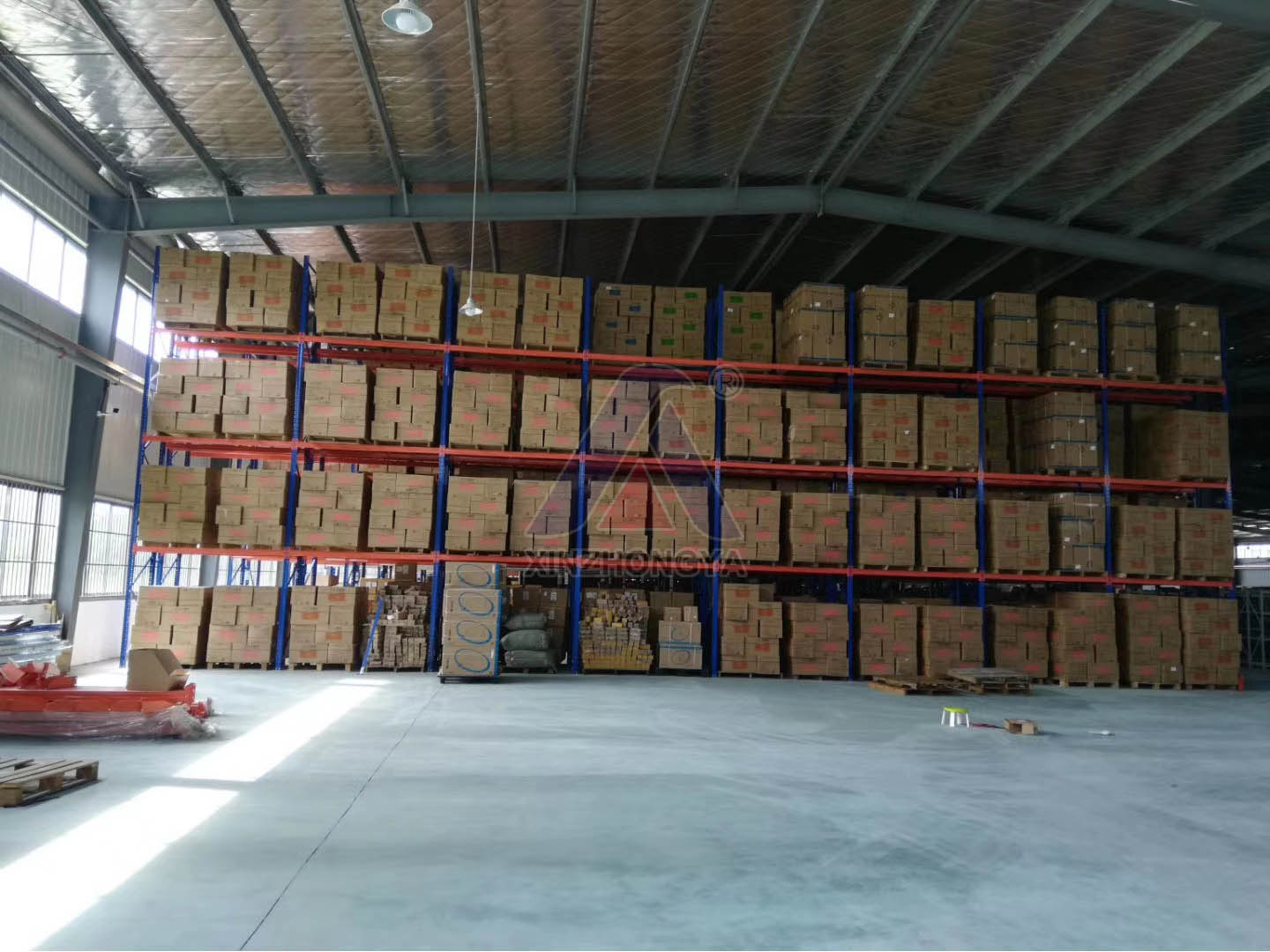

Storage Rack Display

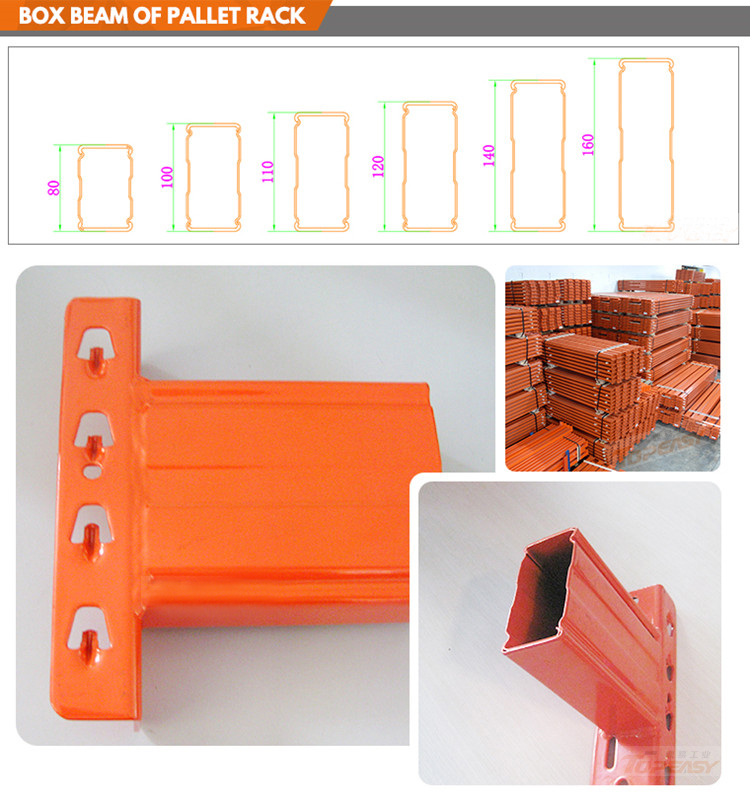

Storage Rack Structure

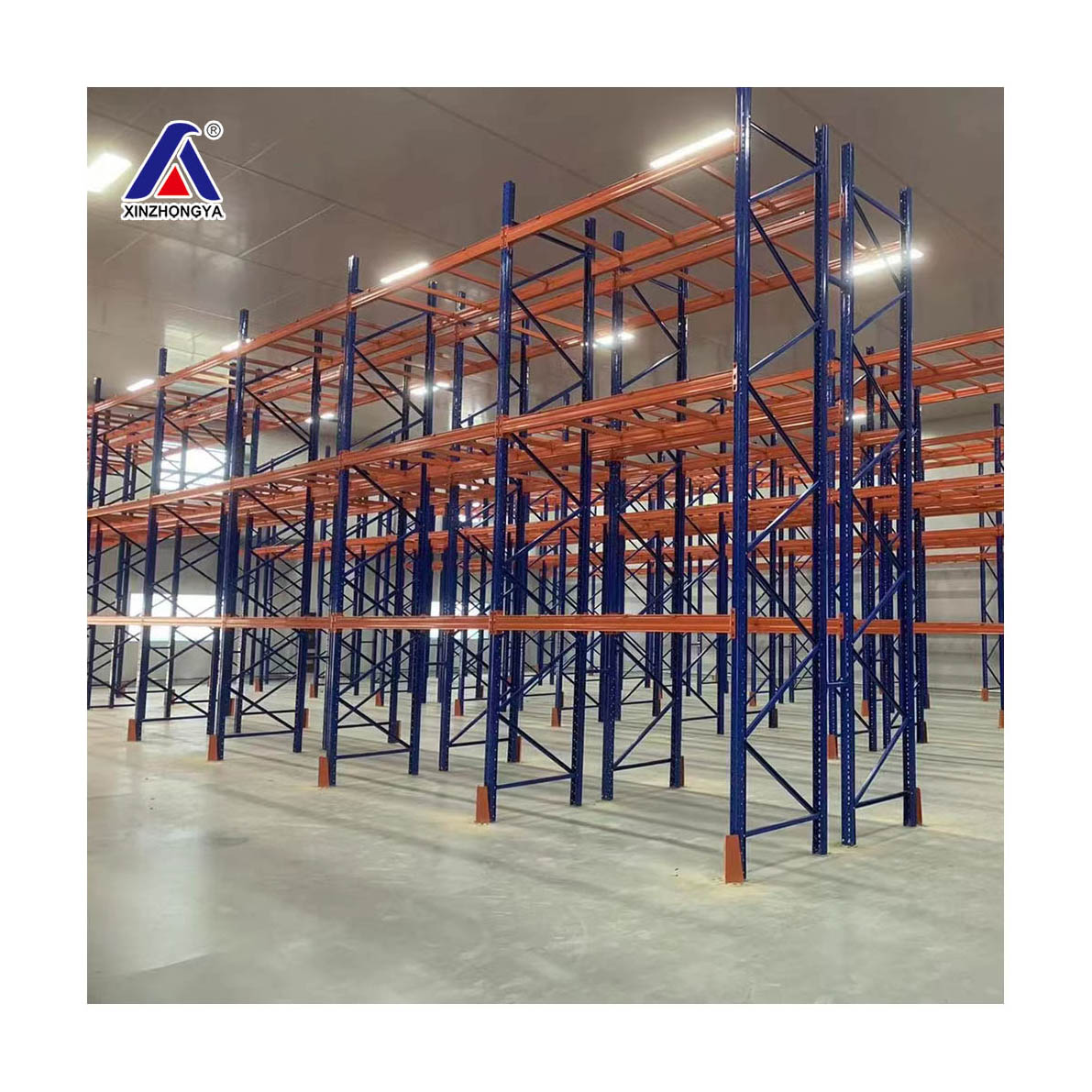

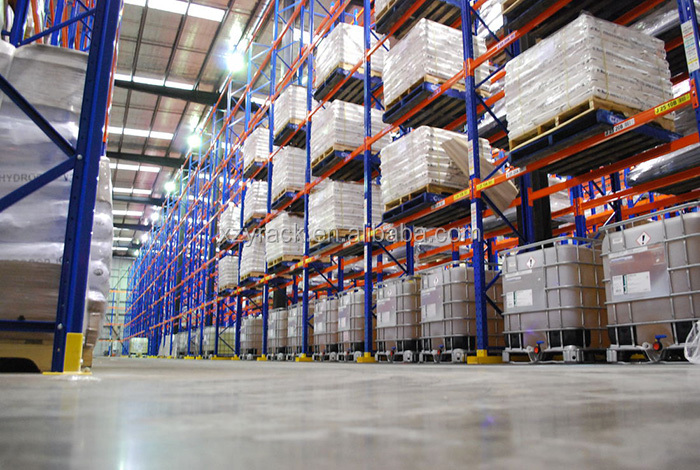

Storage Rack Overview

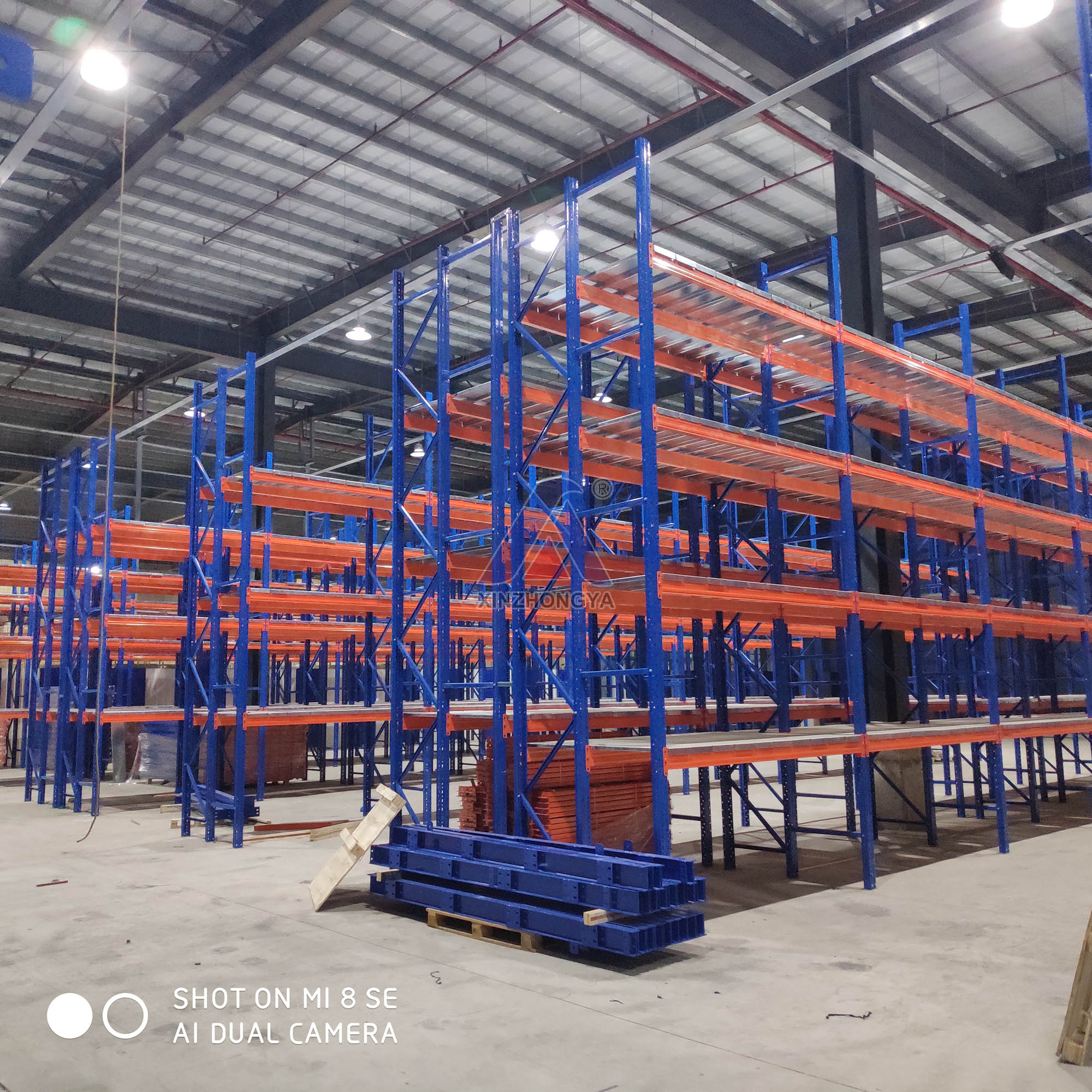

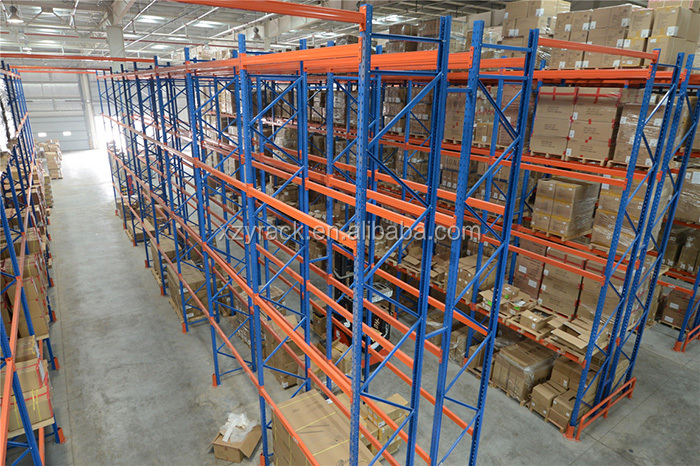

Warehouse Pallet Rack Setup
Protective Accessories & Joint Details

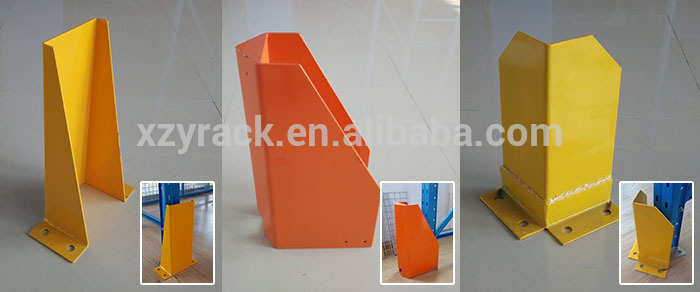

Post Protector

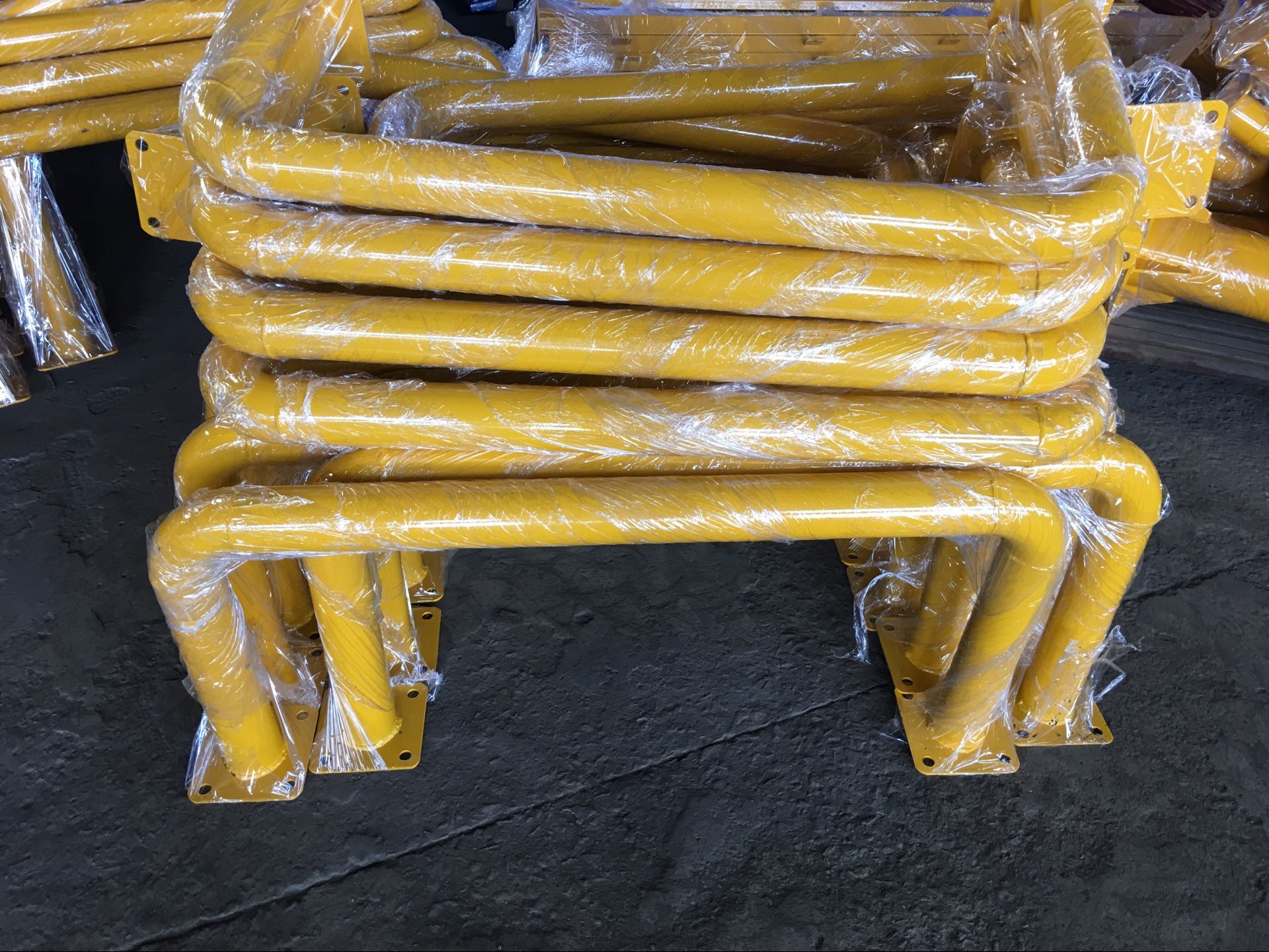

Frame Protector

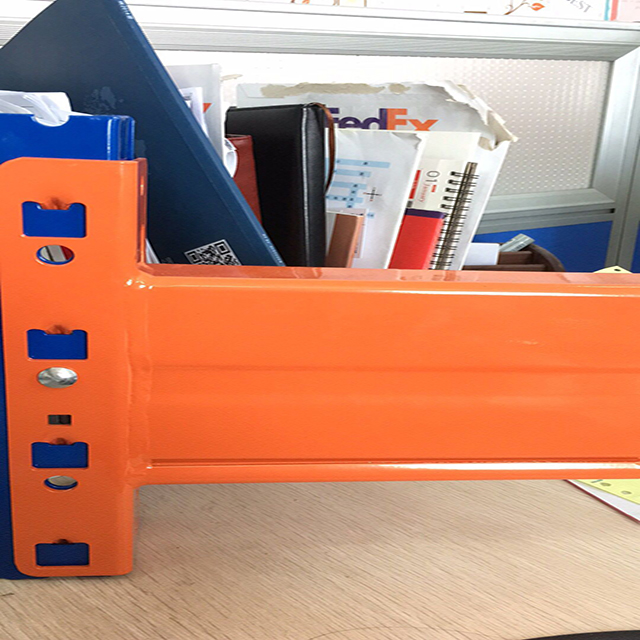

Post and Beam Connection
Packaging, Loading & Factory View

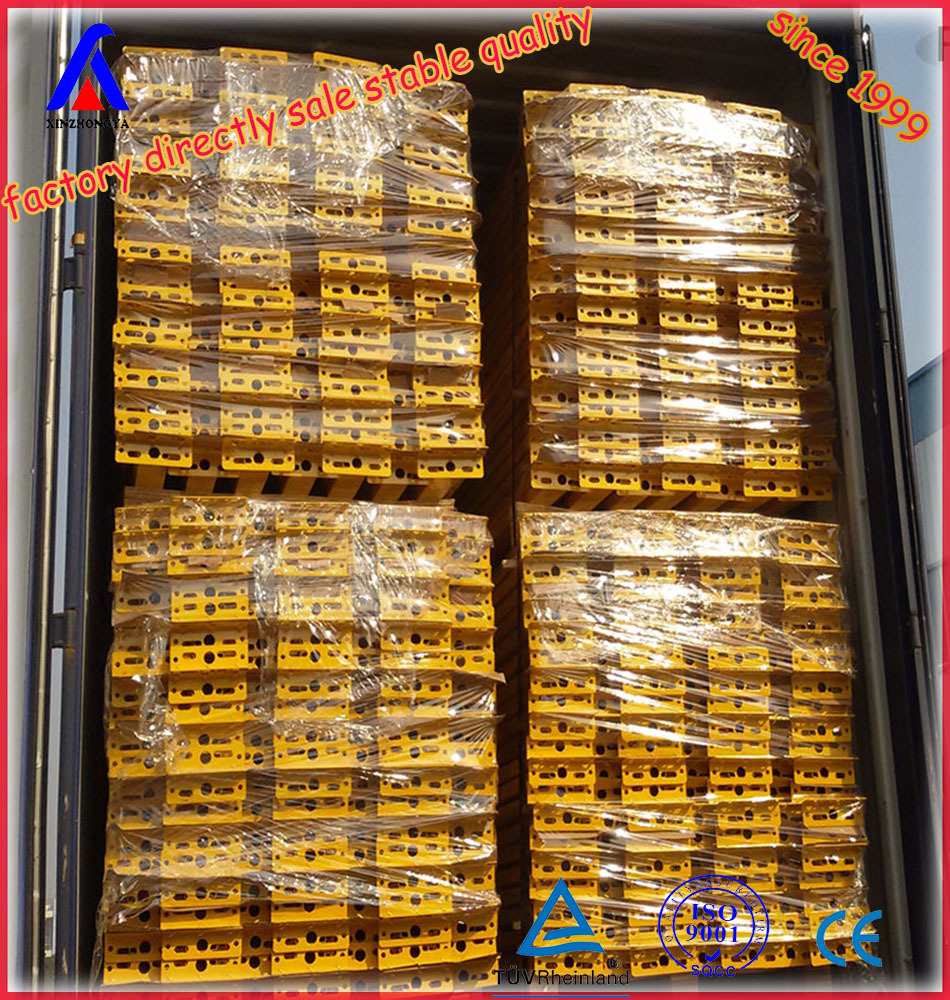

Package & Loading
Secure Bundling & Packing

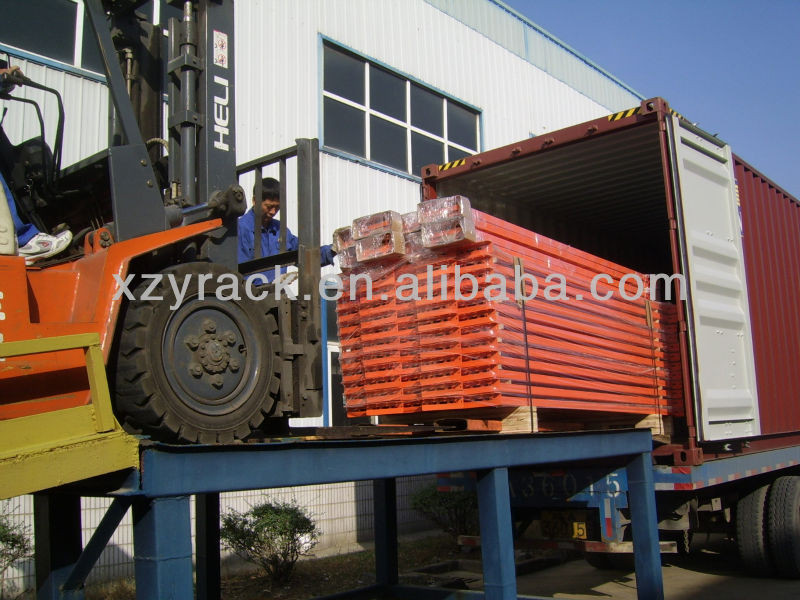

Container Loading Process

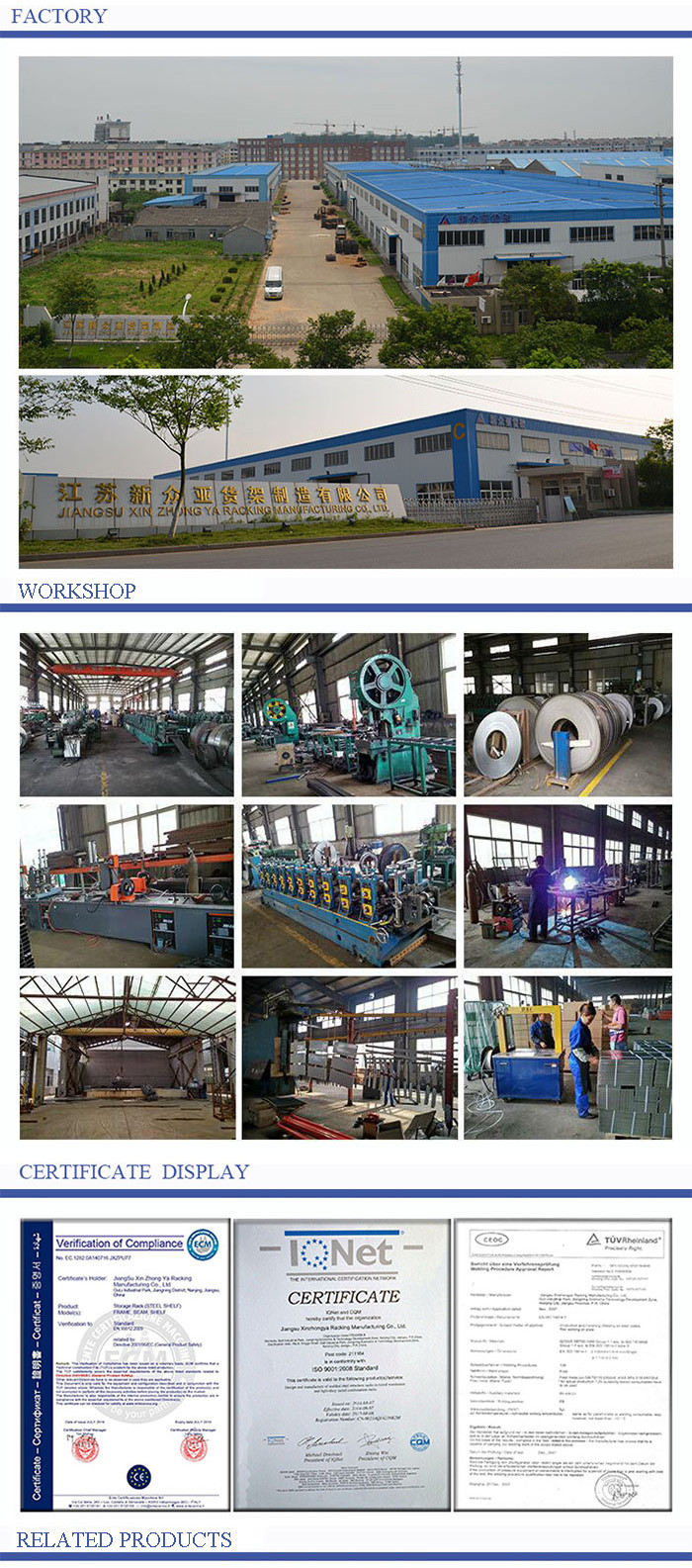

Factory Facility

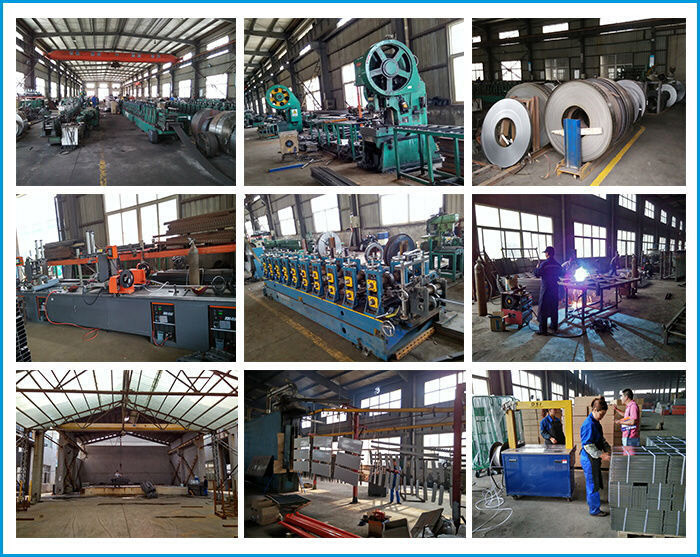

(1) Workshop Inside View
(2) Outside View
Frequently Asked Questions (FAQ)
Q
What is the loading capacity of your steel pallet racks?
The pallet storage rack system can hold up to <4000 kg per beam level, with the maximum overall capacity per rack unit supporting <13500 kg. Custom load profiles can also be engineered according to warehouse demands.
Q
What standard upright frame and beam specifications are provided?
Upright frames range from 80*60mm to 120*95mm with material thicknesses of 2.0, 2.3, 2.5, and 3.0mm. Beams range from 80*50mm to 180*50mm in thicknesses of 1.5mm and 2.0mm.
Q
What information is required to get a customized design and instant quotation?
To receive a tailored layout and quote, please supply: 1) Warehouse dimensions; 2) Width, depth, and height of each rack unit; 3) Number of beam levels per rack; 4) Loading capacity per pallet or beam level; 5) Preferred RAL color.
Q
What is the production lead time for orders?
With more than 300 skilled factory workers and advanced production lines, standard orders are completed and dispatched within 20 days.
Q
What surface finishes and colors are available?
All components feature electrostatic powder coating for optimal wear and corrosion resistance. Popular standard RAL colors include RAL 2004, 5005, 5015, 7035, and 1003.
Q
What quality guarantee is provided with the racking systems?
We provide a comprehensive 3-year quality guarantee on all storage racking systems, backed by decades of professional manufacturing experience since 1999.
