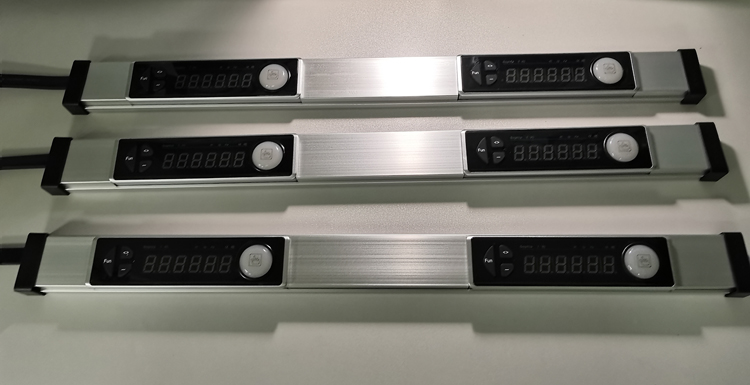

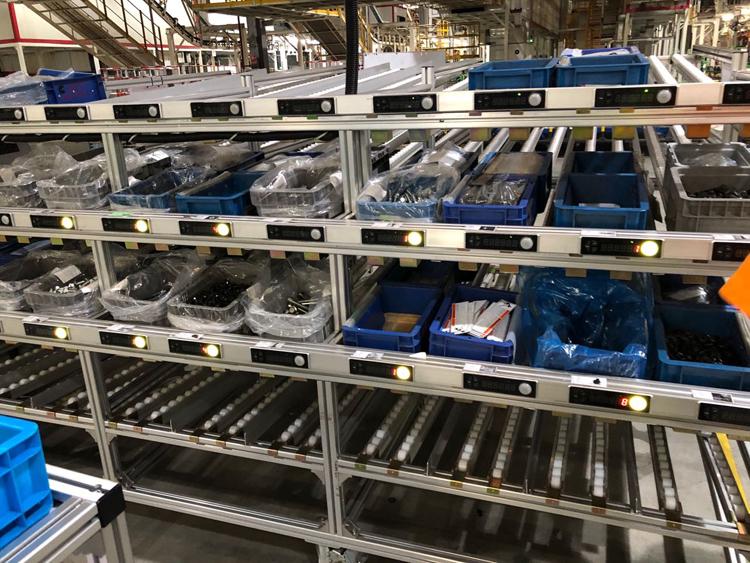

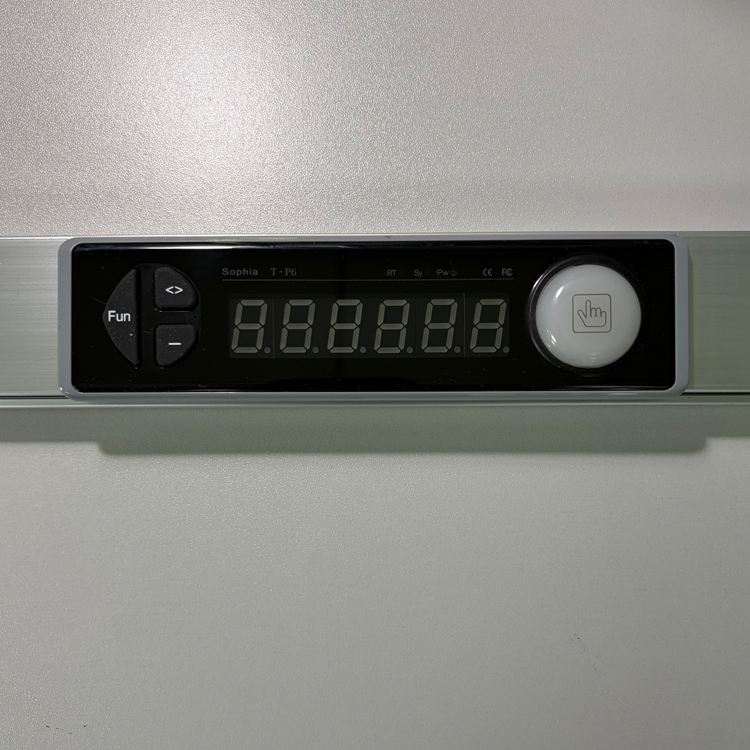

Sophia 6 Digit Display Pick to Light Picking Tag Electronic TagT- P6 for Warehouse Rack
Product Description

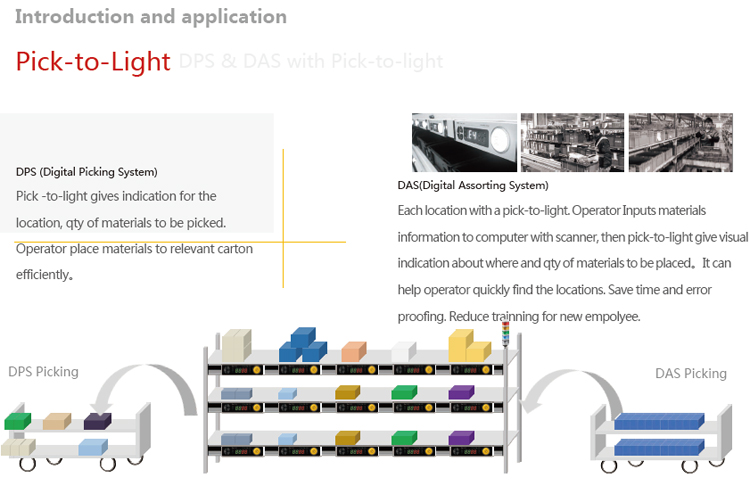

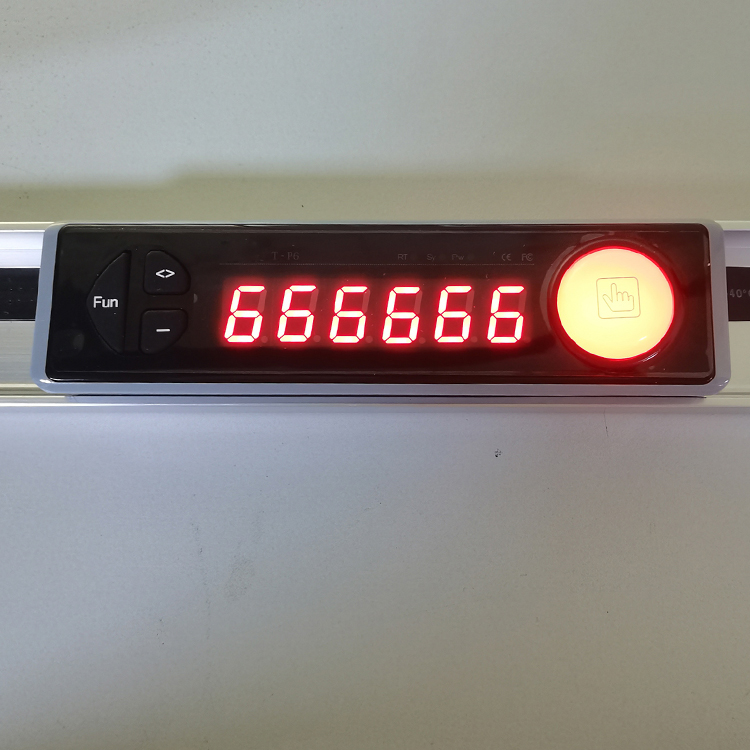

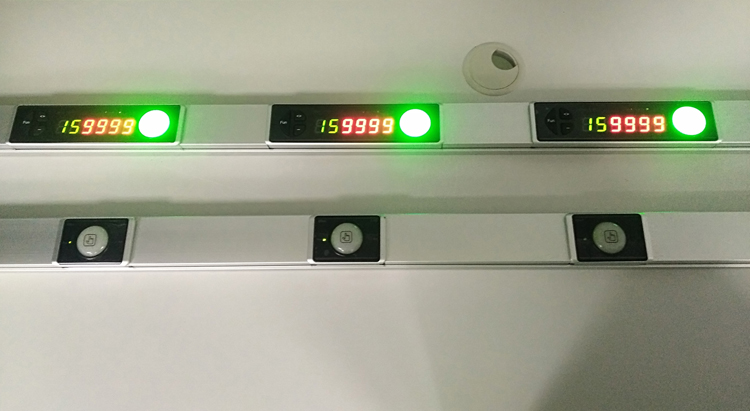

Sophia 6 Digits Pick to Light, Put to Light System, 6 Digit in Red or 2 Green, 4 Red
⚙

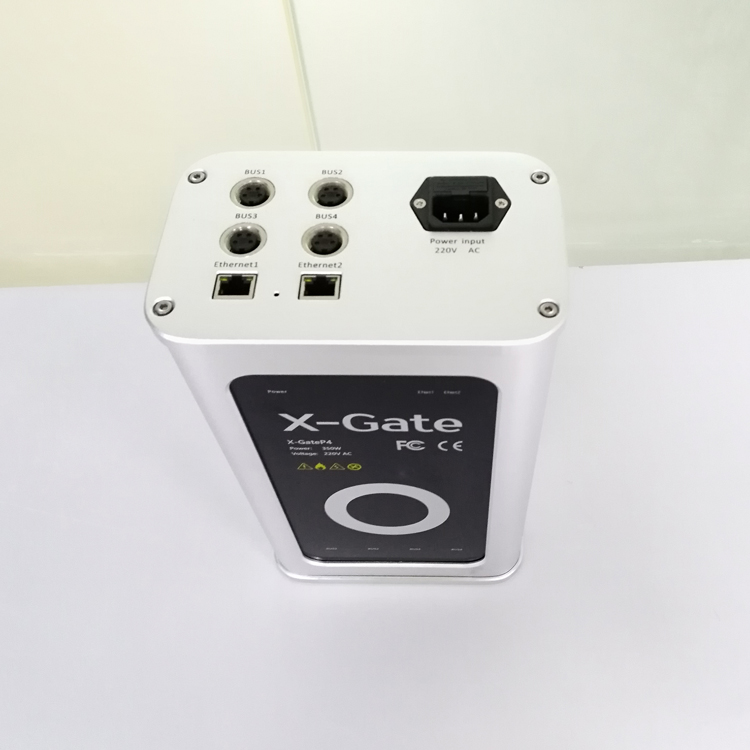

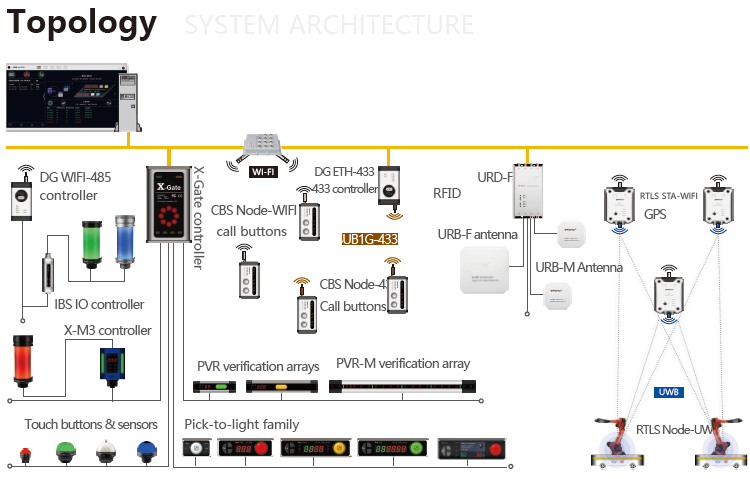

X Gate controller, Four Bus Ports, two Ethernet ports, Power 350W, can load 200 Pick tags
⚡
Output 24V, communication distance 200 meters
| Model | P6 |
| Indicator color | Red, Yellow, Green, Blue, 7 colors |
| Address | 1-247 |
| Power supply | 12-30Vdc |
| Consumption power | Less 2W |
| Control style | Private controller or PLC |
| Communication | RS485 |
| Dimension | 168x44.5mm |
| Lifetime | More than 1 million times |
| IP rating | IP54 |
| Material | Aluminum alloy |
Similar products
❓ Frequently Asked Questions

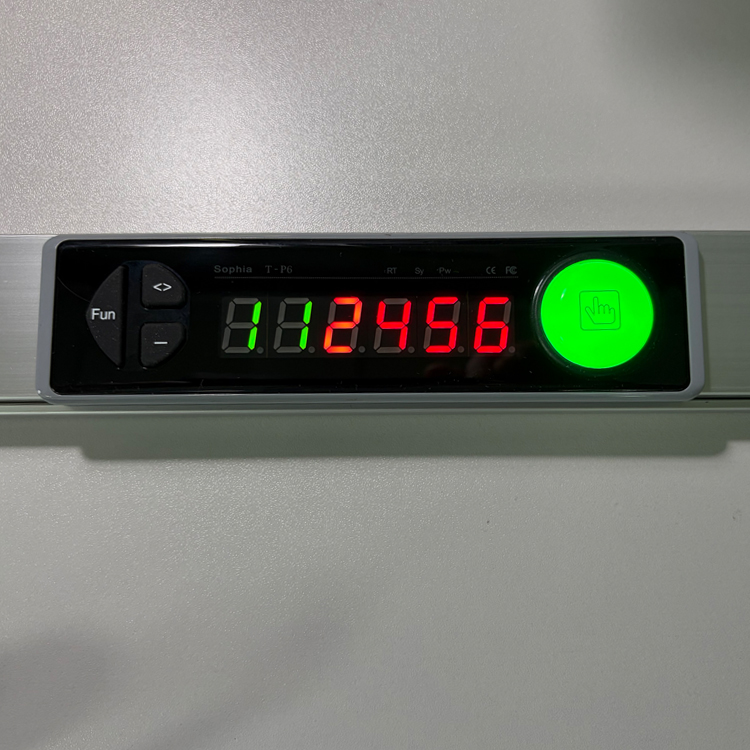

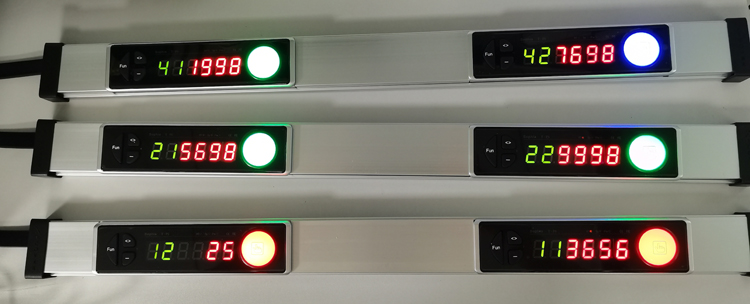

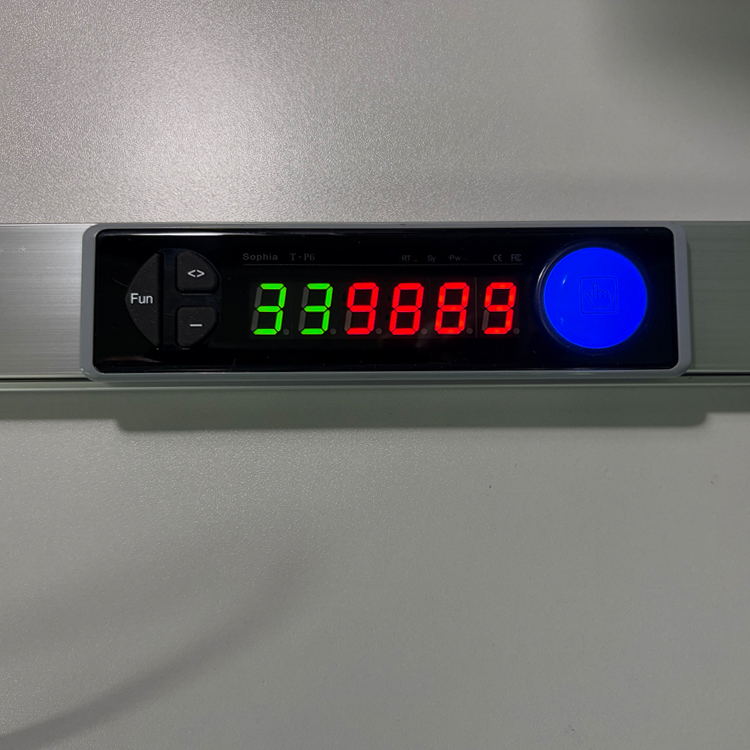

Q: What display configurations are available for the Sophia P6 system?
A: The P6 system features a 6-digit display that is available in either solid red or a combination of 2 green and 4 red digits.
Q: How many picking tags can be supported by one controller?
A: A single X Gate controller (350W) is equipped with four bus ports and can support up to 200 pick tags.
Q: What is the communication protocol and maximum distance supported?
A: The tags use standard RS485 communication with a transmission distance capability of up to 200 meters.
Q: What are the power supply requirements and power consumption for the P6 tag?
A: The tags operate on a DC 12-30V power supply and consume less than 2W of power during operation.
Q: What is the durability and environmental rating of the P6 picking tag?
A: The unit features a durable aluminum alloy housing, an IP54 protection rating against dust and water ingress, and an operational button lifetime of over 1 million presses.
