High-Performance Warehouse Storage Systems
Precision-engineered racking components manufactured from premium certified Q235B & Q355B cold-rolled structural steel, tested to European FEM 10.2.02 and EN 15512 structural standards.
Engineering White Paper: Quality Mandates for Global Pallet Racking Procurement
Modern industrial supply chains demand warehouse storage systems capable of withstanding dynamic live loads, thermal fluctuations, and seismic vibrations without structural fatigue. As an internationally certified manufacturer and direct exporter with more than two decades of dedicated production experience since 2001, we deliver turn-key structural engineering solutions compliant with European standards (EN 15512, EN 15620, EN 15629, FEM 10.2.02), American R-Mark standards (ANSI MH16.1), and CE Construction Products Regulation (CPR 305/2011, Certificate No. 2435-CPR-8605159).
Core Architectural Assurance: Every storage racking project engineered in our Guangzhou factory is fabricated exclusively with certified high-yield structural steel coils (Q235B and Q355B). Our cold-roll forming profiles feature continuous automated punching lines, precision robotic dual-sided welding, and an automated 10-stage surface pretreatment including degreasing, pickling, phosphating, and thermoset electrostatic powder coating.
Comparison Matrix: High-Density Industrial Racking Configurations
Selecting the optimal pallet storage configuration requires balancing floor-area utilization, vertical building clearance, picking velocity, SKU selectivity, and capital expenditure. The technical matrix below evaluates operational trade-offs for tier-one logistics planners:
| Racking System Type | Floor Space Utilization | Selectivity Ratio | Stock Rotation Logic | Aisle Width Required | Optimal Industry Application |
|---|---|---|---|---|---|

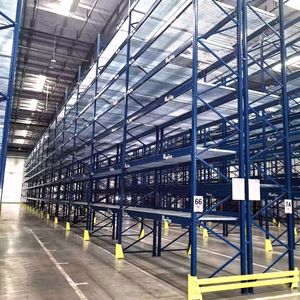

| Selective Pallet Racking | 40% – 50% | 100% Immediate | FIFO or LIFO | 3.0m – 3.8m (Standard Counterbalance) | Multi-SKU 3PL, Retail, General Distribution |

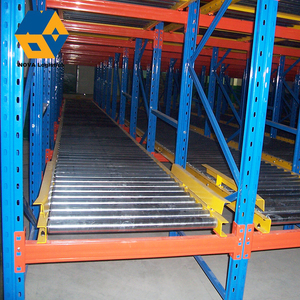

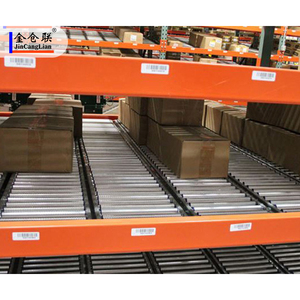

| Live Gravity Pallet Flow | 70% – 85% | Lane Facing (One SKU/Lane) | Strict FIFO | Dedicated Load & Retrieval Aisles | Cold Storage, Food & Beverage, Pharmaceuticals |

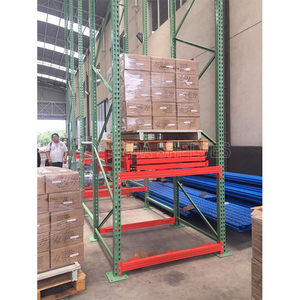

| Push-Back Cart Racking | 65% – 75% | Lane Facing (2–6 Deep) | LIFO Only | Single Access Aisle (2.8m – 3.2m) | Automotive, Raw Materials, Seasonal Buffering |
| Multi-Tier Rack Mezzanine | Up to 200% (Usable Sq.m) | 100% Hand-Pick / Mixed | Flexible Batch Pick | 0.9m – 1.4m Walkway Aisles | E-commerce Fulfilment, Spare Parts, Garments |
| Radio Shuttle Automation | 80% – 90% | Channel Level Selectivity | FIFO or LIFO Selectable | Single Transfer Aisle for Lift Truck | Extreme Cold Chain, High-Throughput Buffers |
Procurement & Technology Trends Shaping Racking Systems (2025–2030)
Global warehouse real estate costs have escalated by over 38% across major transportation corridors including the Middle East (Jebel Ali, Dammam, Riyadh), North America, and Western Europe. This commercial shift transforms racking procurement from a commodity purchase into a capital engineering asset designed for automated integration and extended service life.
1. Automation-Ready Tolerance (ASRS & AMR)
Racking tolerances must transition from traditional structural deflection limits (L/200) to precision automation criteria (L/500 or tighter). Modern uprights incorporate laser-verified plumbness to allow Autonomous Mobile Robots (AMRs) and high-speed automated cranes to operate without snagging or visual guidance sensor failure.
2. Decarbonized Cold-Chain Optimization
Thermal refrigeration represents up to 60% of total operating expenditure in temperature-controlled warehouses. High-density dynamic systems such as cold-room pallet flow and deep push-back arrays shrink refrigerated cubic meters per pallet position by 45%, reducing cooling power draw and carbon footprints.
3. Stringent Seismic & Civil Defense Compliance
Procurement authorities and underwriters increasingly demand verifiable Finite Element Analysis (FEA) reports calculating baseplate moment distribution, anchor bolt shear under cyclic loads, and longitudinal bracing deflection according to Eurocode 3 and UBC Seismic Zone 4 safety factors.
4. Pre-Engineered Modular Mezzanines
Supply chain hubs are shifting away from on-site welded civil steel frames toward pre-drilled, bolt-together modular rack-supported mezzanine floors. This approach shortens on-site assembly schedules by 60%, eliminates hot-work welding permits, and allows straightforward relocation or tier expansion.
5. Severe-Climate Surface Resilience
Warehousing in coastal regions (such as Dubai, Jeddah, Dammam, and Southeast Asia) encounters ambient temperatures exceeding 45°C paired with coastal salinity. Industrial racking now requires comprehensive acid pickling, zinc phosphating, and 80–120 micron thermoset powder coats with salt spray resistance exceeding 500 hours.

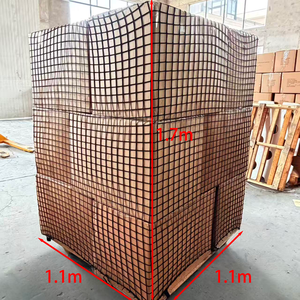

6. Pallet Unit Load Secondary Containment

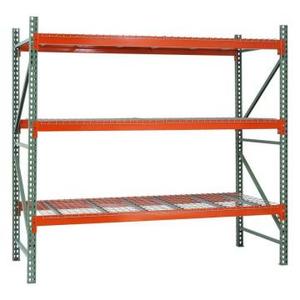

Global fire protection codes (such as NFPA 13) require unobstructed vertical flue spaces of 150mm between back-to-back pallets to guarantee sprinkler suppression penetration. Secondary containment nets and wire mesh decking prevent falling cartons from blocking flue spaces or endangering warehouse operatives.
Manufacturing Capabilities & Export Infrastructure
Operating a sprawling 30,000 square meter modernized manufacturing complex staffed by over 300 experienced technical and engineering professionals, Guangzhou Heda Shelves Co., Ltd. controls the complete vertical fabrication lifecycle without outsourcing critical stages. Our monthly capacity exceeds 30,000 metric tons, ensuring rapid dispatch for multi-container international tenders.
Our 10-Step Controlled Fabrication Process
Every beam, upright column, frame brace, and baseplate progresses through a certified 10-step quality assurance workflow:
01. Raw Material Verification
Spectrometric and tensile verification of certified Q235B and Q355B hot-rolled and cold-rolled steel coils from tier-one steel mills.
02. High-Speed CNC Slitting
Precise continuous shearing and strip slitting to exact dimensional tolerances prior to profile entry.
03. Automated Column Punching
High-tonnage progressive CNC presses deliver 50mm or 75mm pitch teardrop or diamond hole patterns without thermal distortion.
04. Multi-Station Cold Roll Forming
Dedicated roll forming lines produce 8-fold and 10-fold upright omega profiles with high torsional and buckling stiffness.
05. Step & Box Beam Profiling
Roll-formed interlocking C-channels welded into rigid structural box beams designed to prevent lateral torsional displacement.
06. Robotic Connector Welding
Multi-axis robotic GMAW systems weld heavy-gauge 3-claw and 4-claw beam connectors with deep metallurgical weld penetration.
07. Mechanical Surface Dressing
Automatic edge deburring, spatter grinding, and shot blasting clean all steel contact faces prior to chemical immersion.
08. Pickling & Phosphating
Multi-stage immersion cleaning: alkaline degrease, acid pickling to eliminate scale, and zinc-phosphate conversion coating.
09. Electrostatic Powder Coating
Swiss Gema automated powder spray booths apply pure polyester or epoxy-polyester thermoset powder cured at 200°C.
10. Export Packaging & Staging
Fittings boxed in reinforced cartons; long beams bundled in heavy-duty corrugated wrapping with lifting straps and timber chocks.
Container Load Optimization: International maritime shipping demands dense packing to minimize freight expenses per ton. Our shipping department designs container loading plans using specialized software, guaranteeing zero dead-space utilization inside 40ft High Cube containers while protecting painted surfaces against transit friction.
Frequently Asked Questions for Industrial Racking Buyers
Direct technical answers addressing the real questions raised by structural consultants, logistics engineering directors, and international procurement managers.
What international design codes and certifications govern your pallet racking systems?
Our racking systems comply with European Standard EN 15512 (Steel static storage systems – Adjustable pallet racking systems – Principles for structural design), EN 15620 (Tolerances, deformations and clearances), and EN 15629 (The specification of storage equipment). In addition, we hold official CE certification under the Construction Products Regulation CPR 305/2011 (Certificate No. 2435-CPR-8605159), ISO 9001:2015 Quality Management System Certification (No. 18624Q00169R0M), and RoHS test compliance for all thermoset surface coatings.
How do you verify structural capacity and avoid upright buckling under seismic loads?
Every layout is calculated based on exact building slab parameters, clear ceiling height, pallet dimensions, and maximum gross pallet weight. Our structural engineering department utilizes Finite Element Analysis (FEA) software to model frame loading under static dead loads, live pallet loads, and lateral dynamic forces caused by seismic activity or forklift impact. Upright column steel thickness ranges from 1.5mm to 2.5mm with 8 to 10 cold-bent structural folds, dramatically increasing the second moment of area and resistance to torsional buckling.
What data is required from our engineering team to generate a free 2D/3D warehouse layout?
To prepare an optimized CAD floor layout and 3D rendering within 24 to 48 hours, we require: (1) Architectural CAD floor plan showing building dimensions, column grid locations, and fire exit doors; (2) Clear height beneath roof trusses, light fixtures, and sprinkler pipe headers; (3) Pallet specifications (Width × Depth × Height including product overhang) and maximum gross weight; (4) Forklift specifications, including turning radius, mast lowered height, and maximum lifting reach; (5) Desired daily pallet throughput, SKU count, and FIFO vs. LIFO rotation rules.
How do your surface coatings perform in high-humidity, marine, and cold-room environments?
Standard indoor storage components receive a 60–90 micron electrostatic epoxy-polyester thermoset powder coating cured at 200°C following chemical pickling and zinc-phosphating. For extreme humidity, coastal logistics zones (such as Dubai, Jebel Ali, Jeddah, and Southeast Asian ports), or sub-zero blast freezers down to -30°C, we provide hot-dip galvanized (HDG) steel components (conforming to ISO 1461 with 70–85 micron zinc thickness) or specialized zinc-rich primer pre-coatings that prevent subsurface rust creep and coating embrittlement.
Can your layout drawings support Civil Defense, municipal, and insurance underwriting approval?
Yes. Our engineering documentation packages provide fully dimensioned 2D CAD plans clearly illustrating designated forklift aisle widths, main cross-aisles, pedestrian egress pathways, wall stand-off gaps, and vertical flue spaces (typically 150mm between double-deep rows) compliant with NFPA 13 sprinkler penetration mandates. Load rating plaques and column anchor shear values are supplied in calculation reports for submission to local Civil Defense authorities and industrial property underwriters.
What installation support and assembly documentation do you provide for export orders?
Every export order is shipped with a comprehensive engineering installation dossier. This includes color-coded 3D exploded assembly diagrams, detailed anchor bolt torque specifications, frame diagonal bracing schedules, and part-labeled bundle packing lists matching container marks. For large projects such as multi-tier rack-supported mezzanines or complex radio shuttle installations, we offer remote video engineering supervision and can dispatch on-site bilingual erection supervisors to guide your local labor team.
Request an Engineered Layout & Factory-Direct Quotation
Submit your warehouse floor plans, clear ceiling heights, and pallet specifications. Our senior logistics engineers will return a complete 2D CAD floor layout, high-definition 3D visualization, and structural price quotation within 24 hours.
