Featured Industrial Shelving Units & Racking Configurations
Manufactured using high-tensile cold-rolled steel (Q235B & Q355B) under EN 15512 and RMI specifications. Built to withstand demanding load-bearing cycles across automated logistics hubs, multi-tier picking centers, and high-density industrial facilities.

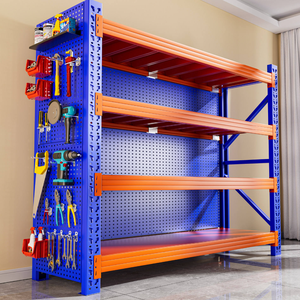

Long Span Shelving System Heavy Duty Steel Storage Rack for Warehouse Picking
- Load Capacity: 300 – 800 kg/tier
- Pitch Step: 50mm Adjustable
- Deck Material: Steel / Plywood / Wire
Fast Shipping Steel Shelving Light Duty Stacking Racks & Shelves for Garage Storage
- Load Capacity: 100 – 250 kg/tier
- Assembly: Riveted Quick-Lock
- Finish: Anti-Scratch Powder
Steel Shelving Adjustable Metal Boltless Shelf Pallet Storage Use Metal Racking Stacking Racks & Shelves
- Joint Type: 100% Boltless Wedge
- Material: Cold-Formed SPCC
- Upright Pitch: 38mm / 50mm Pattern
Heavy Duty Steel Shelving Units Adjustable Warehouse Racking Industrial Warehouse Pallet Racking
- Beam Section: Interlocking Box Beam
- Load Range: 1,000 – 4,500 kg/level
- Safety Standard: FEM 10.2.02 / RMI
OEM Customized Steel Mezzanine Floor Manufacturer For Warehouse Storage And Factory Projects
- Floor Load: 300 – 1,000 kg/m²
- Clear Span: Up to 9m Without Post
- Deck Types: Solid Steel / Perforated
Industrial Steel Mezzanine Systems, Modular Mezzanine Floor Racking
- System: Rack-Supported Platform
- Tiers: 2 to 4 Structural Levels
- Add-ons: Stairways, Chutes, Lifts
Heavy-Duty Adjustable Selective Pallet Racking System 1000-3000kg Load Capacity Stacking Warehouse Storage Shelves Pallet Racks
- Upright Profile: Omega Section (80-120mm)
- Capacity: 1,000 – 3,000 kg/tier
- Safety Pins: Spring Lock Integrated
Transparent T-Shape PVC Acrylic Pusher Retail Racks Magnetic Shelf Divider For Supermarket Convenience Stores Injection Molded
- Mechanism: Spring-Assisted Pusher
- Base Mount: Magnetic / Adhesive Strip
- Material: Shatterproof PC / PVC
Why Global Procurement Officers Partner with HEDA Shelves
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has evolved into an authoritative Tier-1 manufacturer and exporter of structural warehouse racking and industrial shelving. Our massive facility and end-to-end engineering safeguard supply chain integrity for top-tier enterprises globally.
Fully automated CNC cold-roll forming, robotic continuous welding, and multi-stage powder lines.
Massive raw steel coil reserves guarantee fixed-price predictability and lightning production lead-times.
Extensive presence across GCC ports, North America, Europe, Southeast Asia, and Australasia.
Complete turn-key warehouse installations executed with verified civil and structural safety approvals.
Direct-from-Source Heavy Steel Manufacturing Infrastructure
Eliminating secondary agent markups while offering structural calculations tailored to regional seismic zones, local fire regulations (NFPA 13), and concrete slab ratings.
Certified Structural Compliance
Full compliance with CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management (Certificate No. 18624Q00169R0M), and RoHS environmental standards for non-toxic industrial coatings.
Complimentary 2D/3D CAD & FEM Design
In-house senior layout engineers provide turnkey warehouse floor space optimization, forklift turn-radius analysis, and 3D isometric renderings within 24 hours of site parameter submission.
Extreme Environmental Finishing
Automated 8-stage pre-treatment (acid pickling, alkaline degreasing, and zinc phosphating) followed by electrostatic powder deposition cured at 200°C for exceptional resistance in corrosive coastal and high-humidity environments.
Structural Engineering, Steel Grades, and Load Optimization
Selecting industrial shelving units is a critical engineering decision dictating worker safety, asset protection, and building code compliance. Here is the technical breakdown required by supply chain directors.
Procuring industrial shelving systems from China requires looking beyond nominal price-per-kilogram. Structural integrity in high-density distribution depends entirely on steel chemical composition, cold-roll forming precision, and torsional beam-connector stiffness. At HEDA Shelves, we employ high-yield prime steel coils conforming to standard Q235B (Yield Strength ≥ 235 MPa) for standard static racking, and Q355B (Yield Strength ≥ 355 MPa) for ultra-high upright columns and deep-reach cantilever systems subjected to heavy dynamic loads.
1. Deflection Limits and Structural Safety Coefficients
Under international racking codes including EN 15512:2020 (European Racking Standard), RMI MH16.1 (Specification for the Design, Testing, and Utilization of Industrial Steel Storage Racks), and AS 4084-2023 (Australian Steel Storage Racks), horizontal beam deflection under maximum Uniformly Distributed Load (UDL) must strictly not exceed:
Maximum Allowable Deflection = Span Length (L) / 200
Substandard shelving manufacturers frequently decrease steel wall thickness (gauge) to reduce weight, resulting in chronic micro-sagging, localized metal fatigue, and sudden buckling during seismic events or accidental forklift impacts. HEDA implements an uncompromising structural safety coefficient of 1.5 to 1.65 across all beam designs, with finite element method (FEM) stress verification on all heavy-duty upright frames.
| Engineering Metric | Standard Commercial Shelving | HEDA Industrial Grade Systems | Compliance Verification |
|---|---|---|---|
| Primary Raw Material | Commercial Grade Scrap-mix SPCC | High-Yield Prime Q235B / Q355B Baosteel Coils | EN 10204 3.1 Mill Cert |
| Beam Structural Profile | Single-bend C-Channel | Interlocking Twin C-Profile Robotic-Welded Box Beam | Anti-Torsion Certified |
| Upright Forming Accuracy | Manual Punching ±1.5mm variance | CNC Automated Continuous Progressive Punching (±0.1mm) | ISO 9001:2015 QC |
| Surface Pre-Treatment | Manual solvent wipe down | 8-Stage Immersion Pickling & Nano-Ceramic Phosphating | ISO 12944 C3/C4 |
| Coating Thickness | 35 – 45 Microns single pass | 65 – 90 Microns Electrostatic Thermoset Polyester Powder | ASTM B117 Salt Spray >500h |
2. Fire Safety & Flue Space Fluid Mechanics
Modern insurance underwriters and regional Civil Defense authorities (such as those in the UAE, KSA, EU, and North America) enforce mandatory warehouse fire-protection standards dictated by NFPA 13. Installing solid steel or timber decking over 2,400mm spans without open-area venting obstructs overhead ESFR (Early Suppression, Fast Response) fire sprinkler discharge. HEDA engineers integrate wire mesh decking with open areas exceeding 70% and engineer 150mm longitudinal and transverse flue spaces to ensure life-safety and swift regulatory approval.
Future Procurement Trends in Industrial Shelving Systems
The global material handling and warehouse storage sector is shifting under the pressures of rapid e-commerce expansion, omnichannel fulfillment, and physical labor constraints. Here are the macro procurement trends reshaping warehouse infrastructure through 2030.
1. Symbiotic Automation & AMR Integration
Procurement is moving away from standalone static shelving toward systems designed for Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs). Uprights now feature specialized floor clearances, high-contrast QR-code location channels, and heavy-duty seismic baseplates that absorb robotic contact while maintaining ultra-tight aisle tolerances.
2. Multi-Tier Micro-Fulfillment Topologies
With urban commercial land acquisition costs hitting historic highs, enterprise operators are building upward rather than outward. Shelving-supported mezzanines and multi-tier picking towers are seeing a massive spike in procurement, effectively tripling cubic volumetric utilization without the prohibitive expense of pouring new concrete building envelopes.
3. Decarbonized Steel & Circular Sourcing
Global ESG reporting (including the EU's Carbon Border Adjustment Mechanism - CBAM) is compelling Fortune 500 supply chain executives to demand transparent carbon footprint tracking across steel racking assets. Manufacturers utilizing scrap-optimized electric arc furnaces (EAF) and closed-loop, VOC-free electrostatic powder coating lines will hold significant tender advantages.
How Industrial Shelving Engineering Is Advancing
Industrial storage systems have advanced far beyond simple passive metal racks. Advanced cold-forming metallurgy, IoT weight telematics, and standardized modular geometry are transforming storage structures into intelligent digital assets.
Intelligent Real-Time Load Sensing
Cutting-edge automated racking installations now embed fiber-optic Bragg gratings or strain-gauge telematics directly into primary support beams. These real-time sensors instantly alert warehouse management systems (WMS) to hazardous overload events, non-uniform load distributions, or subtle structural shifts caused by seismic activity or seismic settling.
Optimized High-Tensile Thin-Walled Profiles
Through advanced computerized roll-forming simulations, upright columns now feature complex multi-flanged profiles with internal stiffening ribs. This geometry achieves up to 25% higher torsional buckling resistance while minimizing dead steel weight, significantly lowering international maritime container shipping costs.
Advanced Nanocoatings & Cold-Chain Resilience
Standard industrial finishes fail rapidly in sub-zero cold-storage environments (-30°C) or corrosive chemical warehouses due to condensation embrittlement. Next-generation hybrid fluoropolymer and antimicrobial powder formulations prevent structural rust blistering and ensure long-term hygiene in pharmaceutical and food applications.
HEDA's 10-Step Quality Assurance Workflow
Every individual beam, upright, and support brace passes through an integrated ten-stage manufacturing lifecycle within our 30,000 m² factory in Guangzhou, providing fully traceable, zero-defect production.
Step 01
Raw Materials Chemistry
Step 02
Precision CNC Slitting
Step 03
Automated Punching
Step 04
Cold Bending Forming
Step 05
Continuous Roll Forming
Step 06
Mechanical Polishing
Step 07
Robotic CO2 Welding
Step 08
Chemical Pre-treatment
Step 09
Thermoset Powder Coating
Step 10
CMM QC & Export Packing
Frequently Asked Questions for B2B Importers & Contractors
Comprehensive, technically grounded answers addressing the logistical, structural, and regulatory criteria evaluated by procurement directors sourcing industrial racking from China.
How do you verify rack load capacities and structural safety compliance for overseas civil approvals? +
Each project layout produced by HEDA Shelves undergoes rigorous structural load calculation using advanced finite element analysis (FEA) software. We calculate static dead loads, live loads, accidental impact factors (minimum 5kN to 10kN at upright base according to EN 15512), and regional wind/seismic acceleration ratings (such as IBC or Eurocode 8).
Detailed stamped 2D CAD engineering layout prints specifying section properties, steel mill test reports (MTR), deflection checks, and load capacity plaques are provided directly to your local consulting structural engineers to secure rapid municipal and Civil Defense permits.
What are the minimum concrete slab specifications required for heavy-duty industrial shelving? +
For standard heavy-duty pallet racking and multi-tier mezzanines with upright frame capacities ranging from 8,000 kg to 25,000 kg, the concrete slab should possess a minimum compressive strength of 25 to 30 MPa (approx. 3,500 to 4,500 PSI) with a reinforced slab depth of at least 150mm to 200mm.
HEDA supplies custom heavy-gauge baseplates (ranging from 6mm to 16mm thickness) engineered to distribute point-load pressures safely below the concrete punch-shear threshold, accompanied by structural chemical or mechanical anchor bolts sized for regional seismic zones.
How does HEDA prevent maritime corrosion, scratching, and bending during sea container shipping? +
Cross-oceanic container shipping exposes structural steel components to aggressive salt humidity, condensation temperature swings ("container rain"), and transit vibration. HEDA's automated packing lines bundle uprights and beams with moisture-wicking corrugated spacer pads, thick protective air-cushion film, and edge-corner steel protectors.
Bundles are strapped with high-tensile PET bands onto custom wooden skids designed for rapid, damage-free unloading via forklift. Component packages are labeled to match the supplied installation sequence drawings, minimizing staging time on site.
What technical data must we submit to receive an engineered 3D CAD layout and quotation? +
To deliver an optimized layout and quotation within 24 hours, our engineering department requires:
1. Facility Parameters: Architectural CAD drawing (.dwg) or dimensioned PDF showing building boundaries, clear ceiling height to the lowest obstruction (sprinklers/beams), column grid locations, and fire exit doors.
2. Unit Load Data: Pallet dimensions (Length × Width × Height including product overhang) and maximum gross weight per pallet.
3. Material Handling Fleet: Forklift type (Reach truck, Counterbalance, VNA), maximum mast lift height, and minimum right-angle stacking aisle turning radius.
Can HEDA accommodate OEM customization for specialized color-matching and branding? +
Yes. As an authentic primary manufacturer with internal powder-coating lines, we match any global color code from the standard RAL or Pantone spectrum without minimum volume penalties.
We also support comprehensive OEM services for international distributors, including custom upright teardrop/diamond/keyhole punch geometries, branded metal embossing, and specialized export packaging tailored for localized drop-ship operations.
What on-site installation guidance and post-installation warranties are provided? +
Every international container arrives with comprehensive 3D isometric installation blueprints, step-by-step assembly guides, and indexed hardware part lists. We offer real-time remote video engineering support for your local contracting teams.
For large-scale structural mezzanines and automated high-bay systems, HEDA deploys certified field installation supervisors directly to overseas customer job sites. All structural racking elements are backed by our 10-year factory structural integrity warranty against manufacturing defects.
Optimize Your Warehouse Footprint with Direct Factory Engineering
Partner directly with China's premier manufacturer and exporter of heavy-duty industrial shelving units. Eliminate middleman costs, secure verified CE/ISO structural safety documentation, and receive a free 2D/3D warehouse CAD design layout within 24 hours.
