High-Performance Storage Racking Systems
Direct factory supply of certified selective, high-density, automated stacker, and specialized cold-chain steel racks engineered for extreme structural stability and maximum space yield.
Industrial Heavy Duty Steel Pallet Rack Warehouse Shelving System
SHUNLI SL-AS004 Customized Heavy Duty Automated AS&RS Pallet Stacking Rack

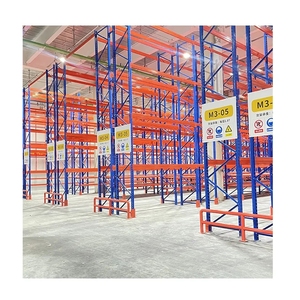

Storage Rack Factory Industrial Heavy Duty Pallet Warehouse System

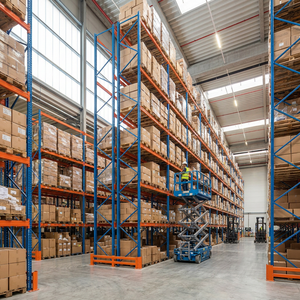

Warehouse Shelving Heavy Duty Shelves Multi Level Pallet Industrial Racking

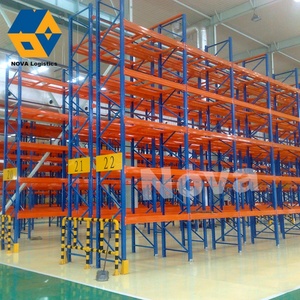

Customized Competitive Industrial Warehouse Storage Heavy Duty Pallet Rack

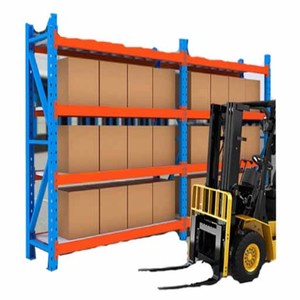

Selective Heavy Duty Pallet Rack 4000kg Capacity Industrial Steel Storage

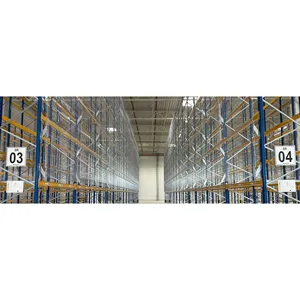

Debion Protect Grid Back Wall System For Warehouse Shelving Storage Solution
Industrial Warehouse Racks Shelves EU Standard Pallet Rack For Cold Room
Strategic Engineering Standards in Modern Pallet Racking Fabrication
In modern industrial logistics, pallet racking and metal storage racking systems can no longer be treated as simple structural ironware. They function as load-bearing structural skeletons that interface directly with heavy automated handling equipment, high-reach narrow aisle (VNA) forklifts, automated guided vehicles (AGVs), and sensitive inventory worth millions of dollars. As international logistics hubs in the Middle East (UAE, Saudi Arabia, Qatar), Southeast Asia, Europe, and the Americas expand their vertical storage footprints, selecting a verified tier-one pallet and racking factory in China has become a pivotal procurement decision determining operational uptime, workplace safety, and building lifecycle profitability.
China's elite racking manufacturing ecosystem leverages direct integration with continuous hot-rolled coil strip steel supply (Q235B and high-yield Q355B structural grades). Through state-of-the-art continuous cold roll-forming lines, automated punch presses with micro-metric positioning, robotic beam welding cells, and electrostatic powder coating complexes incorporating pickling and phosphating pre-treatments, top-tier factories deliver load capacities up to 4,500 kg per level while keeping deflection ratios well within the strict FEM 10.2.02 deflection threshold of L/200 under full static load.
Structural Engineering Comparison: Industrial Storage Systems
Procurement directors and supply chain engineers must evaluate warehouse racking options across key performance variables: volumetric utilization, picking selectivity, material grade requirements, and handling equipment compatibility.
| Racking Topology | Aisle Space Consumption | Volumetric Storage Yield | SKU Selectivity Access | Typical Load Capacity | Primary Application Profile |
|---|---|---|---|---|---|
| Selective Pallet Racking | High (Aisle: 3.2m - 3.8m) | 40% - 50% | 100% Direct Access | 1,000kg - 4,500kg / level | Fast-moving FMCG, third-party logistics (3PL), automotive assembly parts |
| Drive-In / Drive-Through | Low (Eliminates aisles) | 70% - 85% | Low (LIFO / FIFO by lane) | 1,000kg - 1,500kg / pallet | Cold storage rooms, beverage bulk inventory, homogeneous batches |
| Radio Shuttle System | Ultra-Low (Single access bay) | 80% - 90% | Medium (Automated lane FIFO/LIFO) | 500kg - 2,000kg / pallet | High-throughput cold chain, seasonal goods, pharmaceutical distribution |
| Automated AS/RS High-Bay | Minimal (High verticality up to 40m) | 90% - 95% | 100% Computerized High-Speed | 500kg - 1,500kg / station | Smart factories, mega distribution hubs, pharmaceutical quarantine hubs |
| Cantilever Racking | Medium (Continuous face) | 60% - 70% | 100% Open Access | 500kg - 3,000kg / arm | Steel tubing, aluminium extrusions, structural lumber, rebar coils |
Emerging Procurement Trends Shaping Global Warehouse Infrastructure
The global procurement market for warehouse pallets and industrial racking is undergoing a major structural transformation driven by e-commerce velocity, cold storage expansion, and regional infrastructure projects such as Saudi Arabia's Vision 2030 and mega-distribution parks across the GCC and Europe. Forward-looking procurement directors prioritize total lifecycle value over initial steel tonnage pricing.
TCO Over Base Ton Cost
Procurement teams evaluate total cost of ownership (TCO) including floor space yield, installation hours, seismic compliance, and pallet turnaround velocity rather than raw price-per-kilogram.
Pre-Engineered BIM Integration
Modern tenders demand full Revit BIM and 3D CAD modeling before steel fabrication, verifying clear ceiling heights, ESFR sprinkler cone clearance, and slab anchor point safety.
Extreme Climate Surface Finishes
Coastal and desert logistics centers require enhanced multi-stage salt-spray tested powder coatings and hot-dip galvanized upright bases to combat humidity, salt mist, and thermal spikes.
Product Development Trends in Warehouse Steel Racking Systems
Engineering innovations in cold-formed thin-walled structural steel and automated storage solutions are reshaping how industrial pallet racks are designed, fabricated, and deployed globally.
AS/RS Precision Tolerances
Transition from conventional manual racking to high-bay automated stacker crane structures requires millimeter-level plumbness tolerances compliant with FEM 9.831 and FEM 9.832 codes.
Micro-Alloy High Yield Steel
Widespread adoption of high-strength micro-alloyed steel sheets allows lower deadweight without compromising buckling resistance, decreasing foundation load requirements.
Eco-Friendly Pretreatment
Transition to zero-heavy-metal zirconium chemical conversion coatings and VOC-free TGIC epoxy polyester powders ensures RoHS compliance and long-term durability in cold rooms.
World-Class Manufacturing Infrastructure
Combining 25+ years of design mastery with vertical production control in Guangzhou, China. From raw steel coil slit-cutting to container packing, every stage is ISO 9001 certified.
Raw Steel Inflow
Certified Q235B/Q355B coils tested for yield & tensile limits.
Precision Slitting
Laser and CNC slitting lines accurate to ±0.2mm tolerance.
Automated Punching
Continuous CNC punching of upright pitch holes at 50/75mm intervals.
Cold Roll-Forming
Up to 24-station roll-forming lines shaping high-rigidity closed profiles.
Profile Straightening
Continuous computerized straighteners eliminating twist and camber.
Precision Polishing
Edge deburring and surface preparation for uniform coating adhesion.
Robotic Welding
Automated dual-torch robotic welding of beam end connectors.
Pickling & Phosphating
Multi-stage immersion cleaning, rust removal, and phosphate passivation.
Electrostatic Coating
GEMA automatic powder spray booths curing at 180°C - 200°C.
QC & Export Stowing
Ultrasonic thickness checks, bundle strapping, and containerization.
Certified Structural Compliance
Our structural designs conform with European Standard EN 15512, Australian Standard AS 4084-2012, and American RMI MH16.1. We maintain valid CE certification (No. 2435-CPR-8605159) and ISO 9001:2015 quality system accreditation (No. 18624Q00169R0M).
Custom Engineering & Free 3D BIM
Every warehouse blueprint receives a free structural calculation sheet, load capacity sign-off, CAD layout, and 3D visual rendering. Our in-house engineering team calculates seismic load allowances and slab anchor requirements before production commences.
Container-Optimized Logistics
Over 10,000 project deliveries across 120+ countries including regular container traffic to Jebel Ali, Dammam, Jeddah, Hamad Port, Sohar, Rotterdam, and Los Angeles. Heavy steel uprights and beams are packed with labeled protective dunnage matching installation drawings.
Frequently Asked Questions on Pallet Racking Sourcing
Clear, engineering-driven answers to the primary technical and commercial questions raised by warehouse operators, general contractors, and logistics procurement teams.
How do you verify beam deflection and load safety factors?
Our beams are calculated according to EN 15512 / FEM 10.2.02 codes with a static safety factor of not less than 1.5. Beam deflection under maximum allowable working load is strictly limited to L/200 (or L/300 for sensitive automated systems). Every design is validated through Finite Element Analysis (FEA) and physical batch coupon testing before shipment.
What surface coatings are used for high-humidity and cold environments?
For standard temperature-controlled warehouses, we apply an industrial electrostatic thermosetting powder coating (60-80 microns) over an acid-pickled and phosphated substrate. For sub-zero cold storage facilities (-30°C) or coastal ambient humidity, we provide pre-galvanized components or full hot-dip galvanizing conforming to ISO 1461 for maximum rust protection.
What project parameters are required to generate a fast 3D CAD layout?
To produce an accurate 2D/3D layout and quotation within 24 hours, our engineering department requires: (1) Warehouse architectural drawings showing clear heights, columns, and dock doors; (2) Pallet specifications including width, depth, height, and maximum gross weight; (3) Forklift model, turning radius (Ast), and maximum mast lift reach; (4) Desired daily throughput and storage density targets.
Can your racking systems support local Civil Defense and fire code approvals?
Yes. Our layout blueprints include detailed longitudinal and transverse flue space dimensions (standard 75mm - 150mm), maximum load rating plaque data, sprinkler pipe clearance pathways, and emergency exit aisle widths. These technical drawings are prepared to directly assist local engineering consultants in securing municipality, Civil Defense, and building insurance sign-offs.
What is the typical production lead time and container packing method?
Standard fabrication cycle for standard 5 to 20 container orders (200 - 800 tons) is typically 15 to 25 calendar days. Upright frames are nested with protective timber spacers, beam pairs are bundled with steel strapping and edge-protectors, and all small connection hardware is crated in seaworthy wooden cases with moisture desiccant bags to prevent transit damage.
Do you offer installation supervision and global warranty coverage?
Every shipment includes numbered component tags, comprehensive CAD assembly manuals, and video installation guides. For large distribution centers and mezzanine platforms, we provide on-site technical installation supervisors or complete turnkey local assembly teams. All structural steel racking components carry an industry-leading structural warranty against manufacturing defects.
Optimize Your Warehouse Space With Direct Manufacturer Pricing
Whether you need heavy-duty selective pallet racks, a high-density radio shuttle automated system, or a custom multi-tier structural mezzanine, our senior structural engineering team is available 24/7 to deliver an optimized floor layout and quote.
