Featured Industrial Warehouse Storage & Automation Systems
Direct from our manufacturing facility, these high-load racking modules, precision structural enclosures, and robotic end-of-line packaging systems deliver optimized volumetric space utilization and rigorous structural compliance for global supply chains.
Industrial Automatic Carton Stacking Collaborative Robotic Arm Palletizer
Advanced cobot system designed for end-of-line packaging. Features high-payload servo control, collision detection, and automated modular stacking algorithms.
40U Server Rack Cabinet 19 Inch Cold Rolled Steel Network Enclosure
Engineered with SPCC cold-rolled steel, IP30 powder coat finish, integrated PDU channels, and high-efficiency ventilation for industrial telecom hubs.
Steel Pallet Racking System Adjustable Beam High-Capacity Storage
High-tensile Q235B cold-formed box beams with 75mm pitch adjustability. Supports up to 4,000kg per level with integrated safety locking pins.
Industrial Warehouse Boltless Long Span Shelving 4-Layer System
Standardized 500kg per tier capacity, featuring rapid boltless assembly, durable step-beam profiles, and interchangeable steel decking panels.
Industrial Heavy-Duty Metal Pallet Storage Racking System
Custom-engineered upright profiles optimized via finite element analysis (FEA). Finished with pickling, phosphating, and electrostatic powder coating.
Heavy Duty Steel 5-Tier Industrial Wire Decking Storage Shelves
Open-wire mesh design eliminates dust accumulation and satisfies ESFR fire sprinkler penetration standards for cold chains and dry storage.

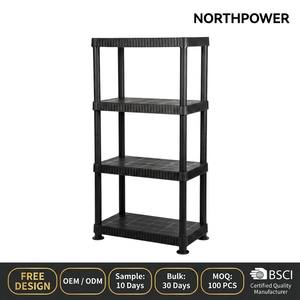

Custom Easy-Assembly Commercial Garage & Warehouse Shelving
Rapid-knockdown modular design engineered for fulfillment hubs and e-commerce picking aisles with custom branding, color codes, and packaging options.
Precision Stainless Steel Racking Brackets & Structural Components
Laser-cut, CNC-punched, and electropolished corrosion-resistant components designed for sterile pharmaceutical and clean-room racking applications.
Structural Metallurgy, Cold-Roll Forming & Load Dynamics in Modern Pallet Racking
Industrial warehouse pallet racking systems are structural steel assemblies subjected to static dead loads, dynamic live impacts, seismic moments, and environmental temperature fluctuations. Procuring racking direct from China requires a deep technical comprehension of material specifications, profile design, and global compliance testing.
Certified Structural Steels (Q235B vs. Q355B)
Our manufacturing process uses hot-rolled steel coils from tier-1 mills. High-stress upright profiles leverage Q355B (equivalent to ASTM A572 Grade 50) offering yield strengths ≥ 355 MPa, ensuring slender sections support massive vertical axial loads without buckling.
Continuous Roll-Forming & Work Hardening
Through a 24-station automated roll-forming line, sheet strip is gradually cold-shaped into complex multi-bend omega (Ω) upright profiles. This cold working increases the effective local yield strength along corner radiuses, directly elevating torsional and distortional buckling thresholds.
Advanced Anti-Corrosion Chemistry
Raw steel is degreased, acid-pickled, and zinc-phosphated before applying an electrostatic thermosetting epoxy-polyester powder coat baked at 200°C. This automated 10-stage pretreatment ensures coating cross-hatch adhesion meets ISO 2409 standards and passes 500-hour neutral salt spray tests.
Racking Systems Engineering Comparison & Selection Matrix
| Storage System Type | Space Utilization | Selectivity | Inventory Flow | Seismic & Load Suitability | Ideal Application Scenario |
|---|---|---|---|---|---|
| Selective Pallet Racking | 40% - 45% | 100% Direct | FIFO / LIFO Flexible | Standard to Moderate Seismic | Distribution hubs, multi-SKU FMCG, 3PL logistics |
| Double Deep Racking | 55% - 60% | 50% (Two-deep) | FILO Optimized | Heavy beam engineering | Medium-turnover, medium-SKU storage with reach trucks |
| Drive-In / Drive-Through | 65% - 75% | Low (Per Lane) | LIFO (Drive-In) / FIFO (Drive-Thru) | Requires floor guidance & portal ties | Cold storage, bulk beverage, seasonal batch staging |
| Radio Shuttle Automation | 75% - 85% | Channel Selective | FIFO or LIFO Programmable | High torsional rigidity rails | Sub-zero cold chain (-25°C), food manufacturing, deep lanes |
| Structural Mezzanine Floor | 150% - 200% | 100% Floor Access | Custom Zone Flow | Heavy point loads (300-1000 kg/m²) | E-commerce piece picking, packaging assembly, office tiers |
Future Warehouse Racking Trends (2025–2035)
Global supply chain disruptions, rising urban land costs, and workforce shortages are driving structural transformations in warehousing procurement. Procurement officers are shifting from static price-per-ton evaluations to Total Cost of Ownership (TCO) models focused on automation readiness, environmental compliance, and seismic resilience.
1. Shift Toward Automation-Ready Racking
Standard forklift-operated racks are increasingly designed with tighter deflection and assembly tolerances (such as FEM 9.831 / EN 15620 Class 400 & 300) to allow retrofitting with Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), and stacker cranes without structural modification.
2. Green Warehousing & Low-Carbon Steel
With cross-border carbon border adjustment mechanisms (CBAM) coming into focus, international buyers prioritize Chinese manufacturers using EAF (Electric Arc Furnace) scrap-recycled steel and heavy-metal-free, VOC-free TGIC powder coatings that meet strict RoHS and REACH directives.
3. High-Bay VNA and Micro-Fulfillment Expansion
Warehouse real estate premiums are forcing facilities upward. Heights exceeding 14 meters with Very Narrow Aisle (VNA) configurations are becoming the benchmark. These systems require higher roll-forming precision to prevent beam sagging and column twisting under multi-tier loads.
Technological Innovations in Modern Racking Design
Racking systems are evolving from passive metal structures into sensor-integrated, dynamically optimized logistics infrastructure.
Finite Element Analysis (FEA)
Every beam-to-column connector and upright perforated section undergoes non-linear finite element modeling to analyze stress concentrations and rotational spring stiffness under seismic cycling.
IoT Load Cell Monitoring
Smart uprights equipped with fiber-optic strain gauges and wireless displacement sensors enable real-time detection of pallet overloads, forklift collision impacts, and foundation settling.
Cold-Chain Alloy Formulations
Dedicated micro-alloyed steels with elevated nickel-manganese fractions prevent brittle phase transitions at -30°C, ensuring dynamic toughness in cold storage logistics.
Cobot Palletizer Synergy
Direct mechanical harmonization between pallet racks and collaborative robotic arms guarantees that unit loads are stacked square and stable, reducing pallet jams in deep-lane systems.
Why Global Enterprises Partner with HEDA Shelves
Founded in 2001 and headquartered in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. operates a vertically integrated 30,000 square meter production facility. Serving engineering procurement teams in more than 120 countries, we maintain direct control over design, metal cold-rolling, automated welding, and export shipping logistics.
Rigorous International Certifications
Every batch of pallet racking, cantilever structure, and mezzanine flooring is certified under CE (Certificate No. 2435-CPR-8605159), ISO 9001:2015 Quality Management (Certificate No. 18624Q00169R0M), and RoHS directives, providing full compliance for international tenders.
Free 3D Layout & Structural BIM Modeling
Our team of over 300 technical and design specialists generates fully detailed 2D CAD floor plans, 3D volumetric renderings, and structural engineering calculations within 24 to 48 hours, optimizing your warehouse footprint against fire aisles and column grids.
Export Packing & Job-Site Coordination
Racking components are bundled with protective steel strapping, corner protectors, and numbered bundle tags matching your construction drawings. We provide end-to-end container packing directly from our factory to major global deep-water ports.
Frequently Asked Questions: Industrial Pallet Racking Sourcing
Answers to common structural engineering, building code, and logistics questions raised by international procurement managers and project contractors.
Which design standards and building codes do your pallet racking systems comply with?
How do you ensure pallet racking compliance with local Civil Defense and fire codes?
What concrete floor slab specifications are required for heavy-duty racking installations?
What information is needed to obtain a free customized 3D CAD warehouse layout?
How does your factory protect steel racking against hot, humid, and coastal environments?
What are the standard factory lead times, export packing protocols, and installation support?
