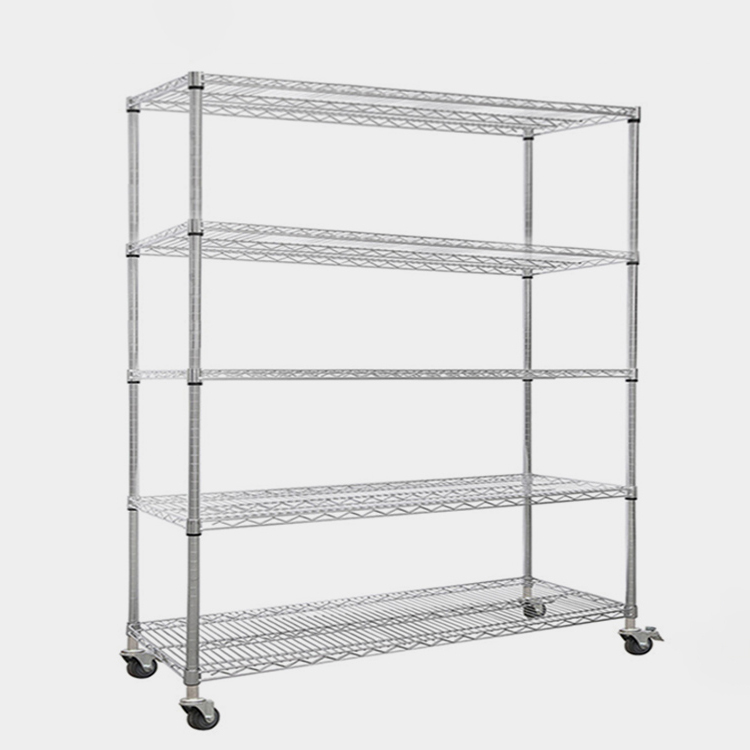

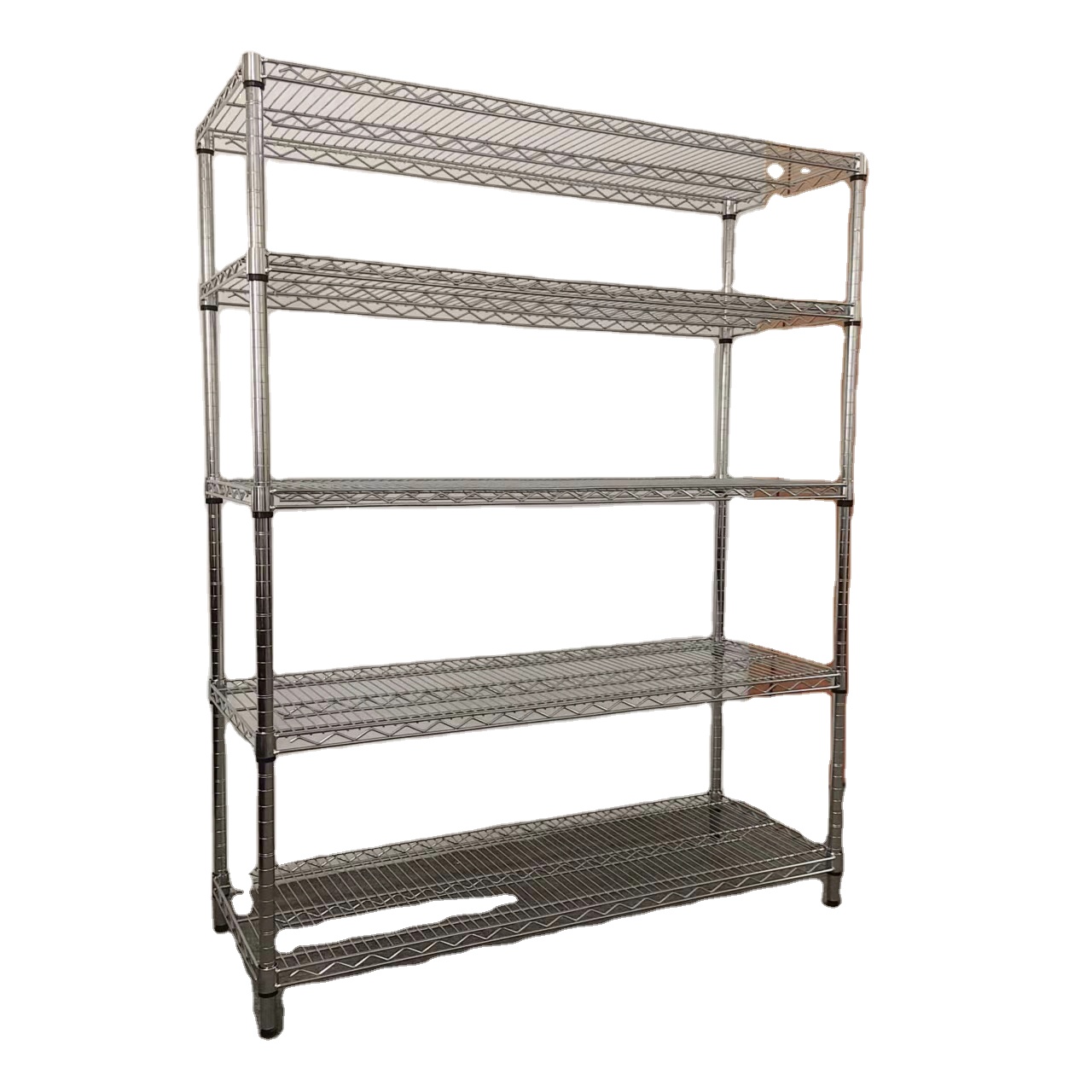

Racks Heavy Duty Metal Steel Storage Shelves 5 Layer Wire Shelf for Sale Racks Shelves
Product Description
Products Description

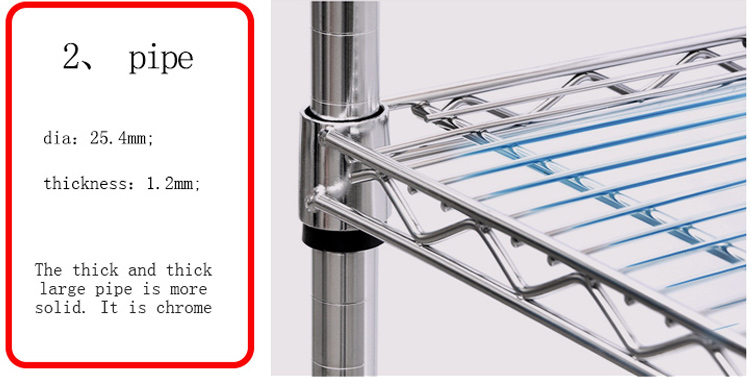

Post Specifications
Diameter: 25.4mm
Thickness: 1.2mm
Height Range: 600mm - 2200mm

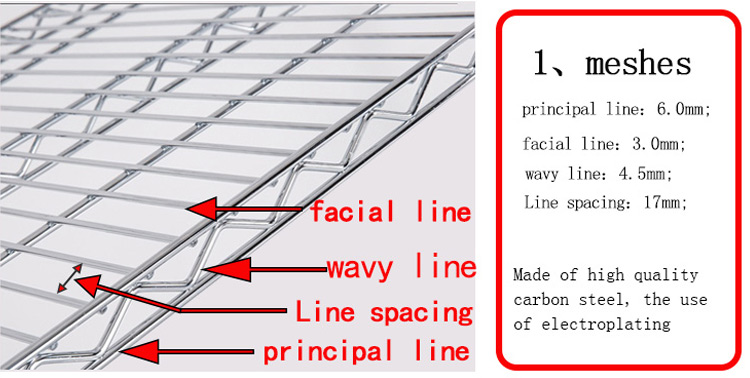

Wire Specifications
Main Wire: 6.0mm
Sub Wire: 3.0mm

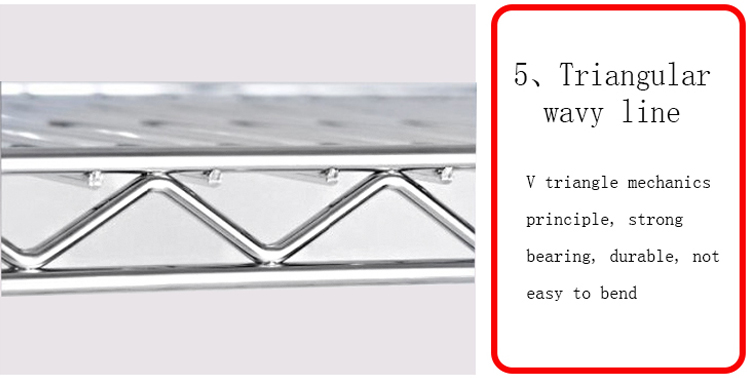

Wavy Wire: 4.5mm
Load Capacity & Layers
Capacity: 250 kgs / layer
Layers: Custom configuration based on customer requirements
| Mesh Size: Length × Width (mm) | |||
|---|---|---|---|
| 355 Series | 457 Series | 533 Series | 609 Series |
| 355 × 355 | 457 × 457 | 533 × 533 | - |
| 609 × 355 | 609 × 457 | 609 × 533 | 609 × 609 |
| 757 × 355 | 757 × 457 | 757 × 533 | 757 × 609 |
| 907 × 355 | 907 × 457 | 907 × 533 | 907 × 609 |
| 1060 × 355 | 1060 × 457 | 1060 × 533 | 1060 × 609 |
| 1215 × 355 | 1215 × 457 | 1215 × 533 | 1215 × 609 |
| 1370 × 355 | 1370 × 457 | 1370 × 533 | 1370 × 609 |
| 1518 × 355 | 1518 × 457 | 1518 × 533 | 1518 × 609 |
| 1822 × 355 | 1822 × 457 | 1822 × 533 | 1822 × 609 |

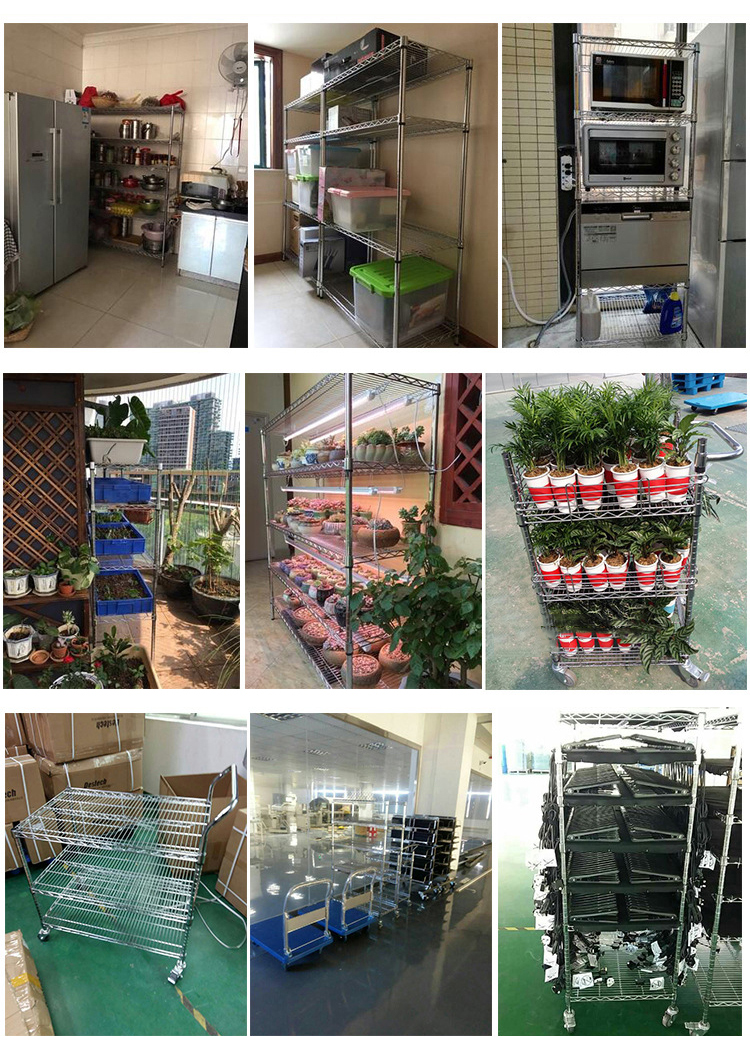

Application
Company Profile

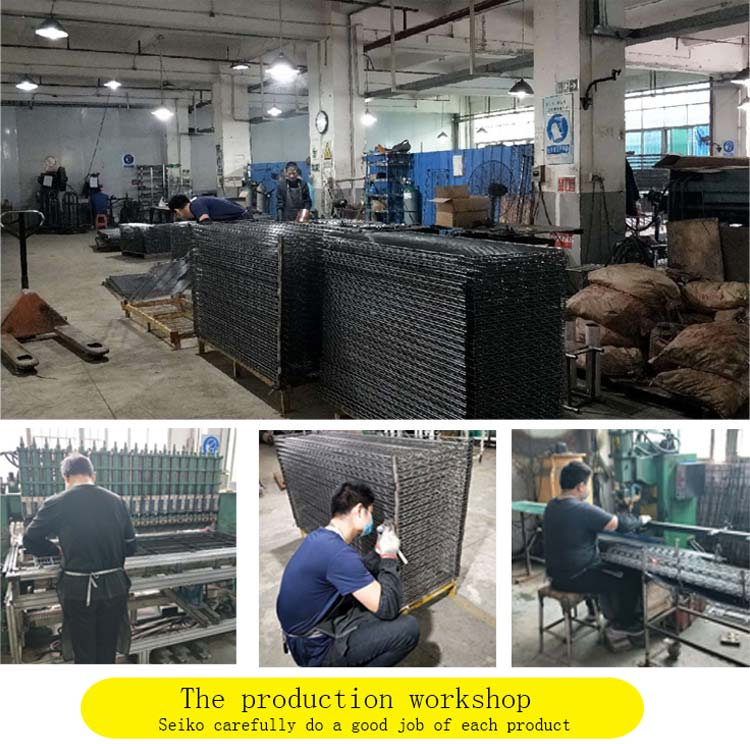

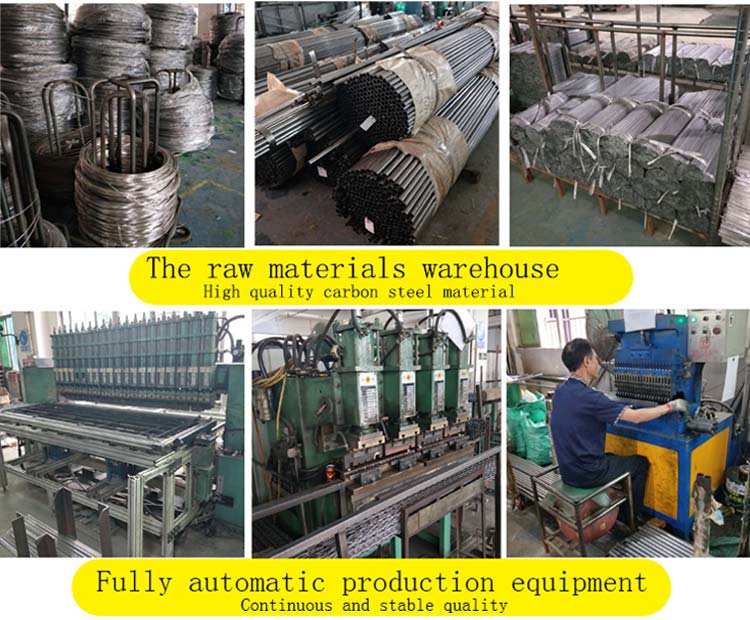

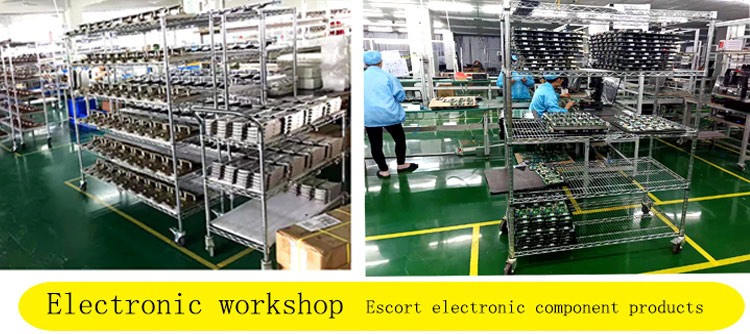

Factory Show

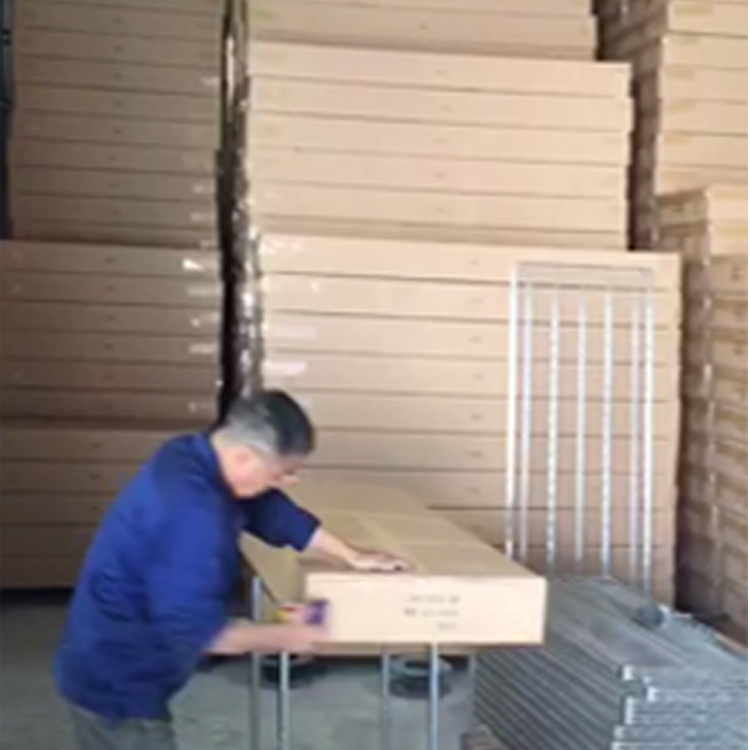

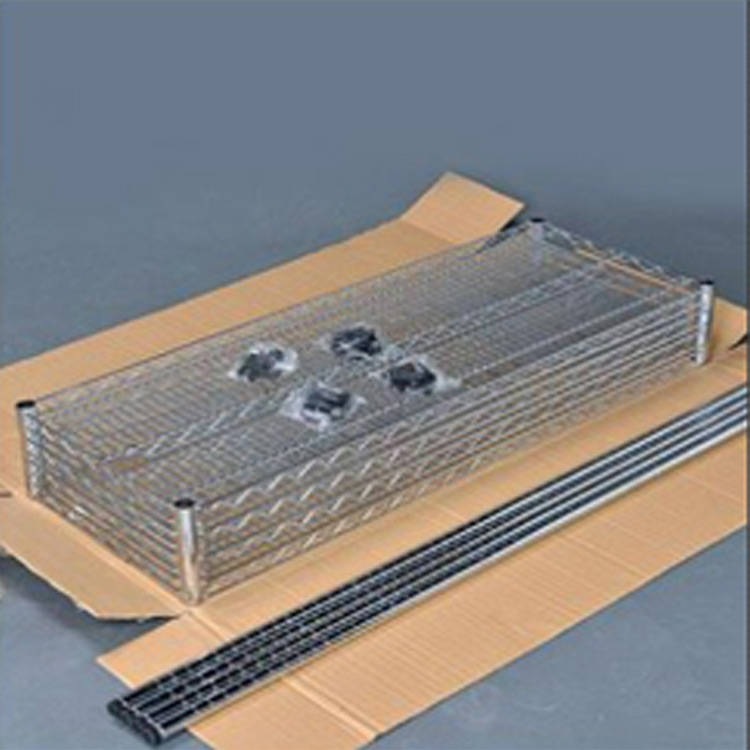

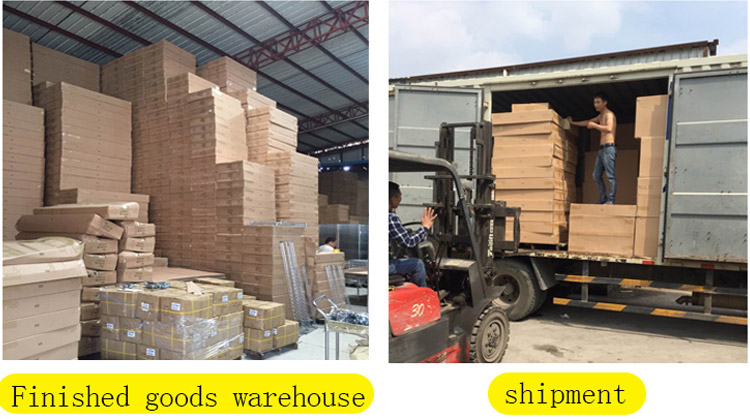

Packaging & Shipping
Frequently Asked Questions
Q
What is the maximum load capacity per layer?
Each layer has a certified loading capacity of 250 kgs (evenly distributed). Heavy-duty wire reinforcement guarantees structural stability under full load.
Q

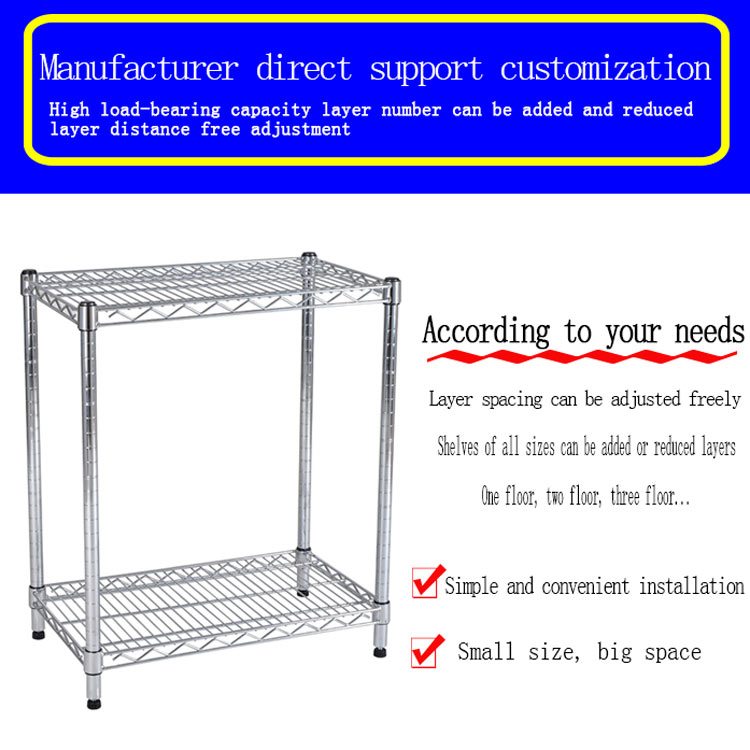

Can shelf heights and tier levels be customized?
Yes. Post heights are available from 600mm to 2200mm, and shelf layer quantities are fully customizable according to your warehouse, commercial, or retail requirements.
Q
What are the wire diameter specifications used for manufacturing?

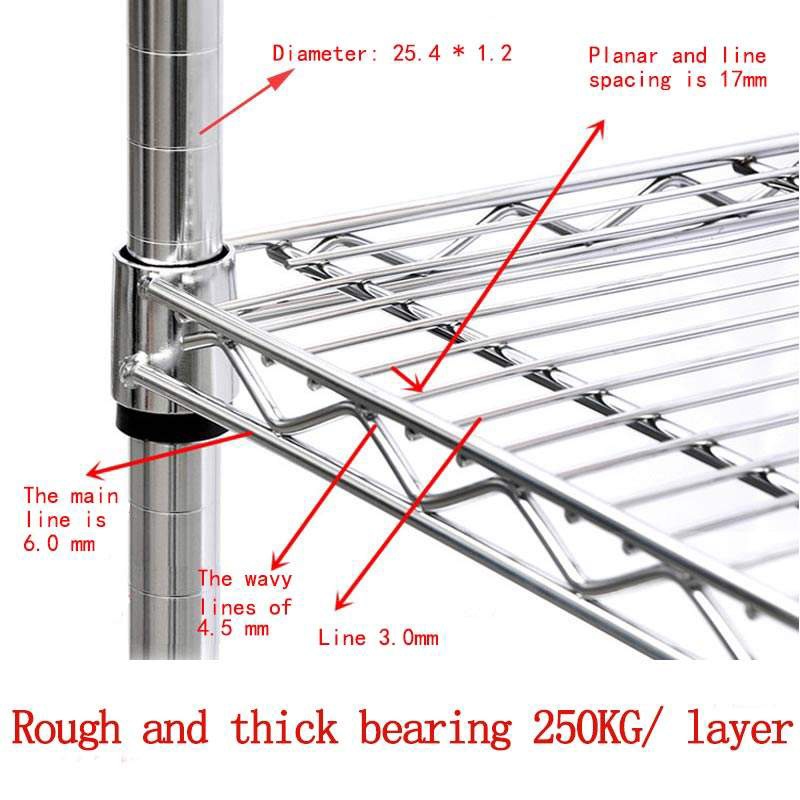

Our shelving is engineered using high-tensile steel wire with a 6.0mm main rim wire, 4.5mm wavy truss wire, and 3.0mm sub-mesh wire, mounted on 25.4mm diameter (1.2mm thickness) steel posts.
Q
Which mesh series and standard sizes are available?
We supply 4 standard width series: 355 Series, 457 Series, 533 Series, and 609 Series, with lengths varying from 355mm up to 1822mm to fit different storage spaces.
Q
Do you support OEM/ODM services and customized packaging?
Yes, OEM and ODM manufacturing is fully supported. Custom sizing, specialized surface treatments (chrome, zinc, powder coating), and export drop-test-certified packaging can be tailored to your brand.
Q
How are products protected during long-distance shipping?
Shelving components and posts are securely flat-packed in multi-layer corrugated export cartons with edge protectors and protective inner wraps to prevent scratches and transit deformation.
