Multi-Level Heavy Duty Industrial Pallet Racking
High-density vertical storage configured with multi-tier beam levels. Designed for versatile cross-docking and large SKU volume warehouses.
Engineered Pallet Racking Product Portfolio
Manufactured from premium Q235B cold-rolled structural steel with high-durability electrostatic epoxy-polyester powder coating. Designed for structural stability, modular expandability, and optimal beam-to-frame load distribution.

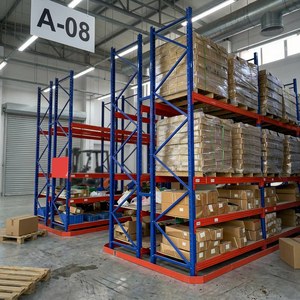

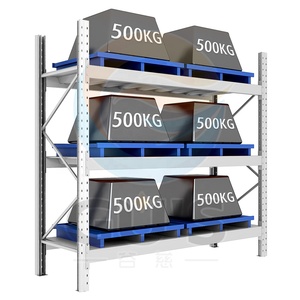

Adjustable Selective Heavy-Duty Pallet Rack
Universal 100% selective accessibility. Configured with adjustable beam pitches on 50mm/75mm increments for variable pallet heights.

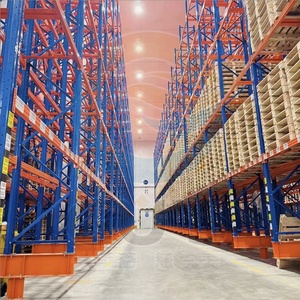

Custom Industrial Steel Pallet Racking Units
Engineered bespoke bay widths and upright depths. Reinforced structural base plates built to handle seismic zone and slab load criteria.
Epoxy Powder Coated 1000-3000kg Layer Rack
Continuous-welded box and step beams rated up to 3,000 kg per layer. Protected with salt-spray tested electrostatic coating against wear.

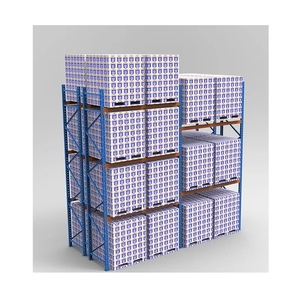

Certified Heavy-Duty Industrial Stacking Racks
CE and ISO certified rack frames. Integrates seamlessly with counter-balanced, reach trucks, and turret material handling fleets.

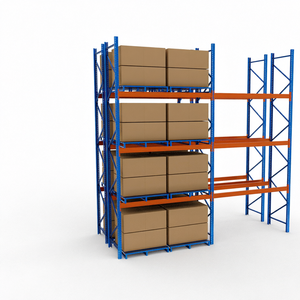

Heavy-Duty Selective Pallet Beam Racking
Dual-locking safety pin design on beam end-connectors ensures rigid resistance against accidental vertical forklift dislodgement.
Industrial Steel Metal Beam Pallet System
Optimized cold-rolled profile sections deliver higher modulus of elasticity and superior deflection control under continuous full-load states.
Large-Scale E-Commerce High-Bay Pallet Rack
Engineered specifically for 3PL and fast-moving retail distribution hubs requiring maximum clearance height and structural durability.
2001
Established Since
30,000+
Square Meters Facility
30,000 T
Monthly Output Capacity
120+
Export Destinations
Engineering Rigor & Factory Export Advantages
Direct manufacturer capabilities eliminate trading overhead, offering direct technical consultation from structural calculation to automated roll-forming and certified global dispatch.
Dedicated 30,000 m² Production Facility
Equipped with continuous automated multi-stage rolling lines, CNC punching stations, robot-assisted welding gantries, and automated shot-blasting pretreatment tunnels to maintain exact tolerances.
CE & ISO 9001:2015 Quality Traceability
Certified under CE standard 2435-CPR-8605159 and ISO 9001 quality system 18624Q00169R0M. Every production batch undergoes strict yield point, tensile elasticity, and salt spray adhesion testing.
Full CAD & 3D Warehouse Simulation
Our senior logistical engineering desk provides zero-cost 2D structural bay layouts, flues space compliance verification, seismic calculation tables, and complete 3D warehouse visual renders before order sign-off.
Engineering Specifications & Structural Design Criteria
A reference guide for supply chain consultants, civil contractors, and industrial procurement directors specifying steel racking assets.
| Component Parameter | Standard Heavy-Duty Specification | High-Bay / Heavy-Capacity Option | Compliance Test Standard |
|---|---|---|---|
| Steel Grade | Q235B Cold-Rolled Carbon Steel | Q355B High-Yield Structural Alloy | GB/T 700 / EN 10025 |
| Upright Column Profiles | 80×60, 90×70, 100×70 mm (t=1.8–2.0mm) | 120×95, 140×95 mm (t=2.5–3.0mm) | EN 15512 Racking Calculation |
| Beam Section Types | Twin-C Interlocking Box Beams (80–140mm) | Heavy Step Beams / Tube Sections (160mm+) | Deflection < L/200 Under Max UDL |
| Surface Pretreatment | Pickling, Degreasing, Phosphating | Zinc Phosphate / Hot-Dip Galvanization | Corrosion Resistance ASTM B117 |
| Finished Coating | Epoxy-Polyester Electrostatic Powder (60-80μm) | Outdoor Galvanized / Heavy-Wear Fluorocarbon | Cross-Hatch Adhesion ISO 2409 |
| Safety Mechanisms | Spring Safety Locking Pins, Base Anchor Bolts | Corner Column Protectors, Upright Shrouds | OSHA 1910.176 & FEM 10.2.02 |
Why Blue (RAL 5015) & Orange (RAL 2004) Racking?
The blue upright and orange beam color configuration is an international ergonomics and occupational safety standard. High-visibility orange highlights active pallet loading beams, assisting forklift operators in judging beam levels and rack depth quickly under high-bay industrial lighting.
Meanwhile, deep blue uprights reduce perceived visual fatigue across wide warehouse perspectives while resisting conspicuous grease smudges and tire marks, maintaining high warehouse cleanliness standards across multi-year lifecycles.
Safety Optical Contrast
Reduced Driver Error
OSHA Visibility Alignment
Seismic Engineering & Floor Slab Integration
Heavy rack safety relies on the interaction between upright baseplates and the concrete slab. Our engineering department calculates dynamic overturning moments, live/dead rack loads, and post-installed chemical/expansion anchor requirements matching seismic risk zones (PGA ratings).
Every frame assembly incorporates scientifically rated diagonal and horizontal bracing triangulations to distribute local beam deflection cleanly throughout the vertical structural members into the subgrade.
Seismic Risk Mitigated
FEM 10.2.08 Compliance
Anchor Shear Protection
Global Sourcing Dynamics & Future Technological Trends
Strategic logistics insights: How warehouse storage hardware is evolving alongside automation, cold chain expansion, and sustainability targets.
1. High-Precision Compatibility with AMR & ASRS
Standard manual pallet racking is adapting for autonomous mobile robots (AMRs) and automated storage and retrieval systems (ASRS). Future procurement prioritizes tighter structural tolerances (±1.0mm per bay) and integrated floor guidance channels to accommodate robotic operations.
2. Green Steel & Eco-Certified Coatings
Multinational procurement mandates now evaluate carbon intensity. We optimize raw strip steel consumption through cold roll-forming profiles with higher section moduli, cutting steel tonnage by 12% without sacrificing load limits, backed by non-toxic, zero-VOC powder finishes.
3. Factory-Direct Modular Scalability
Global supply chain volatility has pushed 3PL operators away from custom one-off systems toward standardized, modular pallet systems. Standard connector types allow easy redeployment, bay elevation adjustments, and fast regional maintenance support.
Industrial Pallet Racking Procurement FAQ
Essential guidance from our chief application engineers for logistics planners, supply chain consultants, and overseas project directors.
How do you calculate safe working load (SWL) capacities for pallet rack beams?
Beam load capacity is determined based on Uniformly Distributed Load (UDL) per pair of beams in compliance with FEM 10.2.02 and SEMA standards. The calculation considers span length, cross-sectional moment of inertia, yield strength of the steel, and limits vertical deflection to less than 1/200th of the span (L/200). We verify all load tables with destructive laboratory testing.
What parameters are needed to generate an engineered CAD layout and quote?
We require warehouse building dimensions (length, width, clear height under eaves), obstruction profiles (columns, sprinklers, lighting levels), pallet specifications (width, depth, overall height including pallet, total gross weight), and your forklift model's minimum aisle turning radius and maximum lift height.
How do your blue powder coatings hold up in coastal or humid regions?
Before electrostatic coating, components go through a continuous 4-stage pretreatment cycle: hot degreasing, clean-water rinse, acid pickling, and phosphating. This produces a phosphate micro-layer that bonds with our thermoset epoxy-polyester powder, preventing paint peeling and corrosion even in coastal ports across the Middle East, Southeast Asia, and the Americas.
How are racking parts packed to prevent transit damage in 40ft HQ containers?
Upright frames and beams are nested, wrapped with protective corrugated cardboard edge guards, banded with heavy steel strapping, and fitted with timber dunnage lifting skids. Smaller hardware items—such as baseplates, bolts, and safety pins—are packed in reinforced wooden crates labeled to match the assembly drawings for clean, orderly site unloading.
Can your selective pallet racking handle non-standard pallet footprints?
Yes. Although European (1200×800mm) and American/GMA (48×40 inch / 1200×1000mm) dimensions are most common, our engineering team manufactures custom bay widths, depth-spanning pallet support bars, wire mesh decks, and solid drop-in steel shelf panels to accommodate non-standard pallets, plastic skids, drums, and heavy machinery crates.
What installation documentation and on-site support do you provide?
Each shipment includes detailed CAD layout plans, component identification schedules, 3D erection diagrams, and torque specification charts for anchor bolts. For large logistics installations, our engineering team provides remote video supervision or dispatches experienced installation leads directly to your job site.
