Selective Pallet
Industrial Pallet Storage Rack Steel Warehouse Adjustable Shelving
- Load Rating: 1,000 – 4,500 kg/Level
- Pitch Interval: 50mm / 75mm Adjustable
- Standard Spec: Q235B Cold-Rolled Steel
Factory Direct Heavy-Duty Inventory
Certified High-Density Bulk Storage Rack & Shelving Portfolio
Constructed from certified Q235B and high-tensile Q355B cold-rolled structural steel, our racking systems are engineered in strict accordance with FEM 10.2.02, RMI MH16.1, and AS 4084-2023 design standards to support industrial warehousing, e-commerce fulfillment, and heavy multi-tier distribution.
Structural Carrier
Bulk Order Tubular Subframe Metal Frames Crossmember Carrier Pallet Rack
- Fabrication: Robotic Precision Welded
- Application: Crossmember Carrier Bases
- Surface Tech: Anti-Corrosive Phosphating
Modular Stacking
Garage Warehouse Adjustable Stacking Racks Steel Metal Shelving
- Tiers: 3 – 6 Custom Beam Tiers
- Per Shelf Cap: 300 – 1,200 kg Uniform
- Feature: Boltless Quick-Interlock
High-Bay VNA
High Bay Pallet Rack System 3500kg Load 7 Levels H7800mm Adjustable
- System Height: Up to 15,000mm Vertical
- Level Capacity: 3,500 kg Heavy Rated
- Access Method: Reach Truck / VNA Turret
Heavy Engineering
Heavy Duty Pallet Rack Shelving Customized Adjustable Q235B Storage Rack
- Steel Specification: Certified Q235B Strip
- Frame Profile: Omega Upright 90×70 / 120×95
- Safety Factor: 1.5 Dynamic Yield Margin
Industrial Tier
Heavy Duty Storage Rack Pallet Rack System Industrial Warehouse Shelf
- Beam Structure: Interlocking Box Beam
- Decking Support: Wire Mesh / Ribbed Steel
- Upright Pitch: 75mm Standard Pitch
Reinforced Frame
Structure Pallet Rack Warehouse Shelving Factory Industrial Racking Systems
- Bracing Topology: Diagonal & Horizontal K-Braced
- Footplate Type: Anchored Seismic Baseplate
- Finish System: Epoxy Polymer Powder Coat
Logistics Dynamic

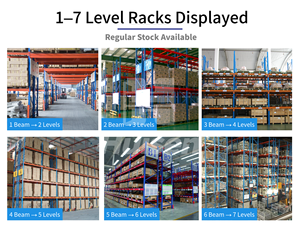

Factory Supply Adjustable Logistic Racking Selective Heavy Duty Pallet Rack
- Handling Fleet: Counterbalanced / Reach
- Pallet Depths: Single or Double Deep
- Certifications: CE / ISO 9001 / RoHS
Manufacturing Pedigree Since 2001
End-to-End Precision Fabrication by Guangzhou HEDA Shelves
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has developed into an internationally certified powerhouse in industrial pallet racking, structural steel mezzanines, and automated warehouse storage architectures. Housing over 300 experienced technical specialists, our 30,000-square-meter advanced manufacturing center operates continuous roll-forming production lines capable of producing 30,000 metric tons of engineered warehouse steel per month.
Unlike trading entities, we maintain complete horizontal and vertical control over engineering calculations, metallurgical verification, automated punching, cold-roll forming, robotic seam welding, multi-stage acid pickling, phosphating passivation, and electrostatic powder coating. This end-to-end sovereignty ensures unmatched structural consistency, adherence to exact load tolerances, and competitive factory-direct pricing for large enterprise buyers and global tier-1 supply chain contractors.
- Free Engineering CAD & 3D Modeling: Structural calculations delivered within 24 hours to accelerate civil defense, local municipal, and project insurance approvals.
- Verified Regulatory Certifications: Fully certified under CE (Certificate No. 2435-CPR-8605159), ISO 9001:2015 Quality Management System (No. 18624Q00169R0M), and RoHS.
- Harsh Environment Finishing: Specialized pre-treatment and industrial powder-coating systems tested to endure extreme coastal humidity, 50°C GCC desert ambient temperatures, and abrasive airborne particulate exposure.
Traceable Quality Management
Our 10-Stage Precision Manufacturing Protocol
Step 01
Raw Coil QC
Step 02
Precision Slitting
Step 03
CNC Punching
Step 04
Cold Bending
Step 05
Roll Forming
Step 06
Edge Polishing
Step 07
Robotic Welding
Step 08
Phosphating Wash
Step 09
Powder Coating
Step 10
QC & Bundling
Engineering Specifications
Heavy-Duty Racking Structural Comparison & Material Analysis
Selecting optimal racking requires evaluating structural profiles, allowable beam deflections under maximum operational loads, dynamic safety factors, and anti-corrosive finishes suitable for regional industrial conditions.
| Racking System Type | Structural Profile | Yield Strength (MPa) | Deflection Limit | Max Pallet Load | Surface Treatment | Standard Compatibility |
|---|---|---|---|---|---|---|
| Selective Pallet Racking | Omega 90×70 / 100×70 Cold-Rolled | Q235B (≥ 235 MPa) | L/200 Under Max UDL | 1,500 kg / pallet | Electrostatic Powder (60-80μm) | FEM 10.2.02 / RMI MH16.1 |
| High-Bay VNA Storage | Reinforced 120×95 Deep Section | Q355B (≥ 355 MPa) | L/250 Tight Tolerance | 2,000 kg / pallet | Zinc-Phosphated Epoxy Powder | EN 15512 / ISO 9001:2015 |
| Drive-In / Drive-Through | Continuous C-Roll Guide Channel | Q235B / Q355B Hybrid | L/200 Under Cantilever | 1,800 kg / pallet | Thermoset Hybrid Polyester | AS 4084-2023 / CE Mark |
| Radio Shuttle Automation | Precision Formed Galvanized Rail | High-Tensile Cold Strip | L/300 Ultra-Rigid Rail | 2,200 kg / carrier | Pre-Galvanized + Powder Accents | EN 528 / CE 2435-CPR-8605159 |
| Heavy Duty Cantilever | Hot-Rolled H-Beam / IPE Columns | Q235B / Q345 Structural | L/180 Projected Arm | 3,000 kg / arm tier | Heavy Epoxy / Hot-Dip Galv | AISC 360 / RMI Standards |
Engineering Note on Load Deflection (L/200 vs L/250): In heavy-duty logistics engineering, beam deflection must never exceed 1/200th of the clear beam span ($L$) under working uniform distributed load (UDL). For automated VNA turret truck operations and high-bay installations exceeding 10 meters, HEDA engineers enforce a tighter deflection ceiling of $L/250$ to avoid sensor tripping and structural racking collisions during high-velocity mast transit.
Strategic Market Intelligence
Procurement Shifts & Global Sourcing Trends (2026–2030)
Global supply chains are transitioning from static storage sheds into intelligent, high-density distribution ecosystems. Sourcing executives and corporate warehouse planners must prepare for four foundational paradigm shifts over the next five years.
1. High-Density Automation Integration
Procurement is pivoting from standard selective layouts to automation-ready designs. Warehouses are integrating radio shuttle systems, four-way pallet runners, and AMR-compatible mezzanine decks to multiply pallet density by up to 280% on the exact same real estate footprint.
2. Stringent Seismic & Flue Compliance
Strict insurer scrutiny and civil defense mandates now enforce rigorous flue-space clearance (NFPA 13 requirements) and dynamic seismic moment calculations. Certified suppliers capable of stamping calculations for high seismic risk zones represent the top procurement priority.
3. Middle East Logistics Expansion
Driven by Saudi Vision 2030, UAE free zone expansions, and major regional transshipment hubs, GCC procurement is soaring. Racking demands specifically call for heat-resistant powder polymers capable of withstanding constant thermal expansion cycles in non-conditioned desert facilities.
4. Factory-Direct Container Optimization
Skyrocketing global freight costs make flat-pack nesting efficiency paramount. Enterprise procurement directors require supplier engineering that balances bundle density inside 40ft High Cube containers with color-coded assembly packaging to eliminate on-site erection delays.
Global Project Engineering
Proven Deployments in Demanding Global Environments
From heavy chemical warehousing under tropical coastal humidity to automotive distribution centers and multi-tier picking structures, examine how our engineering solutions perform globally.
Chemical Warehousing
Heavy-Duty Corrosion-Resistant System
Engineered with zinc-phosphated, double-layer electrostatic powder coating for high-temperature and high-humidity drum storage, providing safe pallet load capacity of 3,200 kg per level.
Multi-Tier Logistics
Rack-Supported Mezzanine Platform
Doubled active floor space for fast-moving retail consumer picking. Integrated galvanized non-slip steel decking with built-in chute drops and forklift staging drop-gates.
Automotive Hub
High-Density Auto Parts Storage Structure
Configured for 15,000+ distinct SKUs. Combines longspan multi-tier shelving decks with cantilever arms for oversized exhaust pipes, sheet metal components, and bulky automotive body assemblies.
Audit-Ready Compliance
Verifiable International Certifications
Our engineering calculations, structural welding processes, and steel grades undergo rigorous verification by third-party testing authorities to satisfy commercial procurement audits.
CE Certified Structural
No. 2435-CPR-8605159 (EN 1090-1)
ISO 9001:2015 Registered
Quality Management (No. 18624Q00169R0M)
RoHS Compliance
Lead-Free Eco Polymer Coating
Static Load Tested
Third-Party Deflection & Shear Audits
B2B Sourcing Knowledge Base
Frequently Asked Questions by Industrial Racking Buyers
Clear technical guidance addressing structural calculations, steel grades, surface coatings, international shipping, and on-site assembly validation.
What raw steel specifications are used in HEDA heavy-duty storage racks?
We manufacture our upright columns and horizontal load beams exclusively from premium Shanghai Baosteel certified Q235B and Q355B structural carbon steel strips. Each production batch undergoes incoming ultrasonic flaw detection, tensile yield verification, and elongation testing to guarantee certified minimum yield strengths of 235 MPa and 355 MPa respectively.
How do your finishes withstand humid coastal and high-temperature desert climates?
All rolled profiles undergo an 8-stage automated pre-treatment bath incorporating acid rust removal, immersion degreasing, clean-water rinsing, and zinc-phosphating passivation. Following pre-treatment, components receive an electrostatic thermoset polyester powder coating cured at 180°C–200°C, yielding a 60–80 micron dry-film thickness with 500-hour ASTM B117 salt-spray corrosion resistance.
Can your engineering team support municipal Civil Defense and NFPA 13 compliance?
Yes. Our senior structural designers configure layouts to meet local municipal fire and life-safety codes. We specifically detail longitudinal and transverse flue spaces (typically 150mm clear vertical aperture) to allow automated in-rack or ceiling sprinkler suppression plumes to penetrate pallet tiers in strict accordance with NFPA 13 standards.
What data is required to calculate an accurate warehouse layout quotation?
To deliver a precision 2D CAD floorplan and structural quotation within 24 hours, our engineering department requires: (1) Warehouse architectural drawings showing column grid spacing and clear height under eaves; (2) Pallet footprint dimensions [Width × Depth × Height] including cargo overhang; (3) Maximum total pallet weight; and (4) Forklift specifications including aisle turning radius and maximum lift mast height.
How are racking bundles packed to prevent container transit damage?
All upright frames and beams are nested with high-density corrugated card separators, wrapped with industrial stretch film, and strapped onto heavy timber skids using high-tensile steel banding. Hardware connectors, baseplates, and row spacers are boxed in heavy multi-wall cartons with color-coded part labels matching the engineering packing slip.
What are the allowable beam deflection tolerances under full load?
In standard selective pallet racking, beam deflection under maximum working uniform distributed load (UDL) is constrained to less than $L/200$, where $L$ is the clear span distance between upright faces. For automated high-bay systems, automated shuttle tracks, and VNA narrow-aisle facilities, we engineer beam sections to a tighter stiffness threshold of $L/250$ to $L/300$.
Do you supply custom OEM dimensions, hole patterns, and corporate colors?
Yes. We provide complete OEM/ODM engineering services. Uprights are offered with classic teardrop, diamond, or European 50mm/75mm pitch slot patterns. In addition to our standard safety orange (RAL 2004) beams and gentian blue (RAL 5010) uprights, we produce electrostatic powder coatings matching any custom corporate RAL specification.
What warranty and structural lifecycle guarantees are provided?
Every heavy-duty pallet racking and mezzanine structure manufactured by Guangzhou HEDA Shelves comes with a comprehensive 5-year structural integrity factory warranty against weld failure, profile deformation under rated load, and coating peeling. With proper operating adherence to rated load placards and routine annual bolt inspections, our systems exceed a 15- to 20-year service life.
