Featured Industrial Shelving & Pallet Racking Systems
Factory-direct structural pallet shelving systems engineered from high-yield Q235B and Q355B structural steel coil. Every component is subjected to finite element analysis (FEA) to ensure structural integrity across high-bay distribution hubs, temperature-controlled cold chains, and FMCG storage.
100% Selectivity
Heavy Duty Adjustable Steel Beam Pallet Rack
Engineered teardrop/diamond hole upright columns offering rapid beam adjustment in 50mm or 75mm pitches with high load tolerances up to 5,000 kg per beam level.
Strict FIFO Flow

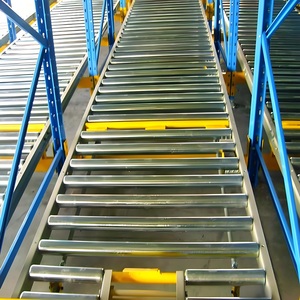

Custom FIFO Gravity Pallet Flow Rack System
High-density live dynamic storage incorporating heavy-duty brake rollers and speed controllers to guarantee strict batch rotation for pharmaceutical and dairy storage.
High Capacity
Heavy Duty Cold-Rolled Beam Warehouse Racking
Continuous roll-formed box beams with 3-connector or 4-connector safety pins preventing vertical dislodgement during intense reach truck retrieval routines.
Dynamic Picking
Industrial Roller Track Carton Live Flow Racks
Engineered for assembly lines, split-case picking, and distribution centers. Features aluminum alloy tracks and high-impact plastic skate wheels.
Medium-Duty
Industrial Longspan Steel Display & Storage Shelving
Standard modular 2000x600x2000mm bays equipped with galvanized or cold-rolled steel deck plates, ideal for manual picking of heavy parts, hardware, and automotive supplies.
Automation Ready
High-Speed Radio Pallet Shuttle Racking System
Semi-automated deep lane storage with bi-directional radio shuttles capable of speeds up to 1.1 m/s, dramatically shrinking forklift travel cycles and increasing bay storage density by 80%.
Double Density
High-Density Space-Saving Double Deep Pallet Rack
Engineered to store pallets two deep from a single aisle, cutting aisle volume by up to 40% while preserving high throughput via pantograph or deep-reach lift trucks.
Boltless Heavy-Duty
Boltless Heavy-Duty Mold & Die Storage Shelving
Interlocking butterfly-hole structure built with reinforced cold-rolled plate steel to safely house heavy tooling, industrial dies, stamping components, and hardware jigs.
Engineering Integrity & Global Exporter Competencies
Navigating the complexities of heavy industrial warehouse shelving procurement requires an empirical understanding of structural steel chemistry, manufacturing tolerances, seismic calculations, and corrosion resistance.
Over the past twenty years, the worldwide logistics infrastructure has transitioned from generic storehouses into heavily automated, high-density fulfillment centers. In this high-throughput ecosystem, racking is no longer a static steel shelf; it is an active structural framework that integrates with automated reach trucks, AGVs, high-bay cranes, and high-speed radio shuttles. Sourcing directly from top Chinese tier-1 racking manufacturers offers international supply chain directors unmatched economies of scale, bespoke cold-forming metallurgy, and streamlined containerized freight logistics.
At Guangzhou Heda Shelves Co., Ltd. (operating since 2001), our 30,000 m² modern manufacturing complex bridges the gap between cost-effective Chinese steel production and rigorous international engineering standards. Utilizing certified Q235B and high-tensile Q355B cold-rolled steel coils from prime domestic mills, our automated roll-forming lines maintain dimension tolerances within ±0.5mm across upright column lengths up to 15 meters without splicing.
International procurement teams frequently encounter systemic racking failures caused by subpar beam-to-column connector welds, micro-fractures in cheap steel, and thin paint coatings that quickly blister in humid marine environments. Standard EN 15512 (European standard for static steel racking design) and RMI (Rack Manufacturers Institute MH16.1) mandate exacting deflection ratios: beam deflection under safe working load (SWL) must strictly not exceed L/200, with an ultimate safety factor of 1.5 to 1.65.
"Structural safety in high-density pallet racking begins with verified yield strength certification, continuous automatic roll forming, and closed-loop electrostatic powder coating that resists chemical abrasion and thermal shock."
By enforcing an end-to-end quality assurance program—from raw steel chemical spectrometry to automated shot blasting, 10-stage pre-treatment, and automated robotic welding—we supply turn-key pallet racking installations that achieve decades of service life across GCC logistics hubs, the Americas, Europe, and Southeast Asia.
Racking Architecture & Operational Performance Comparison
Evaluate the fundamental performance trade-offs between storage density, direct pallet accessibility, warehouse clear-height utilization, and capital expenditure.
| Racking Architecture | Pallet Accessibility | Floor Space Efficiency | Inventory Logic | Max Unit Load | Capital Investment |
|---|---|---|---|---|---|
| Standard Selective Racking | 100% Direct | Baseline (40% - 50%) | FIFO / LIFO Flexible | 5,000 kg / Beam Level | Low - Optimal |
| Double Deep Pallet Racking | 50% Selective | High (+30% vs Baseline) | FILO System | 3,500 kg / Level | Moderate |
| Radio Shuttle System | Lane Selective | Very High (80% - 85%) | FIFO / LIFO Programmable | 1,500 kg / Carrier | High (High ROI) |
| Gravity Pallet Flow | Face Selective | Maximum (80%+) | Strict Dynamic FIFO | 1,200 kg / Position | Medium-High |
| Drive-In / Drive-Thru | Low (Bulk SKU) | Very High (75%) | Strict FILO (Drive-In) | 2,000 kg / Pallet | Economical |
| Rack-Supported Mezzanine | Multi-Tier Pick | Extreme (200% - 300%) | Omni-Channel Picking | 1,000 kg / m² Floor | Engineered Custom |
Global Procurement & Industrial Racking Trends
How forward-looking warehouse managers and 3PL operators are structuring their long-term racking and shelving investments to lower Total Cost of Ownership (TCO).
Industrial Technology & Manufacturing Advancements
High-Strength Micro-Alloyed Steels
Adoption of micro-alloyed structural coils (such as Q355B and high-yield cold-rolled profiles) enables lighter column sections with higher ultimate tensile limits, decreasing container freight costs while maintaining elevated load capacities.
Intelligent Semi-Automated Shuttle Nodes
Radio pallet shuttle technology has evolved from standalone remote carriers into WMS-integrated intelligent nodes capable of self-charging, automatic inventory counting, and lane-to-lane autonomous transfers via AGVs.
Harsh Climate Protective Pre-Treatments
With industrial expansion into high-humidity coastal zones (e.g., Dubai, Dammam, Southeast Asian ports), pre-treatment has shifted to rigorous chemical pickling, zirc-phosphating, and exterior-grade thermoset polyester powder coatings exceeding 500 hours of salt spray resistance.
Strategic Global Procurement Trends
Factory-Direct Engineering Collaborations
Global EPC contractors are bypassing middle-tier distributors to contract directly with Chinese manufacturing plants that provide in-house structural engineering calculations, 3D CAD modeling, and custom roll-forming tooling.
Modular Life-Cycle Scalability
Modern distribution hubs require adaptable racking architectures. Procurement specifications now mandate convertible beam connectors that can easily transform selective bays into double deep positions, carton flow lanes, or mezzanine platforms.
Compliance With Civil Defense & Insurance
Global insurers and municipal authorities require verified flue space clearances (longitudinal and transverse) along with documented load plates, drop-pin anti-dislodgement locks, and upright column impact guards.
HEDA Shelves: 10-Step In-House Production Process
We eliminate sub-contracting variances by maintaining 100% in-house manufacturing control across our 30,000 square meter automated facility in Guangzhou.
International Structural Safety Accreditations
Traceable compliance certificates matching municipal building permits, Civil Defense clearance requirements, and multinational corporate audit files.
Frequently Asked Questions by Industrial Warehouse Buyers
Direct answers to core technical inquiries surrounding structural steel grades, safety deflections, container stuffing factors, and export installation procedures.
