China Top Wall Mounted Rack Shelving Factory & Exporter: Technical Procurement & Engineering Guide

Industrial White Paper: Structural Dynamics of Heavy-Duty Wall-Mounted & Modular Warehouse Shelving

In modern high-density intralogistics, commercial retail backrooms, and industrial workshops, spatial utilization is constrained by slab capacity, building clearance, and structural perimeter interfaces. While conventional freestanding selective racks bear load-vectors vertically into reinforced concrete slabs, wall-mounted rack shelving and integrated wall-anchored mezzanine systems introduce combined axial, shear, and pull-out stresses that require rigorous engineering oversight. As China's preeminent OEM/ODM rack shelving factory and certified exporter, Guangzhou Heda Shelves Co., Ltd. sets the global standard for heavy-duty structural steel fabrication, delivering engineered racking systems that reconcile maximum dynamic capacity with international safety tolerances.

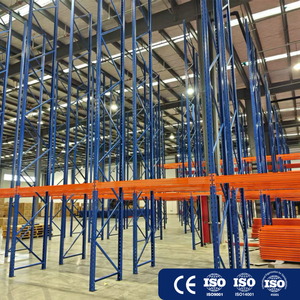

1. Metallurgical Formulations & Precision Roll-Forming Tolerances

The operational lifespan and load integrity of industrial wall-mounted and freestanding racks depend fundamentally on raw steel metallurgy. HEDA Shelves strictly deploys prime continuous-cast Q235B and Q345B hot-rolled structural steel coils sourced from certified Tier-1 domestic mills. Q235B exhibits a guaranteed yield point of ≥235 MPa and ultimate tensile strength between 370–500 MPa, with Charpy impact test compliance at 20°C. This guarantees that cold-formed upright profiles maintain sufficient ductile elasticity without micro-fracturing along continuous cold-roll bend radii.

Our 30,000 m² Guangzhou manufacturing base incorporates 12 automated CNC cold-roll-forming profile lines. Upright omega profiles undergo progressive multi-stage roller deformation to preserve uniform wall thickness across flanges, return lips, and web sections. Precision automated hydraulic punching arrays execute pitch perforations (standardized at 50mm, 75mm, or 76.2mm teardrop intervals) with tolerances maintained within ±0.15mm across a 12-meter single-section profile. This manufacturing precision eliminates residual stresses, preventing axial twisting during vertical assembly.

2. Engineering Performance Matrix: Structural Racking Components

The following engineering matrix outlines the technical parameters applied across our standard and custom industrial storage rack models:

3. Comprehensive Surface Treatment & Environmental Resilience

Industrial storage environments often expose metal infrastructure to elevated atmospheric stressors. In port terminals, cold storage distribution hubs, chemical distribution warehouses, and coastal desert facilities, uninhibited oxidation causes catastrophic structural failure. At HEDA Shelves, all steel members pass through a 10-stage automated pre-treatment and electrostatic powder-coating line.

The sequence begins with industrial solvent degreasing, hot water rinsing, acid rust pickling to eliminate mill scale, followed by iron-zinc phosphating which etches a crystalline microscopic layer onto the carbon steel substrate. This crystalline layer provides mechanical interlocking for the subsequent electrostatic deposition of TGIC-free polyester powder. Cured in continuous ovens at 190°C–210°C, the finished coating achieves a uniform dry film thickness (DFT) of 60–90 μm, surpassing 500 hours of continuous ASTM B117 salt spray testing with zero blistering or undercut delamination. For deep-freeze environments (-30°C) or outdoor lumber and steel storage yards, our Guangzhou facility provides Class 1 Hot-Dip Galvanization in accordance with EN ISO 1461, yielding zinc coatings exceeding 85 μm for 25+ years of zero-maintenance corrosion protection.

Technological Evolutions in Racking & Wall-Mounted Structural Engineering

The transition from generic manual shelving to advanced intralogistics ecosystems has driven structural innovations across rack geometry, anchorage metallurgy, and dynamic safety interfaces. Understanding these engineering trends allows warehouse operators to future-proof their capital investments.

Dynamic Beam-to-Column Locking Geometry

Historically, basic industrial shelving relied on bolted gusset plates or friction tabs prone to loosening under continuous forklift vibration or manual loading cycles. Today, advanced cold-stamping tooling allows the fabrication of multi-lug welded beam end connectors with integral safety locks. Each beam connector features 3 to 5 stamped claw lugs engineered to engage with teardrop or diamond upright slots at a slight reverse wedge taper. Under downward load, the connector self-seats tighter into the upright, increasing moment-resisting stiffness and resisting upward accidental dislodgement from fork masts up to 5,000N vertical uplift.

Wall-Mount Lateral Restraint Engineering (Seismic & Overturning Mitigation)

In facilities with high aspect ratios (where frame height exceeds 6 times frame depth), racking structures are vulnerable to cross-aisle and down-aisle overturning. While traditional solutions add floor footings that consume valuable aisle real estate, engineered wall-mounted racking frameworks transfer horizontal seismic and live overturning forces directly into reinforced concrete wall panels through sliding expansion sleeves.

These sliding sleeves accommodate thermal expansion, roof deflection under snow loads, and concrete creep without transferring building roof loads down into the storage rack uprights. This hybrid connection provides structural stability while allowing warehouse operators to double their vertical storage capacity along perimeter walls.
