Heavy-Duty Warehouse Shelving & Stacking Systems
Engineered from premium Q235B and Q355B cold-rolled structural steel coil. Each shelving architecture is certified for severe dynamic stress, extreme high-bay vertical clearance, and maximum cubic pallet optimization.
Heavy Duty Steel Stackable Pallet Stacking Racks Post Pallet Storage Shelf For Warehouse Storage
- Capacity: 1,000–2,500 kg/tier
- Modular demountable post design
- 4 to 6 tiers stackable footprint
Adjustable Steel Selective Beam Pallet Rack With Powder Coated Surface For Supermarket And Warehouse Storage
- Up to 4,500 kg per beam level
- Pitch: 50mm/75mm adjustable pitch
- 100% direct individual pallet access
Debion Protect Grid Back Wall System For Warehouse Shelving Storage Solution
- Heavy welded wire anti-fall mesh
- Impact safety rating & aisle shielding
- Universal bracket retrofit compatible
Wholesale Supplier Mezzanine Rack Heavy Duty Industrial Shelving Warehouse Shelf Racks
- Multi-tier floor: 300–1,200 kg/m²
- Integrated structural steel staircases
- Doubles usable vertical footprint
XLB Steel Selective Pallet Rack 4 Layer Warehouse Automation Shelves Corrosion Protection Powder Coated
- High-bay automated system ready
- Dual-layer epoxy-polyester coat
- Up to 12-meter clear verticality

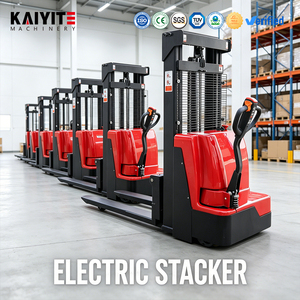

Industrial Electric Stacker 1Ton 2Ton Pallet Stacking Truck 3500mm Lift Height For Racking System
- Rated Lift: 1,000–2,000 kg
- Lift Elevation: 1.6m to 3.5m
- Narrow-aisle maneuvering profile
Manufacturer Long Span Storage Adjustable 200Kg Steel Racking Shelving Stacking Racks
- 200–800 kg per beam level
- Boltless fast butterfly clip assembly
- Steel, wire mesh, or timber shelves
Heavy Duty Powder Coating Forklift Portable Stackable Steel Fabric Roll Pallet Racking
- Specialized cradle for textile rolls
- 4-way forklift pocket entry
- Collapsible when empty to save space
Enterprise Advantages: Why Global Procurement Teams Rely on Guangzhou HEDA Shelves
Operating from our centralized 30,000 m² automated production base in Guangzhou, China, Guangzhou HEDA Shelves Co., Ltd. has established the benchmark for high-density logistics storage, structural steel pallet racking, and turnkey mezzanine manufacturing. Since our foundation in 2001, we have eliminated intermediate trading premiums by serving overseas distributors, third-party logistics (3PL) conglomerates, mega-retailers, and government procurement bodies directly from our factory floor.
Certified Steel Metallurgy
We source certified prime Q235B and Q355B cold-rolled structural steel coils exclusively from premier Tier-1 domestic steel mills. Structural components undergo continuous in-line tensile testing to ensure yield strength thresholds of ≥ 235 MPa and ≥ 355 MPa respectively, preventing upright buckle failure under severe dead and dynamic live loads.
Advanced 9-Stage Coating
Standard solvent coatings quickly chip and degrade under warehouse forklift impact. We utilize a fully automated 9-stage pre-treatment line featuring acid descaling, pickling, and zinc phosphating before electrostatic dry epoxy-polyester powder application (80–120 μm film thickness) cured at 200°C, offering salt-spray resistance exceeding 500 hours.
Full Turnkey Layout Support
Every industrial project is backed by our dedicated in-house technical engineering squad comprising 300+ professionals. Clients receive free 2D architectural CAD layouts, 3D photorealistic spatial simulations, and finite element analysis (FEA) calculations, tailored directly to building column grids, sprinkler flue clearances, and forklift turn radiuses.
Zero-Defect 10-Step In-House Fabrication Workflow
Unlike regional assemblers that outsource cold-forming and welding, HEDA controls 100% of production under one roof, guaranteeing full material traceability from raw steel coils to loaded ocean freight containers:
Step 01: Raw Steel QC
Coil thickness and yield test verification
Step 02: CNC Slitting
Laser and automated shearing to +/- 0.5mm
Step 03: CNC Punching
Continuous pitch upright hole punching
Step 04: Roll Forming
Precision multi-roller section profiling
Step 05: Robot Welding
CO2 shielded automated continuous seams
Verifiable International Certification & Compliance Standards
Our manufacturing facility, quality management protocols, and exported racking components comply with globally recognized structural engineering codes, ensuring seamless local civil defense, municipal building authority, and commercial property insurance approvals:
CE: 2435-CPR-8605159
ISO 9001:2015 Registered
RoHS Material Directives
EN 15512 / RMI Dynamic Tests
Future Sourcing & Procurement Trends in Bulk Storage Shelving (2025–2030)
Global warehouse real estate development is experiencing a permanent shift. Land acquisition premiums, soaring urban lease rates, and operational overheads have rendered single-deep, low-elevation floor stacking financially obsolete. Savvy chief procurement officers (CPOs), operations directors, and warehouse architects are recalibrating their storage investment strategies based on four macro procurement vectors:
01 Ultra-Vertical High-Cube Density (12m to 24m)
Modern distribution facilities are transitioning from traditional 6-to-8-meter clear heights to 12-to-24-meter ultra-high clear bays. Procurement contracts are shifting toward heavy-duty upright profiles with larger column sections (e.g., 90x70mm, 100x70mm, 120x95mm) capable of sustaining axial frame loads beyond 25,000 kg, designed explicitly for Narrow Aisle (NA) and Very Narrow Aisle (VNA) turret truck navigation.
02 Shuttle-Ready Hybrid Automation Infrastructure
Rather than committing massive CapEx to rigid, legacy automated storage systems, logistics operators are favoring modular, semi-automated Radio Shuttle racks. Procuring standardized lane channels allows companies to run conventional forklifts today while remaining 100% compatible with pallet shuttles, autonomous mobile robots (AMRs), and automated guided vehicles (AGVs) tomorrow.
03 Harsh Climate & Cold-Chain Sourcing Rigor
With global cold-chain pharmaceutical and food logistics expanding rapidly, steel brittleness at sub-zero temperatures (-25°C to -35°C) presents a critical safety risk. Buyers are specifying specialized silicon-killed micro-alloyed structural steels that maintain impact toughness and Charpy V-notch performance in freezing environments without micro-cracking along weld seams.
04 Standardized TCO & Containerized Flat-Pack Logistics
Freight volatility has made shipping volume efficiency an indispensable purchasing metric. International buyers now mandate nested column geometry, demountable pallet post stacking racks, and knock-down beam end-connector profiles that maximize container space utilization—lowering per-pallet ocean freight costs by up to 38% on shipments from China.
| System Architecture | Floor Space Utilization | Pallet Accessibility | Inventory Method | Standard Load Class | Typical Application Sector |
|---|---|---|---|---|---|
| Selective Pallet Racking | 40% – 50% | 100% Direct Access | FIFO / LIFO Flexible | 1,000 – 4,500 kg / level | Retail, 3PL FMCG, General Distribution |
| Radio Shuttle High-Density | 75% – 85% | Semi-Automated Lane | FIFO or LIFO Selectable | 1,500 kg / pallet position | Cold Storage, Beverage, Seasonal SKUs |
| Drive-In / Drive-Through | 65% – 75% | Batched Aisle Entry | Strictly LIFO (Drive-In) | 1,000 – 2,000 kg / pallet | Raw Commodity, Packaging, Single-SKU |
| Rack-Supported Mezzanine | 100% + Multiplied Footprint | Manual Pick + Pallet Drop | Continuous Replenish | 300 – 1,200 kg / m² deck | E-commerce, Auto Spares, Garments |
| Heavy-Duty Cantilever | 50% – 60% Linear | Continuous Open Face | Direct Crane / Forklift | 1,000 – 3,000 kg / arm | Steel Pipe, Timber, PVC Extrusions |
Technological & Structural Innovations in Bulk Shelving Manufacturing
As warehouse automation accelerates, bulk storage shelving is no longer a passive static commodity. At Guangzhou HEDA Shelves, we integrate cutting-edge structural dynamics, computer-aided simulations, and proprietary engineering designs to deliver superior load safety, extended service longevity, and unmatched operational reliability.
Finite Element (FEA) Modeling
Every non-standard racking system undergoes comprehensive 3D FEA stress simulation. We model localized buckling factors, beam connector rotational stiffness (C-value), second-order P-Delta lateral sway effects, and seismic ground accelerations, guaranteeing compliance with European EN 15512 and American RMI MH16.1 specifications.
Self-Locking Connector Clasps
Human error in safety pin placement is a primary contributor to warehouse beam dislodgement. HEDA integrates heavy-duty cold-formed 3, 4, and 5-claw beam connectors fitted with spring-loaded, visible-check safety locking clasps that resist dislodgement from upward forklift mast impacts exceeding 5 kN.
Smart Profile Roll-Forming
Our continuous automated roll-forming lines feature progressive multi-station roller dies that form uprights with up to 14 cold-bent structural folds. This geometry dramatically increases the radius of gyration and second moment of area, elevating compression resistance without adding redundant dead steel weight.
Sustainable Green Manufacturing Initiatives
In compliance with global ESG environmental mandates, our facility operates fully closed-loop powder recovery systems boasting 98.5% electrostatic powder recycling efficiency. Our zero-discharge chemical wastewater treatment center treats and recycles degreasing and pickling rinsing effluents, significantly lowering the embedded carbon footprint of every metric ton of racking shipped overseas.
Frequently Asked Questions by Overseas Buyers & Structural Engineers
Clear, unvarnished technical answers to the most critical logistical, structural, and commercial questions raised by international procurement managers and project contractors.
What are the cost, lead time, and structural advantages of buying directly from a China manufacturer versus local distributors?
Procuring directly from a primary manufacturer like Guangzhou HEDA Shelves provides three decisive competitive advantages:
- Direct Ex-Factory Pricing: Sourcing directly from China eliminates regional distributor markups, wholesale broker commissions, and brand licensing premiums, saving between 25% and 45% on capital expenditure.
- Engineered Customization: Rather than forcing off-the-shelf standard sizes onto your facility, our factory engineers customize column gauges (1.5mm to 3.0mm), beam lengths, and hole punch patterns to optimize your specific pallet geometry and floor slab loading profiles.
- High Production Scalability: Supported by our 30,000-ton monthly capacity, large-scale projects requiring 10 to 50 container loads (40ft HQ) can be fabricated, pre-treated, and packed in 15 to 25 operational days.
What essential site parameters are required to generate a preliminary 2D layout and accurate structural quotation?
To ensure our engineering department produces an accurate, structurally compliant design, prospective buyers should provide:
- Architectural Building DWG/PDF: Overall warehouse dimensions, clear height to roof trusses or fire sprinkler pipes, column locations, dock door positions, and planned evacuation aisles.
- Pallet & Unit Load Profile: Exact pallet dimensions (Width x Depth x Height, including product overhang), maximum gross pallet weight, and pallet construction (wooden Euro pallet 1200x800mm, industrial perimeter pallet 1200x1000mm, plastic, or custom steel stillage).
- Material Handling Equipment (MHE): Forklift make and model, minimum aisle turning radius (AST), maximum mast lift height, and top-tier lifting capacity limits.
- Local Environmental Factors: Seismic design acceleration coefficients, environmental operating temperatures (ambient vs. -30°C cold storage), and coastal humidity conditions.
How does HEDA ensure rack integrity under severe seismic forces and local Civil Defense / Fire safety codes?
Our structural designs are engineered strictly in accordance with European EN 15512:2020 and US RMI MH16.1 specifications. To satisfy seismic and local municipal approvals:
- Upright baseplates are laser-profiled with increased surface area and dual anchor bolt holes to dissipate vertical axial loads and lateral shear forces across the concrete slab without cracking foundation concrete.
- Transverse and longitudinal flue spaces (typically 75mm to 150mm) are strictly incorporated into dual-row arrays to ensure open vertical water penetration paths for ceiling fire sprinkler systems, compliant with NFPA 13 rules.
- Heavy-gauge column frame protectors, bull-nose end-of-row barriers, and back-wall safety drop screens are integrated to safeguard high-traffic corridor corners from high-speed MHE collisions.
What surface treatment options prevent rust in hot, humid, or sub-zero coastal warehouse environments?
We provide multiple application-specific coating specifications to prevent atmospheric corrosion:
- Industrial Electrostatic Epoxy-Polyester Powder Coating: Standard for dry, temperature-controlled facilities. Features our 9-stage pre-treatment line with an 80–120 μm cured film thickness resisting scratching and routine warehouse moisture.
- Pre-Galvanized Coil Fabrication: Upright braces and wire decking can be roll-formed directly from hot-dipped pre-galvanized steel sheets, delivering affordable rust immunity for moderate humidity and unconditioned warehouses.
- Hot-Dip Galvanizing (HDG): Steel components are completely submerged in a 450°C molten zinc bath to achieve a sacrificial metallurgical bond exceeding 65–85 μm (ISO 1461). Recommended for outdoor lumber yards, coastal docks, and severe chemical processing facilities.
How are goods bundled to prevent shipping damage during ocean freight, and how is installation handled on site?
Export packaging and logistical simplicity are vital components of our quality assurance framework:
- Container-Optimized Bundling: Heavy structural uprights and horizontal beams are bound in rigid steel strapping, padded with heavy-duty air cushion wraps, and supported by timber dunnage. Every bundle is tagged with weatherproof barcodes and alphanumeric part IDs matching project assembly drawings.
- Turnkey Installation Guidance: Every shipment includes comprehensive 3D step-by-step installation manuals, exploded component diagrams, and torque specifications for base anchor bolts. For multi-tier mezzanine and radio shuttle installations, we offer live remote video engineering support or dispatch qualified supervisory installation engineers to project sites worldwide.
Can your bulk shelving and racking systems integrate with AGVs, AMRs, and Automated Storage & Retrieval Systems (AS/RS)?
Yes. Automated warehouse equipment requires significantly tighter manufacturing tolerances than standard forklift operations. Our automated roll-forming and optical laser positioning systems ensure that column upright plumbness and beam deflection tolerances conform to FEM 9.831 and FEM 10.2.09 criteria. We engineer custom floor-level guide rails, docking plates, and optical reflector mounting holes directly into upright frames for seamless integration with Autonomous Mobile Robots (AMRs) and automated pallet shuttle carriers.
Ready to Optimize Your Warehouse Capacity & Lower Storage CapEx?
Whether you require a standard selective pallet rack layout, a high-bay automated radio shuttle integration, or a multi-tier industrial mezzanine floor, our Guangzhou engineering headquarters is ready to assist. Submit your building specifications today for a complimentary 2D/3D CAD design layout, certified structural load calculations, and a direct factory quotation.
