Engineered Industrial Warehouse Storage Systems
Explore our custom OEM product line engineered from certified structural steel (Q235B & Q355B). Designed to deliver high load integrity, optimized vertical space utilization, and rapid logistics throughput.

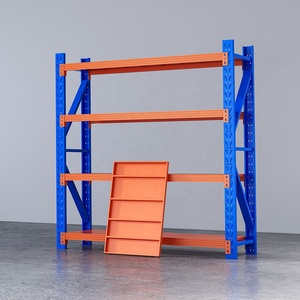

4-Layer Stackable Heavy-Duty Steel Garage & Warehouse Rack
Electrostatic powder-coated sturdy iron/steel frame featuring adjustable tier spacing, heavy load shelf decks, and modular boltless assembly.
Mini-Load ASRS Automated Tote & Bin Storage Racking System
Precision-engineered high-density automated small parts retrieval racking. Custom OEM specifications compatible with automated stacker cranes.
Foldable Heavy-Duty Steel Warehouse Stackable Storage Rack
Flexible post-pallet stack racking solution designed to eliminate permanent floor footprint while maximizing seasonal buffer capacity.
1000kg Pallet Stacking Rack With Electrostatic Coating
Engineered for bulk unit load staging in harsh warehouse environments. High-precision intermeshing nesting cups ensure 4-5 tier stacking safety.

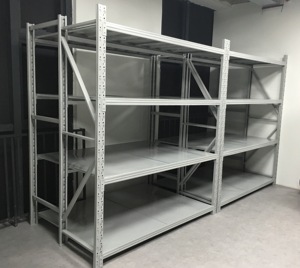

Multi-Tier Adjustable Steel Pallet Storage Racking System
Versatile selective and double-deep configurable beam system with corrosion-resistant electrostatic powder finish and 50mm pitch adjustability.

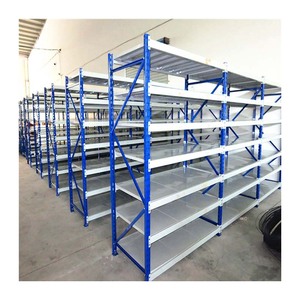

Industrial Light-Duty Boltless Selective Shelf & Racking
Fast-assembly rivet and slotted shelving engineered for e-commerce picking modules, automotive spare parts, and intermediate manual decks.

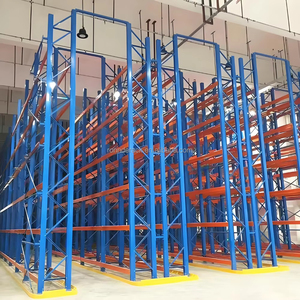

High-Density Narrow Aisle (VNA) Heavy Pallet Racking
Designed for operations requiring maximum cubic storage. Supports wire-guided or rail-guided turret trucks for warehouse ceilings up to 16 meters.

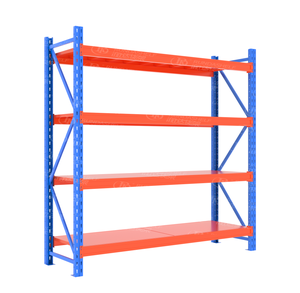

Factory Heavy-Duty Industrial Multi-Layer Metallic Steel Shelves
Certified structural load capacity up to 4,500 kg per beam level. Custom frame depths and heavy-gauge footplates for heavy manufacturing facilities.
The Engineering Mechanics of Custom Double Deep Pallet Racking
A deep-dive technical evaluation of volumetric efficiency, reach truck kinematic parameters, structural upright deflection limits, and safety standards for modern logistics facilities.
1. Volumetric Density Optimization & Kinematics
Standard selective pallet racking requires an operating aisle for every two rows of single-entry pallets, consuming between 60% and 68% of warehouse floor footprint in access aisles alone. Custom OEM Double Deep Pallet Racking systematically restructures this geometric equation. By engineering pallet bays that stage unit loads two-deep in a back-to-back four-row configuration, the overall number of operational transit aisles is cut by 50%.
This configuration provides an immediate 30% to 40% increase in storage capacity compared to standard single-selective systems, while avoiding the extreme selectivity loss of Drive-In systems. With 50% immediate pallet accessibility, double deep setups provide the optimal intralogistics sweet spot for inventory profiles possessing multiple pallets per SKU (2 to 8 pallets per product line), cold storage facilities where cubic refrigeration energy costs are at a premium, and high-throughput distribution hubs.
Operating this system requires specialized handling equipment: either a specialized pantograph reach truck or a telescopic fork lift truck. Structural upright frame depths must be precisely calculated (typically 2,100mm to 2,400mm back-to-back with engineered row spacers) to maintain adequate flue spaces in compliance with fire safety codes (NFPA 13 regulations).
2. Structural Integrity & Load Deflection Standards
Because pantograph fork mechanisms generate higher horizontal dynamic push-pull forces during pallet placement and extraction at secondary depths, structural engineering considerations must exceed conventional static rack calculations. All HEDA Shelves double deep uprights and box/step beams are analyzed using Finite Element Analysis (FEA) under strict adherence to EN 15512 (European Standard for Steel Static Storage Systems), RMI (Rack Manufacturers Institute MH16.1), and FEM 10.2.02 guidelines.
Vertical column deflection under full rated load is engineered strictly to stay within 1/200th of the clear beam span (L/200), preventing residual deformation and ensuring seamless fork entry into second-deep pallet pockets. Heavy-duty bottom pallet guide rails, structural row connectors, and heavy-gauge wrap-around column protectors are integrated into the floor layout to dissipate impact energies caused by forklift mast movements.
For installations in seismic areas, frames are configured with enlarged heavy-duty baseplates, multiple chemical anchor bolt positions per upright leg, and continuous heavy horizontal and diagonal bracing to dissipate cyclic shear forces.
Technical Engineering Specification Matrix: Double Deep vs. Alternative Systems
| System Parameter | Double Deep Pallet Racking | Standard Selective Racking | Drive-In Pallet Racking | Radio Shuttle Racking |
|---|---|---|---|---|
| Floor Footprint Utilization | 60% – 65% (High) | 35% – 42% (Low) | 70% – 80% (Very High) | 75% – 85% (Maximum) |
| Direct Pallet Selectivity | 50% (Immediate) | 100% (Full Accessibility) | 10% – 20% (LIFO Only) | Continuous Lane Access |
| Handling Equipment Required | Pantograph / Telescopic Reach Truck | Standard Counterbalance / Reach | Narrow Counterbalance Truck | Standard Forklift + Radio Carrier |
| Pallet Load Capacity (Kg/Level) | 1,000 kg – 4,500 kg | 800 kg – 5,000 kg | 1,000 kg – 2,000 kg | 1,000 kg – 2,500 kg |
| Stock Rotation Discipline | FILO (First In, Last Out per lane) | FIFO (First In, First Out) | LIFO (Last In, First Out) | FIFO or LIFO Configurable |
| Cold Storage Space Efficiency | High (Lowers refrigeration CapEx) | Poor (High volume wasted) | High (Slow handling cycles) | Superior (Fast, automated) |
| Relative System Capital Cost | Moderate / Balanced | Baseline (Low) | Moderate | High (Electronics & Automation) |
Why Global 3PLs & Industrial Giants Choose HEDA Shelves
With over two decades of precision manufacturing excellence, Guangzhou Heda Shelves Co., Ltd. delivers direct factory capabilities, certified quality control, and custom structural engineering worldwide.
30,000 m² Factory & 30,000-Ton Output
Established in 2001 in Guangzhou, China, our specialized plant operates multiple automated cold-roll forming lines, automated high-speed column punching presses, and robotic welding workcells, producing over 30,000 metric tons of certified racking monthly.
Verifiable Certifications: CE & ISO 9001
Fully accredited with CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management (No. 18624Q00169R0M), and RoHS compliance. Every batch undergoes strict raw steel metallurgical tensile testing and weld radiography.
Bespoke OEM/ODM Engineering
Tailor-made upright column profiles (80mm to 140mm face widths), steel gauges from 1.5mm to 3.0mm, custom beam connector pins, and customized powder coat finishes matched precisely to your corporate RAL palette or environmental requirements.
Export Deployment Across 120+ Countries
Extensive overseas project experience across North America, Southeast Asia, Europe, and the GCC region (UAE, Saudi Arabia, Qatar, Oman, Kuwait, and Bahrain). Container-optimized bundle packaging ensures zero transit abrasion.
Extreme Heat & Corrosion Pretreatment
Our 9-stage surface treatment includes automated acidic pickling, zinc phosphating, and 200°C electrostatic curing. This provides military-grade corrosion resistance suited for hot, humid coastal regions and heavy industrial chemical plants.
Free 2D CAD & 3D BIM Layout Design
Our in-house team of structural engineers produces comprehensive 2D CAD floor plans, 3D renderings, and structural loading calculations within 24–48 hours, fully compliant with municipal Civil Defense and insurer requirements.
Future Procurement & Technological Trends in Pallet Racking (2025–2035)
How automation convergence, high-strength structural metallurgy, sustainability standards, and predictive supply chain dynamics are reshaping global warehouse infrastructure investments.
1. Automated Double-Deep AMR Integration
The conventional reliance on manual reach trucks is shifting rapidly toward Autonomous Mobile Robots (AMRs) and automated telescopic fork AGVs. Warehouses are ordering racking systems engineered with tighter floor-level guide channels, optical laser target reflectors mounted directly to uprights, and tighter structural tolerances (±1.5mm) to support continuous lights-out warehouse automation.
2. Green Procurement & Circular Steel
Global logistics REITs and multinational brands now mandate Environmental Product Declarations (EPDs) for structural warehouse fit-outs. Suppliers must demonstrate scrap-recycled Electric Arc Furnace (EAF) steel sourcing, non-toxic heavy metal-free powder finishes, and modular designs that can be deconstructed, re-configured, or recycled without down-cycling structural integrity.
3. IoT Sensorization & Digital Twin Racking
Modern high-bay double deep racks are becoming connected structures. Embedded strain-gauge telemetry on critical load beams, impact acoustic sensors on upright bases, and RFID-tracked pallet positions allow warehouse management systems (WMS) to track real-time stress concentrations, detect structural forklift impacts instantly, and maintain a live Digital Twin for predictive safety audits.
4. Micro-Hub Urbanization & High-Clear Bays
Urban logistics pressures are forcing distribution centres upward instead of outward. Sourcing contracts prioritize double deep and VNA systems configured for 12m to 16m clear-height buildings. This architectural shift requires ultra-rigid column profiles with modified section moduli to resist secondary bending moments without requiring excessive lateral bracing.
5. Total Cost of Ownership (TCO) Procurement
Procurement managers no longer evaluate racking purely on steel tonnage or upfront FOB price. Long-term TCO formulas analyze installation ergonomics, field-bolting speed, beam connector safety lock designs that prevent accidental dislodgement, and modular spare-part availability that reduces operational downtime caused by routine forklift damage.
6. Nearshore Logistics Warehousing Growth
Sourcing diversification across the Middle East, Southeast Asia, and Central Europe has accelerated demand for container-ready OEM racking suppliers capable of handling high-volume regional fulfillment. Standardized modular components allow regional 3PLs to interchange parts across different facilities easily as fulfillment strategies evolve.
Frequently Asked Procurement & Engineering Questions
In-depth technical answers addressing pallet tolerances, operational limitations, forklift configurations, and safety compliance for international engineering directors and procurement heads.
What specific inventory profile is most suitable for Double Deep Pallet Racking?
What forklift mast specifications are required to operate a double-deep system?
How does HEDA Shelves calculate seismic and dynamic wind loads for high-bay racks?
Can an existing selective pallet racking warehouse be converted into a double deep system?
What steel grades and surface pretreatment standards are utilized in manufacturing?
How does Double Deep Racking comply with NFPA and Civil Defense fire sprinkler codes?
What is the production lead time for full-container OEM orders and what export documents are supplied?
What warranty coverage and structural support services does HEDA provide?
Design Your High-Density Warehouse Storage Solution Today
Send our structural engineering team your warehouse architectural floor plan (DWG/PDF), clear height, pallet dimensions, and target capacity. Receive a complimentary 2D CAD layout, 3D rendering, and factory-direct quotation within 24 hours.
