Mracking Light Duty Warehouse Selective Shelf Metal Steel Customized Warehouse Rack Warehouse Storage System Boltless Racking
Product Description
Product Description
Medium Duty Rack
Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can be reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.
| Standards Size | Layer | Loading Weight | Beam (mm) | Upright (mm) | Thickness of Board (mm) |
|---|---|---|---|---|---|
| L2000*D600*H2000 | 4 | 200~300kg/layer | 60*40*1.2 | 60*50*1.2 | 0.5 |
| L2000*D600*H2000 | 4 | 400~500kg/layer | 60*40*1.5 | 60*50*1.5 | 0.7 |
| Product Name | Medium Duty Rack/Shelf |
| Material | High-Quality Q235 Colded-Coll Steel |
| Loading Capacity | 200~500kgs/level |
| Thickness | Upright: 60*40*1.0, 1.2, 1.5mm; Beam: 60*40/80*40*1.0, 1.2, 1.5mm; Steel: 0.5, 0.6, 0.7mm |
| Color | Upright: Blue, Beam: Orange, Steel: Gray white. It can be customized to any color. |
| Surface Treatment | Electrostatic Spray Surface |
| Packing Term | Air bubble, Carton, Wooden Case |
| Warranty | 10 Years |
| Certification | SGS |
|
|
Beam Loading Capacity & Size
Detailed Images
| Medium Duty Rack Specifications | |
|---|---|
| Size | L2000*D600*H2000mm, Loading: 300kg/layer, Layer: 4 levels |
| Material | Upright: 60*50*1.0, Beam: 60*40*1.2, Steel: 0.5mm |
| Color | Upright is blue, beam and steel is gray white |
| Packaging Term | Air bubble |
| Surface Treatment | Powder Coating |

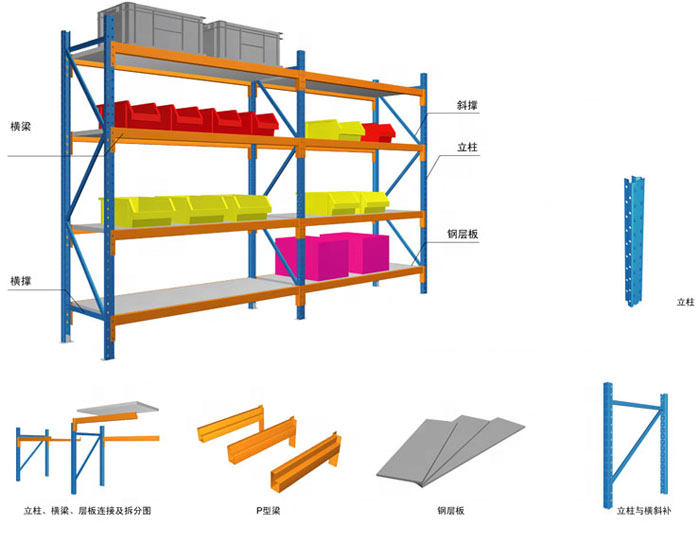

Beam & Upright Connect
Diagonal & Horizontal Bracing Installed
Steel Board Section
Product Overviews
Hot Sale
Heavy Duty Pallet Racking
Medium Duty Rack
Mould Rack
Cantilever Rack
Mezzanine Floor
Wire Mesh Container
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional racking manufacturer located in Dongguan, Guangdong.
What is the material used for the racks?
Our material is high-quality Q235B cold rolled steel.
What is your delivery time?
Generally within 15 workdays. It also depends on the order quantity and shelving design.
What are the terms of payment?
30% T/T down payment and 70% T/T balance before delivery.
How can I get a quick quotation for my racking project?
Please provide the following details for a fast quotation:
- The size of the rack: Length × Depth × Height.
- Number of layers per set.
- Load capacity per beam layer.
- Total racking quantity required.
Are samples available and how are they delivered?
Yes, free samples are available with freight collected. Standard packaging uses air bubble film, with wooden cases available upon request.
