High-Density Storage & Warehousing Components
Explore our heavy-duty industrial racking solutions, gravity flow track systems, structural decking modules, and load stabilization cargo systems engineered for severe distribution workloads.

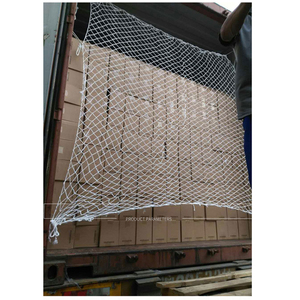

Wholesale Qianshun Adjustable Various Color PP Knotless Net Lightweight Container Pallet Cargo Net
High-tenacity polypropylene cargo retention nets engineered for palletized freight anti-fall containment in dynamic gravity racks, shipping containers, and transit trailers.

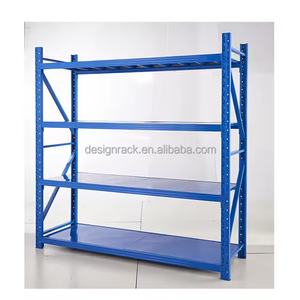

Wide Span Shelving Units Wholesales Price Warehouse Rack Storage Pallet Racks Shelf Blue & Orange
Versatile heavy-duty industrial wide span shelving. Combines high sectional rigidity, 50mm pitch adjustability, and composite timber or steel decking shelves.

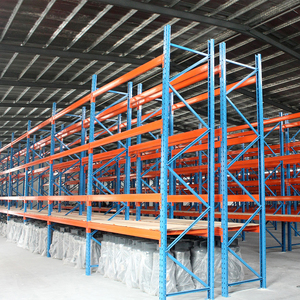

Industrial Rack By LIJIN Manufacture Heavy Duty Adjustable Steel Garage Storage Shelving Rack
Reinforced cold-rolled steel stacking racks designed for high point loads, rapid boltless field erection, and harsh industrial workshop or logistics operations.
Galvanized Wire Mesh Deck 2500lb 3 Channel Waterfall Step Ventilated Pallet Rack 24x46 Deckings
Fire-code compliant welded wire mesh decking featuring flared 3-channel steel supports. Guarantees in-rack sprinkler water penetration and prevents loose carton falls.

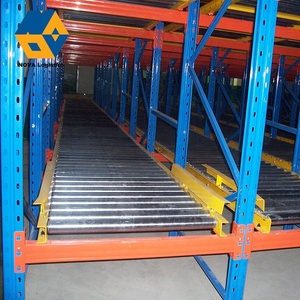

NOVA Warehouse Storage Steel Gravity Flow Rack, Heavy Duty Gravity Pallet Racking
Ultra-dense dynamic FIFO roller system equipped with centrifugal speed-governing rollers, automatic end-stop pallet separators, and entry alignment ramps.

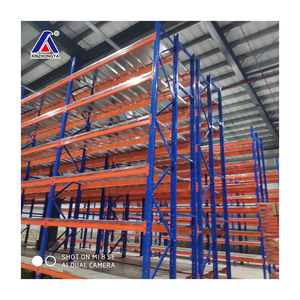

Q235b Steel Single Deep Double Side Selectivo Slective Pallet Storage Rack Equipment
Industrial selective pallet racking engineered for 100% instant unit pick access. Compatible with standard counterbalanced forklifts, reach trucks, and VNA narrow aisle mast configurations.
Longspan Shelving Rack High Bay Industrial Narrow Aisle Heavy Duty Metal Pallet Racking
Engineered for extreme vertical cubic clearance utilization. Incorporates high-strength cold-formed upright profiles to withstand severe seismic and heavy wind-sway conditions.

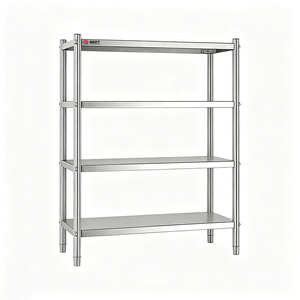

Stainless Steel Shelf Kitchen Storage Rack Industrial Storage Heavy Duty Commercial Shelving
Premium corrosion-proof 304/201 austenitic stainless steel storage shelving designed for cleanroom operations, cold storage walk-ins, food distribution, and pharmaceutical processing centers.
Dynamic Gravity Flow Kinematics & Structural Architecture
A comprehensive examination of dynamic velocity governance, pallet inertia dampening, separation physics, and material science for heavy pallet flow rack installations.
Controlled Incline & Velocity Physics
Pallet flow racks utilize gravity-driven roller beds inclined at a strict 2.5% to 3.5% gradient (approx. 1.5° to 2.0°). This inclination yields sufficient kinetic force to overcome initial static rolling resistance across wooden Euro or GMA runners without permitting unrestrained speed acceleration. Our precision slope calibration prevents pallet stranding or uncontrolled impact momentum.
Centrifugal & Magnetic Brake Rollers
In deep-lane configurations (exceeding 4 pallets and up to 25 pallets deep), kinetic runaway poses a catastrophic risk. Our systems integrate internally geared centrifugal braking rollers spaced at exact calculated pallet intervals. As velocity approaches 0.3 m/s, centrifugal weights actuate brake shoes against the internal drum, regulating line speed to safe, constant terminal velocity.
Automatic Pallet Separation Mechanisms
Back-pressure at the discharge picking face can exceed thousands of kilograms when multiple pallets rest together. Our proprietary mechanical pallet separators lock back trailing pallets 150mm behind the lead pallet. Only when the forklift operator safely lifts and extracts the lead unit does the latch release, allowing the queue to index forward one position smoothly.
| Storage System Architecture | Stock Rotation Rule | Floor Space Utilization | Selectivity & Access Speed | Forklift Travel In-Lane | Honeycombing Loss Factor | OEM Capital Cost / Pallet |
|---|---|---|---|---|---|---|
| Gravity Pallet Flow Rack (FIFO) | Strict FIFO (First-In, First-Out) | 80% – 90% (Maximum Floor Density) | High Velocity (Dedicated Pick Aisle) | None (Loads/Discharges Exterior) | Under 5% (Continuous Lane Fill) | Medium – High (High ROI in High Throughput) |
| Drive-In / Drive-Through Rack | LIFO (Occasionally FIFO in Drive-Thru) | 65% – 75% (Dense but Slow) | Very Low (Pallet Burying) | High (Forklift Enters Storage Cavity) | High (15% – 30% Unused Voids) | Low – Medium (Simple Structural Frames) |
| Push-Back Cart Racking | Strict LIFO (Last-In, First-Out) | 70% – 80% (2 to 6 Pallets Deep) | Moderate (Front-Aisle Dynamic) | Low (Forklift Stays in Single Aisle) | Low – Moderate (10% Void Factor) | Medium (Multi-Tier Nested Carts) |
| Radio Shuttle Racking | Configurable FIFO or LIFO | 85% – 92% (High-Bay High-Density) | High (Automated Internal Transport) | Zero (Shuttle Traverses Rails) | Minimal (<3% with Automated WMS) | High (Robotic Shuttles + Battery Units) |
| Selective Pallet Racking | Any (Unrestricted Individual Access) | 35% – 45% (Aisle-Heavy Layout) | 100% Instant Immediate Access | None (Operates within Traffic Aisles) | Zero Selective Honeycombing | Lowest Initial Hardware Outlay |
*Calculated based on standard 1200x1000mm and 1200x800mm industrial pallet handling configurations operating under EN 15512 and FEM 10.2.02 deflection standards.
Guangzhou Heda Shelves Co., Ltd. Structural OEM Advantages
Combining 25+ years of heavy structural fabrication with state-of-the-art roll forming and electrostatic powder coating technology. We design, calculate, manufacture, and export turnkey warehouse systems globally.
Certified Metallurgy & Structural Steel
All load-bearing upright profiles, box beams, and dynamic gravity track channel frames are roll-formed exclusively from certified high-yield Q235B and Q355B structural coil steel. Our raw materials undergo rigorous tensile yield testing, ultrasonic flaw detection, and strict incoming gauge verification before processing.
10-Stage Surface Pretreatment Line
To resist coastal salt air, extreme humidity, and thermal shock in deep sub-zero blast freezers (-30°C), our components pass through an automated 10-stage sequence: industrial degreasing, twin chemical pickling, zinc phosphating, high-pressure rinsing, and automated thermoset polyester powder coating baked at 200°C.
Export Loading & Seismic Engineering
Every overseas shipment is container-optimized using CAD packing models to maximize tonnage without racking deformities. Component bundles are strapped with rust-inhibitive VCI film and labeled to match our 3D erection schematics. All frame calculations adhere to seismic site classifications (IBC / Eurocode 8).
Emerging Technologies & Future Flow Rack Sourcing Trends (2025–2035)
How the convergence of warehouse robotics, autonomous guided vehicles (AGVs), predictive IoT sensing, and extreme cold-chain logistics is reshaping procurement demands.
1. Autonomous AMR / AGV Infeed Interfacing
Modern distribution hubs are phasing out manual counterbalanced forklift infeed in favor of Autonomous Mobile Robots (AMRs) and AGV reach trucks. Future gravity flow systems mandate optically aligned funnel entries, magnetic dock plates, and precision mechanical centering guides that accommodate the millimetric placement tolerances required by robotic forks without rack collision impact.
2. Cold Chain Energy Densification
With industrial energy costs soaring and refrigerated volume demanding up to 5x more power per cubic meter than ambient facilities, high-density gravity pallet flow is replacing wide-aisle configurations in grocery cold storage. Procurement trends emphasize non-lubricated stainless ball bearings, low-viscosity synthetic oils, and hot-dip galvanized structural profiles that withstand frost thaw-cycles without embrittlement.
3. IoT Dynamic Speed & Health Monitoring
The next evolution in dynamic material handling integrates self-powered kinetic sensors within the speed controller drums. These modules transmit real-time telemetry to the warehouse management system (WMS), alerting facilities to roller bearing fatigue, improper pallet bottom deflections, localized track blockages, or unapproved pallet speed spikes before accidents occur.
End-to-End Precision Manufacturing Lifecycle
From certified raw coil unrolling to containerized maritime shipping, our 10-step proprietary manufacturing process guarantees structural integrity across every manufactured bay.
Steel Coil Verification
Spectrographic metallurgical chemical verification and micrometer thickness checks on all incoming Q235B/Q355B coils.
Precision Slitting & Cutting
Automated high-speed decoiling and precision edge slitting into specified upright and beam blank widths.
CNC Punching Line
Continuous hydraulic CNC punch pressing for exact 50mm / 75mm pitch diamond and teardrop connector patterns.
Continuous Roll-Forming
Advanced cold-roll profiling stands producing omega uprights and interlocking step beams with minimum internal stress.
Robotic Shielded Welding
Automated multi-axis robotic CO2/MIG welding for connector brackets, dynamic flow frame beds, and baseplate gussets.
Pickling & Phosphating
Immersion pre-treatment stripping surface mill scale and laying a crystalline zinc phosphate corrosion barrier.
Electrostatic Powder Coat
Application of lead-free, non-toxic epoxy polyester powder creating an ultra-durable 60–80 micron protective shell.
Curing & Dynamic Testing
Convection bake curing at 200°C followed by roller track gravity bed rolling resistance and brake load verification.
Frequently Asked Questions for Industrial Buyers & Engineers
In-depth structural and commercial guidance addressing common technical, regulatory, and mechanical challenges in gravity flow rack procurement.
