Heavy-Duty Adjustable Cantilever Arm Tall Storage Racks
Up to 3,000kg/Arm
Bar & Pipe Storage
H-Section Steel
Explore System
Engineered Tall Warehouse Shelving Product Line
Precision-engineered high-reach configurations fabricated from certified high-tensile Q235B and Q355B cold-rolled structural steel. Fully customizable clear heights up to 16 meters with bespoke slot-hole pitch configurations.

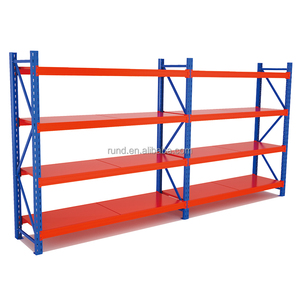

5-Layer Metallic Industrial Tall Storage Shelving Units
500-1500kg/Shelf
Custom Bay Sizes
Anti-Abrasion
Explore System
Modular Boltless Rivet High-Rise Metal Storage Racking
Boltless Interlock
250kg UDL
Fast Setup
Explore System

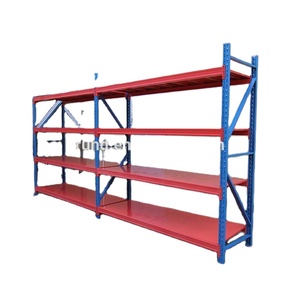

Medium-Duty 300kg Interlocking Industrial Metal Shelving
300kg Capacity
Cold-Bend Profile
Dual Bracing
Explore System

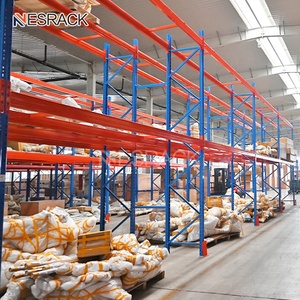

Selective High-Bay Structural Pallet Racking Framework
100% SKU Access
4500kg/Pair Beams
Omega Column
Explore System
Anti-Rust Industrial Phosphated Tall Steel Storage Bays
Outdoor / Cold-Room
Powder-Coated
Pickled Pre-Wash
Explore System
10-15m Ultra-Tall Logistics Center Automated Beam Racks
Up to 15m Uprights
VNA Compatible
Seismic Design
Explore System
6-Tier Powder-Coated Extra-Tall Fulfillment Shelf Units
6 Adjustable Levels
High-Speed Picking
Bespoke Colors
Explore System
Require a Custom High-Bay Architectural Layout & Static Calculation?
Our engineering design desk provides complimentary 2D CAD floor plans, full 3D spatial volumetric visualizations, and FEA-validated load capacity schedules within 24 hours.
Engineering Authority: Structural Metallurgy & Design Criteria
Tall warehouse shelving is governed by severe axial load dynamics, seismic resonance, and sway deflection limitations. Learn how HEDA Shelves addresses the key engineering demands of high-bay installations.
High-Grade Cold-Rolled Coils
Manufactured using certified Q235B and Q355B structural steel with tensile yield thresholds up to 355 MPa. Verified raw chemical composition ensures ductile toughness, weld integrity, and resistance against cold-store embrittlement down to -30°C.
Continuous Omega Form Factor
Our continuous automated roll-forming line yields upright profiles with up to 13 mechanical bends. This profile increases torsional stiffness and the column's radius of gyration, lowering buckling risk on spans up to 16 meters without mid-splice weakness.
Stringent Deflection Compliance
Fabricated strictly under EN 15512:2020, RMI ANSI MH16.1, and AS 4084 standards. Main beam members maintain a vertical deflection limit smaller than L/200 under nominal safe working load (SWL), eliminating dynamic bounce and fatigue failure.
| Structural System Profile | Standard Height Reach | Rated Bay Capacity | Primary Application Segment | International Compliance Standards |
|---|---|---|---|---|
| Selective Tall Pallet Racks | 6.0m – 14.5m | Up to 24,000 kg UDL | 3PL hubs, distribution centers, retail FMCG | ✓ EN 15512 / ISO 9001 |
| VNA (Very Narrow Aisle) Racking | 8.0m – 16.0m | Up to 28,000 kg UDL | High-density logistics, high land-cost zones | ✓ FEM 10.2.02 / CE Marked |
| Rack-Supported Multi-Tier Mezzanine | 4.5m – 10.5m | 300 – 1,000 kg/m² | E-commerce manual order picking, split-case hubs | ✓ ANSI MH16.1 / RoHS |
| Heavy-Duty Cantilever Towers | 4.0m – 9.0m | Up to 3,000 kg/arm | Extrusions, structural timber, steel piping, rebar | ✓ AS 4084 / CE Certified |
| Industrial Boltless Tall Longspan | 2.0m – 5.0m | 200 – 600 kg/level | Automotive spares, hardware depots, carton archive | ✓ ISO 14001 / EN 15620 |
Future Procurement Trends: What Global Supply Chains Must Anticipate
Warehousing operations are shifting from basic static pallet holders to dynamic, high-bay structural backbones. Consider these major market trajectories before issuing your next tender.
AS/RS & AMR Compatibility
Modern tall warehousing specifies tight structural tolerances (FEM class 100/200) to support automated shuttle vehicles, stacker cranes, and autonomous mobile robot interfaces with millimeter-grade repeatability.
Cubic Footprint Densification
Skyrocketing industrial rents in regions like the GCC, Western Europe, and North America favor vertical heights exceeding 12m over horizontal expansion. This reduces construction footprint while doubling total pallet positions.
Pre-Treatment & Anti-Corrosion
Standard solvent coatings are being replaced by acid pickling, multi-stage phosphating, and nano-ceramic electrostatic thermoset coatings. This preserves steel in high humidity, coastal fog, and deep-freeze facilities.
Traceable ESG Steel Sourcing
Tier-1 procurement teams require verified low-carbon steel processing, automated plasma-cut nesting to limit scrap rates below 2.5%, and recyclable heavy-gauge packaging materials for overseas container delivery.
Engineering Fact: Overcoming Progressive Collapse in High-Bay Bays
When racking heights exceed 8 meters, horizontal and longitudinal frame bracing must be dynamically calculated to absorb eccentric fork impact loads. At HEDA Shelves, we integrate cold-formed box-channel connectors with 4 or 5 locking pins and secondary M10 locking pins. This stops upright dislocation during accidental high-velocity pallet impacts.
End-to-End OEM/ODM Manufacturing: The 10-Stage Precision Pipeline
Quality and reliability come from in-house control. From prime coil slit processing to automated container loading, here is how our Guangzhou facility builds tall industrial shelving systems.
01-03
Steel Prep & CNC Punching
Raw Q235B/Q355B coils undergo metallurgical ultrasonic testing, continuous CNC high-speed web hole punching (50mm/75mm slot pitch), and automated shearing.
04-06
Cold Forming & Robotic Welding
Multi-station roll-forming lines shape the closed omega section uprights. Robot welding cells join interlocking beam connectors with zero spatter and deep penetration welds.
07-08
Acid Pickling & Phosphating
Components pass through industrial pickling and phosphating wash lines to remove scale and form an anti-oxidation layer, ensuring primer and powder adhesion.
09-10
Powder Coating & QC Packing
Electrostatic powder coating lines cure finishes at 200°C for high impact strength. Bundles are then barcoded and packed to match project assembly blueprints.
Why Partner With HEDA Shelves: Manufacturer Advantages
Direct access to the original equipment manufacturer delivers lower unit costs, custom structural profiles, and technical accountability from tender layout to final commissioning.
Direct Factory Scale
Operating a dedicated 30,000 square meter production facility in Guangzhou with over 300 experienced technicians. Our 30,000-ton monthly capacity guarantees steady lead times even during large multi-thousand-bay rollouts.
Free 2D CAD & 3D Modeling
Avoid expensive site clashes. Our in-house structural engineers evaluate aisle turning radii, reach truck masts, and Civil Defense fire flue requirements to provide validated design plans before production begins.
Global Supply Chain Support
Over 10,000 warehouse projects completed across 120+ nations, including key GCC hubs (Jebel Ali, Dammam, Jeddah, Hamad Port). Every consignment features weather-wrapped sea-freight bundling to prevent shipping damage.
CE Certified: 2435-CPR-8605159
ISO 9001:2015 Registered
RoHS Chemical Compliance
EN 15512 Racking Testing Passed
Frequently Asked Questions: Procurement & Technical Engineering
Direct, technical answers addressing the critical requirements of project estimators, supply chain managers, and warehouse operations heads.
What are the key structural factors when engineering tall shelving over 8 meters?
For installations over 8 meters, the primary considerations are second-order sway displacement (P-Delta effects), upright column buckling strength, baseplate anchor shear capacity, and floor slab point loading. We calculate frame slenderness ratios, apply heavier omega section walls (up to 2.5mm or 3.0mm thickness), and add reinforced vertical and plan bracing systems. Floor flatness tolerances (e.g., DIN 18202 or TR34 Superflat specifications) are also checked to prevent high-mast reach truck mast oscillation.
How does HEDA Shelves support local Civil Defense and fire authority compliance?
Our engineering design team details transverse and longitudinal flue spaces (typically 75mm to 150mm clear gap between pallet loads) to maintain fire sprinkler coverage per NFPA 13 rules. Our submittal packages include detailed CAD layouts with marked aisle dimensions, egress clearances, pallet weight classifications, and structural warning load notices suitable for municipal engineering submissions.
Can beam heights and bay configurations be adjusted after initial commissioning?
Yes. Upright frames feature continuous CNC-punched slot perforations on 50mm or 75mm pitch centers. This lets operators unhook connectors and relocate beam levels with standard tools as pallet profiles change. Each system includes heavy-gauge safety locking pins to secure beams against accidental dislodgment from pallet forks.
What anti-corrosion protection is applied for high-humidity or cold-chain facilities?
Before powder application, our steel components undergo multi-stage immersion pickling to remove surface scale, followed by chemical phosphating to deposit a protective zinc-iron crystalline primer layer. We then apply an electrostatic thermoset epoxy-polyester coating baked at 200°C. For aggressive environments—such as marine yards or wet chemical processing—we provide optional pre-galvanized or hot-dip galvanized finishes meeting ISO 1461 standards.
What is your typical production lead time and export packing protocol?
Standard OEM project runs take roughly 15 to 25 business days, depending on overall tonnage and custom color requirements. Beams, braces, and upright columns are packaged in heavy-gauge steel-banded bundles with timber dunnage and protective corner wrappers. Upright frames can ship knock-down (bolted assembly on-site) or fully welded, maximizing ocean container space and minimizing port logistics costs.
Do you provide structural calculations and third-party testing reports?
Yes. Full static stress-strain calculation summaries, load tolerance certifications, and raw steel mill certificates (covering yield, tensile strength, and elongation) accompany each batch. Third-party testing certifications by SGS, TÜV, or Bureau Veritas can be supplied to satisfy tender documentation requirements.
Connect Directly With Our Senior Racking Design Engineers
Send your building dimensions, pallet load matrix, and handling truck specifications. We will deliver an optimized structural proposal, comprehensive price breakdown, and free 3D simulation model.
